Lippert 12K Triple-Axle Electric Brake & Hub-Drum Kit � 12.25? � 5? Self-Adjusting, 8-on-6.5 Pattern, 5/8? Studs � Dexter / Alko Compatible (6 Hubs / 6 Brakes)
$4,054.99
Lippert 12K Triple-Axle Electric Brake & Hub-Drum Kit
Refresh all three axles in one shot with this genuine Lippert bundle. Six forward self-adjusting electric brakes pair with matching hub-drums to deliver stronger, more consistent stopping power for 12,000-lb trailer axles. Installation is DIY-friendly and maintenance is minimal—perfect for haulers who demand reliability mile after mile.

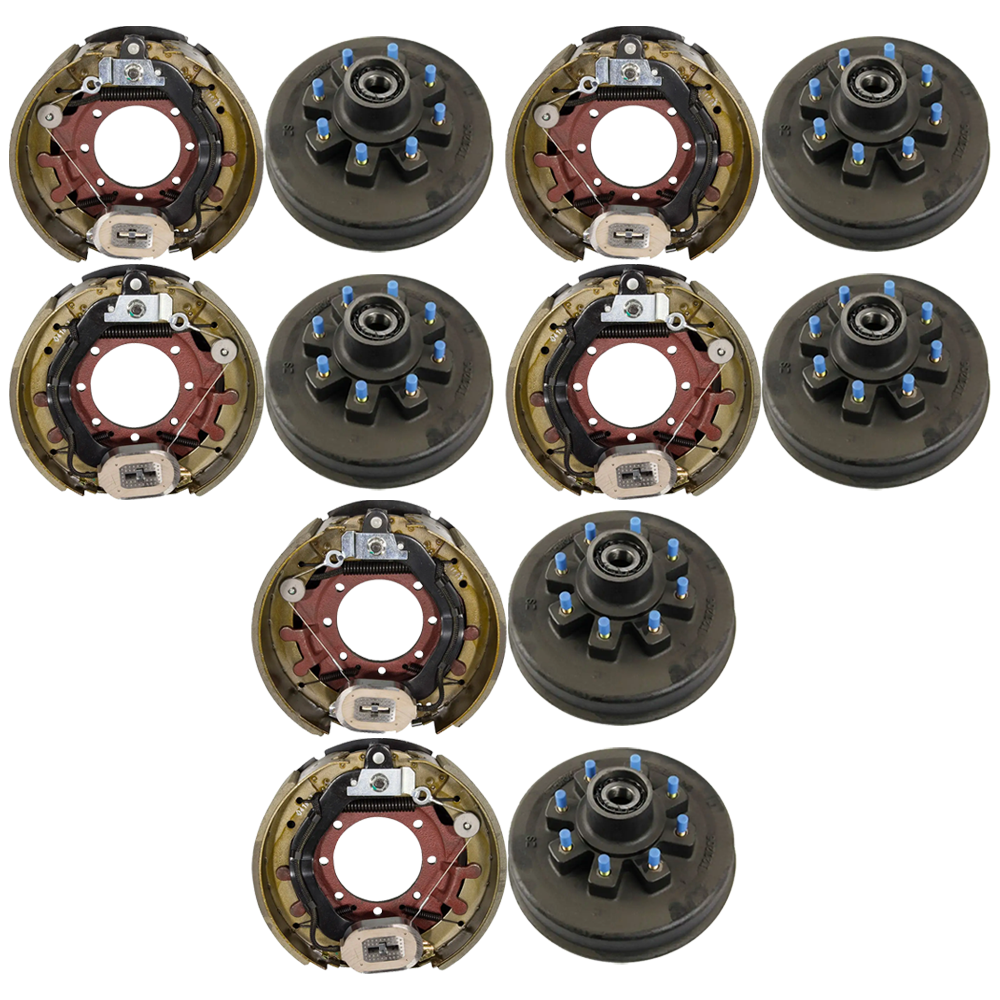

Bundle Contents:
-

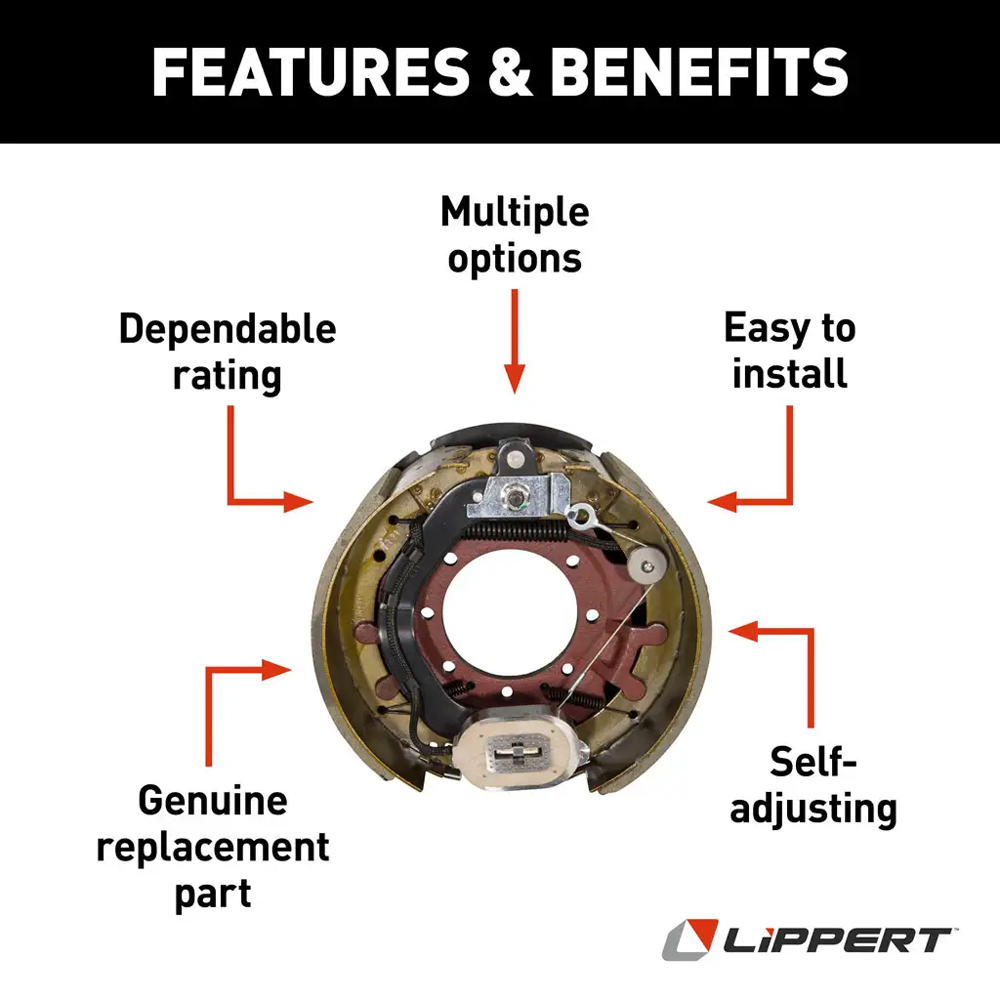

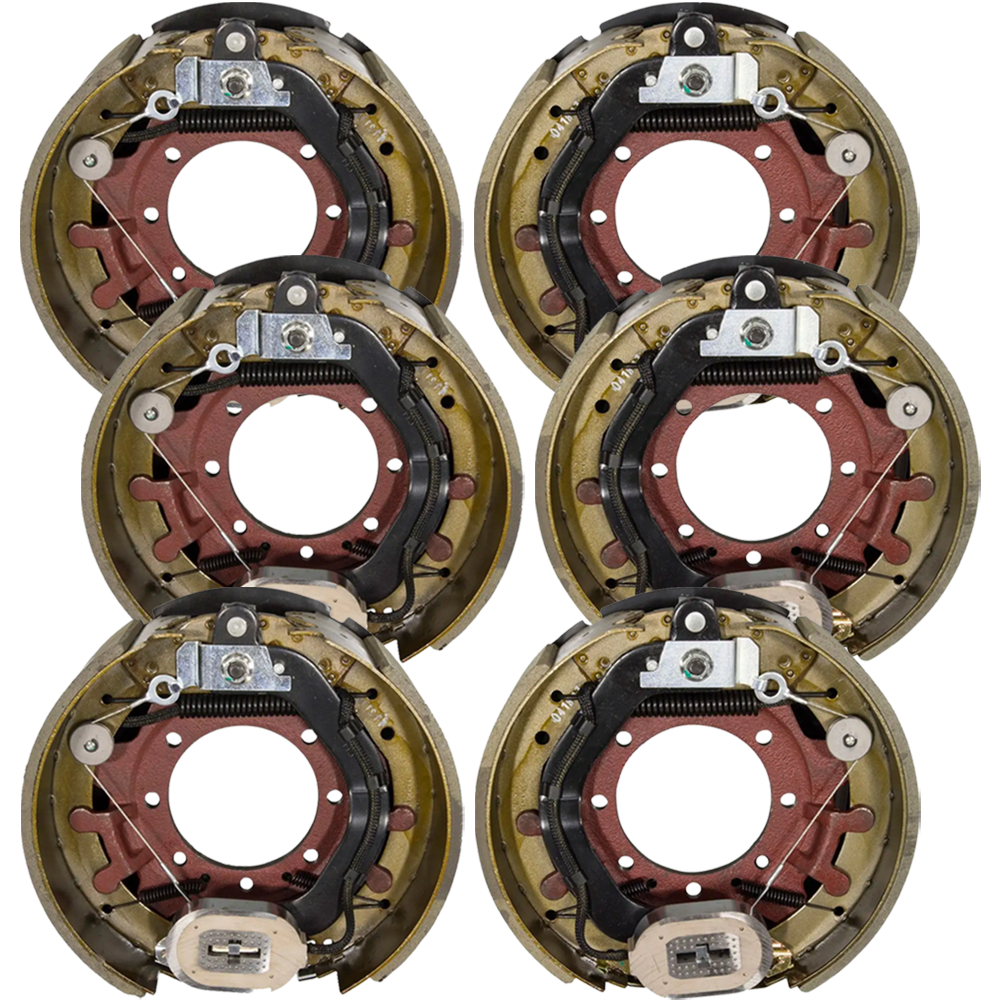

QTY (3): Lippert Electric Trailer Brake Assembly – 12.25″ × 5″, 12K lbs (Left-Hand)
- Forward self-adjusting with parking feature
- Road-side/driver-side, 7-bolt mount
- Fits 16–17.5″ wheels; 12K axle rating
- Break-in period required for full performance
-

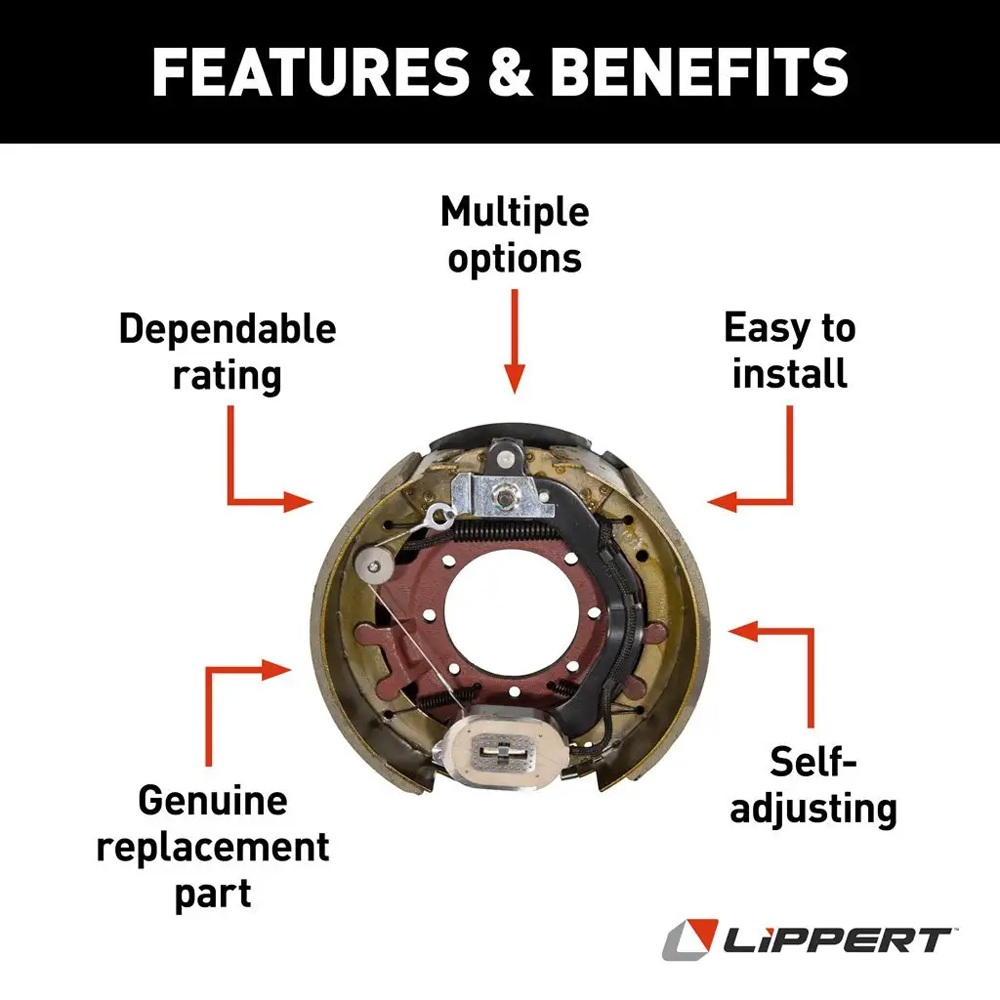

QTY (3): Lippert Electric Trailer Brake Assembly – 12.25″ × 5″, 12K lbs (Right-Hand)
- Forward self-adjusting with parking feature
- Curb-side/passenger-side, 7-bolt mount
- Fits 16–17.5″ wheels; 12K axle rating
- Break-in period required for full performance
-

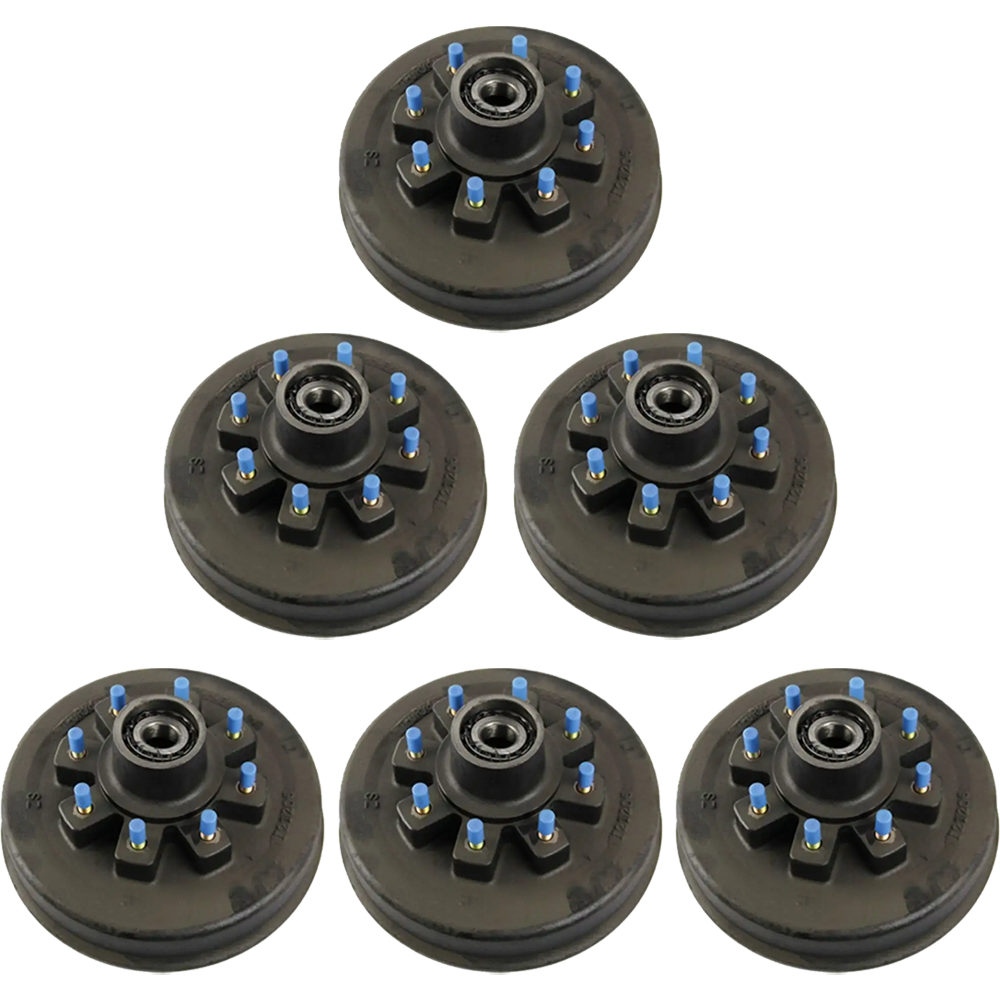

QTY (6): Lippert Brake Drum Hub Assembly – 12.25″ × 5″, 8-on-6.5″, 5/8″ Stud
- Grey-iron hub-drum with pre-installed races & studs
- 8 on 6.5″ bolt pattern, 4.75″ hub pilot
- Fits 16″ dual or 17.5″ single wheels
- 1-year limited warranty
Verify your original axle specs and perform routine brake inspections to keep your trailer safe and road-ready.
| Specifications: | |
|---|---|
| Kit Type | Complete Electric Brake & Hub-Drum Kit |
| Axle Configuration | Triple (6 hubs / 6 brakes) |
| Axle Rating | 12,000 lbs per axle |
| Brake Drum Dimensions | 12.25″ × 5″ |
| Brake Mounting Pattern | 7-bolt |
| Hub Bolt Pattern | 8 on 6.5″ |
| Hub Type | Hub with Integrated Drum |
| Stud Size | 5/8″ |
| Type of Adjustment | Forward Self-Adjusting |
| Brake Location | Left & Right (Roadside & Curbside) |
| Wheel Size Compatibility | 16″ dual / 17.5″ single |
Order today or call us at 877-869-6690 for expert advice and personalized service.
