Lippert?16K?LH?12?1/4?�?5?7?Bolt?Electric?Brake?&?Threaded?Hub?8?on?275?mm?M22?Studs � Dexter/Al?Ko/Rockwell Compatible
$608.99

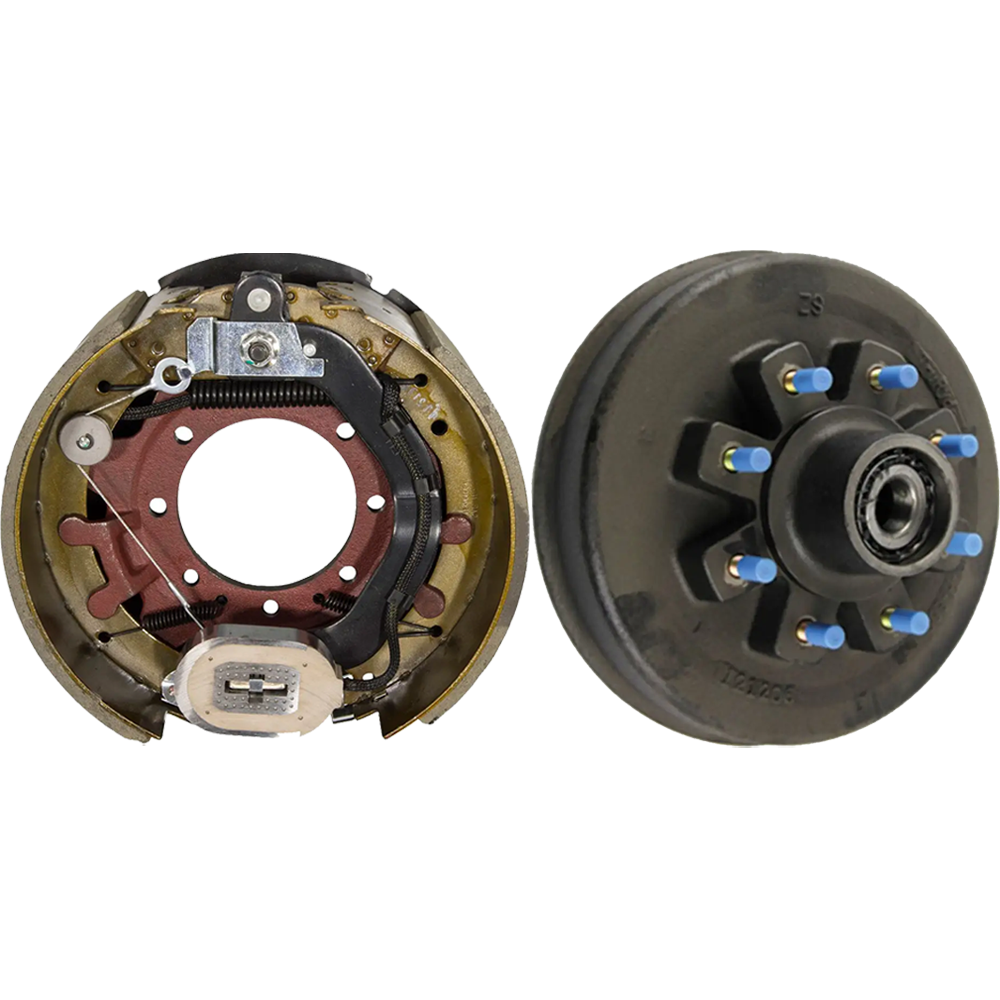

Lippert 16K Left‑Hand Electric Brake & Threaded Hub Bundle
Refresh your heavy‑duty trailer axle with this genuine Lippert kit. It pairs a forward self‑adjusting 12‑1/4" × 5" driver‑side electric brake with a durable threaded hub/drum so you get shorter stopping distances, easy installation, and dependable performance on 16,000‑lb axles.
Bundle Contents:
-

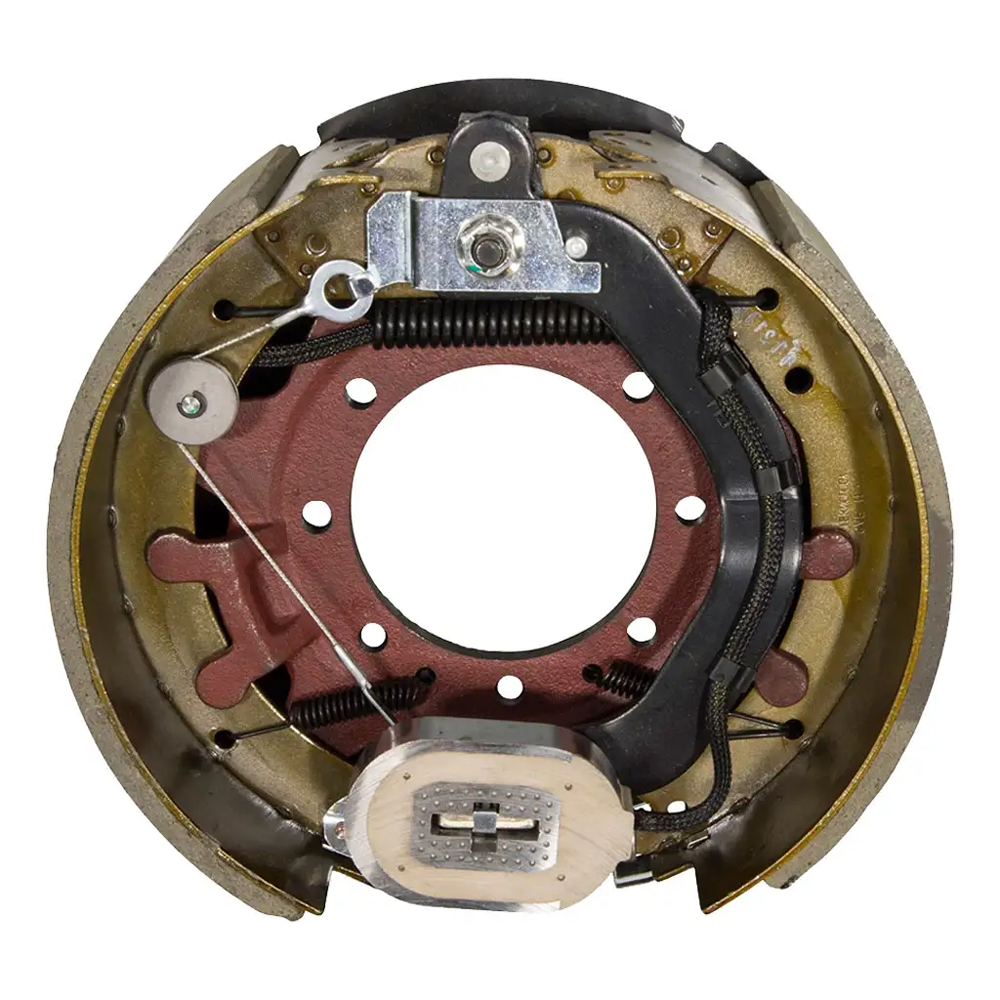

QTY (1): Forward Self‑Adjusting Brake – 12‑1/4" × 5", Driver‑Side, 12‑16K, 7‑Bolt
- Genuine Lippert replacement assembly
- Dexter Compatible Part Number: K23‑442‑00 | 023‑442‑00
- Self‑adjusts on every forward stop (up to 50 % better braking distance)
- Fits 12,000 – 16,000 lb axles
- Seven‑bolt mounting flange (hardware not included)
- Electric actuation—no hydraulic lines to service
- Universally compatible with Dexter, Al‑Ko & Rockwell
-

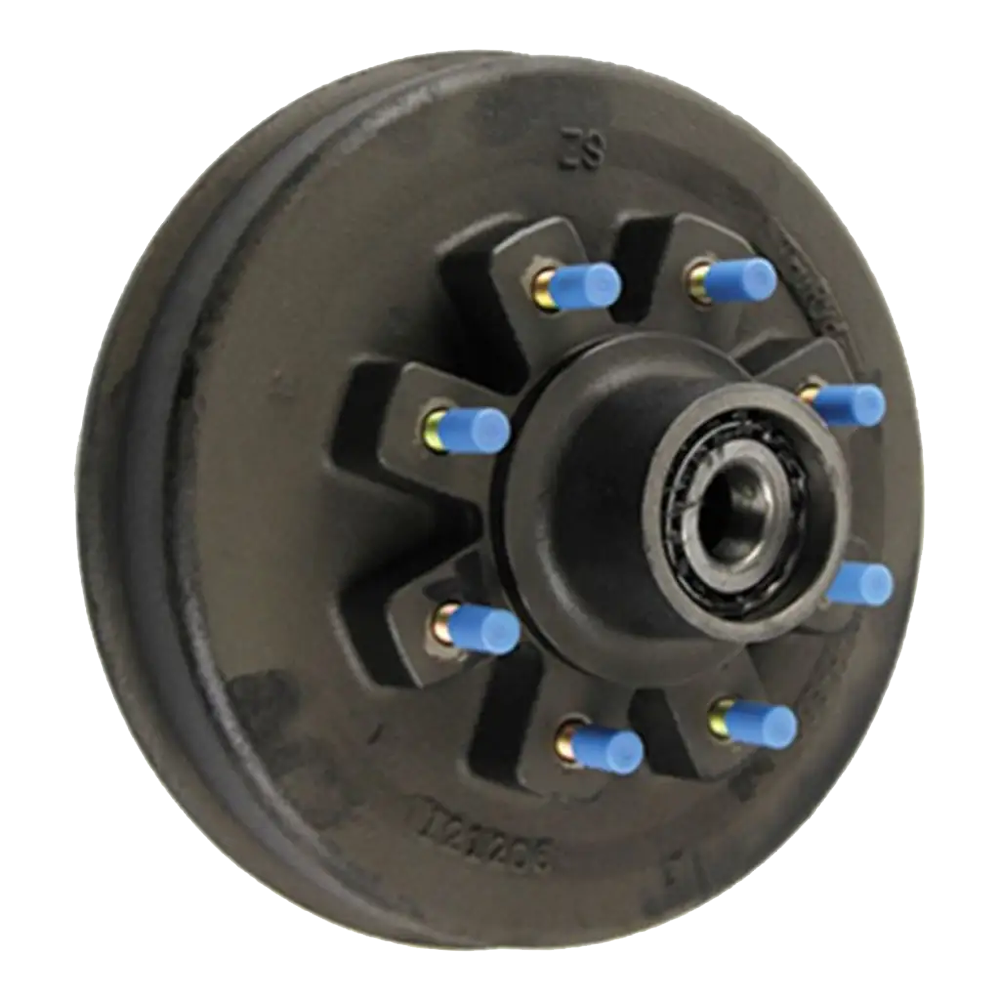

QTY (1): 12‑1/4" Threaded Trailer Brake Hub – 16K, 8 on 275 mm, M22 Studs
- Threaded hub/drum for 16,000 lb axles
- 8 on 275 mm bolt circle—fits 17‑1/2" wheels
- Races and M22 wheel studs come pre‑installed
- Accepts Valcrum threaded dust caps (sold separately)
- Durable cast‑iron construction backed by 1‑year warranty
- Compatible with Lippert, Dexter, Al‑Ko & Rockwell systems
Always verify axle rating, mounting pattern, and wheel size before ordering, and perform routine inspections and lubrication per manufacturer guidelines.
| Specifications: | |
|---|---|
| Kit Type | Electric Brake & Threaded Hub Kit |
| Axle Rating | 16,000 lbs |
| Brake Drum Dimensions | 12‑1/4" × 5" |
| Brake Location | Left / Driver‑Side |
| Brake Mounting Pattern | 7‑Bolt |
| Hub Type | Threaded Hub with Integrated Drum |
| Hub Bolt Pattern | 8 on 275 mm |
| Stud Size | M22 × 1.5 |
| Type of Adjustment | Forward Self‑Adjusting |
| Wheel Size Compatibility | 17‑1/2" wheel |
| Compatible Brands | Lippert, Dexter, Al‑Ko, Rockwell |
Product image for reference only — minor cosmetic details (casting style, cap color, stud protectors, packaging) may vary between production runs. All items ship to the exact specifications listed.
