Lippert 16K Quad-Axle Electric Self-Adjust Brake & 8-on-275 Hub/Drum Kit � 12-�? � 5? � Compatible w/ Dexter, Al-Ko, Rockwell, Quality Axles

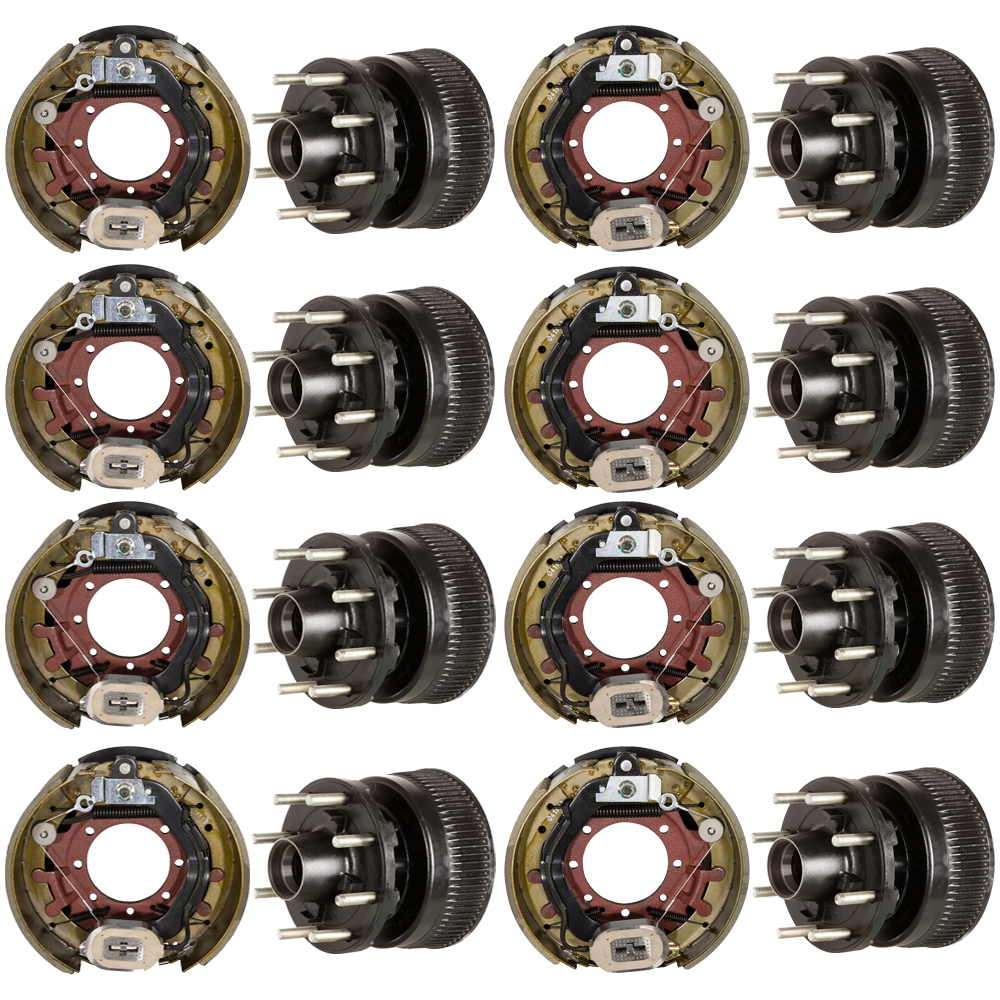

Lippert 16K Quad-Axle Electric Brake & Hub/Drum Bundle – 8 Complete Wheel-Ends

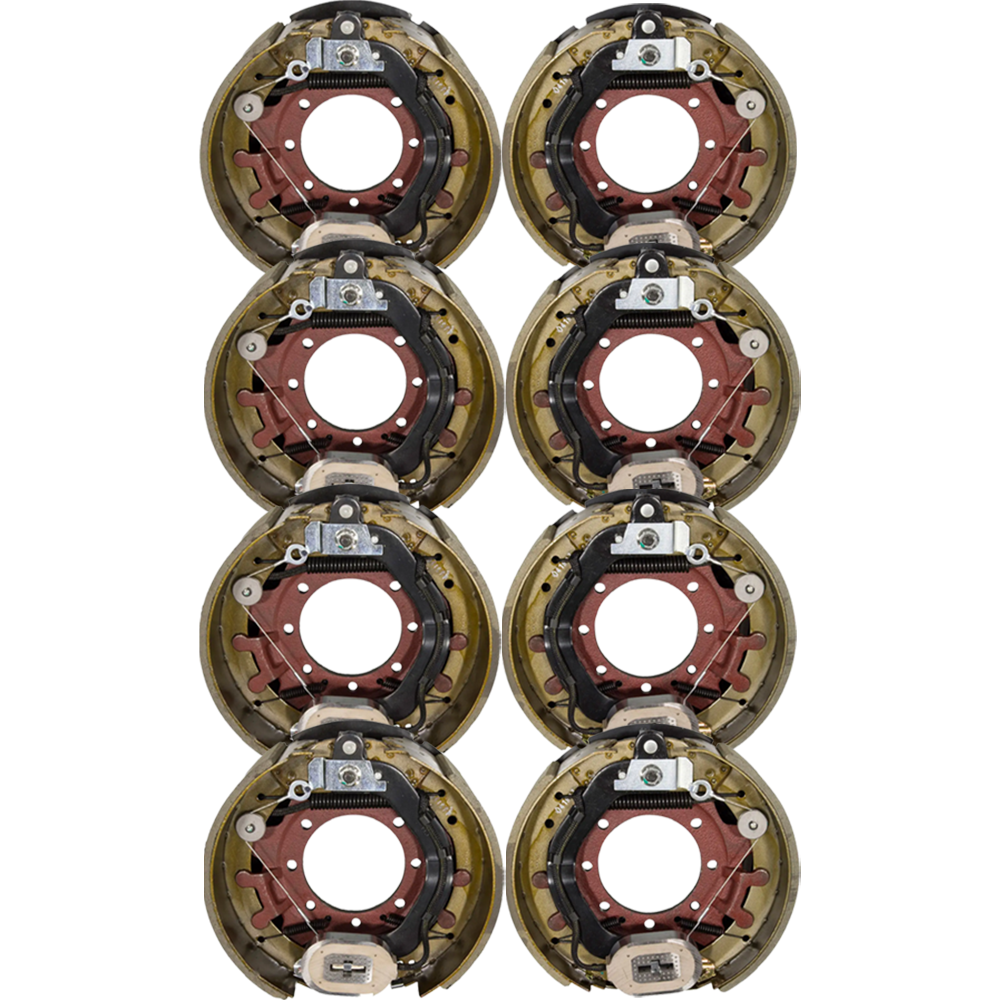

Service or upgrade your heavy-duty trailer with one convenient package. This Lippert bundle supplies four left-hand and four right-hand 12-¼″ × 5″ forward self-adjusting electric brakes plus eight grey-iron hub/drums drilled 8 on 275 mm. Rated for 16,000-lb axles and 17.5″ dual wheels, the kit delivers sure stopping power, longer component life and fast bolt-on installation.

Bundle Contents:

• QTY (4): 12-¼″ × 5″ Self-Adjust Electric Brake Assembly – Driver/Left, 7-Bolt
  • Rated 12K-16K; Lippert genuine replacement
  • Forward self-adjusting—up to 50 % shorter stopping distance
  • 7-bolt mounting; no hydraulic lines required
  • Reduces magnet & shoe wear for safer travels
  • Dexter-interchangeable pattern
• QTY (4): 12-¼″ × 5″ Self-Adjust Electric Brake Assembly – Passenger/Right, 7-Bolt
  • Identical heavy-duty build for RH side
  • Self-adjusts at every forward stop
  • 16K axle rating; Lippert OEM quality
  • Simple two-wire electric hookup
  • Dexter-compatible mounting

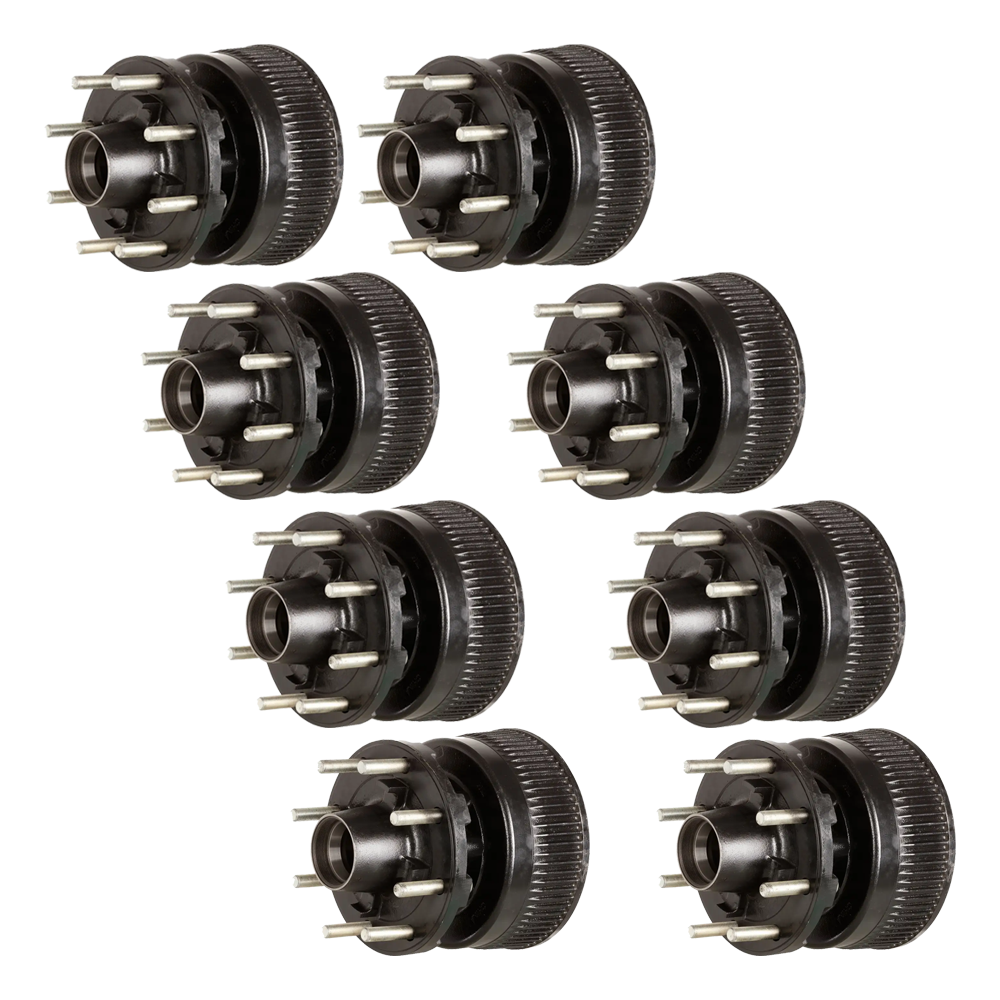

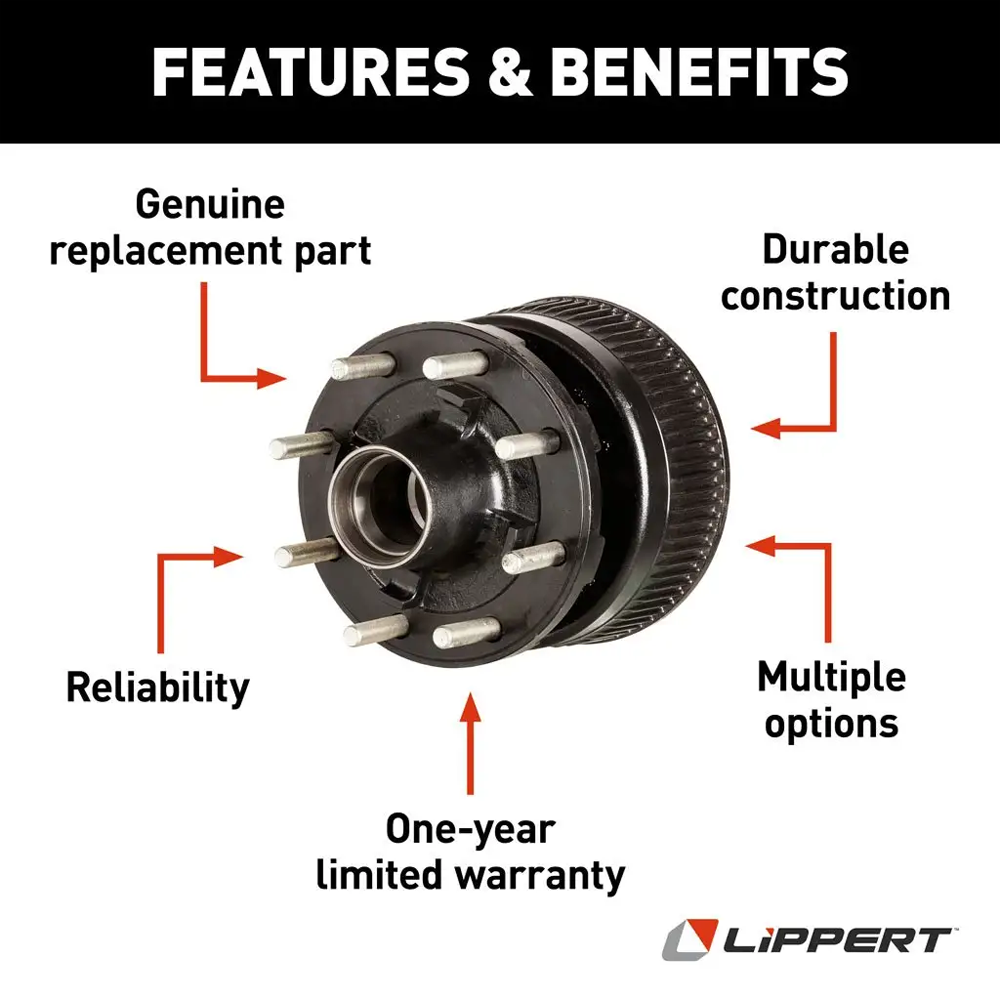

• QTY (8): Hub & Drum Assembly – 8 on 275 mm, 22 mm Stud, 17.5″ Dual
  • Machined grey-iron drum for 12-¼″ × 5″ shoes
  • 8 on 275 mm BC, 221 mm pilot, pre-installed races
  • 22 mm heavy-duty wheel studs
  • 16,000-lb axle rating; 1-year limited warranty
  • Ships ready to grease & install

Always verify bolt pattern, axle rating and component fitment with your original equipment. Inspect brakes, bearings and seals regularly for maximum safety and performance.
