Lippert 16K Tandem Axle Electric Brake & 8-on-275 Hub/Drum Kit – 12-1/4″ × 5″

Upgrade the stopping power on heavy-duty tandem-axle trailers with this complete Lippert bundle. Four forward-self-adjusting 12-1/4″ × 5″ electric brake assemblies pair with matching 8-on-275 mm hub/drums to create a ready-to-install solution for 16,000-lb axles. Pre-installed races, standard 22 mm studs, and automatic adjustment reduce install time and future maintenance.

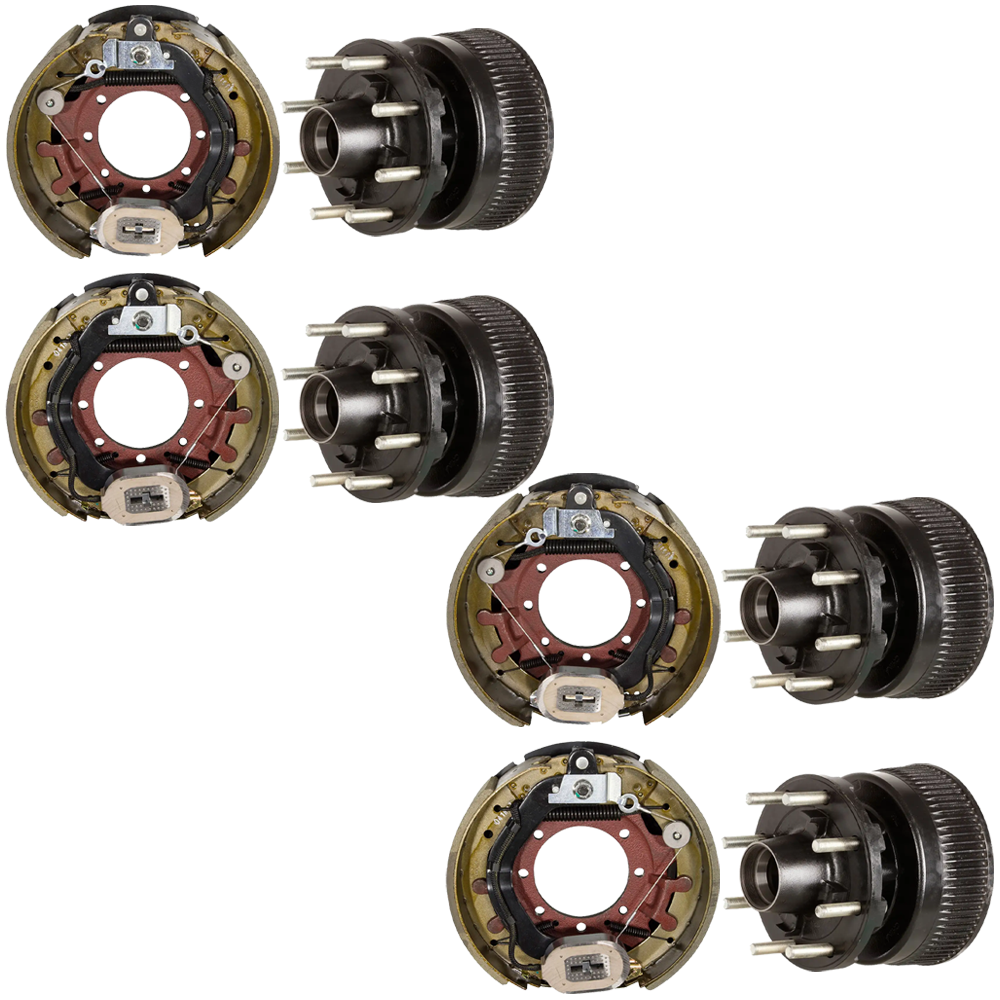

Bundle Contents:

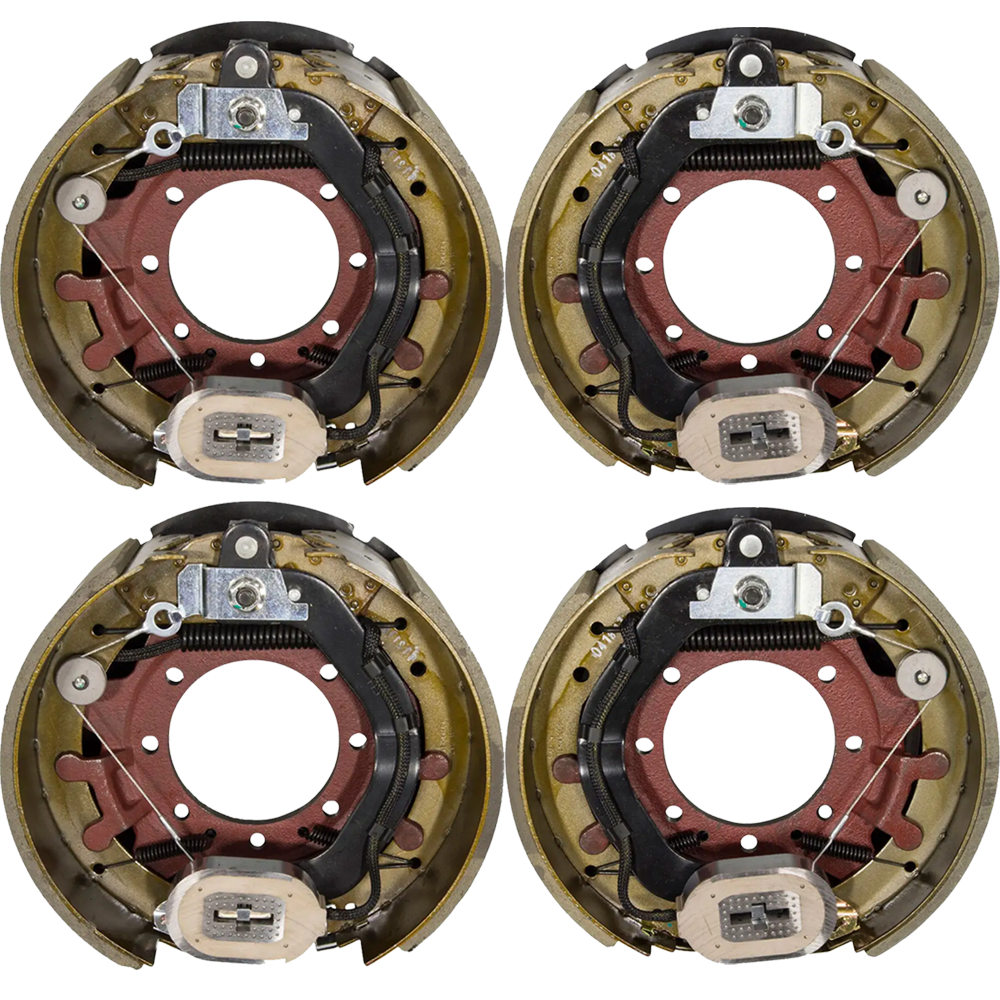

• QTY (2): Forward Self-Adjusting Electric Brake Assembly – Driver/Left, 12-1/4″ × 5″, 12-16K, 7-Bolt
  • Self-adjusts on every forward stop for up to 50 % shorter braking distance
  • Fits 7-bolt mounting flange; replaces Lippert or Dexter
  • Rated for 12K-16K axles; electric actuator sold separately
  • Genuine Lippert OE quality
• QTY (2): Forward Self-Adjusting Electric Brake Assembly – Passenger/Right, 12-1/4″ × 5″, 12-16K, 7-Bolt
  • Identical performance and fit as driver-side unit
  • Automatic shoe adjustment extends service intervals
  • Interchanges with Dexter, Al-Ko, Quality, Rockwell
  • Mounts with supplied 7-bolt pattern

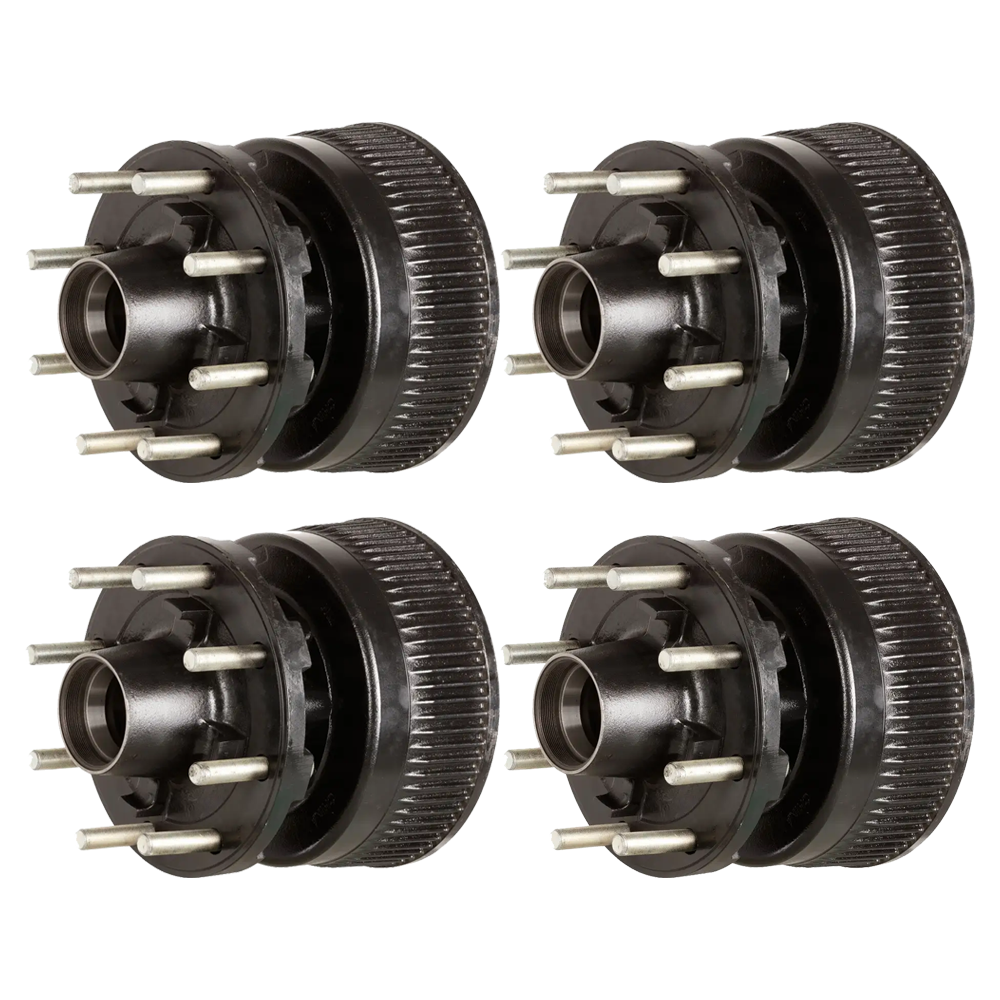

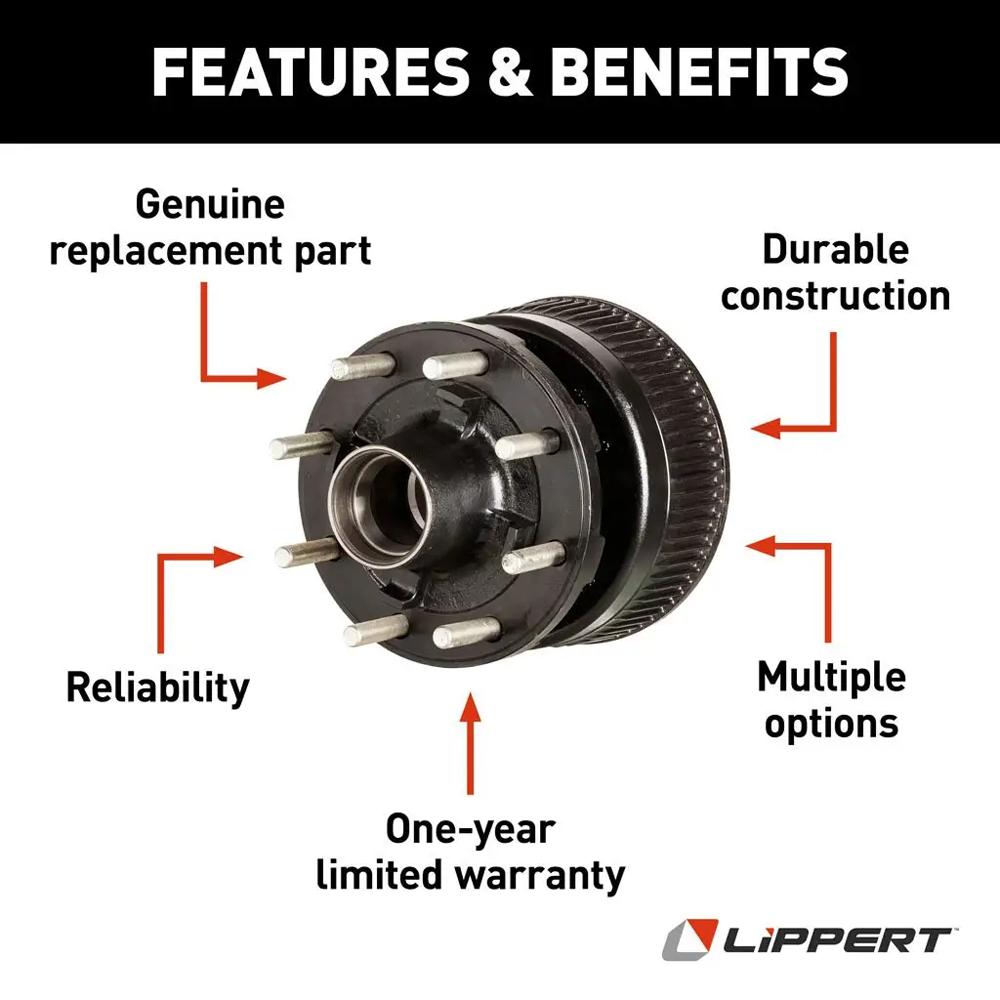

• QTY (4): Lippert Hub/Drum Assembly – 8 on 275 mm, 22 mm Stud, for 16K Axle
  • 8 on 275 mm bolt circle, 221 mm pilot; 22 mm studs installed
  • CNC-machined grey-iron drum mates with 12-1/4″ × 5″ shoes
  • Includes bearing races & studs; ready for seals & bearings
  • One-year limited warranty from Lippert

Please verify original equipment numbers before installation and inspect brakes regularly to ensure safe operation.
