Lippert 16K Triple-Axle Electric Brake & 8-on-275 Hub/Drum Kit � 12-1/4? � 5? Self-Adjusting Assemblies (Dexter, Al-Ko, Rockwell Compatible) � 6 Wheel-Ends

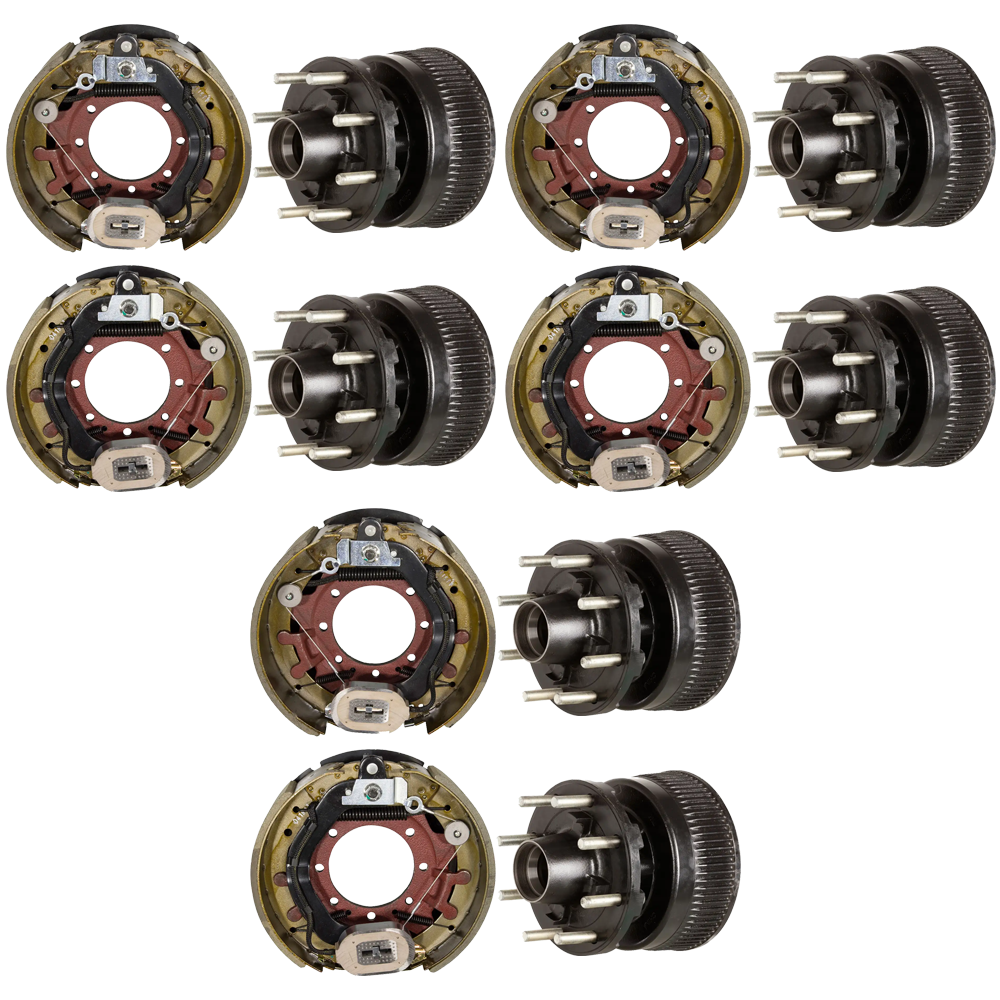

Lippert 16K Triple-Axle Electric Brake & Hub/Drum Bundle

Outfit every wheel-end of your heavy-duty trailer with one comprehensive package. This Lippert bundle pairs forward self-adjusting 12-1/4″ × 5″ electric brakes with rugged 8-on-275 mm hub/drums for all three axles. Rated for 16,000-lb axles and cross-compatible with Dexter, Al-Ko and Rockwell, it delivers powerful, consistent stopping and longer service life with less maintenance.

Bundle Contents:

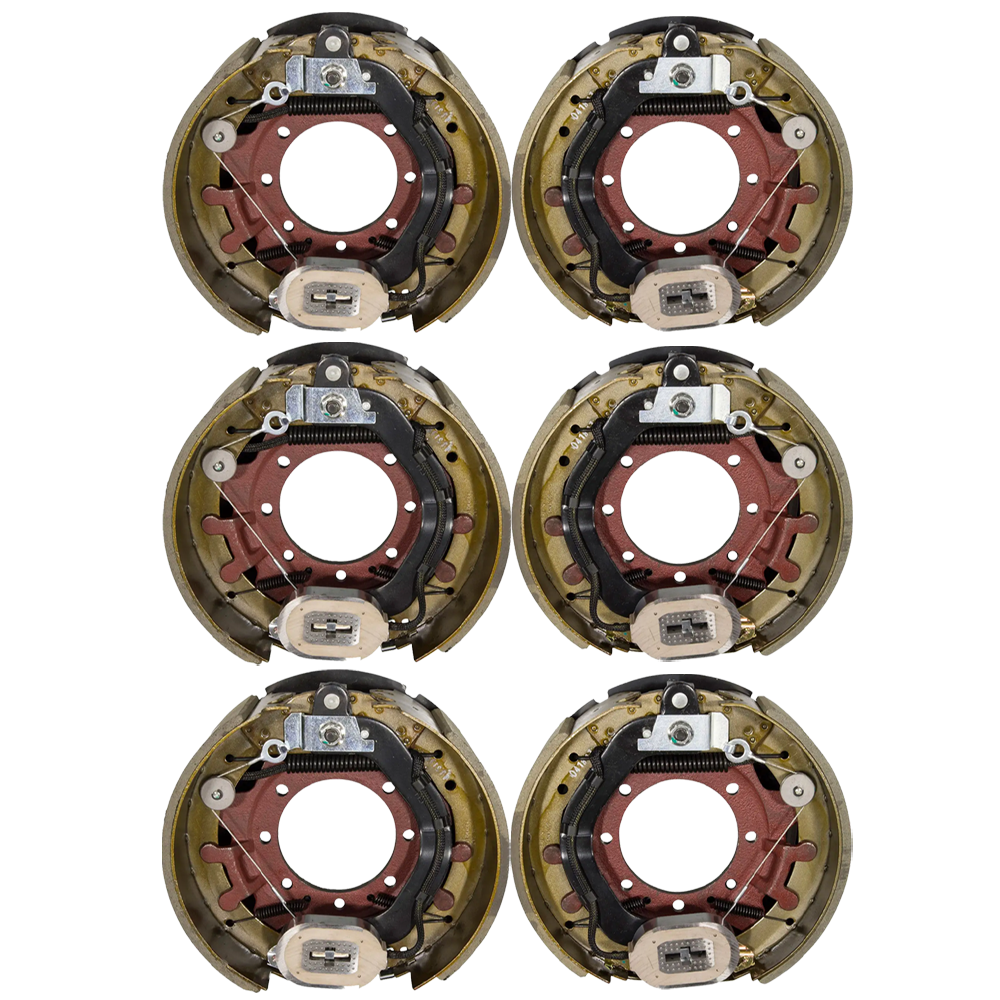

• QTY (3): Forward Self-Adjusting Electric Brake Assembly — Driver-Side, 12-1/4″ × 5″, 7-Bolt
  • Fits 12K–16K Lippert, Dexter, Al-Ko & Rockwell axles
  • Forward self-adjusting design shortens stopping distance
  • 7-bolt brake flange; electric actuation (magnet sold separately)
  • Genuine Lippert OE replacement
• QTY (3): Forward Self-Adjusting Electric Brake Assembly — Passenger-Side, 12-1/4″ × 5″, 7-Bolt
  • Right-hand mirror assembly for 12K–16K axles
  • Self-adjusts on every forward stop for even wear
  • No hydraulic lines—simple bolt-on electric setup
  • Backed by Lippert quality & support

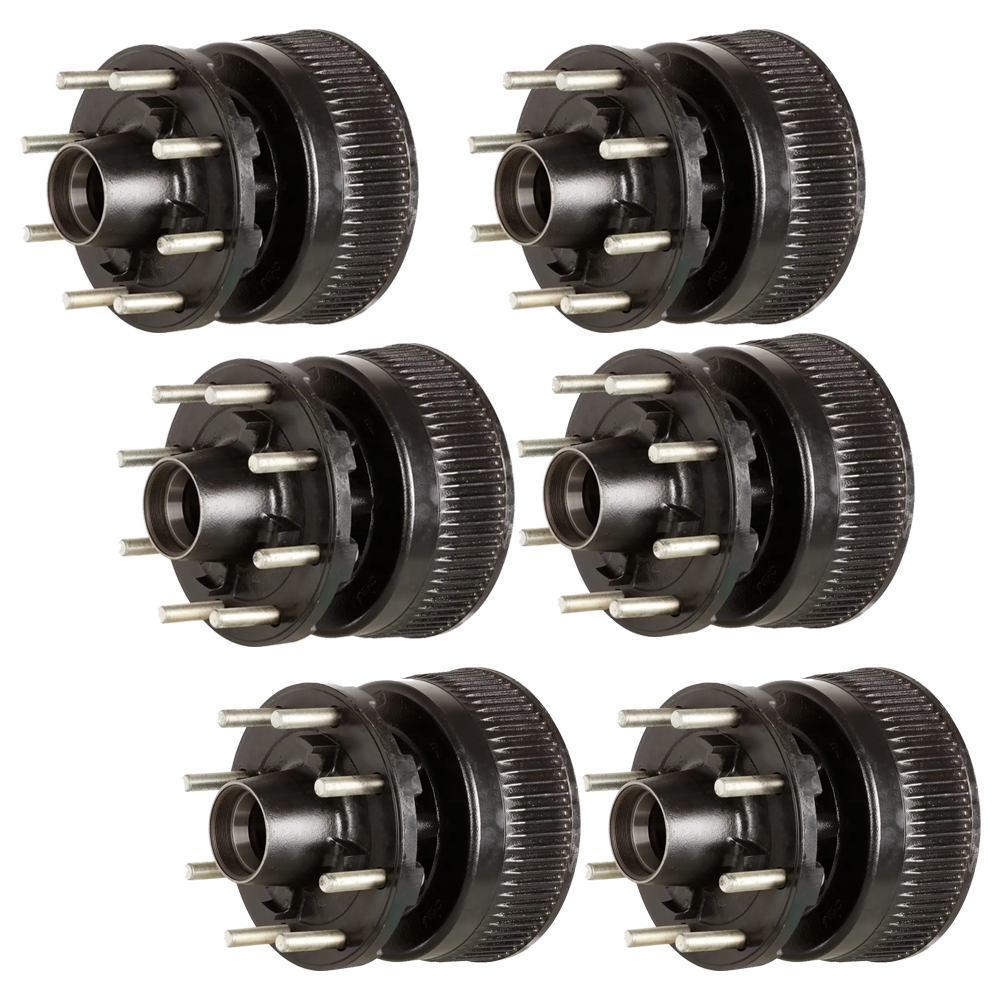

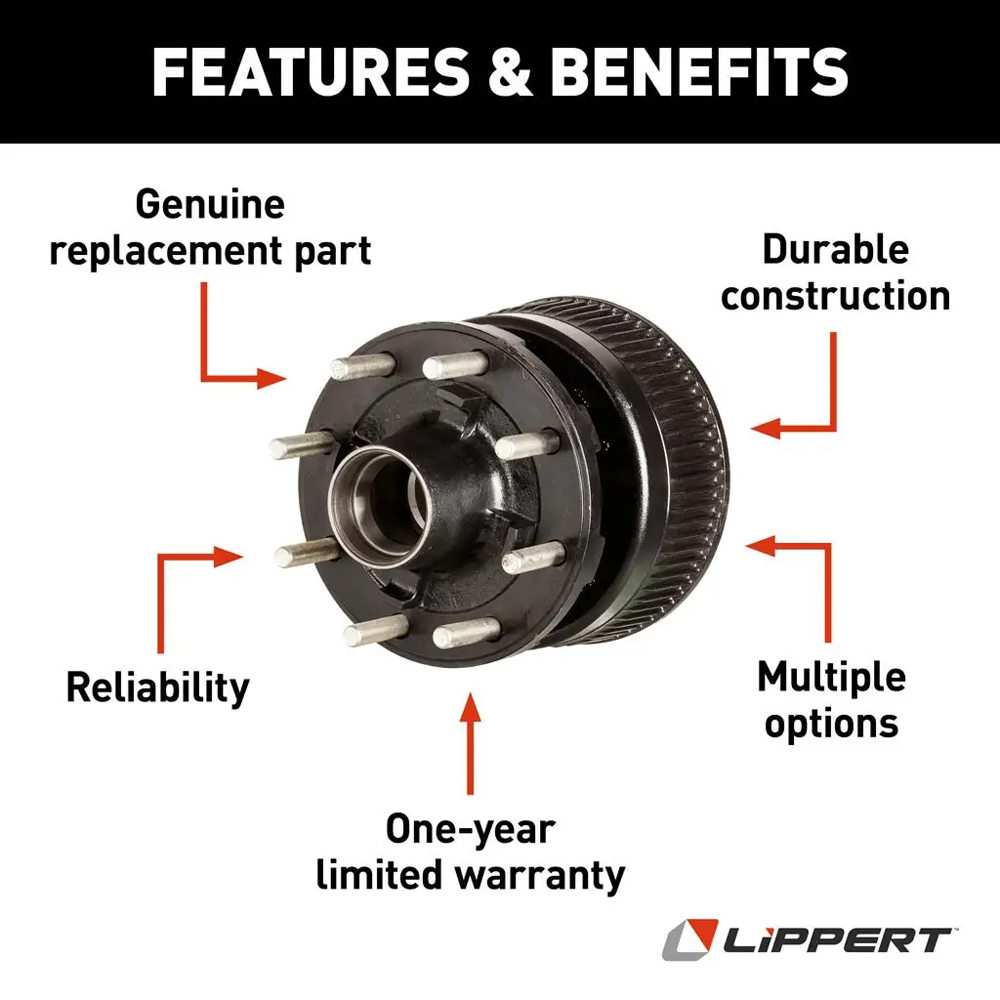

• QTY (6): Brake Drum Hub Assembly — 8 on 275 mm, 22 mm Stud, 16K Axle
  • Grey-iron drum 12-1/4″ × 5″ with races pre-installed
  • 8-lug on 275 mm bolt circle, 221 mm hub pilot
  • 22 mm wheel studs; fits 17.5″ dual wheels
  • Limited 1-year Lippert warranty

Verify your original equipment, torque specs and bearing sizes, and perform routine brake and hub inspections to maximize safety and longevity.
