Lippert 16K Triple-Axle Electric Brake & Threaded 8-on-275 Oil-Bath Hub/Drum Kit with M22 Studs (12-�? � 5?) � Dexter / Alko Compatible
$3,989.99

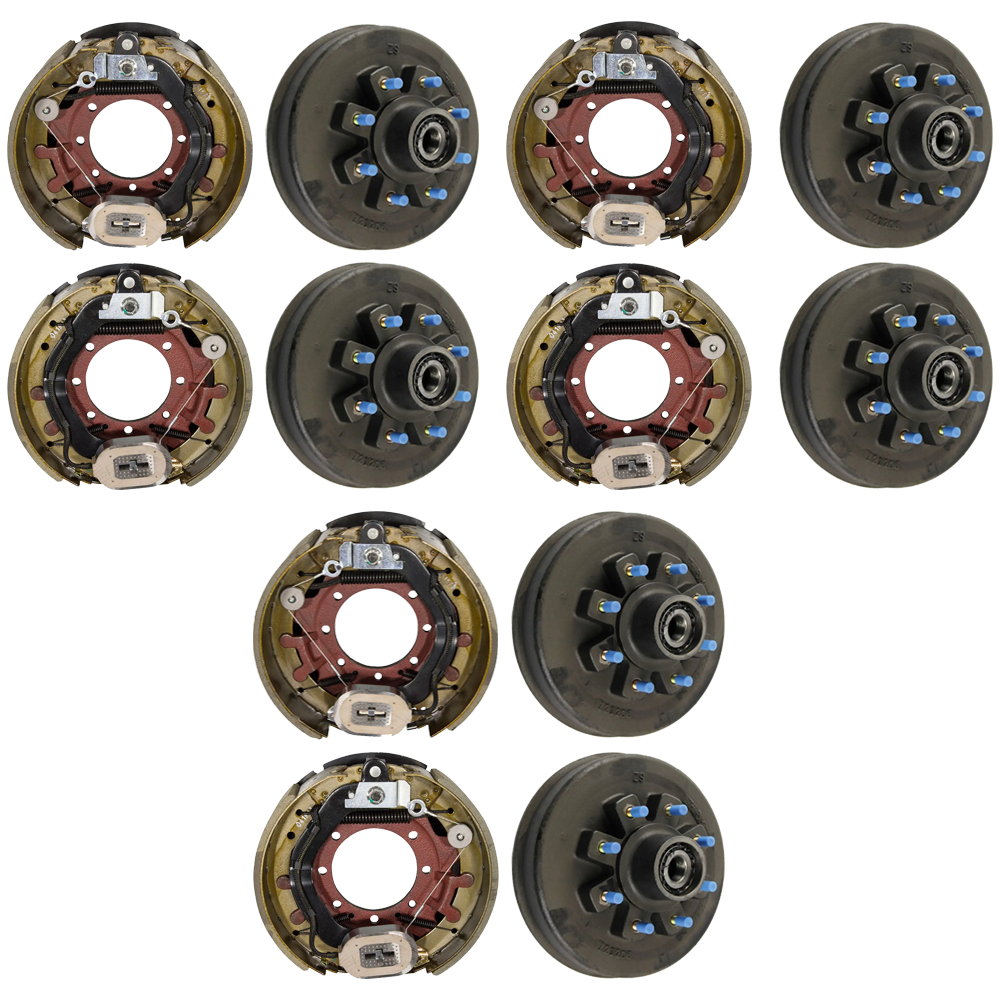

Lippert 16K Triple-Axle Electric Brake & Oil-Bath Hub/Drum Kit
Re-equip three heavy-duty axles in one step. This bundle pairs Lippert’s forward self-adjusting 12-¼″ × 5″ electric brakes with rugged threaded oil-bath hub/drums matched for 16,000-lb axles and an 8-on-275 mm bolt circle—saving you time, money, and downtime.
Bundle Contents:
-

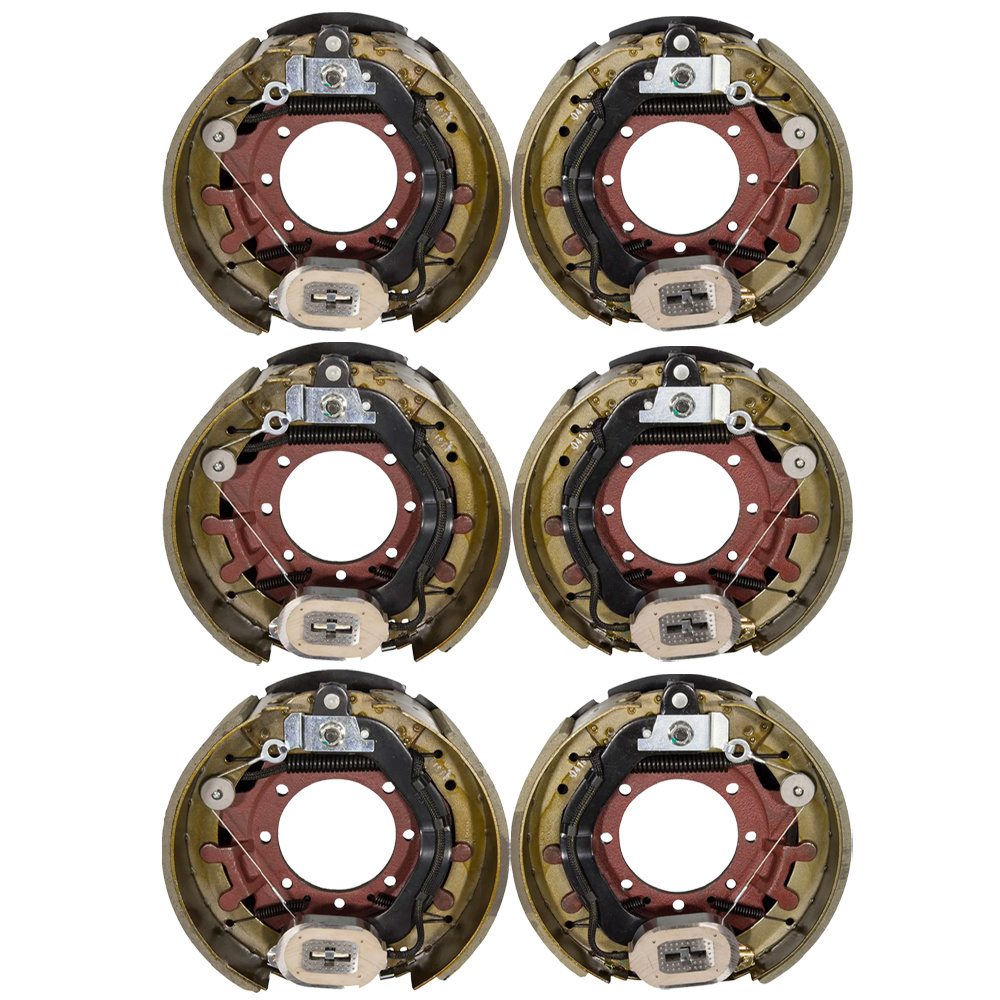

QTY (3): Forward Self-Adjusting Electric Brakes — Driver Side (LH)
- 12-¼″ × 5″ shoe profile
- 7-bolt mounting; fits 12K–16K axles
- Forward self-adjusting for up to 50 % shorter stops
- Driver / left-hand assembly
- Genuine Lippert part—Dexter & Alko interchange
-
QTY (3): Forward Self-Adjusting Electric Brakes — Passenger Side (RH)
- 12-¼″ × 5″ shoe profile
- 7-bolt mounting; fits 12K–16K axles
- Forward self-adjusting for consistent braking force
- Passenger / right-hand assembly
- Genuine Lippert part—Dexter & Alko interchange
-

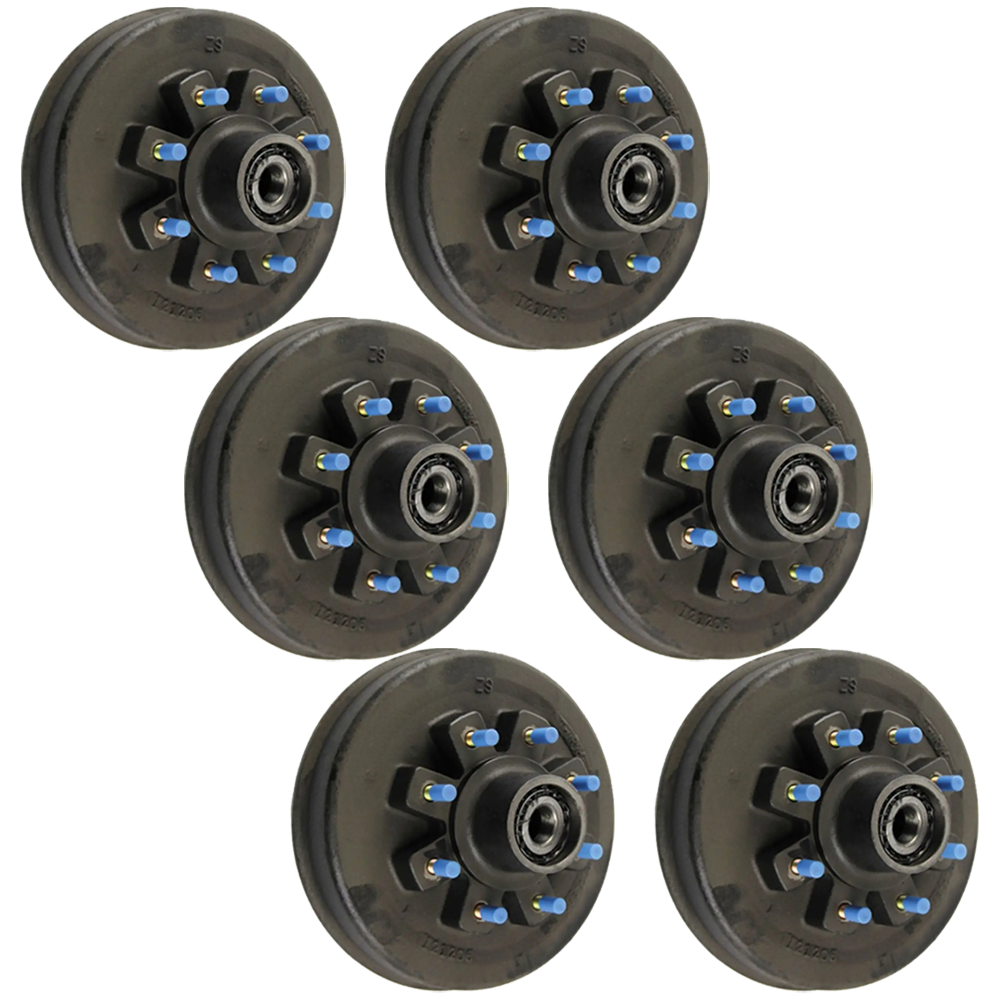

QTY (6): Threaded Oil-Bath Hub/Drum Assemblies
- For 16,000-lb axles—cast-iron durability
- 8-on-275 mm bolt pattern with M22 studs
- 17-½″ wheel compatibility
- Pre-installed races & studs; accepts Valcrum caps
- Works with electric or hydraulic drum brakes
- Backed by Lippert 1-year warranty
Recommendation: Verify axle rating, bolt pattern, and brake size before ordering. Inspect bearings, seals, and magnets regularly for top performance and safety.
| Specifications: | |
|---|---|
| Kit Type | Complete Triple-Axle Electric Brake & Oil-Bath Hub/Drum Kit |
| Axle Rating | 16,000 lbs per axle |
| Brake Drum Dimensions | 12-¼″ × 5″ |
| Brake Mounting Pattern | 7-bolt |
| Hub Bolt Pattern | 8-on-275 mm |
| Hub Type | Threaded Oil-Bath Hub with Integrated Drum |
| Stud Size | M22 × 1.5 |
| Type of Adjustment | Forward Self-Adjusting |
| Brake Location | Driver & Passenger (LH/RH) |
| Wheel Size Compatibility | 17-½″ |
Order today or call us at 877-869-6690 for expert advice and personalized service.
