Lippert 2,200-lb Right Manual Electric Brake & Hub Installation Kit (7? x 1.25?, 5 on 4.5?) with Spindle Hardware, Dust Cap & Lug Nuts

Lippert 2,200-lb Right Manual Electric Brake & Hub Installation Kit (7″ x 1.25″, 5 on 4.5″)

Upgrade or replace your trailer’s braking system with this all-in-one Lippert bundle. Designed for 2,200-lb axles, this kit provides reliable performance and everything you need, including the right-hand electric brake assembly, brake hub with bearing kit, spindle hardware, dust cap, and a 6-pack of lug nuts. Save time and gain peace of mind with a complete, easy-to-install solution.

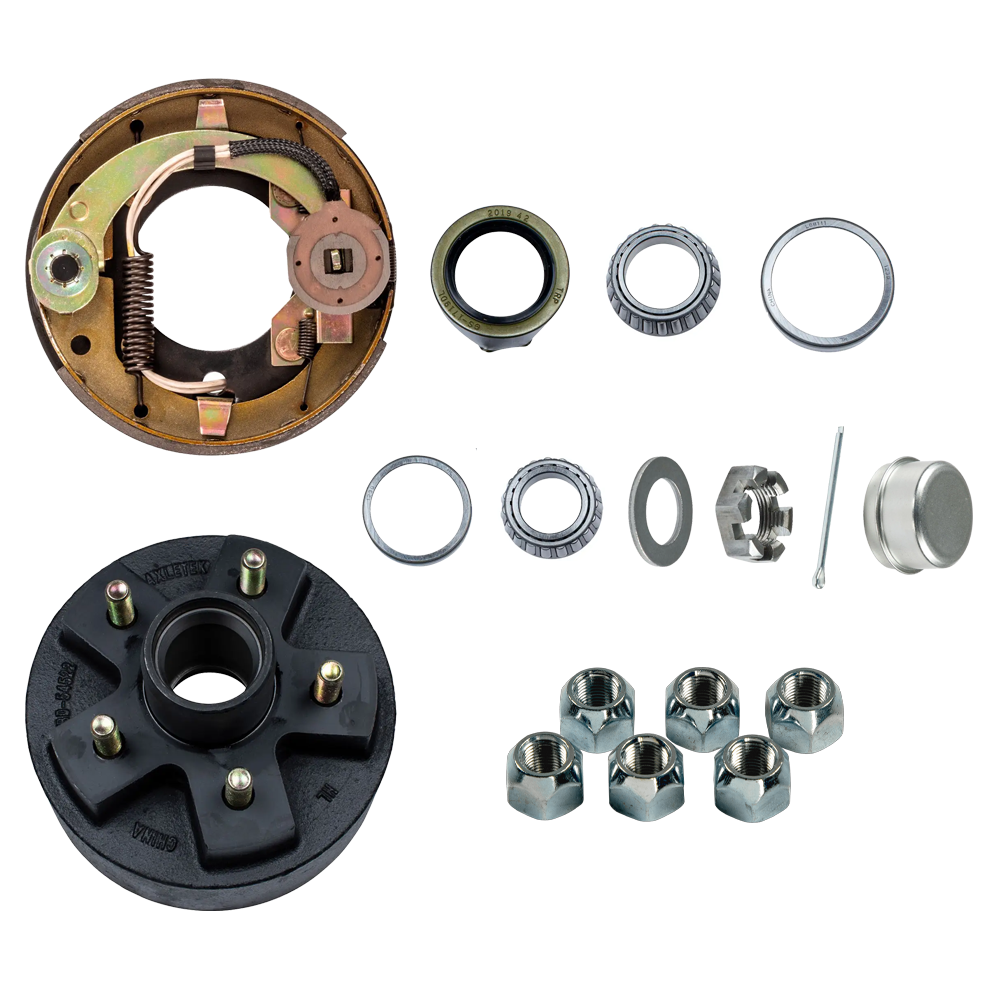

Bundle Contents:

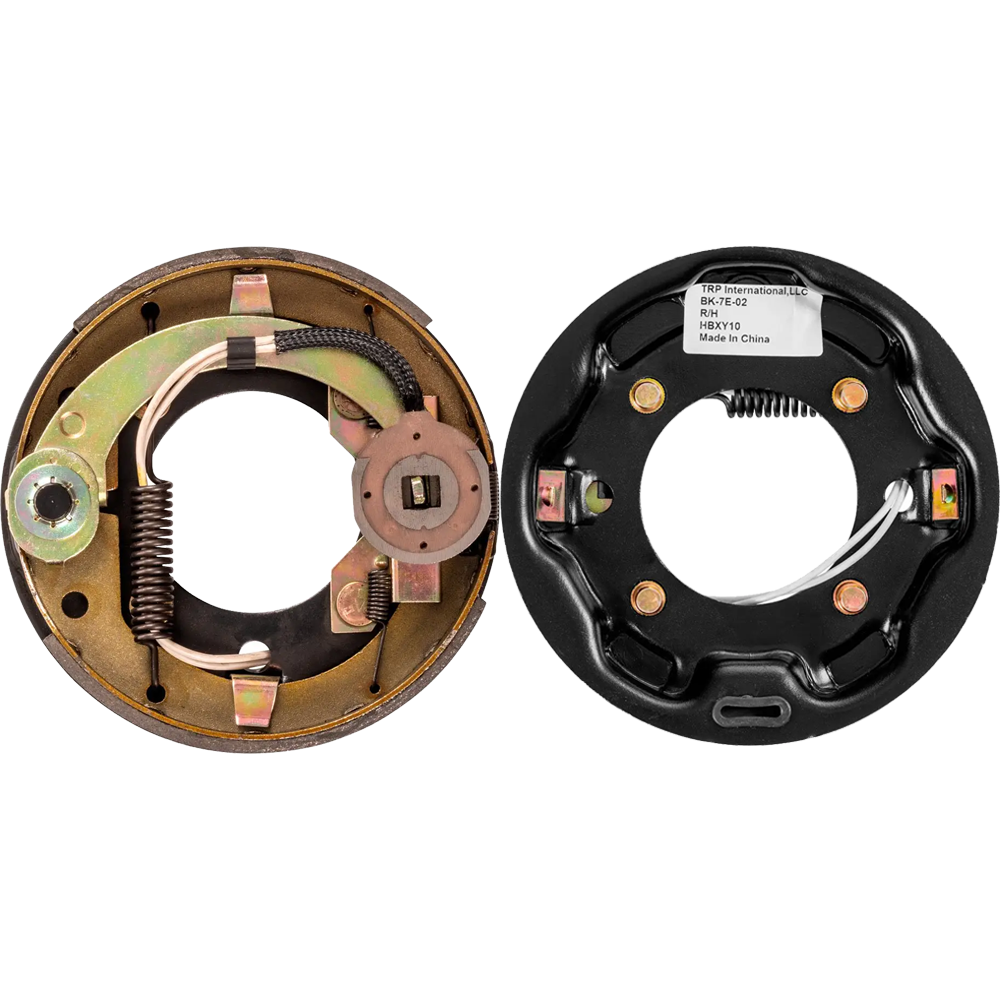

• QTY (1): Electric Brake Assembly, 7" x 1.25"; 2,200 lbs. - Right Side
  • Genuine Lippert® replacement part
  • Dexter Compatible Part Number: K23-048-00 | 023-048-00
  • Right hand (curb side)
  • For 10", 12", or 13" wheels
  • Brake size: 7" x 1.25"
  • Axle rating: 2,200 lbs.
  • Four-bolt mounting pattern
  • Manual adjustment
  • 1-year warranty

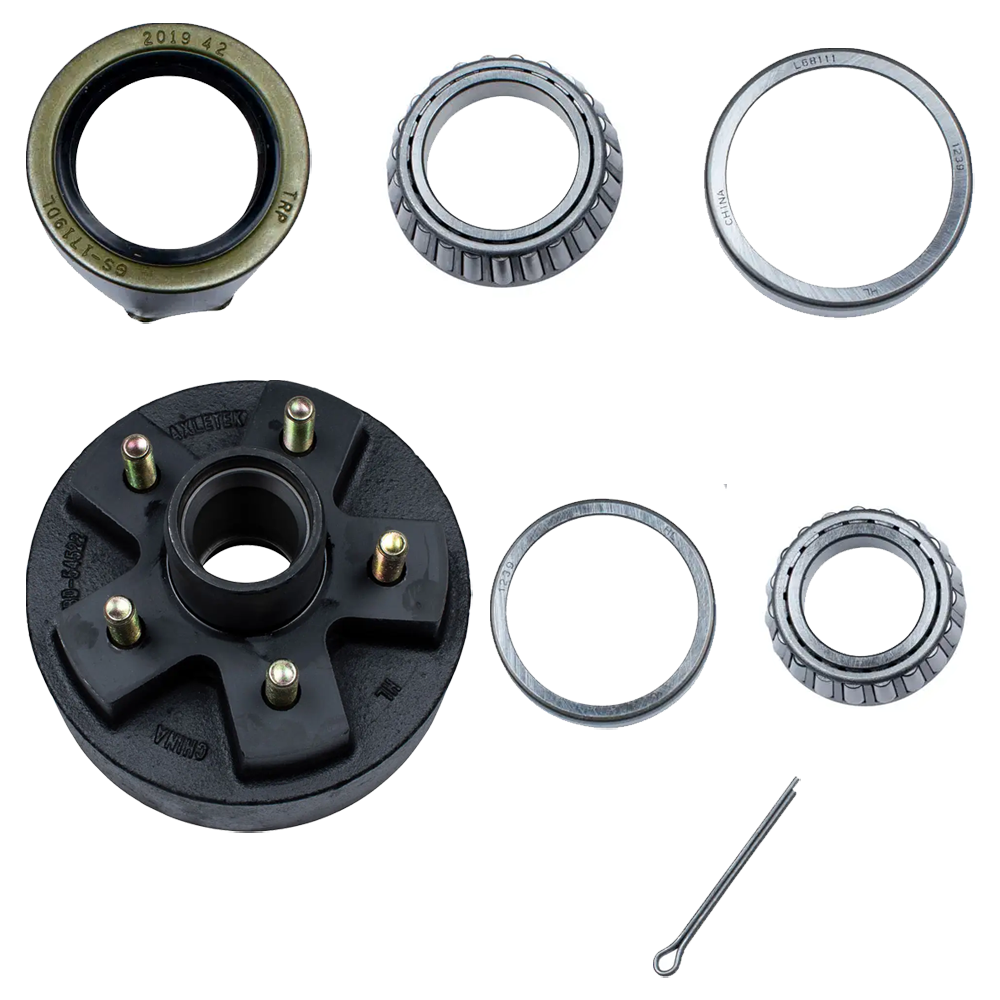

• QTY (1): 7" Brake Hub, 5 on 4.5"; 1/2" Stud - 2,200 lbs. (with Bearing Cone Kit)
  • Genuine Lippert® replacement part
  • 2,200-lb axle capacity
  • 5 on 4.5" bolt pattern
  • Each hub includes a bearing hardware kit:
    • (1) Inner Bearing Cone
    • (1) Outer Bearing Cone
    • (1) Inner Bearing Cup
    • (1) Outer Bearing Cup
    • (1) Double Lip Grease Seal
    • (1) Cotter Pin
  • 1-year warranty

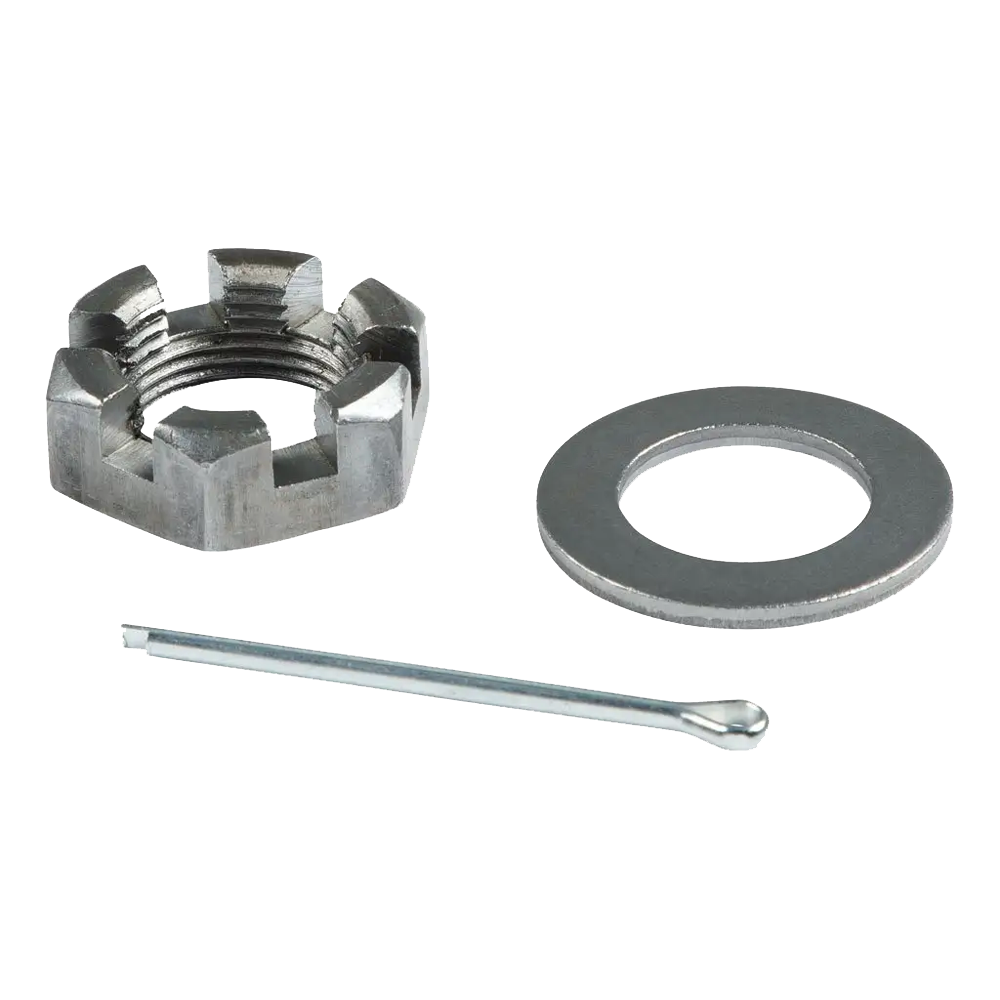

• QTY (1): 1" Round Spindle Nut Retainer Kit for 3,500-8,000-lb. Axle Hubs
  • 6-slot castle spindle nut
  • Round spindle washer
  • 1.75" cotter pin

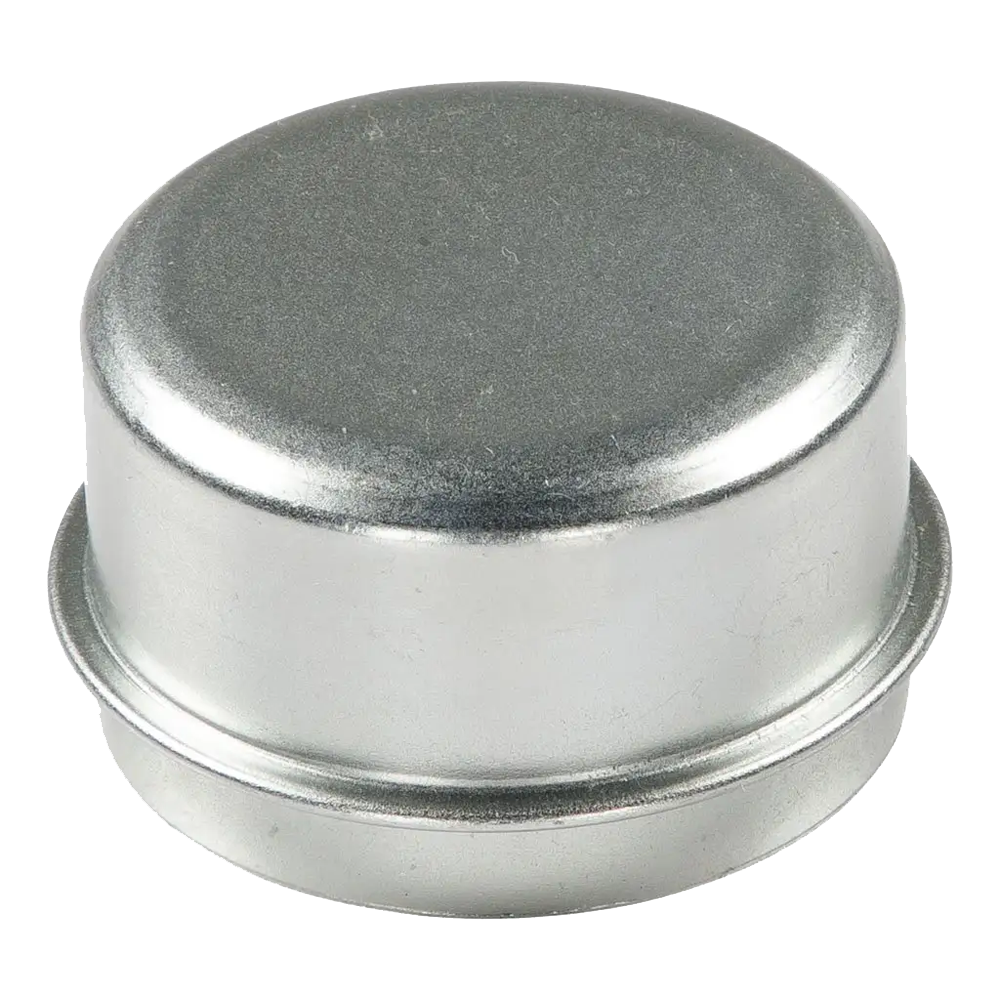

• QTY (1): Dust Cap for Standard Axle Hub - 2,000 to 3,500 lbs.
  • 2,000-3,500-lb axle capacity
  • 1.988" outer diameter
  • 1.25" tall
• QTY (1): Lippert 60° Cone Trailer Lug Nut - 1/2"-20 (6-Pack)
  • Each pack includes six (6) lug nuts
  • Fits 1/2"-20 lug studs
  • 60-degree cone design
  • Suitable for 2,200-lb Lippert wheel hubs
  • Ships in a retail clam shell package

Always confirm fitment with your existing components, follow recommended maintenance intervals, and ensure proper installation for safe towing.
