Lippert 2,200-lb Tandem-Axle Electric Brake, Drum Hub & Bearing Kit � 7" x 1.25", 5-on-4.5" Pattern (Dexter, Al-Ko, Rockwell Compatible)

Lippert 2,200-lb Tandem-Axle Brake, Hub & Bearing Bundle

This ready-to-install — just add grease Lippert® package refreshes both axles on your light-duty trailer. You receive matched left- and right-hand 7" x 1.25" electric brakes, cast-iron 5-on-4.5" hub-drums, and one bearing kit per hub—everything required to service four wheels on a 2,200-lb tandem axle with OE quality and dependable stopping power.

Bundle Contents:

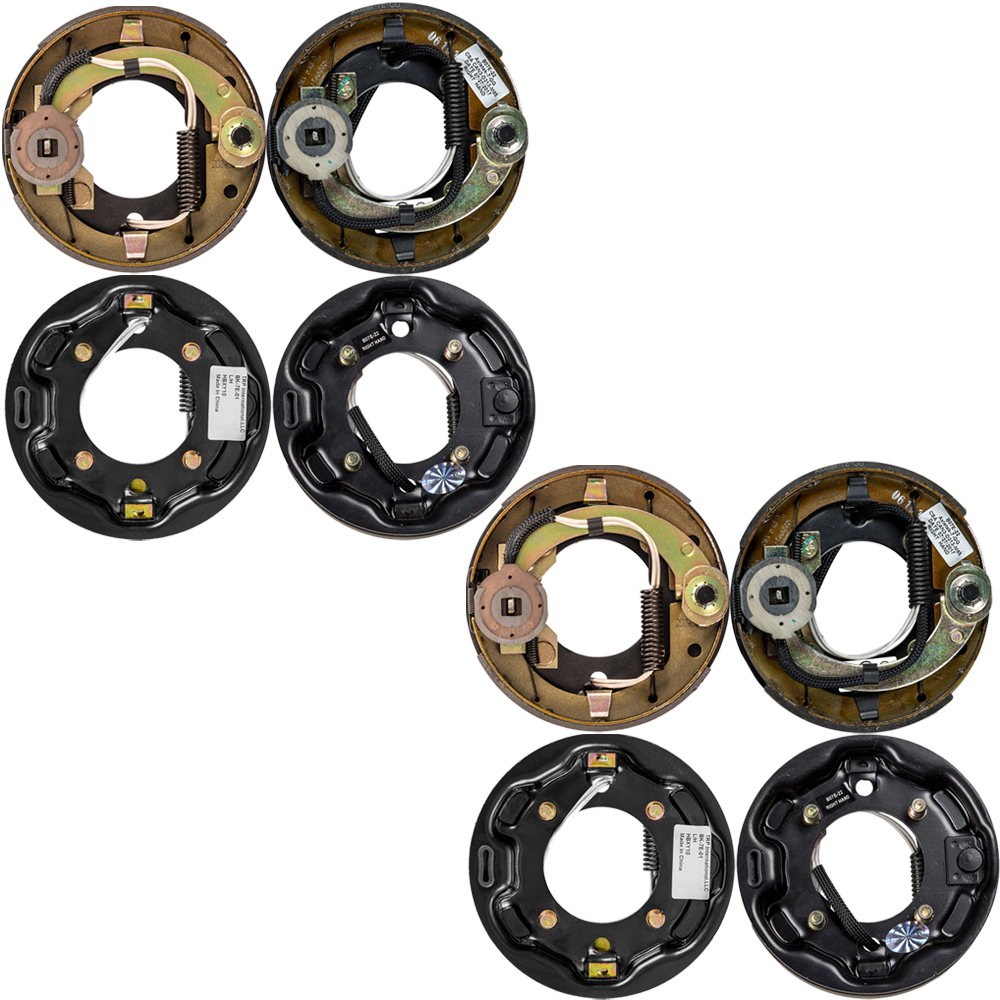

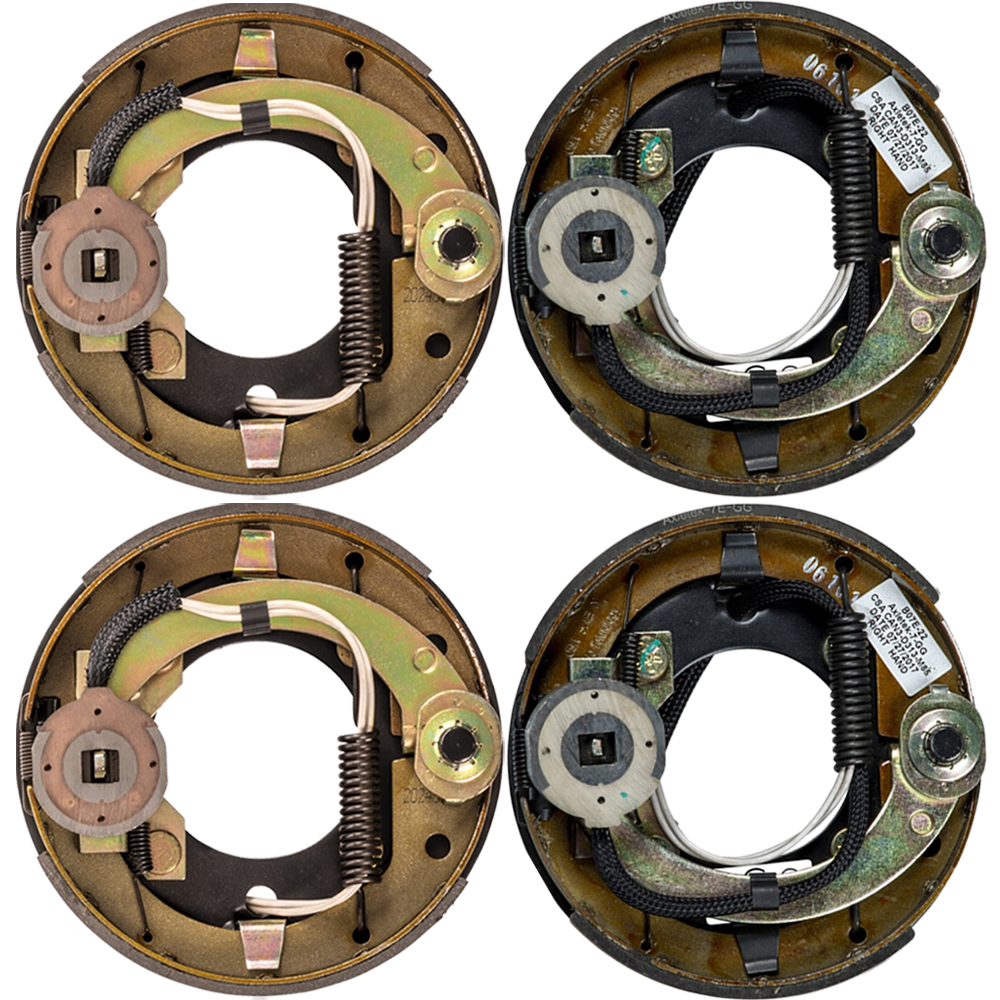

• QTY (2): Electric Brake Assembly, 7" x 1.25", 2,200 lbs., Left Side
  • Genuine Lippert® roadside assembly
  • Manual-adjust 7" x 1.25" electric brake
  • Fits 10"–13" wheels; 2,200-lb rating
  • 4-bolt mounting pattern
  • Dexter Compatible Part #: K23-047-00 | 023-047-00
• QTY (2): Electric Brake Assembly, 7" x 1.25", 2,200 lbs., Right Side
  • Genuine Lippert® curb-side assembly
  • Manual-adjust 7" x 1.25" electric brake
  • Fits 10"–13" wheels; 2,200-lb rating
  • 4-bolt mounting pattern
  • Dexter Compatible Part #: K23-048-00 | 023-048-00

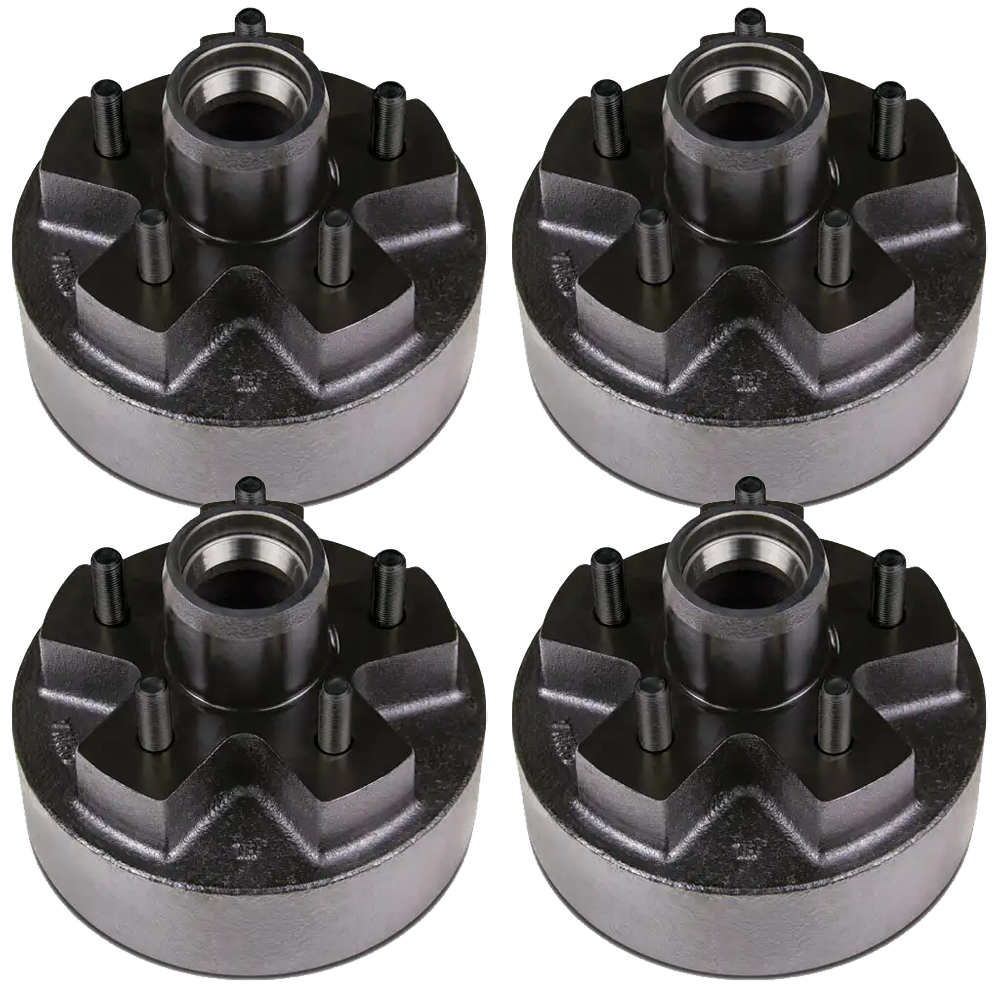

• QTY (4): 7" Brake Hub-Drum, 5 on 4.5", 1/2" Studs – 2,200 lbs.
  • Cast-iron hub-drum only
  • 5-on-4.5" bolt circle; 1/2" studs
  • Rated 2,200 lbs.; fits 8"–12" wheels
  • Lippert™ OE replacement part

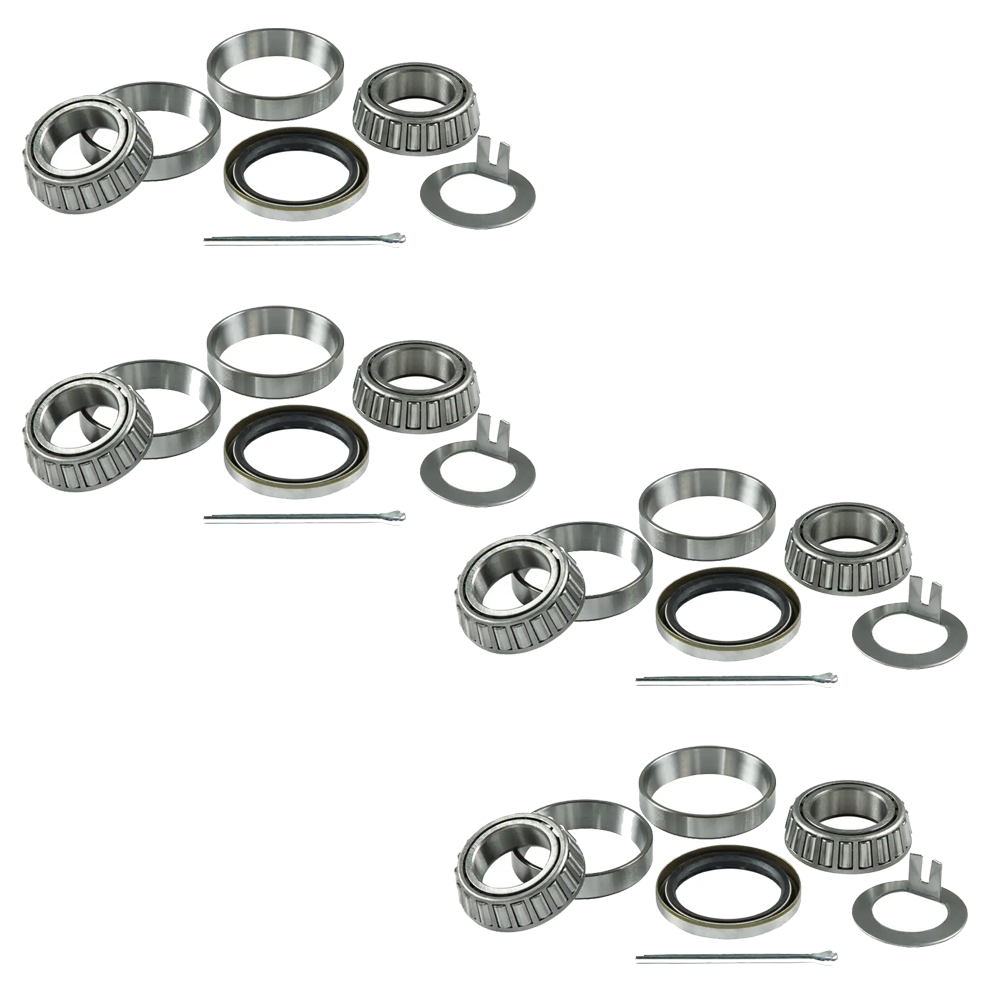

• QTY (4): Lippert Bearing Replacement Kit – 1.5" Seal I.D.
  • (1) Inner bearing cone & race
  • (1) Outer bearing cone & race
  • (1) 1.5" double-lip grease seal
  • (1) 1.75" cotter pin
  • (1) 1.5" tang spindle washer
  • Includes one kit per hub (4 kits total)

Recommendation: Verify bolt pattern, spindle size, and axle rating against your original equipment. Grease bearings and adjust brakes after 200 miles and at regular service intervals for optimum performance.
