Lippert 3,000 lb Triple Axle Suspension Kit � 1.75" Axle Tube, 33" Spacing, 25-1/4" Unloaded Leaf Springs (Standard Equalizer, Hangers & Hardware) � Compatible with Dexter, Al-Ko, Rockwell

Lippert 3,000 lb Triple Axle Suspension Kit – 1.75" Axle Tube, 33" Spacing, 25-1/4" Unloaded Leaf Springs (Standard Equalizer, Hangers & Hardware) – Compatible with Dexter, Al-Ko, Rockwell

Upgrade your trailer with this heavy-duty triple axle suspension kit featuring 3,000 lb leaf springs (unloaded eye-to-eye length of 25-1/4"), standard equalizer, hangers, and hardware. Designed for 1.75" axle tubes and 33" spacing, this kit delivers reliable performance and a smoother ride.

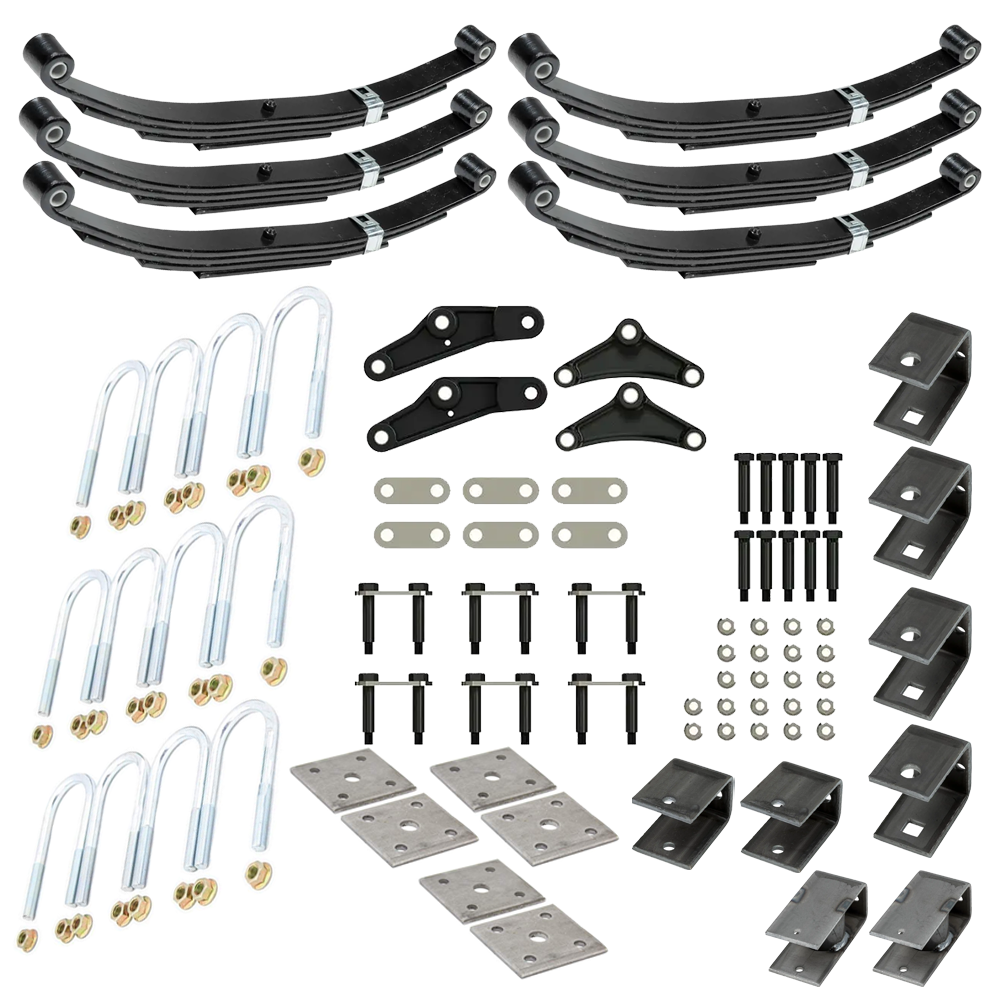

Bundle Contents:

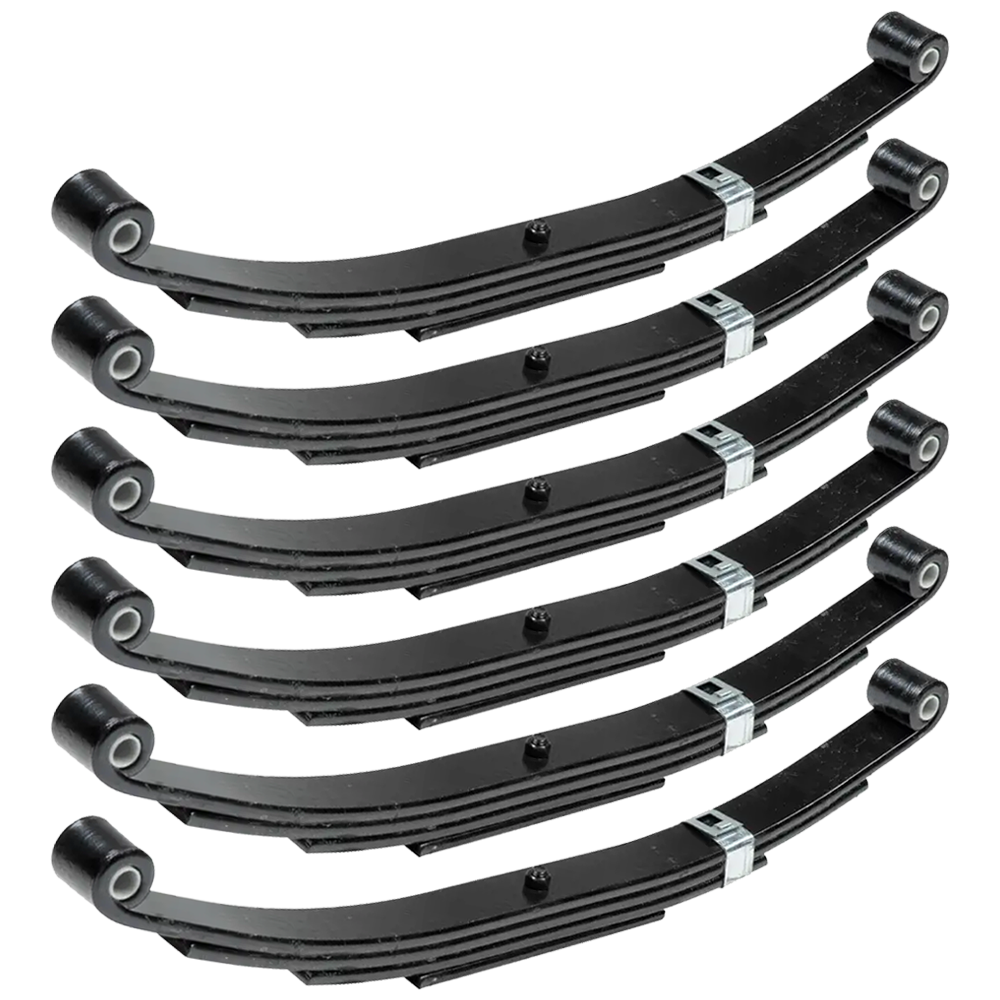

• QTY (6): Replacement Leaf Spring for RV Trailer Suspension System – 3,000 lbs
  • Replacement leaf spring for RV trailer
  • 3,000 lb capacity per spring
  • 4-leaf design; 1-3/4" width
  • Unloaded length: 25-1/4"; Loaded length: 26"
  • Dexter Compatible Part Number: 072-026-00

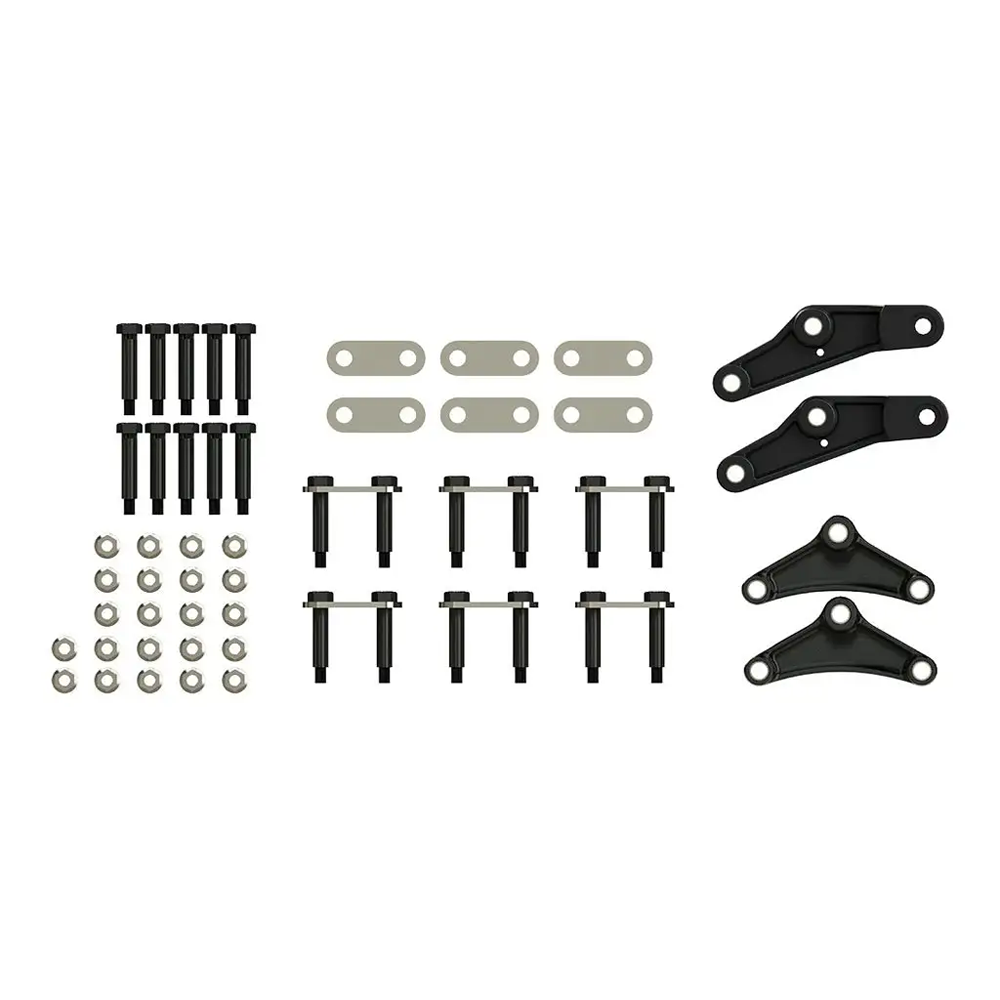

• QTY (1): Triple Axle AP Kit with Standard Equalizer and Standard Bolts
  • Replacement triple axle AP kit with standard equalizer
  • Includes shackle links, mounting hardware, and bolts
  • Installs just like your original equipment
  • Dexter Compatible Part Number: A/P-335-00

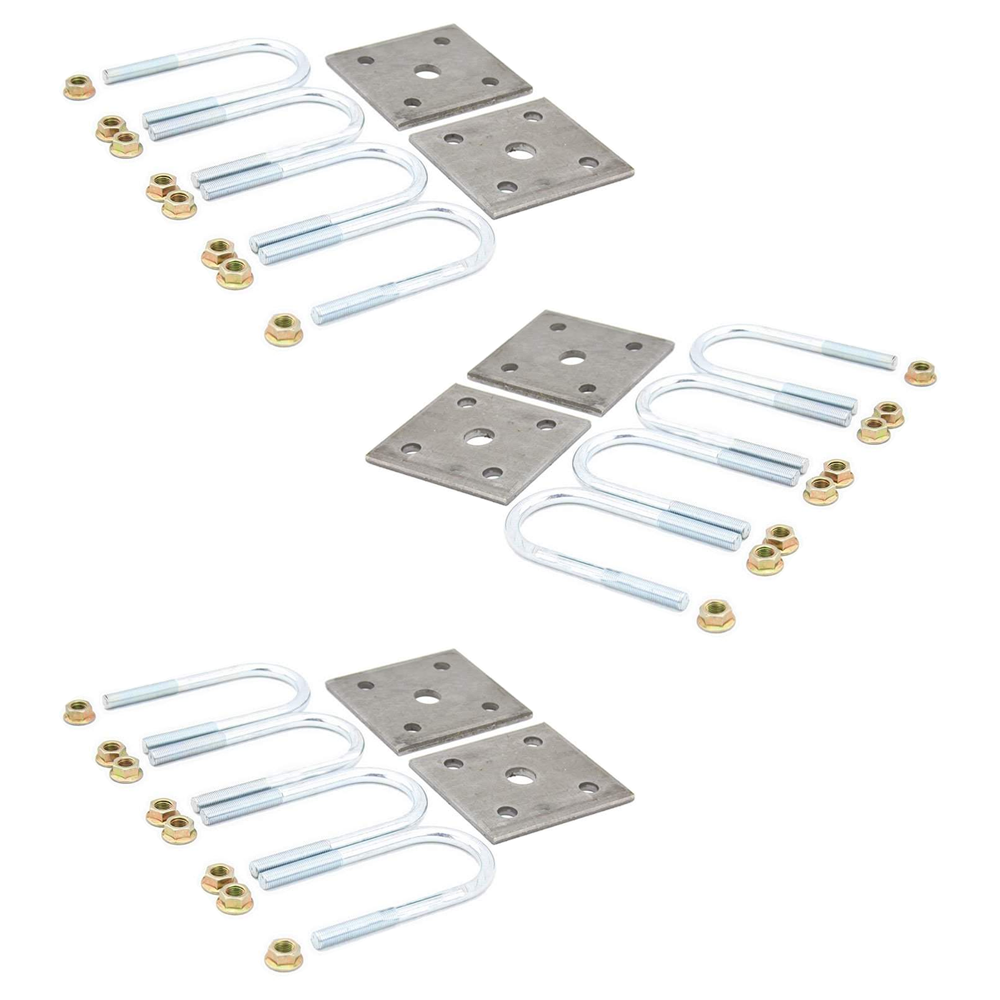

• QTY (3): Axle Mounting Kit – 1.75" Tube
  • Replacement axle mounting kit for 1.75" axle tube
  • Helps secure the axle to your leaf springs
  • Dexter Compatible Part Number: K71-391-00
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200-8,000-lb Rating
  • Welded to chassis for mounting axles and components
  • Distance to hole: 3-9/16"; Hole size: 9/16"
  • Dexter Compatible Part Number: 028-001-00
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200-8,000-lb Rating
  • Welded to chassis for mounting axles and components
  • Distance to hole: 3-5/16"; Hole size: 7/8"
  • Dexter Compatible Part Number: 029-001-00
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200-8,000-lb Rating
  • Welded to chassis for mounting axles and components
  • Distance to hole: 4"; Hole size: 5/16"
  • Dexter Compatible Part Number: 030-028-00

We recommend verifying compatibility with your trailer’s original equipment and scheduling routine maintenance to ensure optimal performance. Professional installation is advised.
