Lippert 3,500-lb 10? � 2.25? Self-Adjusting LH Electric Brake & 5-on-4.5 Hub-Drum Kit � Compatible with Dexter, Alko & Rockwell

Lippert 3,500-lb Self-Adjusting Electric Brake & Hub-Drum Bundle – Left-Hand, 10″ × 2.25″

Upgrade or service your 3,500-lb trailer axle with a matched Lippert bundle that pairs a forward self-adjusting 10″ × 2.25″ electric brake with a durable 5-on-4.5 hub-drum assembly. Enjoy faster installation, automatic shoe adjustment, and confident, even braking performance mile after mile.

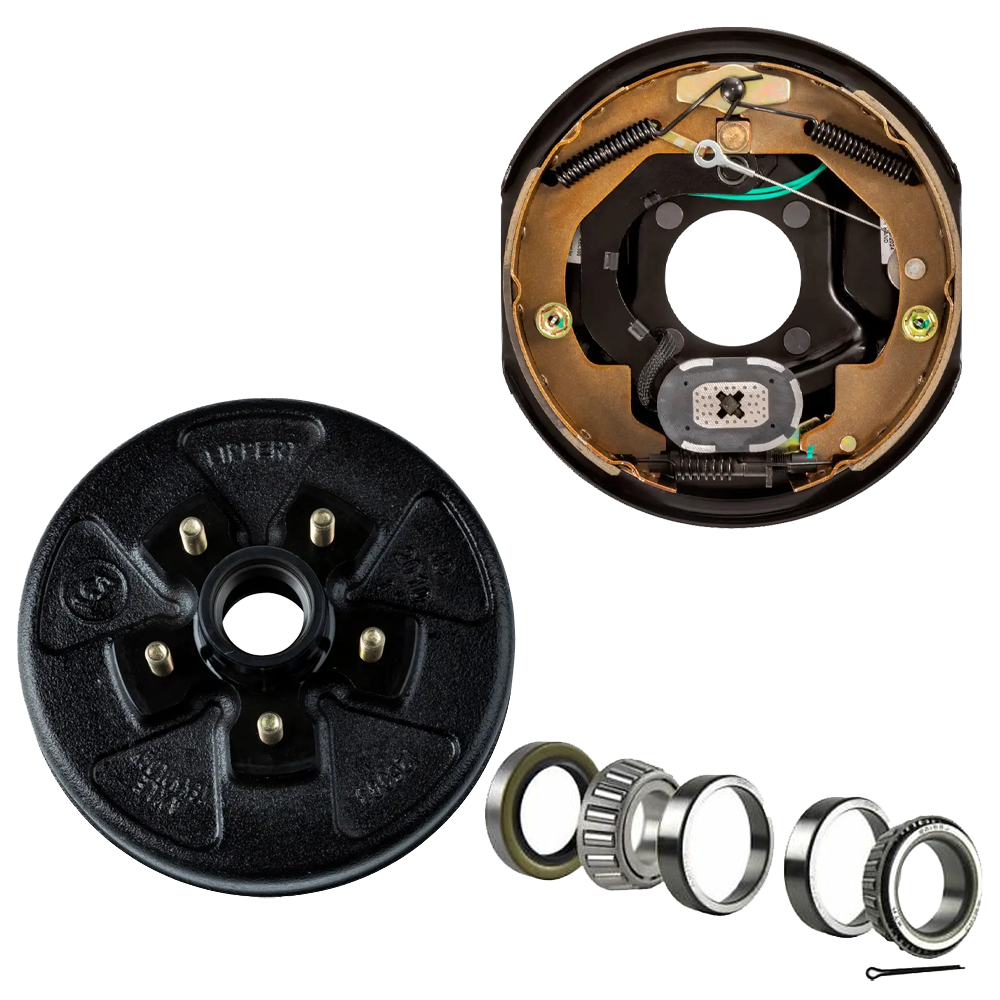

Bundle Contents:

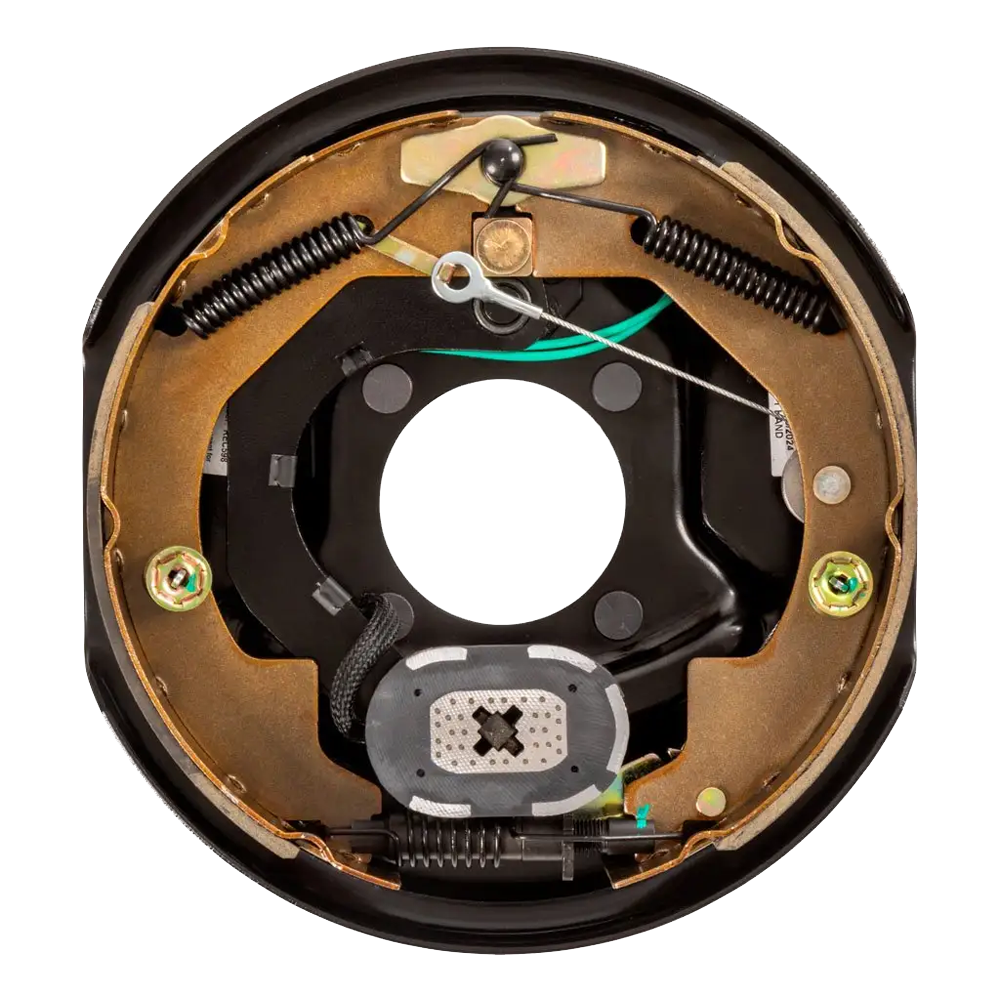

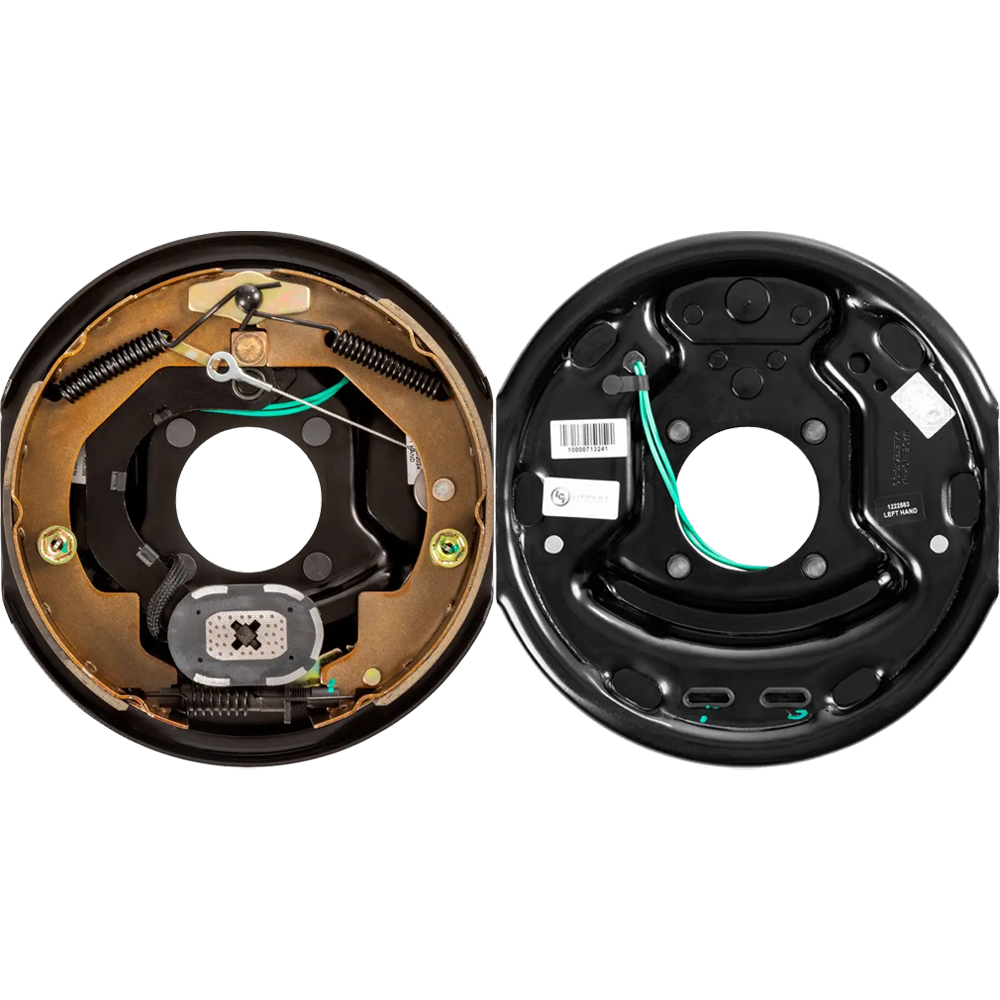

• QTY (1): Lippert Forward Self-Adjusting Brake Assembly – 10″ × 2.25″, 4-Bolt, 3.5K (Left)
  • Direct-fit Lippert replacement electric brake
  • Forward self-adjusting—no manual tweaks after break-in
  • 10″ × 2.25″ shoes for 3,500-lb axles

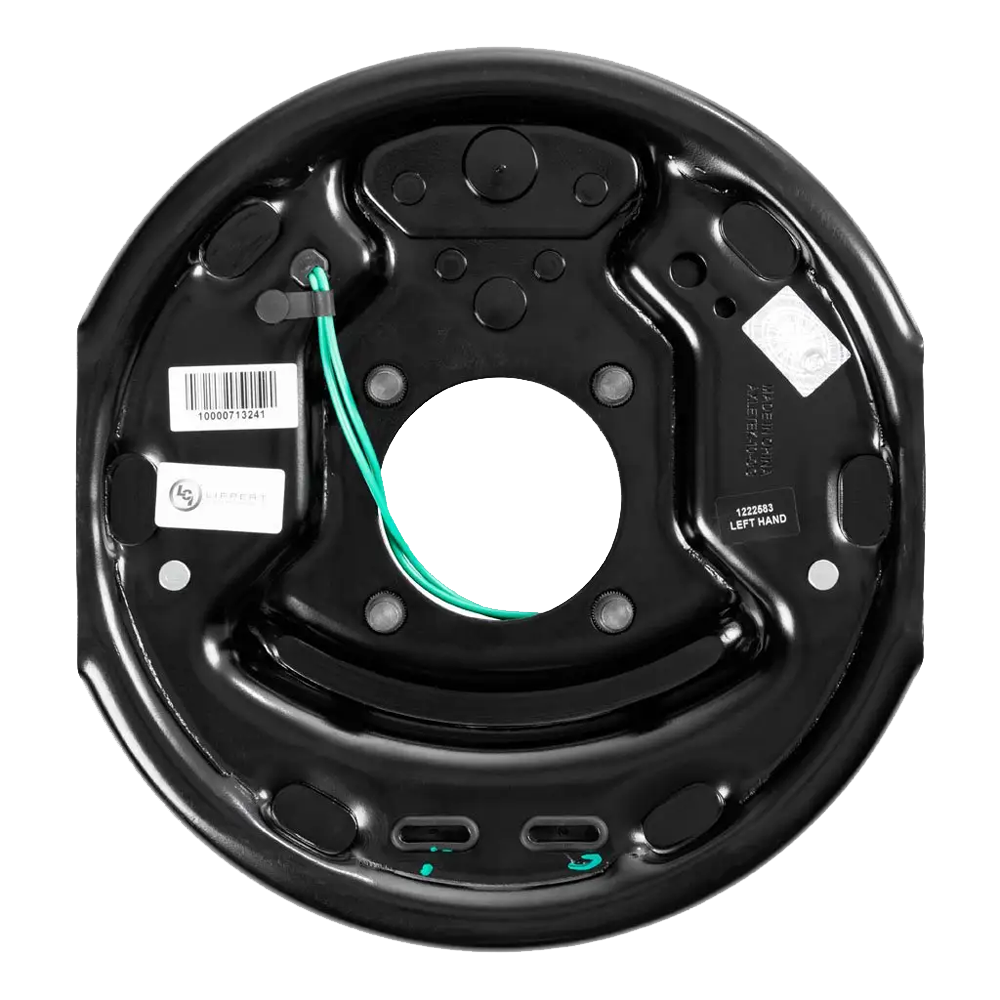

  • Left-hand (road-side) unit with 4-bolt brake flange
  • Improves stopping distance by up to 50 %
  • Dexter compatible PNs: K23-468-00 | 023-468-00

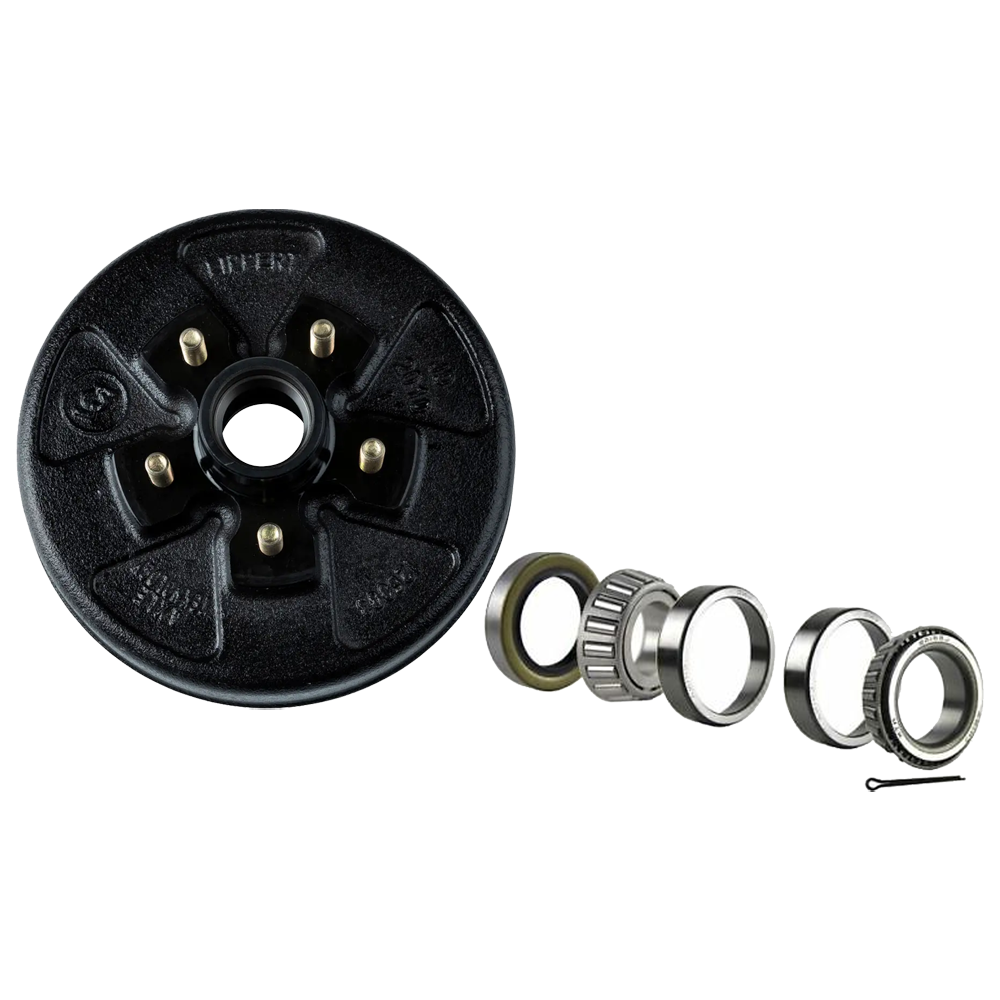

• QTY (1): Lippert 10″ Brake Drum Hub Assembly for 3,500-lb Axle – 5 on 4.5″, 1/2″ Stud
  • Cast-iron hub with integrated 10″ drum
  • Fits 3,500-lb axle; 5 on 4.5″ wheel bolt pattern
  • 1/2″ studs – compatible with 13″–15″ wheels
  • Dexter compatible PNs: K08-247-94 | 008-247-94
  • Includes bearing kit (bagged separately – one kit per hub):
    • Inner bearing cone (L68149)
    • Inner bearing cup (L68111)
    • Outer bearing cone (L44649)
    • Outer bearing cup (L44610)
    • Double-lip grease seal (10-19)
    • Cotter pin
  • Lippert #126003 • Bearing Kit #333948 • 1-yr warranty

Always verify part numbers, bolt patterns, and dimensions against your original equipment. Inspect brakes and bearings regularly and follow proper torque specs to ensure safe, trouble-free towing.
