Lippert 3,500-lb 10" x 2.25" Electric Brake & Pre-Greased Hub Assembly Kit w/ Parking Brake, 5 on 4.5" Bolt Pattern (Right Hand)

Lippert 3,500-lb Electric Brake & Pre-Greased Hub Assembly Kit – 10" x 2.25" w/ Parking Brake – 5 on 4.5" Bolt Pattern (Right Hand)

Upgrade your trailer’s braking system and simplify maintenance with this Lippert electric brake and pre-greased hub bundle. Designed for 3,500-lb axles and conveniently pre-assembled, this kit makes your trailer repair or upgrade faster, easier, and more reliable.

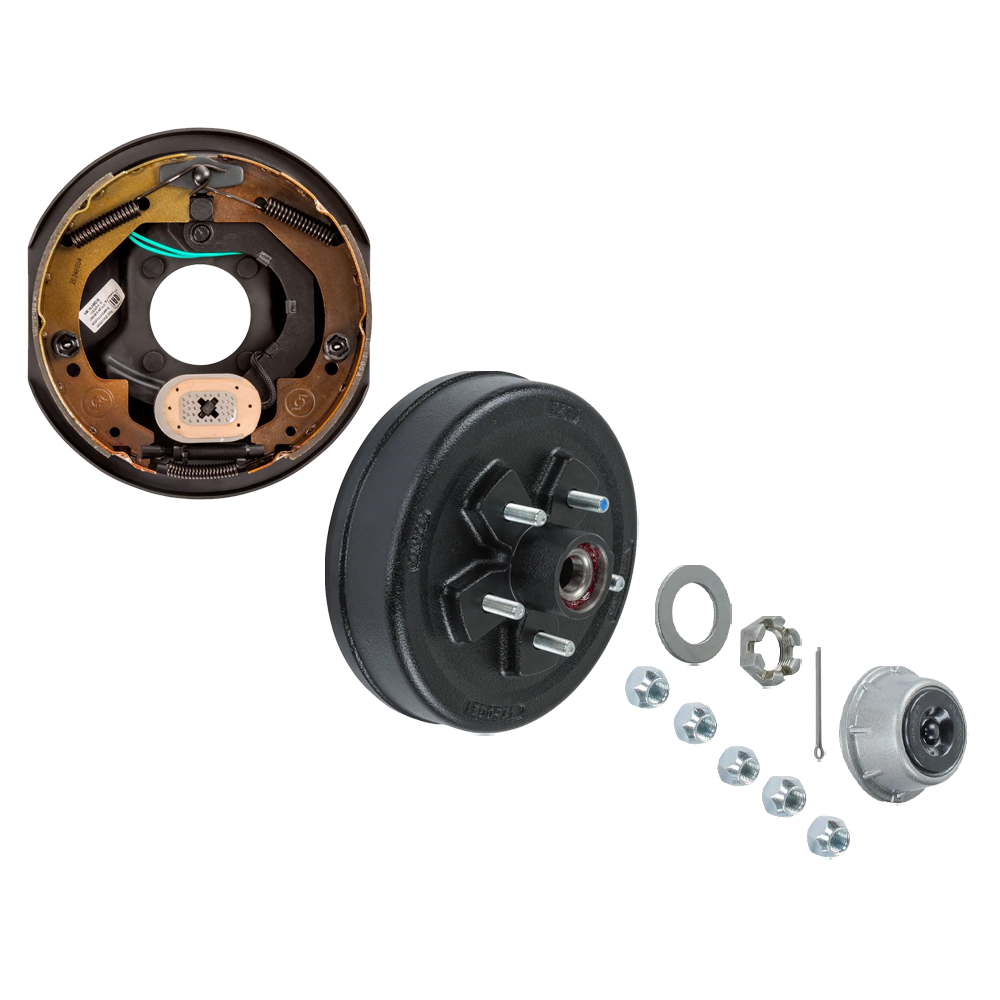

Bundle Contents:

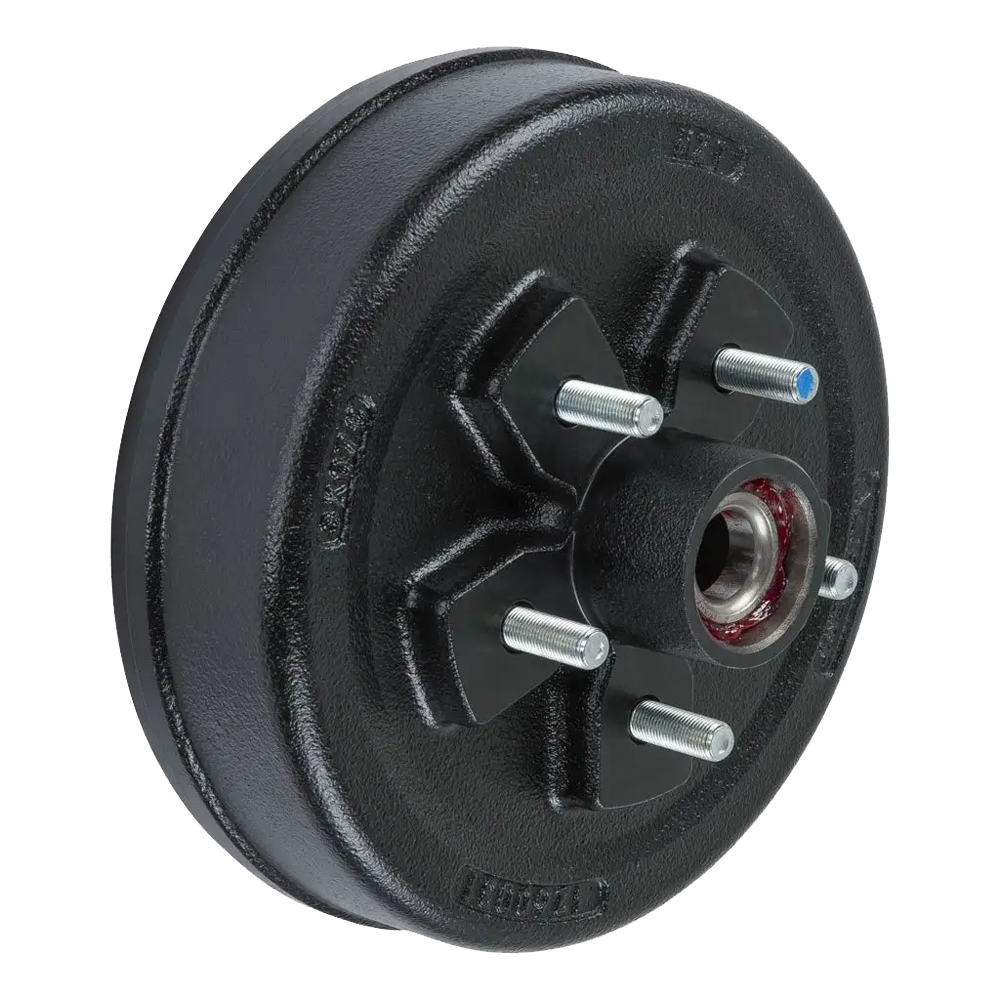

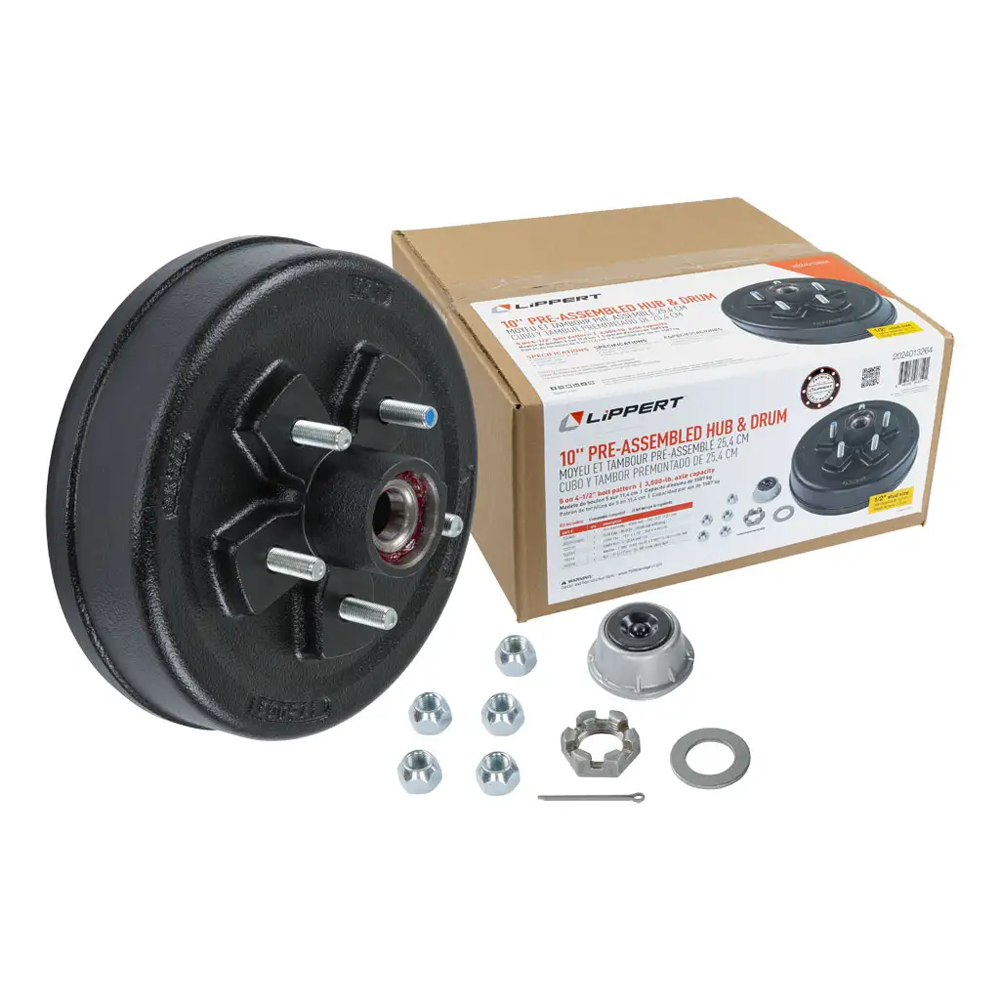

• QTY (1): Complete Pre-Greased Hub Assembly with Lug Nuts - 3,500-lb. Axles, 1/2" Stud
  • Complete pre-greased hub assembly with lug nuts
  • (1) Brake hub assembly
  • (1) Dust cap with plug
  • (1) 1.75" cotter pin
  • (1) 1" 6-slot castle spindle nut
  • (1) Round spindle washer with 1.03" ID, 1.68" OD
  • (5) 60° cone trailer lug nuts

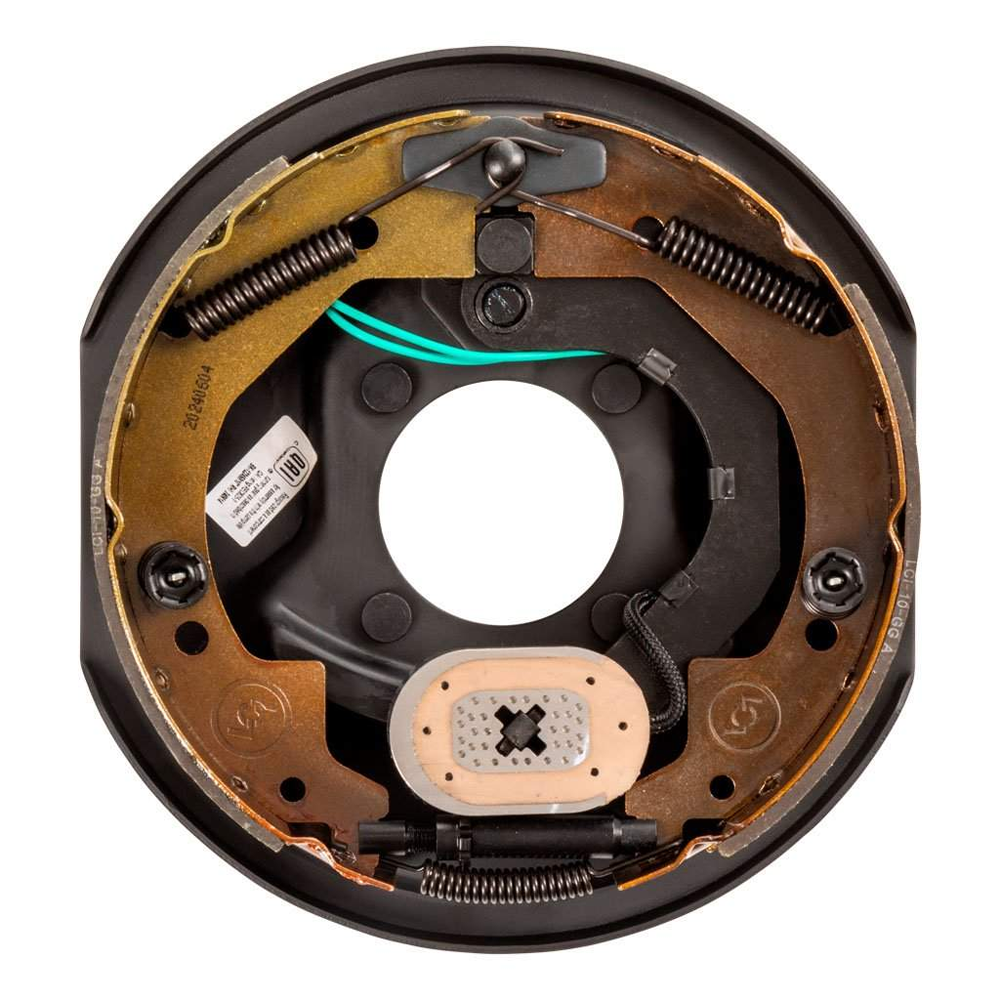

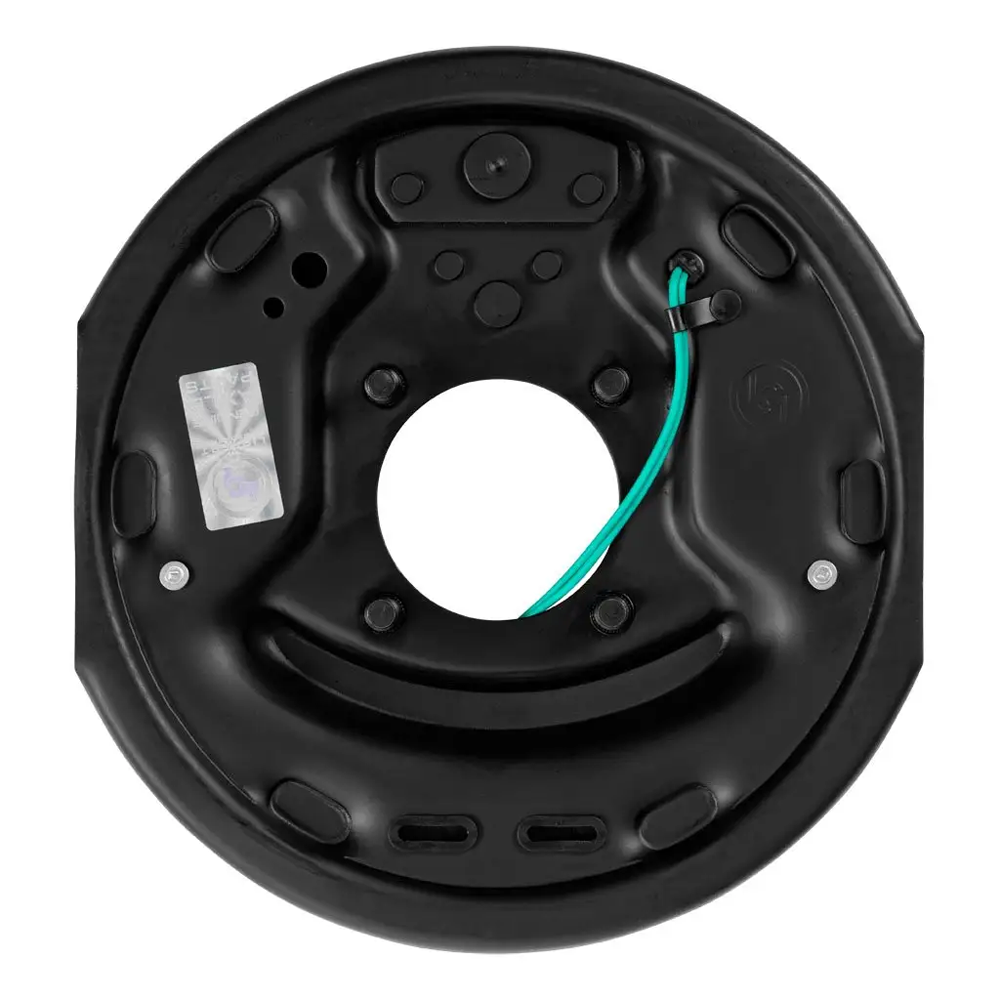

• QTY (1): Lippert Electric Trailer Brake Assembly - 10" x 2.25" 3,500 lbs. Right Side
  • Replacement standard electric brake assembly with park
  • Manual adjustment
  • Designed for right-hand (curb-side) installation only
  • For axles rated to 3,500 lbs.
  • Four-bolt mounting pattern
  • Easy, DIY installation (hardware sold separately)
  • For 13", 14", 14.5" or 15" wheels
  • Brake size: 10" x 2.25"
  • New electric drum brakes will require a break-in period to achieve full performance
  • Dexter Compatible Part Number: K23-027-00|023-027-00

Always check your existing equipment and perform routine maintenance to ensure safe and optimal performance. Promptly replace worn-out parts to protect your axles and maintain dependable braking.
