Lippert 3,500-lb Axle 10? × 2.25? Self-Adjusting Electric Brake & 5-on-4.5 Drum Hub Bundle – Left-Hand, 4-Bolt Mount – Dexter / Al-Ko Compatible

Lippert 3,500-lb 10″ × 2.25″ Self-Adjusting Electric Brake & Drum Hub Bundle – Left-Hand

Restore confident stopping power on your 3,500-lb trailer axle with this fully assembled Lippert bundle. It marries a forward self-adjusting 10″ × 2.25″ left-hand electric brake assembly with a pre-greased, fully assembled 5-on-4.5″ drum hub, delivering smoother, shorter stops and quick, bolt-on installation.

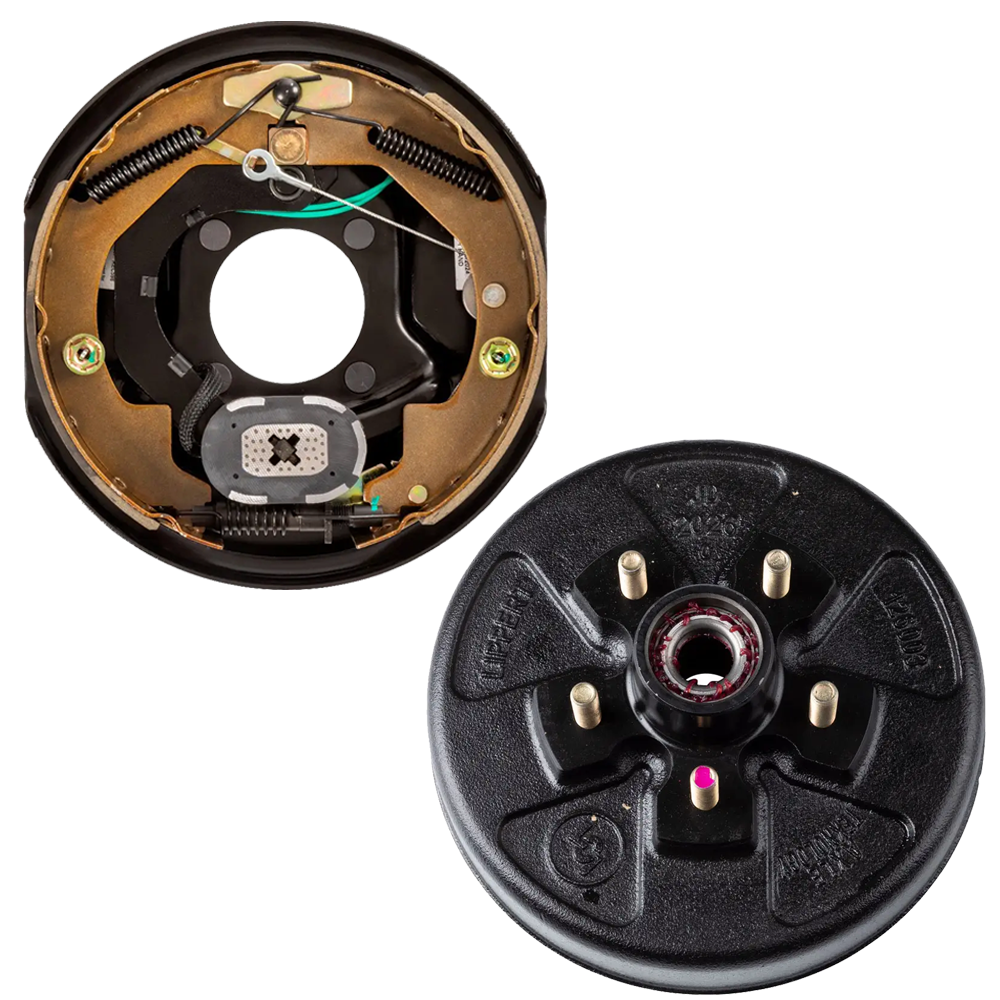

Bundle Contents:

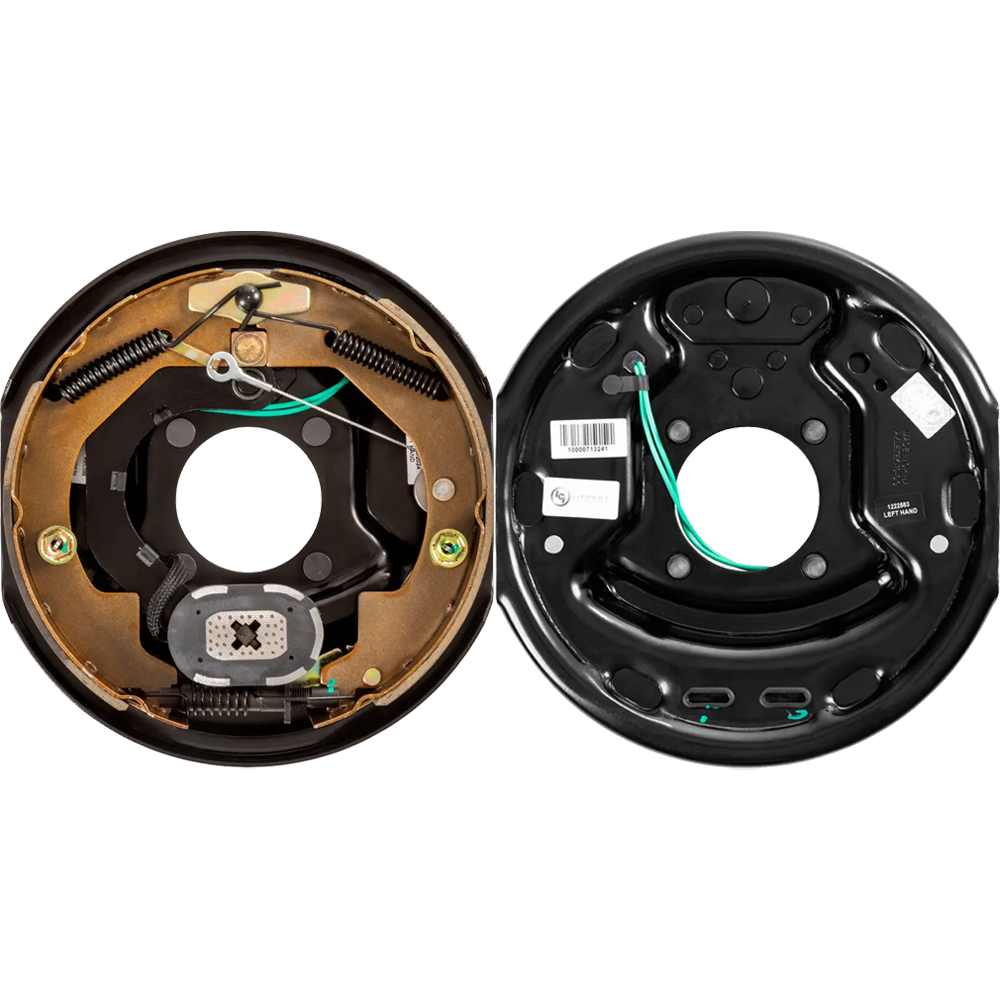

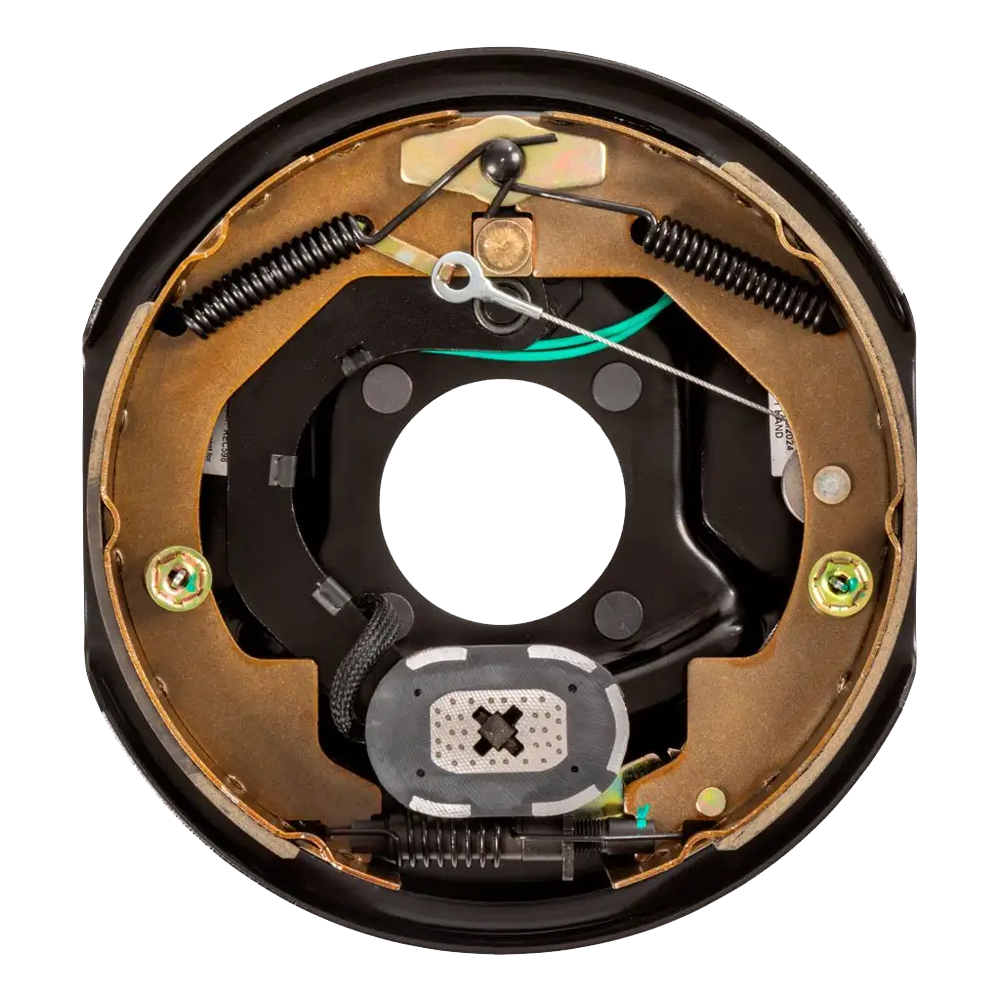

• QTY (1): Lippert Forward Self-Adjusting Brake Assembly – 10″ × 2.25″, 4-Bolt, 3.5K (Left)
  • Self-adjusts with every forward stop—no manual tuning
  • Left-hand (road-side) drum brake for 3,500-lb axle
  • 4-bolt brake flange; easy DIY bolt-on replacement
  • Dexter compatible part #: K23-468-00 / 023-468-00
  • Improves stopping distance up to 50 %
  • 1-year limited warranty from Lippert

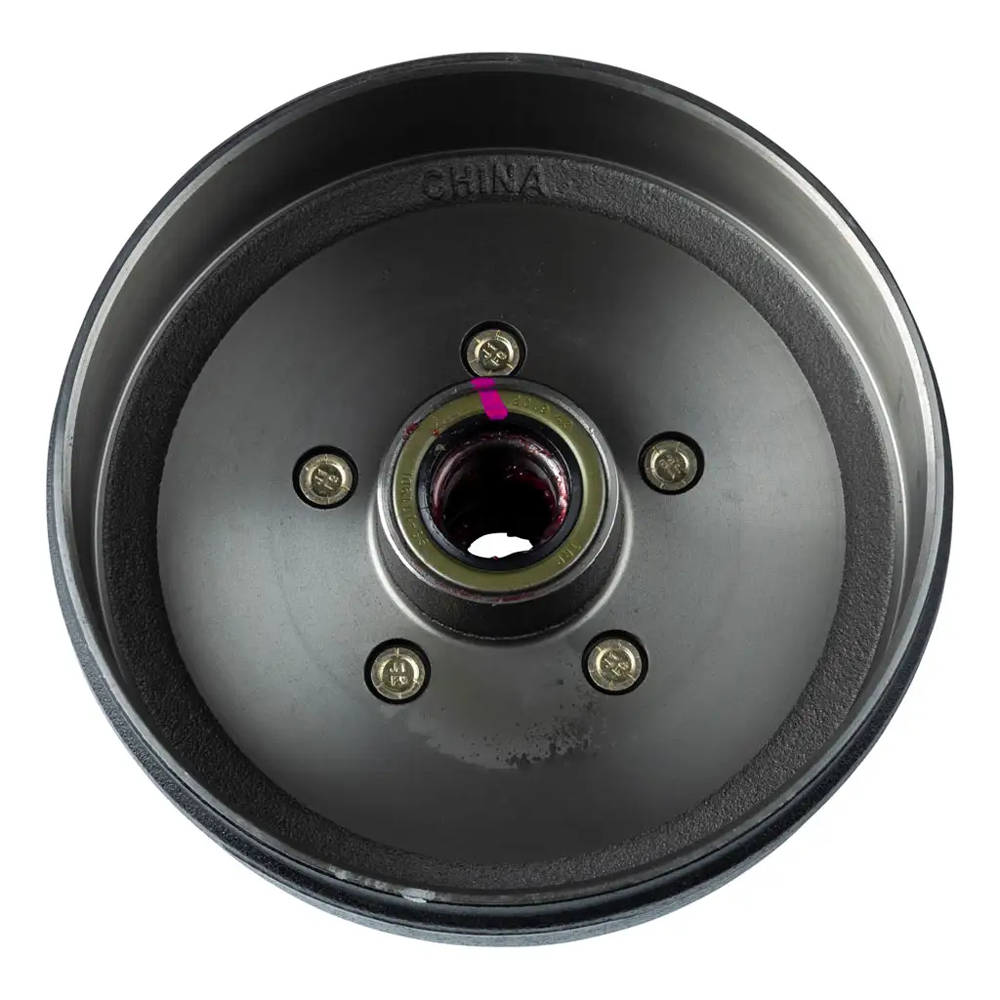

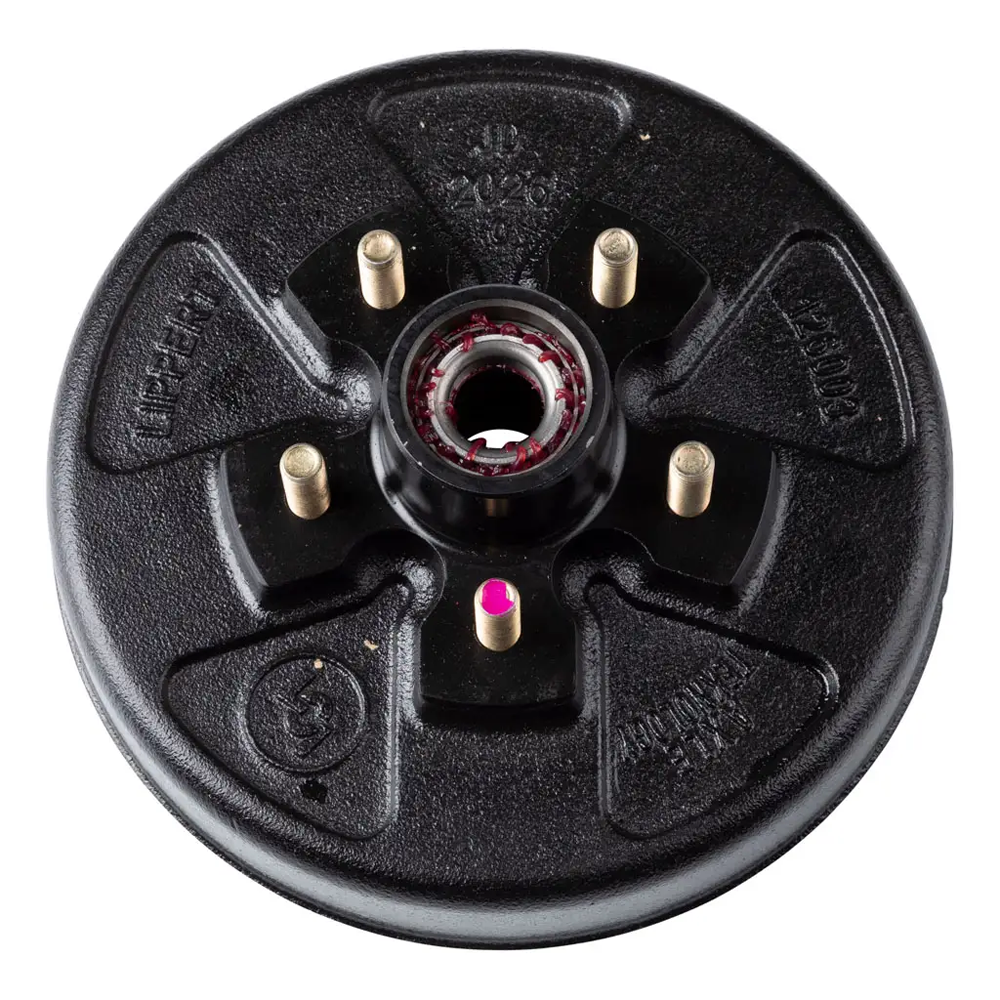

• QTY (1): Lippert 10″ RV Brake Drum Hub Assembly for 3,500-lb Axle – 5 on 4.5″, 1/2″ Stud
  • Fully assembled one-piece cast-iron drum hub
  • 5 on 4.5″ bolt pattern with 1/2″ studs installed
  • Pre-loaded with bearing cones, seal and high-temp grease
  • Fits 13″–15″ wheels; matches Lippert, Dexter & Al-Ko axles
  • 1-year limited warranty for reliable performance

Always compare part numbers and dimensions to your original equipment before ordering. Inspect brakes, bearings and seals regularly for safe towing.
