Lippert 3,500-lb Left-Hand 10? � 2.25? Manual-Adjust Electric Brake & 5-on-4.5 Drum-Hub Kit � Dexter Compatible

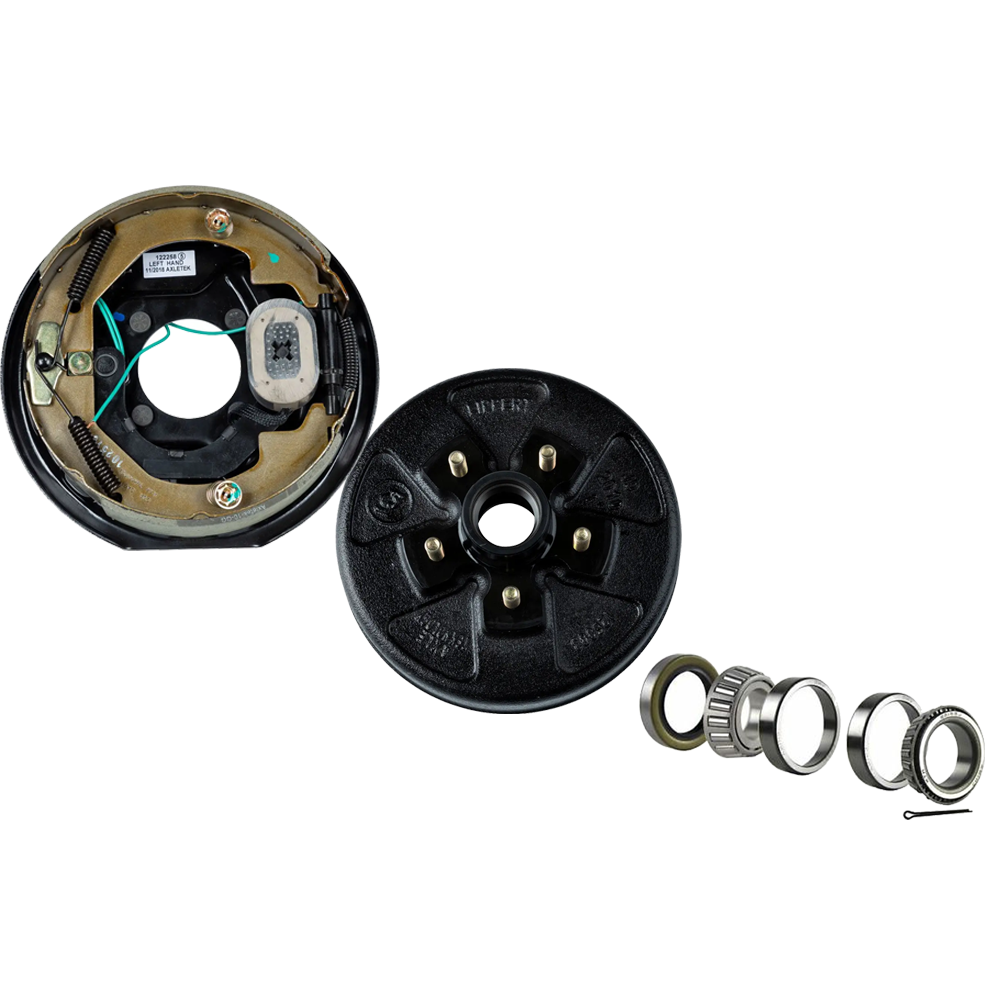

Lippert 3,500-lb Left-Hand Electric Brake & Fully-Assembled Drum-Hub Bundle

Restore confident stopping power on your trailer with this complete Lippert replacement bundle. Perfectly matched for the left-hand (driver-side) of a 3,500-lb axle, the kit pairs a 10″ × 2.25″ manual-adjust electric brake assembly with a fully-assembled 5-on-4.5″ drum hub that ships with bearings, seal, and studs installed. Save time, ensure compatibility, and get back on the road faster.

Bundle Contents:

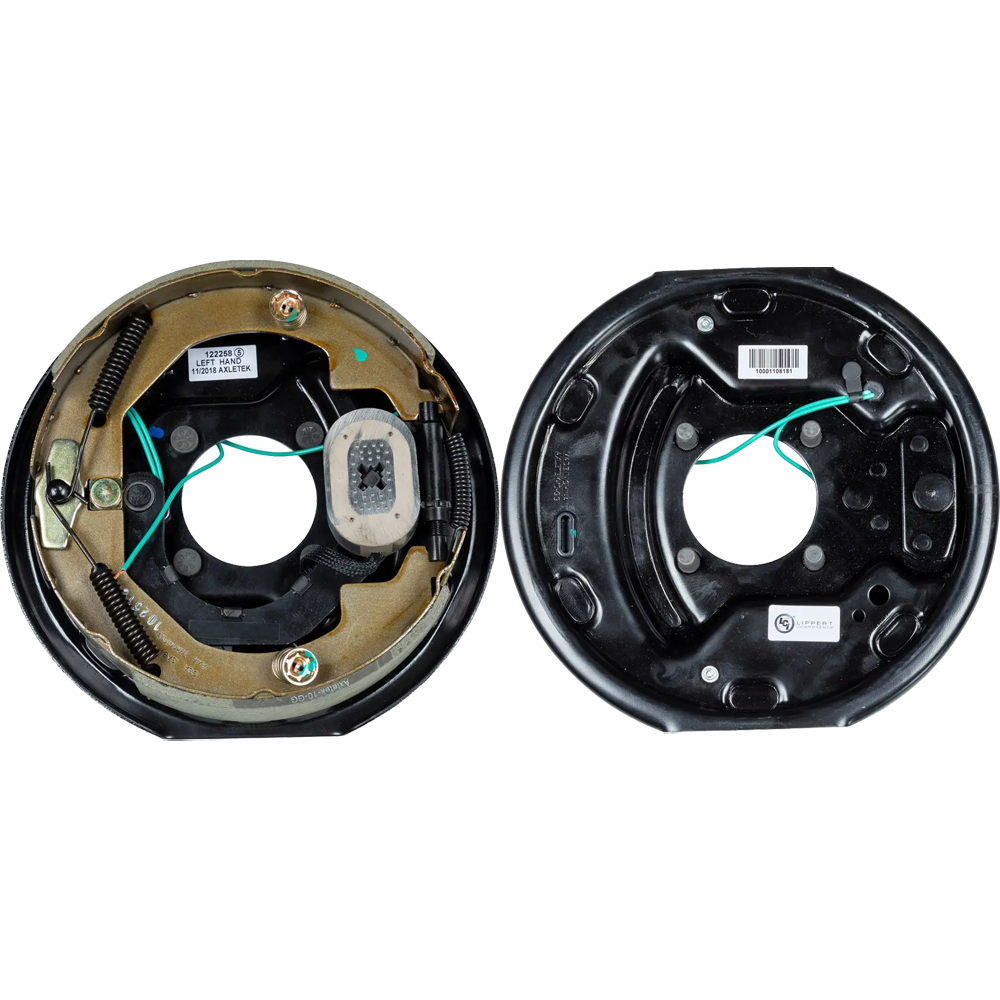

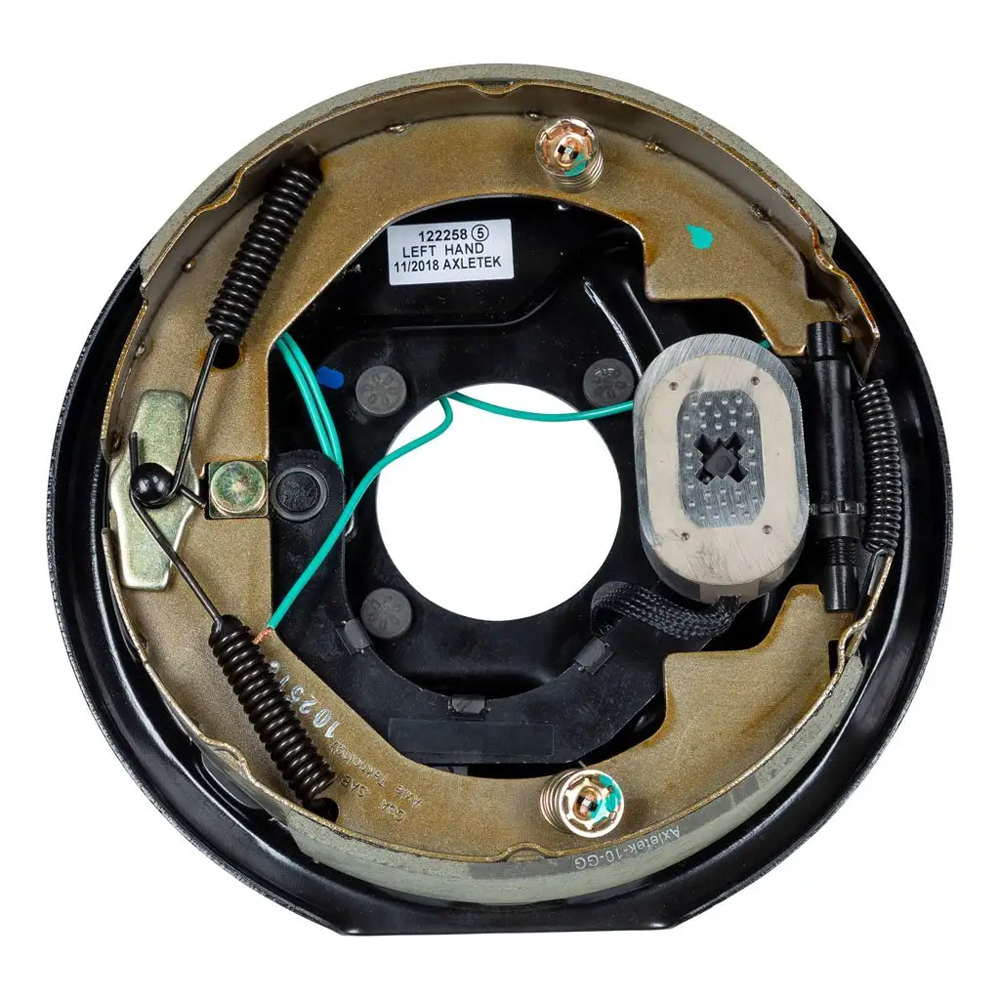

• QTY (1): Lippert Electric Trailer Brake Assembly – 10″ × 2.25″, 3,500 lbs, Left-Hand
  • Manual-adjust with integrated parking brake

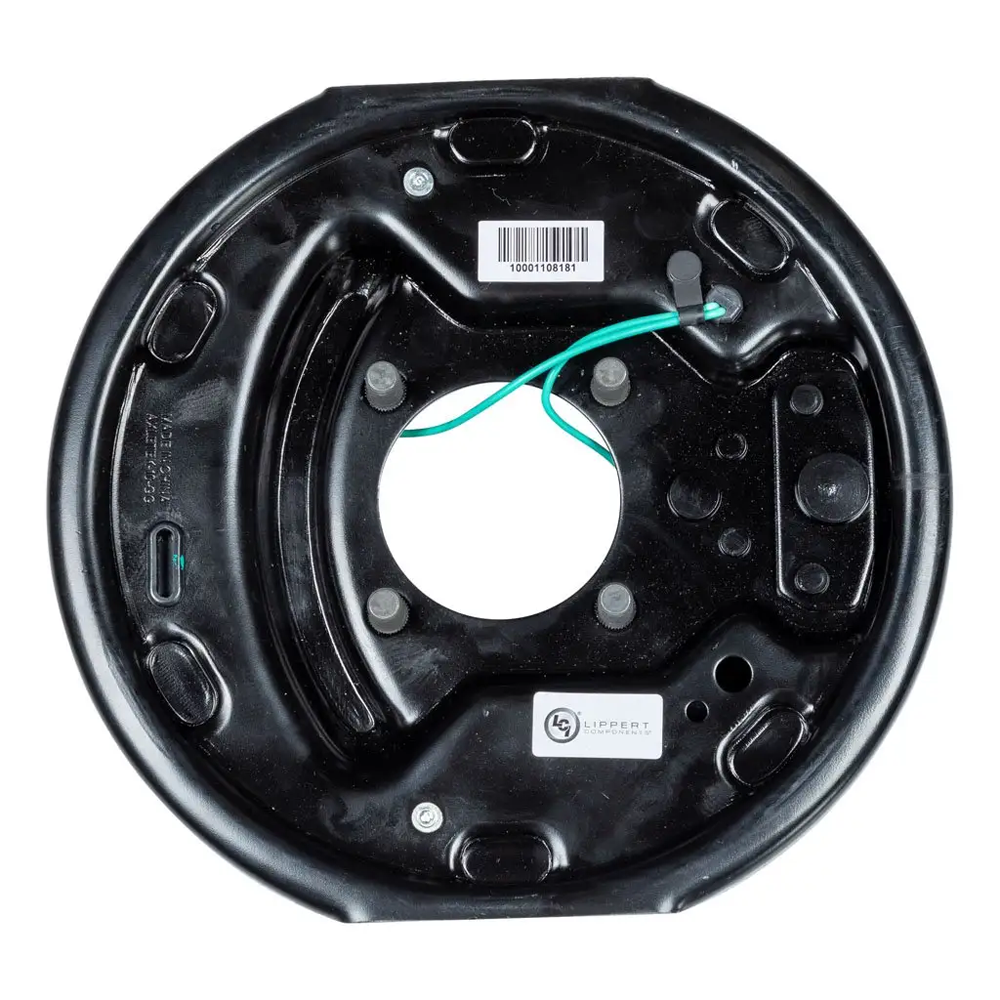

  • Four-bolt backing plate; easy DIY install
  • Fits 13″–15″ wheels on 3,500-lb axles
  • Roadside/driver-side configuration
  • Dexter compatible part #s: K23-026-00 / 023-026-00
  • Requires break-in for peak performance

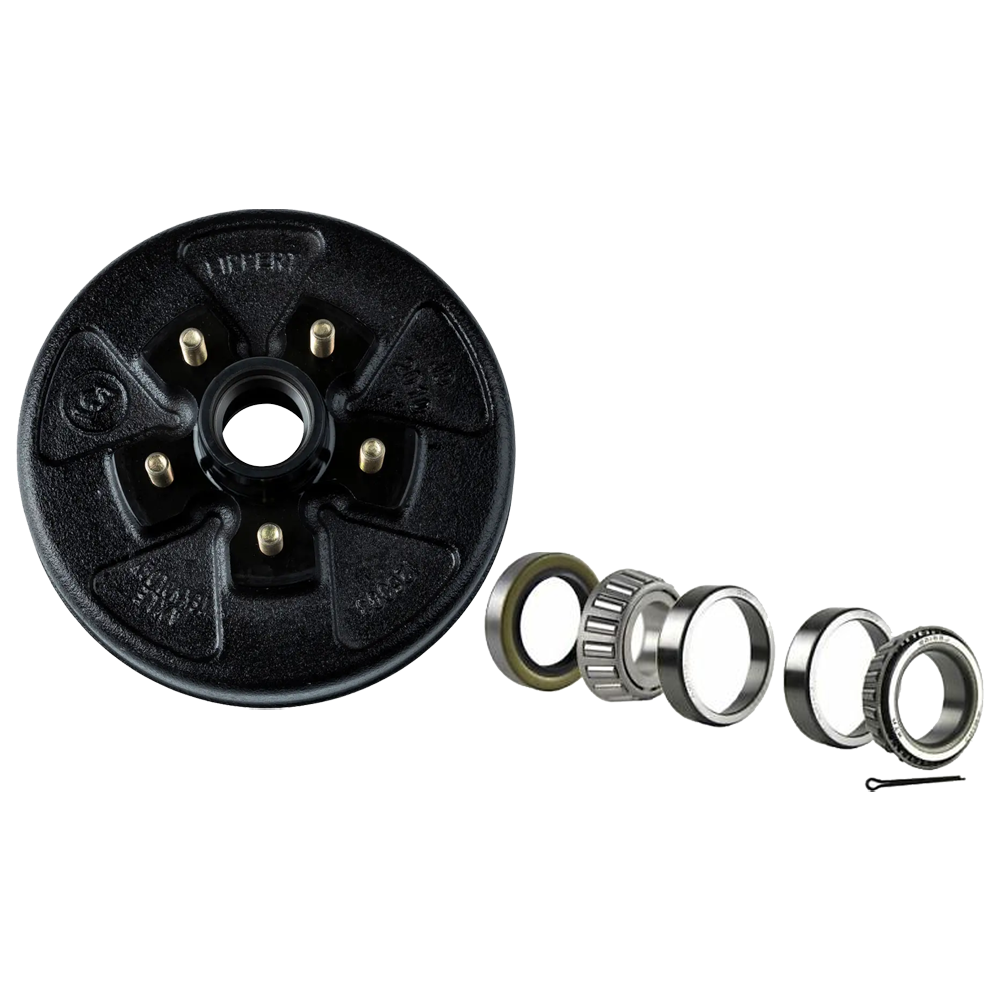

• QTY (1): Lippert 10″ Brake Drum Hub Assembly – 5 on 4.5″, 1/2″ Studs
  • Ships fully assembled for quick installation
  • Solid cast-iron hub rated for 3,500 lbs
  • Bearing kit (bagged separately, one kit per hub) includes:
    • Inner bearing cone
    • Outer bearing cone
    • Inner bearing cup
    • Outer bearing cup
    • Double-lip grease seal
    • Cotter pin
  • Dexter compatible part #s: K08-247-94 / 008-247-94
  • Works with 13″–15″ wheels; Lippert #126003
  • 1-year limited warranty for peace of mind

Always verify original equipment part numbers and perform regular bearing lubrication and brake inspections to maximize safety and longevity.
