Lippert 3,500 lb RH 10? x 2.25? Self-Adjusting Electric Brake & 5-Lug Drum Hub Kit � Dexter, Alko, Rockwell Compatible
$141.99

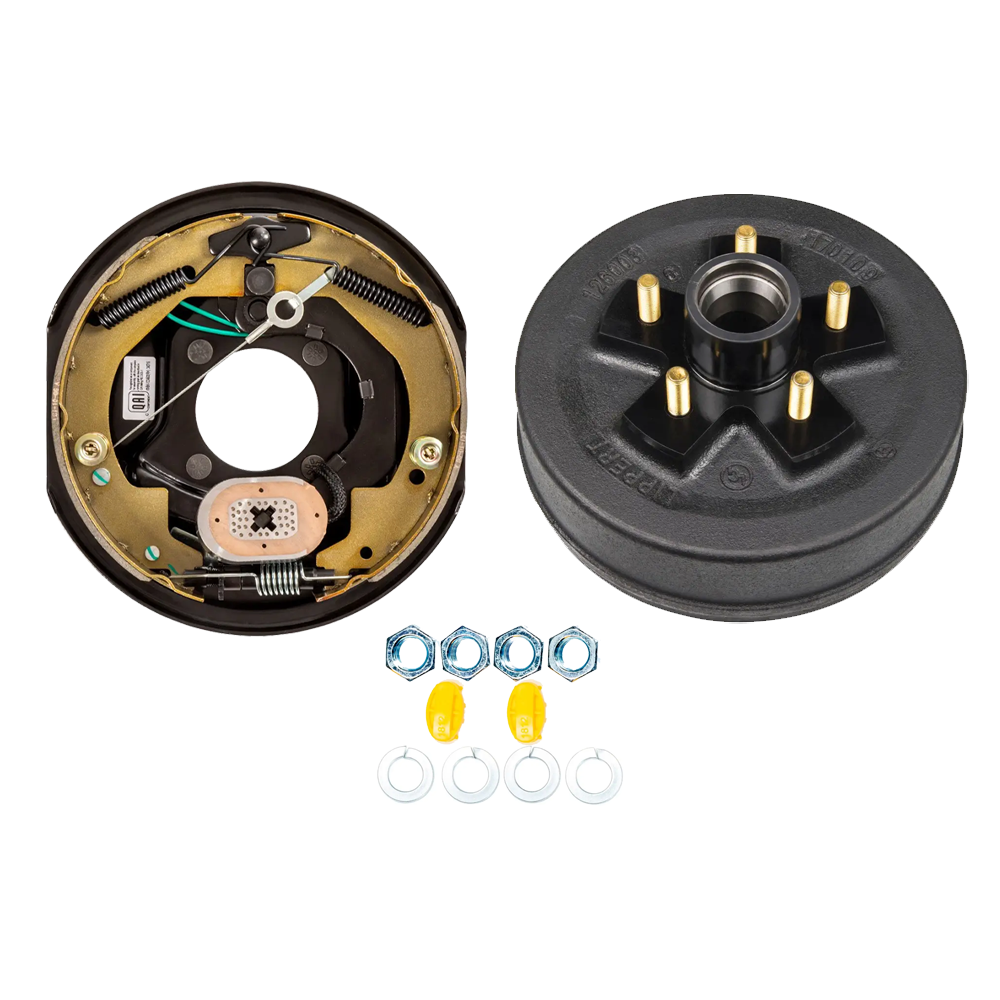

Lippert 3,500 lb RH 10″ x 2.25″ Self-Adjusting Electric Brake & 5-Lug Drum Hub Kit
This convenient bundle pairs Lippert’s forward self-adjusting electric brake with a matching 5-lug hub drum, delivering smoother, shorter stops and hassle-free maintenance for 3,500-lb trailer axles from Lippert, Dexter, Al-Ko, Rockwell and more.
Bundle Contents:
-

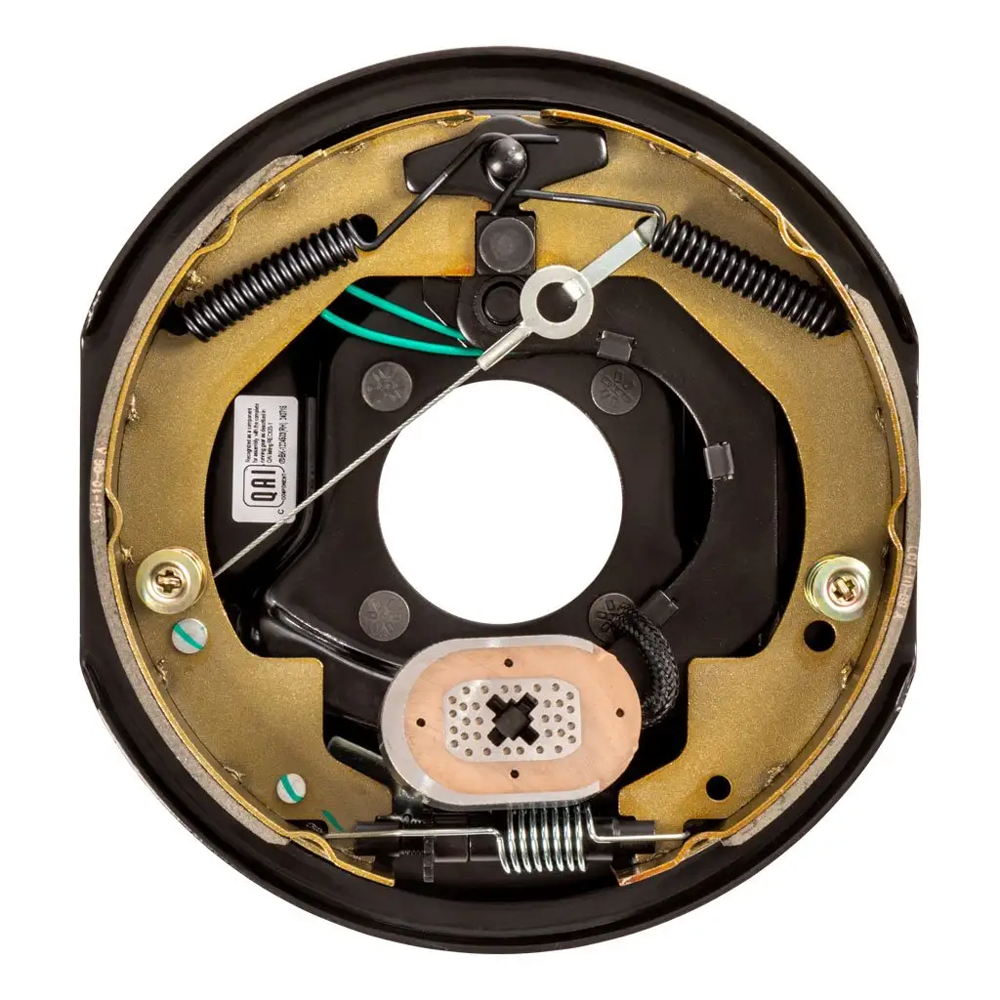

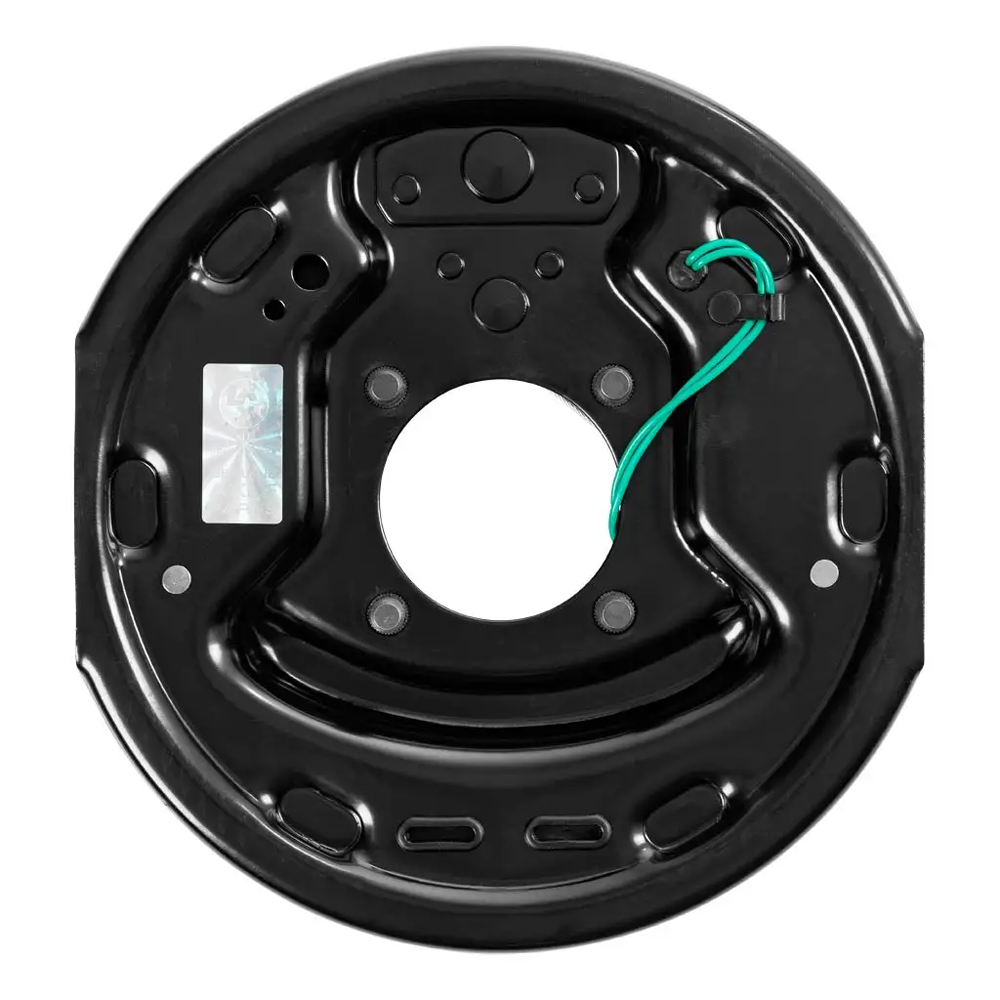

QTY (1): Lippert Forward Self-Adjusting Electric Brake Assembly – 10″ x 2.25″, Right-Hand
- Fits 3,500-lb axles, 13″–15″ wheels
- Four-bolt curb-side mount; self-adjusts on every forward stop
- Improves braking distance and reduces wear
- Dexter Compatible Part Number: K23-469-00 | 023-469-00
- Easy, bolt-on DIY installation
-

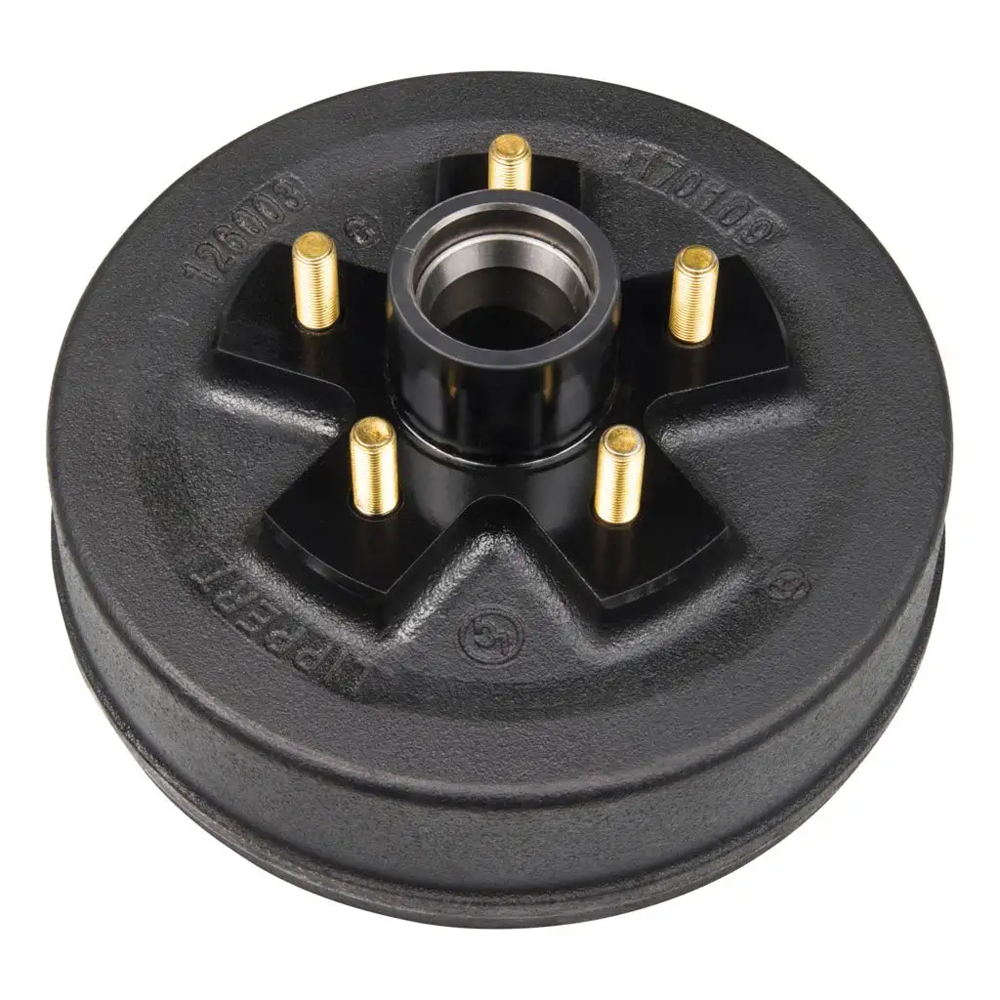

QTY (1): 10″ Trailer Brake Hub Drum – 5 on 4-1/2″, 1/2″ Studs
- Hub with integrated drum rated for 3,500-lb axles
- 5-lug pattern with 1/2″ pre-installed studs
- Hub only – full bearing assembly not included
- CNC-machined faces for true-running brakes
- Compatible with 13″, 14″, 14.5″ & 15″ wheels
Always match replacement parts to your original equipment and inspect brake components regularly for safe, dependable towing.
| Specifications: | |
|---|---|
| Kit Type | Complete Electric Brake & Hub Kit |
| Axle Rating | 3,500 lb |
| Brake Drum Dimensions | 10″ x 2.25″ |
| Brake Mounting Pattern | 4-bolt (RH) |
| Hub Bolt Pattern | 5 on 4-1/2″ |
| Hub Type | Hub with Integrated Drum (hub only) |
| Stud Size | 1/2″ |
| Type of Adjustment | Self-Adjusting |
| Brake Location | Right-Hand (Curb Side) |
| Wheel Size Compatibility | 13″ – 15″ |
| Compatible Axles | Lippert, Dexter, Al-Ko, Rockwell |
