Lippert 3,500-lb Single-Axle 10″ Electric Brake & Drum-Hub Kit – L+R Brakes & 5-on-4.5″ Hubs w/ Bearing Cones – Fits Dexter, Al-Ko, Rockwell

Restore confident stopping power on your single 3,500-lb axle with this genuine Lippert bundle. It pairs one left-hand and one right-hand 10″ × 2.25″ electric brake assembly with two cast-iron 5-on-4.5″ drum-hubs, each supplied with its own bearing hardware. All parts arrive ready for a quick, bolt-on swap so you can get back on the road—fast.

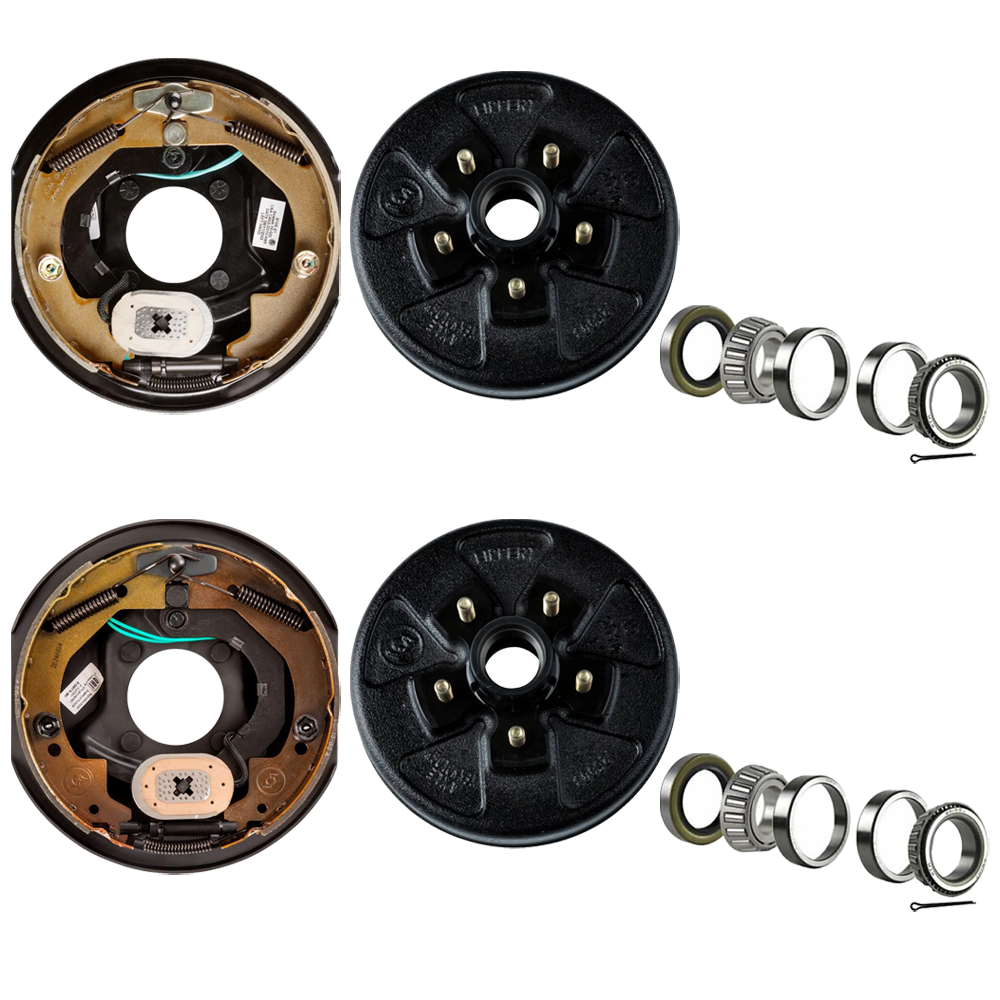

Bundle Contents:

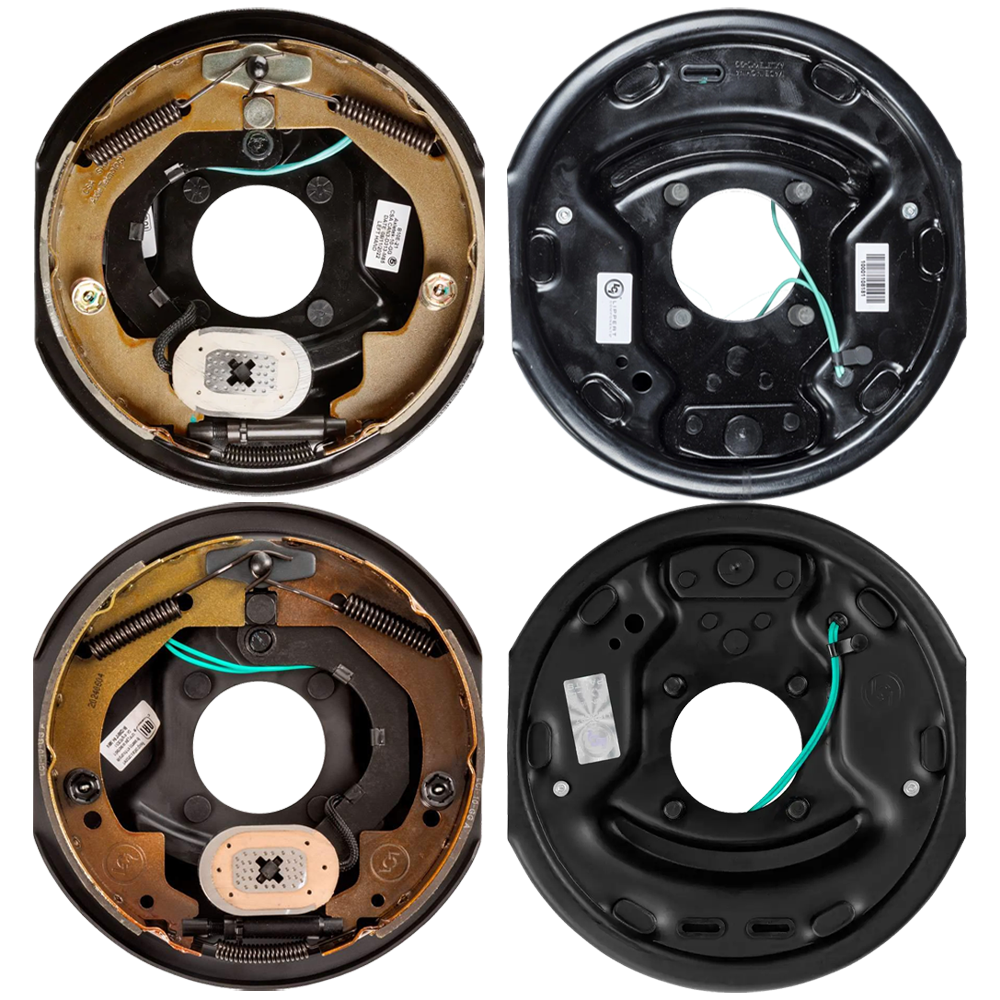

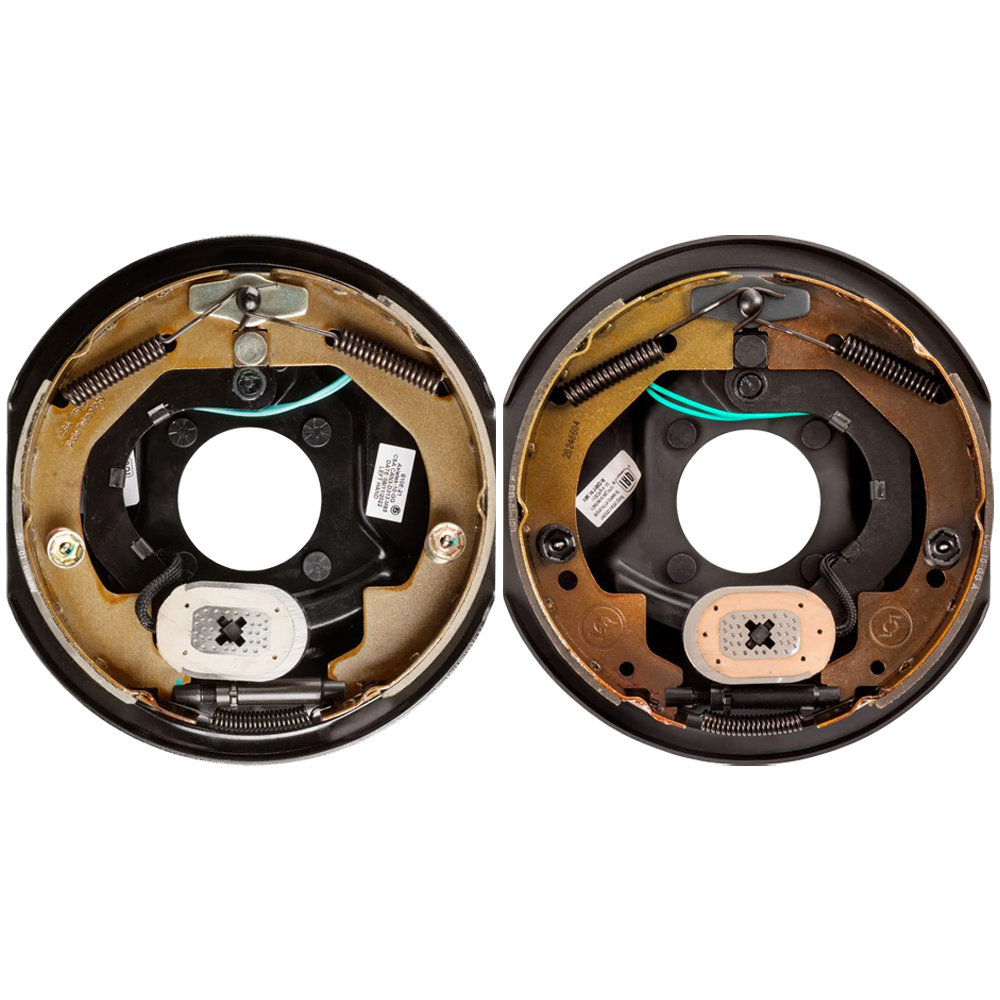

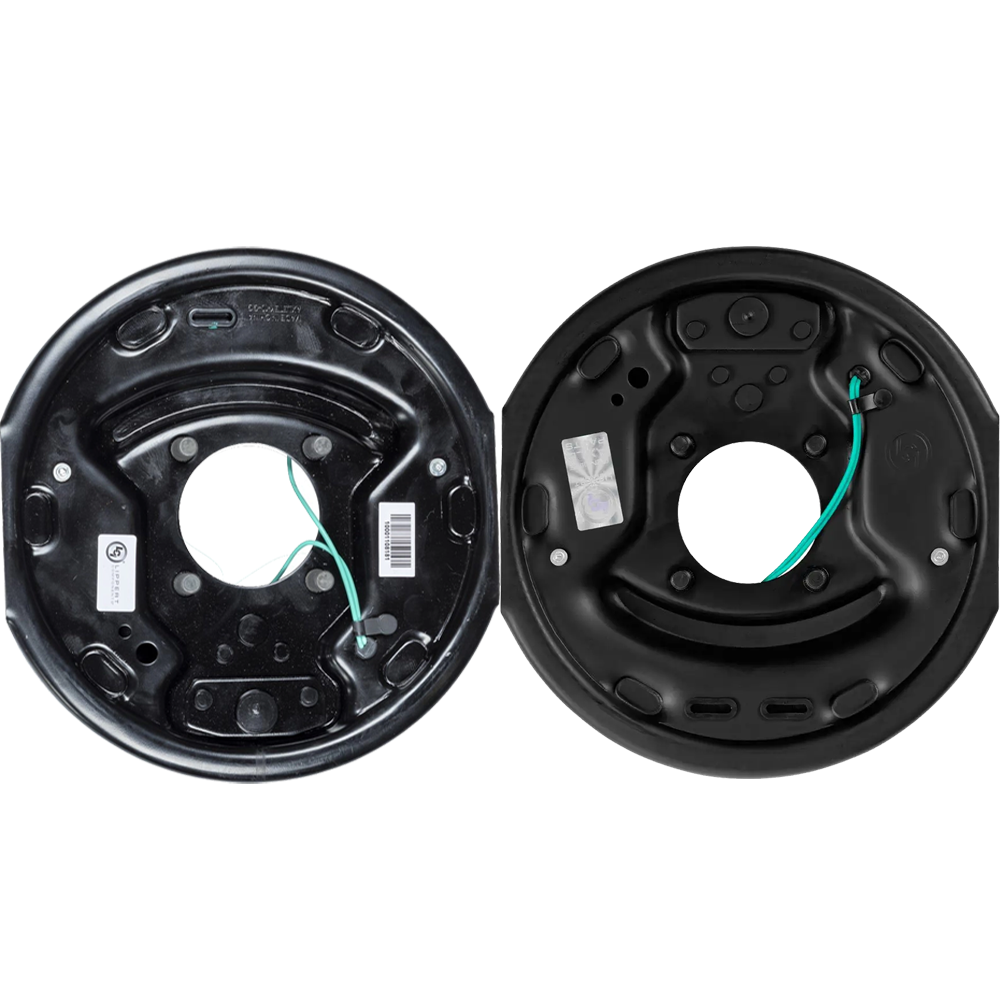

• QTY (1): Lippert Electric Brake Assembly – 10″ × 2.25″, 3,500 lbs (Left-Hand/Road-Side)
  • Direct-fit replacement for Lippert, Dexter, Al-Ko & Rockwell 4-bolt plates
  • Manual-adjust design for precise shoe contact
  • Pre-wired magnet leads simplify hookup
  • Dexter Compatible Part Number: K23-026-00 | 023-026-00
  • 1-year limited warranty
• QTY (1): Lippert Electric Brake Assembly – 10″ × 2.25″, 3,500 lbs (Right-Hand/Curb-Side)
  • Mirror image of LH unit for complete axle coverage
  • Fits standard 10″ drum-hubs on 3.5 K axles
  • Manual-adjust design for precise shoe contact
  • Dexter Compatible Part Number: K23-451-00 | 023-451-00
  • 1-year limited warranty

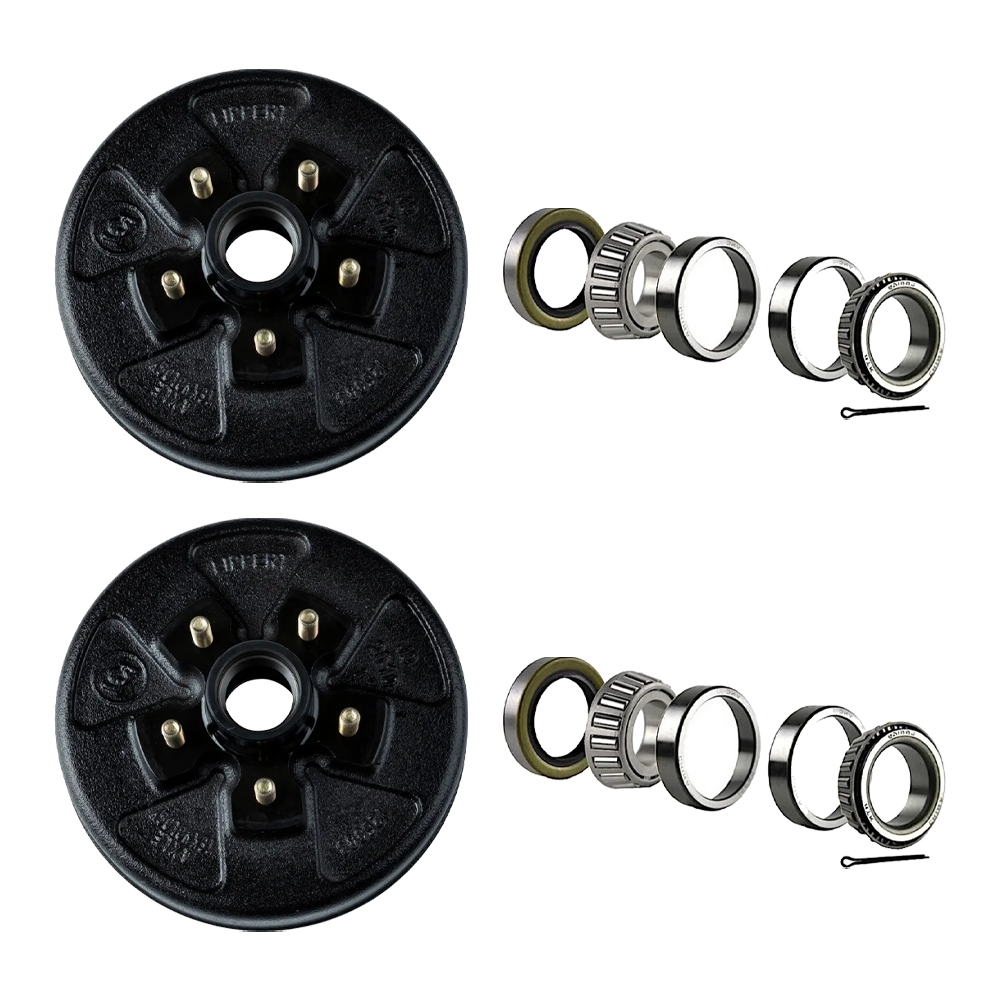

• QTY (2): Lippert 10″ Brake Drum-Hub Assembly – 5 on 4.5″, 1/2″ Stud
  • Cast-iron hub & drum for 3,500-lb axles, 10″ × 2.25″ brakes
  • Pre-pressed 1/2″ studs; accepts 13″–15″ wheels
  • Each drum-hub ships with a complete bearing kit—two kits total in this bundle:
    • (1) Inner bearing cone & cup
    • (1) Outer bearing cone & cup
    • (1) Double-lip grease seal
    • (1) Cotter pin
  • Lippert #126003 drum, bearing kit #333948
  • 1-year limited warranty

Always verify your axle’s weight rating, bolt pattern and brake size before ordering. Inspect shoes, magnets and bearings regularly, packing with high-temp grease for maximum life.
