Lippert 3,500-lb Single-Axle Electric Brake & 10″ Hub-Drum Kit – 5-on-4.5″ Pattern

Refresh your 3,500-lb trailer axle with this Lippert bundle featuring forward self-adjusting 10″ electric brakes and two heavy-duty hub-drums. Designed for direct fitment and cross-brand compatibility, it delivers all the core components required to service one axle—eliminating guesswork and multiple parts orders.

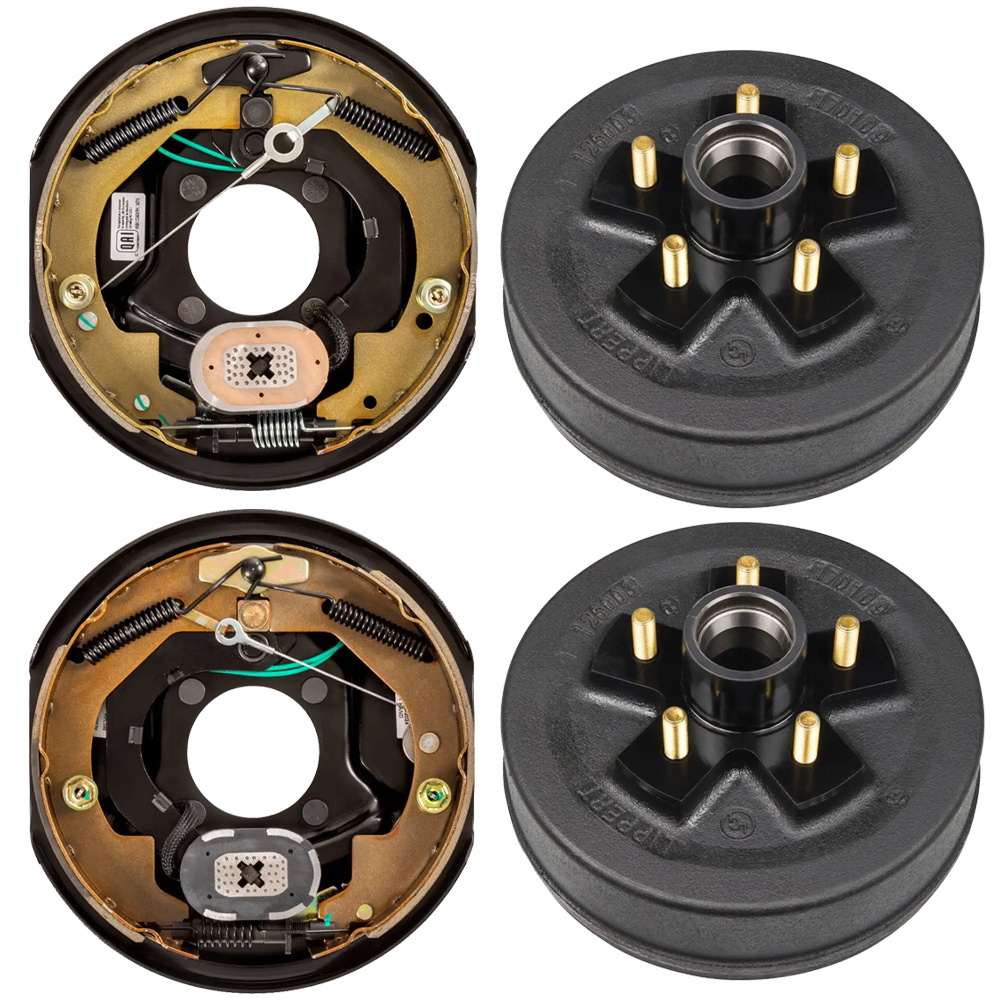

Bundle Contents:

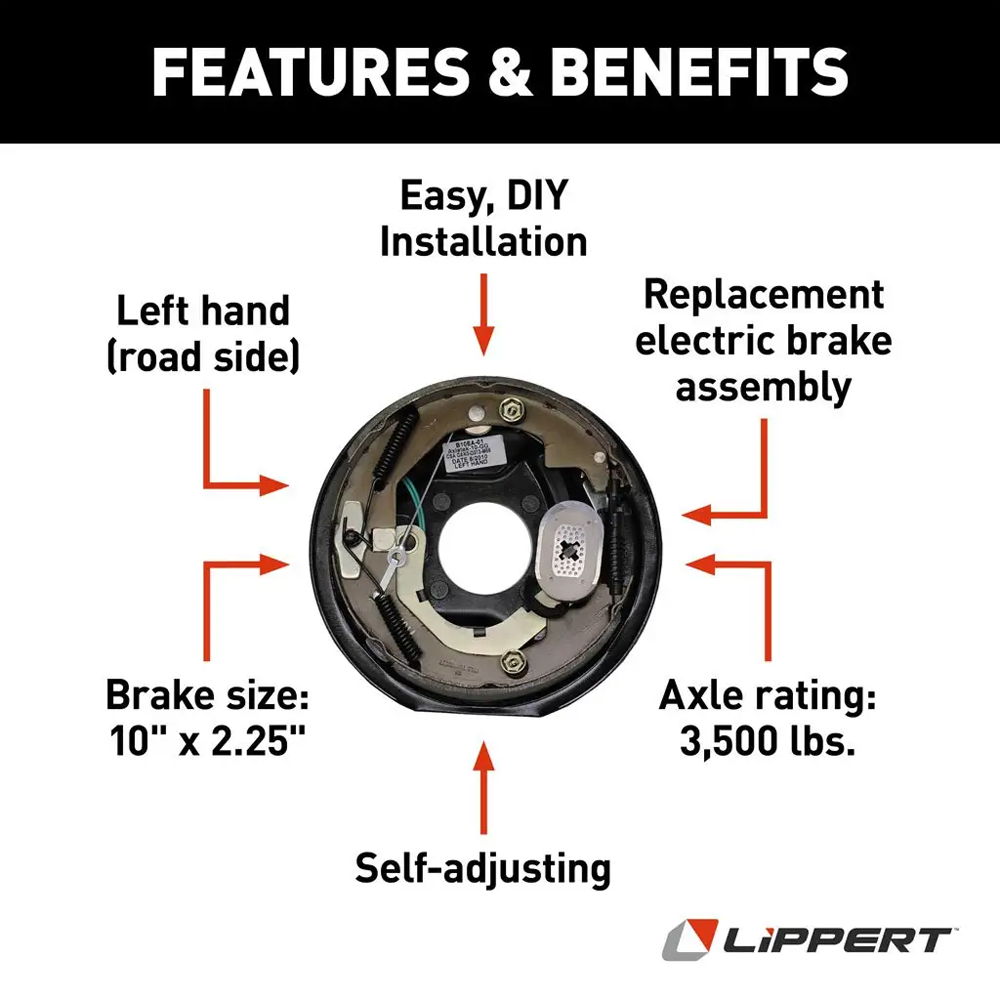

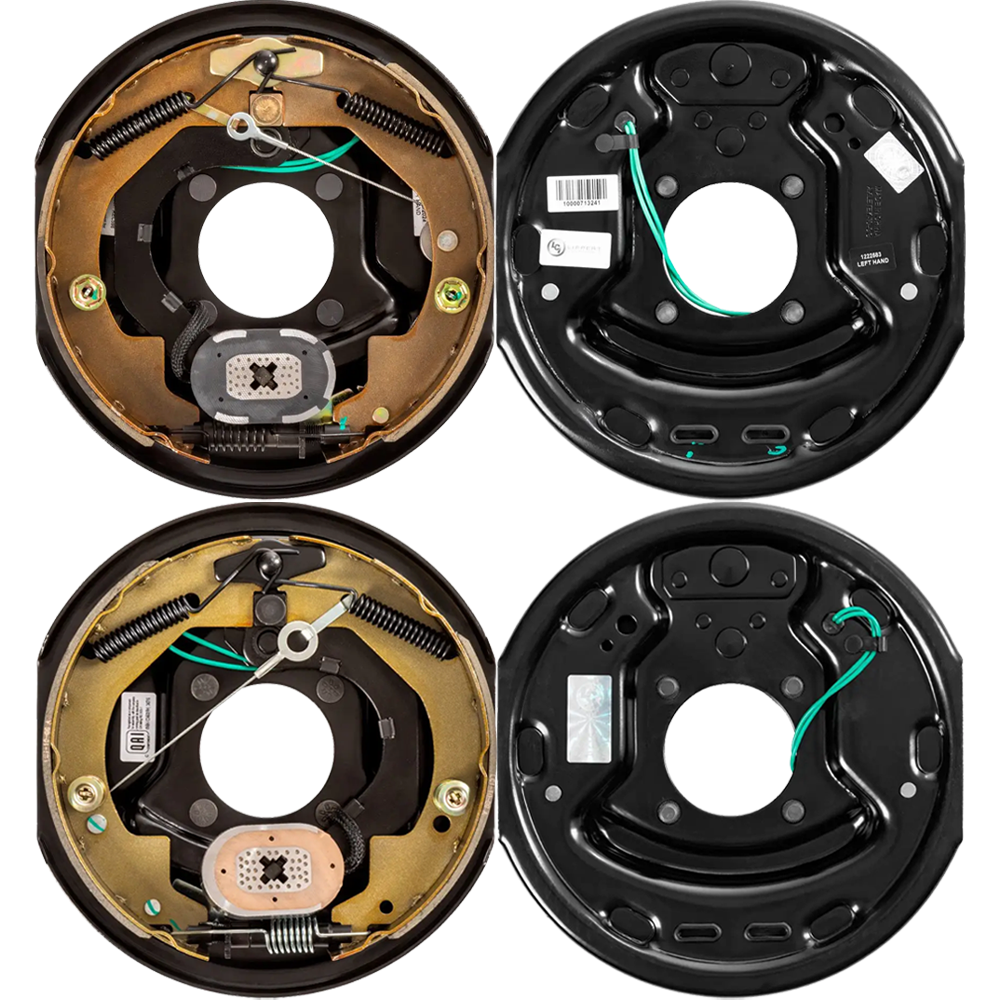

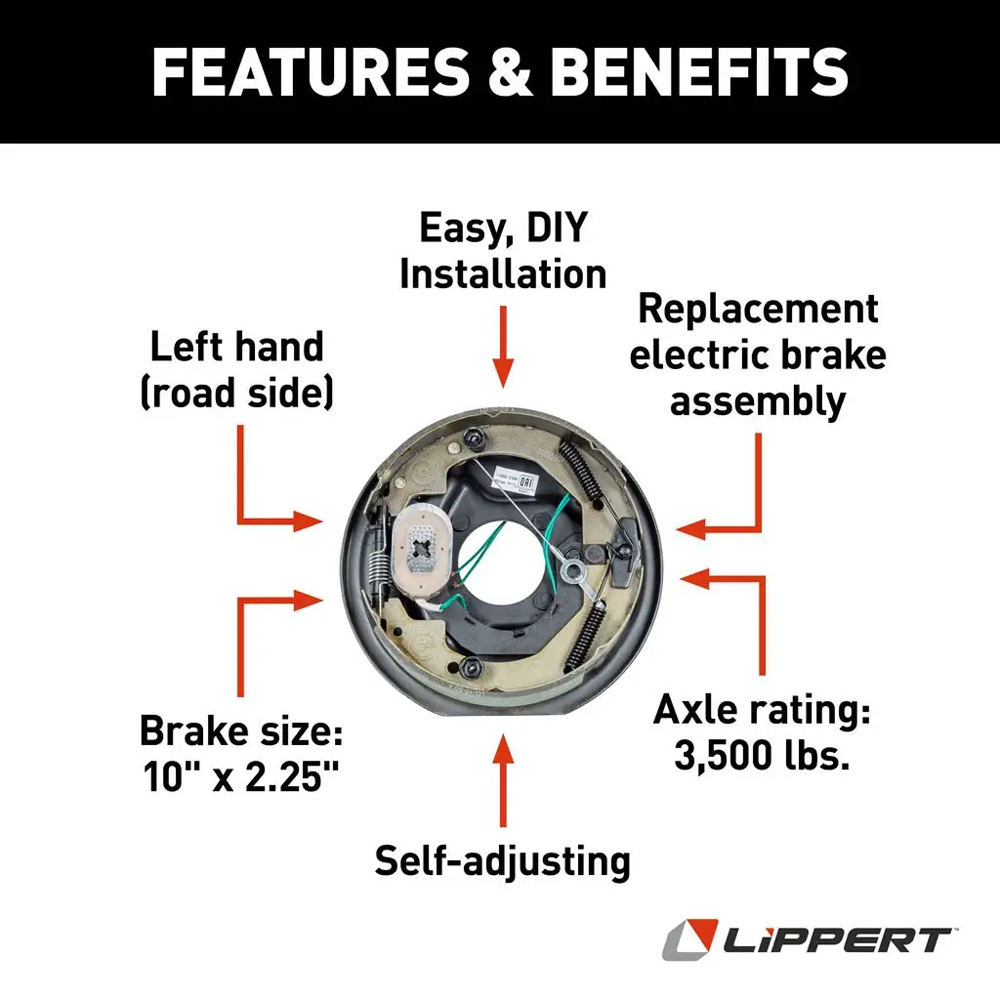

• QTY (1): Lippert Forward Self-Adjusting Electric Brake Assembly – 10″ × 2.25″, LH
  • Left-hand (road-side) brake for 3,500-lb axles
  • Dexter compatible PN K23-468-00 | 023-468-00
  • Self-adjusts at every forward stop—up to 50 % shorter braking distance
  • Four-bolt mounting flange; pre-wired magnet; 1-year Lippert warranty
• QTY (1): Lippert Forward Self-Adjusting Electric Brake Assembly – 10″ × 2.25″, RH
  • Right-hand (curb-side) matching brake assembly
  • Dexter compatible PN K23-469-00 | 023-469-00
  • Identical 10″ × 2.25″ shoe size & forward self-adjusting mechanism
  • Color-coded lead wires for quick DIY installation; 1-year warranty

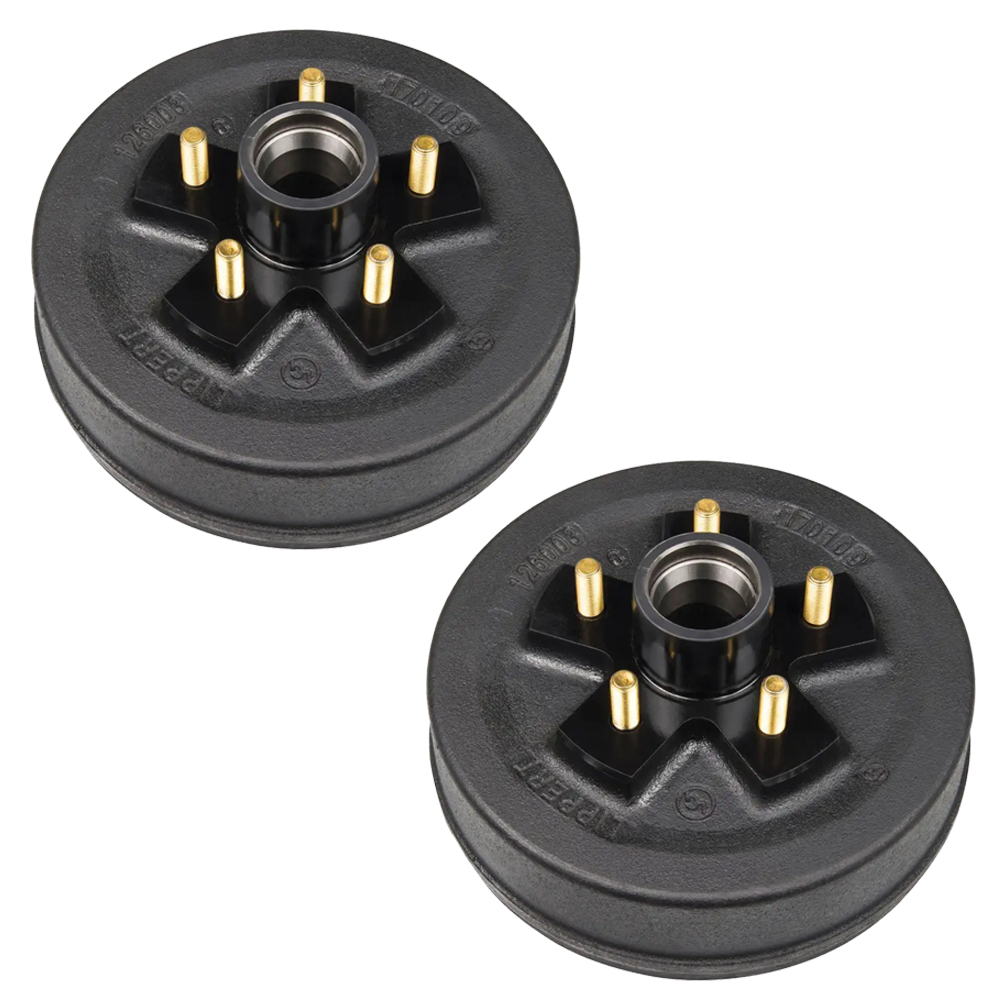

• QTY (2): Lippert 10″ Hub-Drum – 5-on-4.5″, 1/2″ Studs
  • Cast-iron hub with integrated 10″ drum
  • Hub only – full brake assembly not included
  • Rated for 3,500-lb axle; fits 13″–15″ wheels
  • Standard 5-on-4.5″ bolt circle with 1/2″ pre-installed studs
  • Machined race seats for precise bearing fit; limited 1-year warranty

Verify axle tag, wheel size, and bolt pattern before installation. Torque lugs to spec and inspect brakes, bearings, and seals every 12,000 miles or annually—whichever comes first.
