Lippert 3,500-lb Single-Axle Electric Brake & 10? Hub-Drum Kit � 5-on-4.5? Pattern | Compatible with Dexter, AL-KO, Rockwell

Lippert 3,500-lb Single-Axle Electric Brake & 10″ Hub-Drum Kit – 5-on-4.5″

Restore confident stopping power on your 3.5K trailer axle with this complete Lippert bundle. Two forward self-adjusting 10″ electric brake assemblies pair with a matching set of 10″ hub-drums, delivering smoother stops, reduced maintenance, and proven compatibility with Lippert, Dexter, AL-KO, and Rockwell axles.

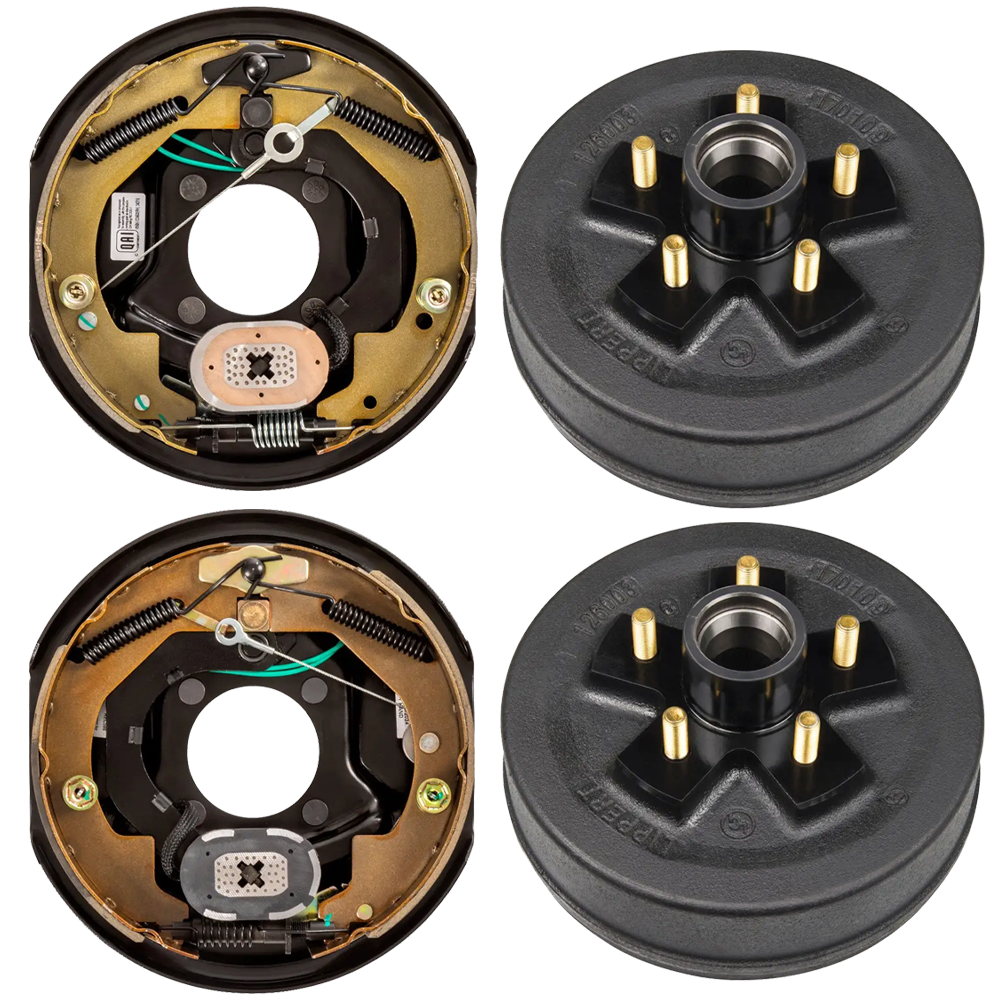

Bundle Contents:

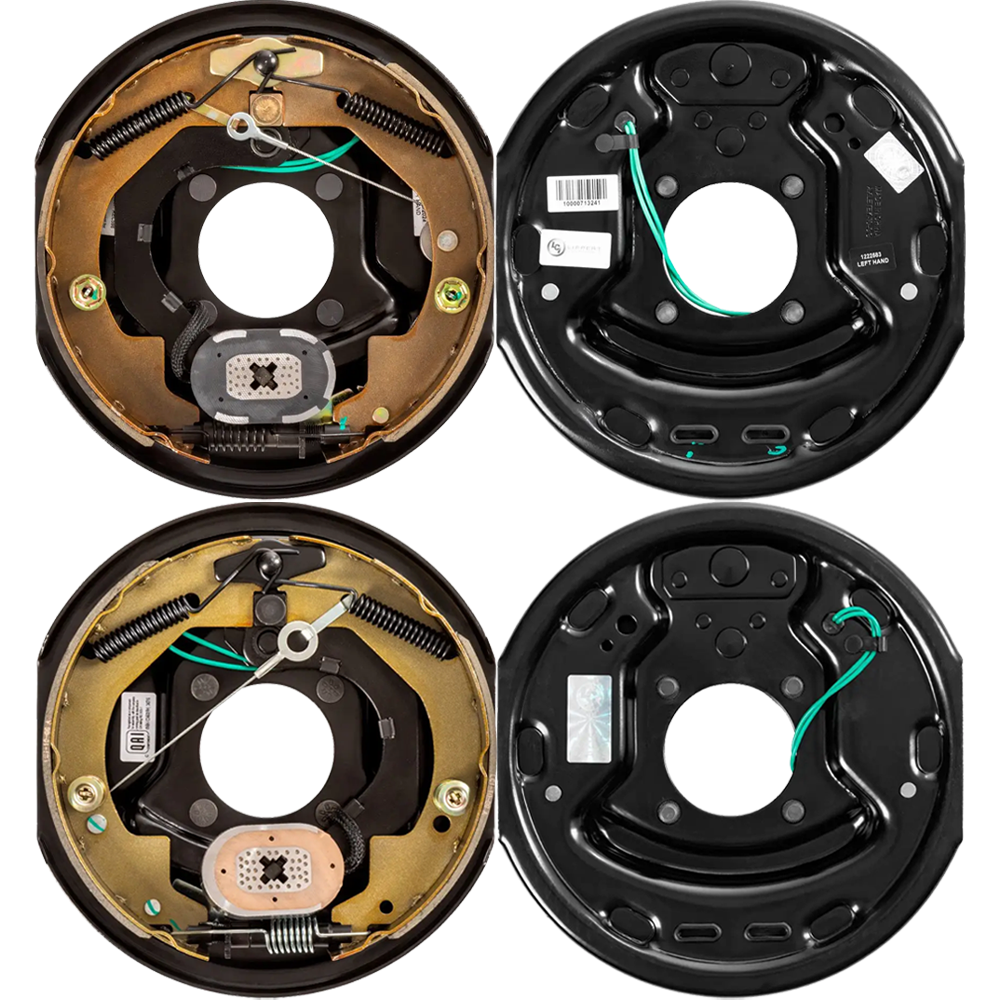

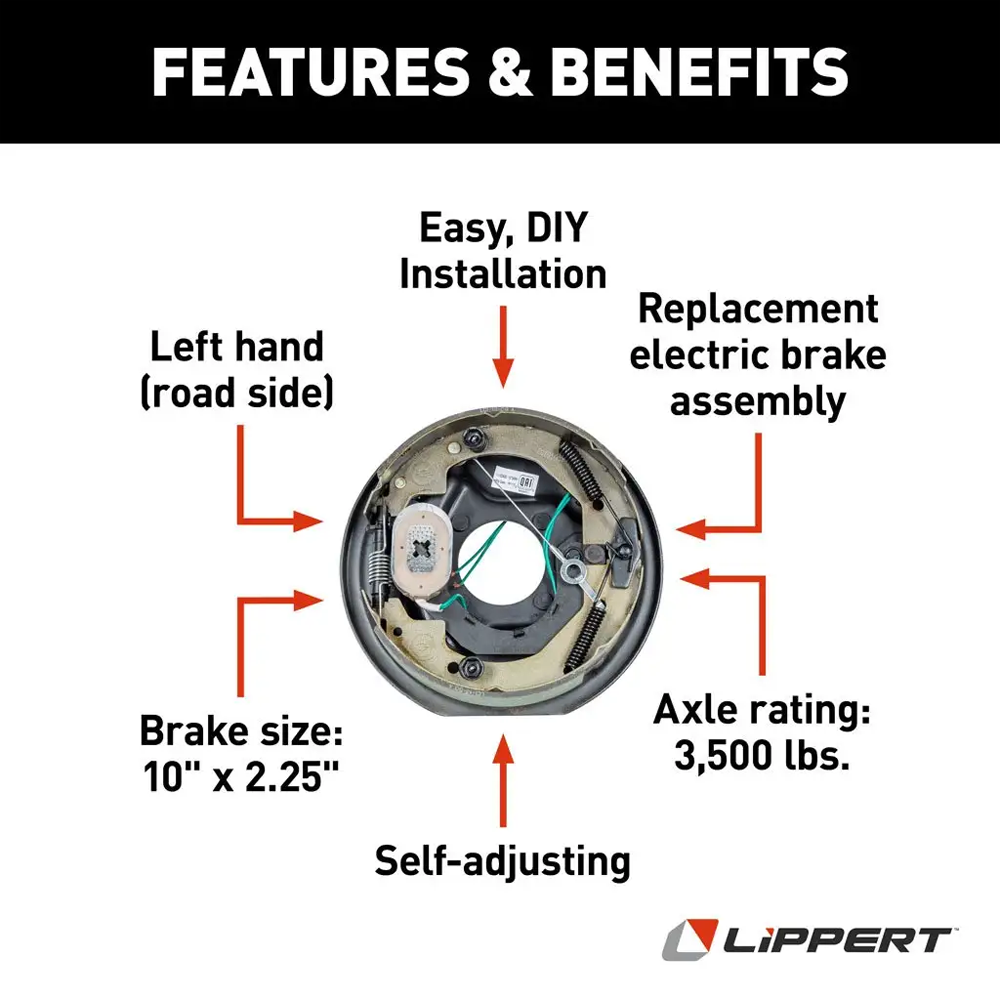

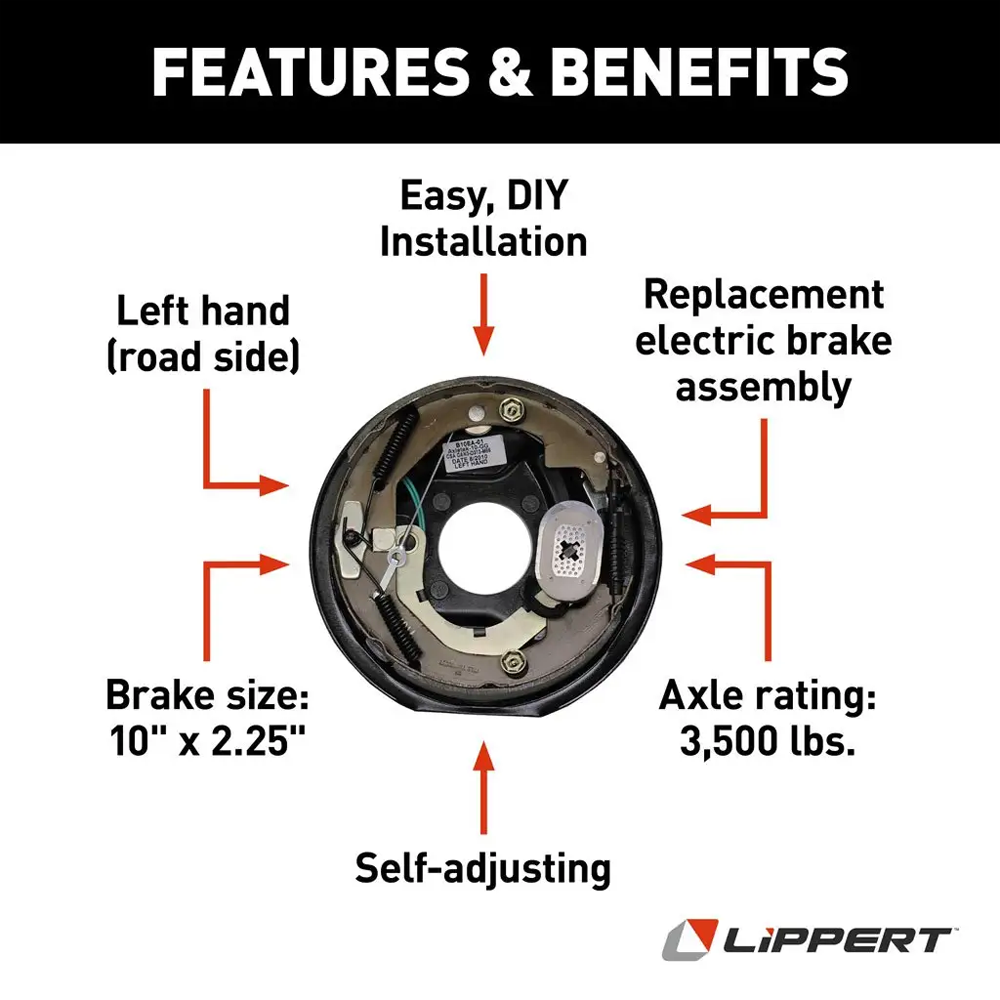

• QTY (1): Lippert Forward Self-Adjusting Brake Assembly – 10″ × 2.25″, 4-Bolt, 3.5K (Left)
  • Replacement electric brake – road-side (LH)
  • Dexter compatible part #: K23-468-00 | 023-468-00
  • Self-adjusting; no manual tweaks after break-in
  • 10″ × 2.25″ shoes, 3,500-lb axle rating
  • 4-bolt mounting pattern, easy DIY install
  • 1-year Lippert warranty
• QTY (1): Lippert Forward Self-Adjusting Brake Assembly – 10″ × 2.25″, 4-Bolt, 3.5K (Right)
  • Replacement electric brake – curb-side (RH)
  • Dexter compatible part #: K23-469-00 | 023-469-00
  • Self-adjusting for up to 50 % shorter stops
  • 10″ × 2.25″ shoes, 3,500-lb axle rating
  • 4-bolt mounting pattern, easy DIY install
  • 1-year Lippert warranty

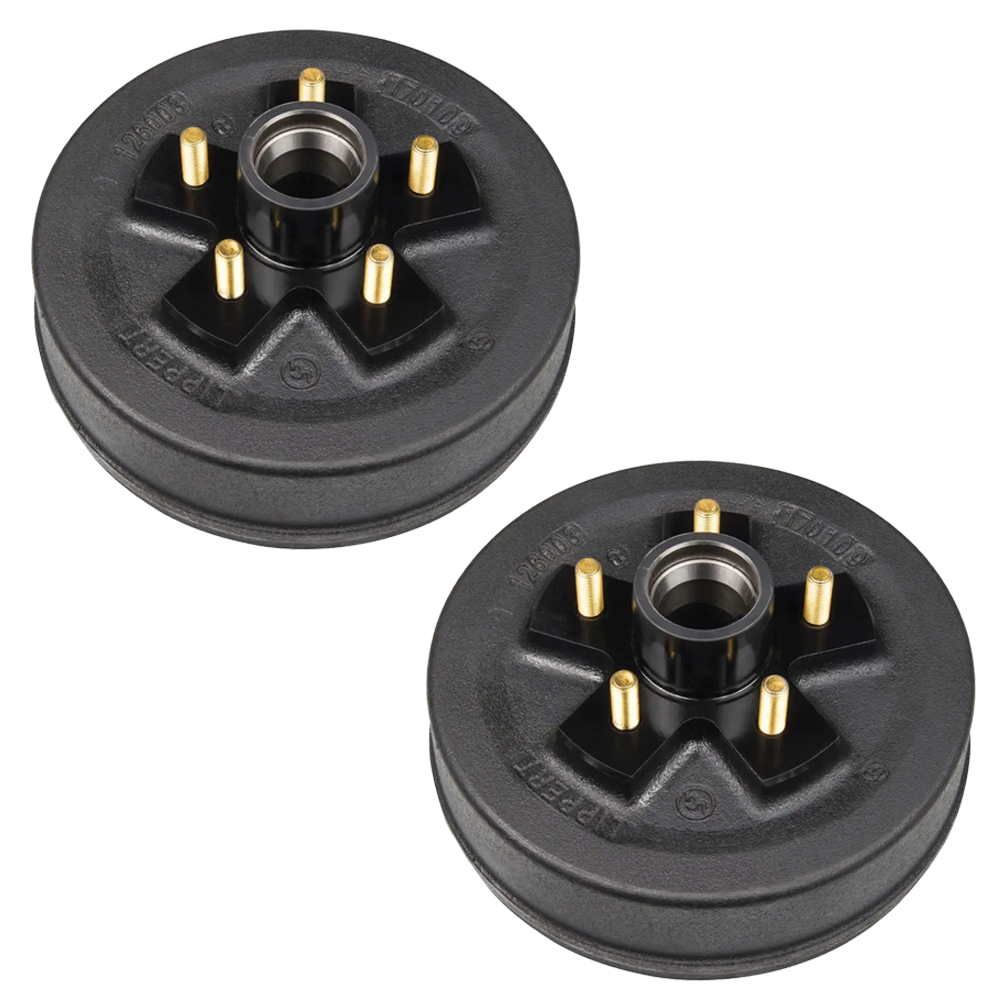

• QTY (2): 10″ Trailer Brake Hub-Drum – 5 on 4.5″, 1/2″ Studs
  • Hub only – full assembly not included
  • 10″ hub with integrated drum
  • Fits 3,500-lb axles; uses 1/2″ wheel studs
  • 5 on 4.5″ bolt pattern
  • Compatible with 13″–15″ wheels
  • Limited 1-year warranty

Always verify axle rating, torque lug nuts after 50 miles, and inspect brake linings periodically for peak performance and safety.
