Lippert 3,500-lb Single-Axle Park-Ready Electric Brake & Fully Assembled Pre-Greased 10? Drum-Hub Kit – 5-on-4.5? Bolt Pattern (LH + RH Brakes, 2 Hubs) – Dexter, Al-Ko, Rockwell Compatible

Lippert 3,500-lb Single-Axle Electric Brake & Pre-Greased 10″ Drum-Hub Kit

Refresh your trailer’s stopping power in one step. This park-ready bundle pairs Lippert’s left- and right-hand 10″ × 2.25″ electric brakes with two factory-greased, fully assembled drum hubs, giving you everything you need to service a single 3,500-lb axle with the popular 5-on-4.5″ bolt pattern.

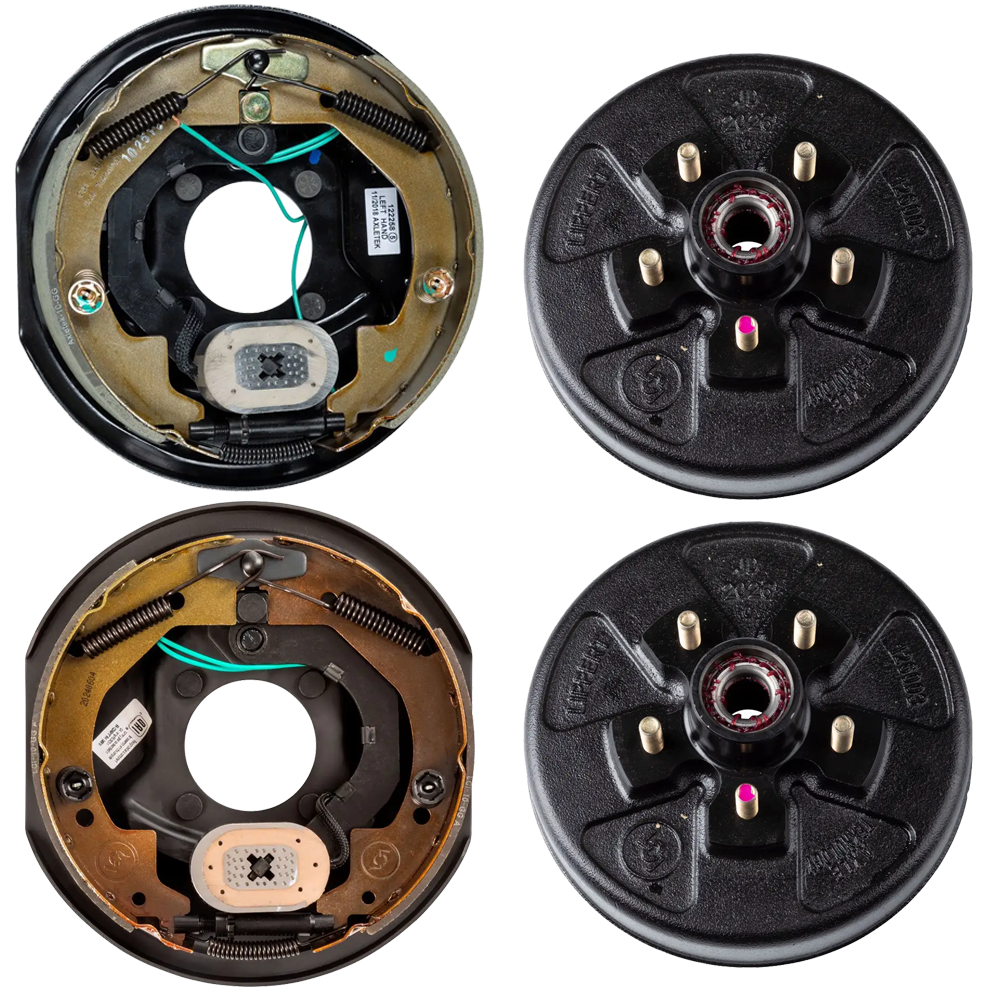

Bundle Contents:

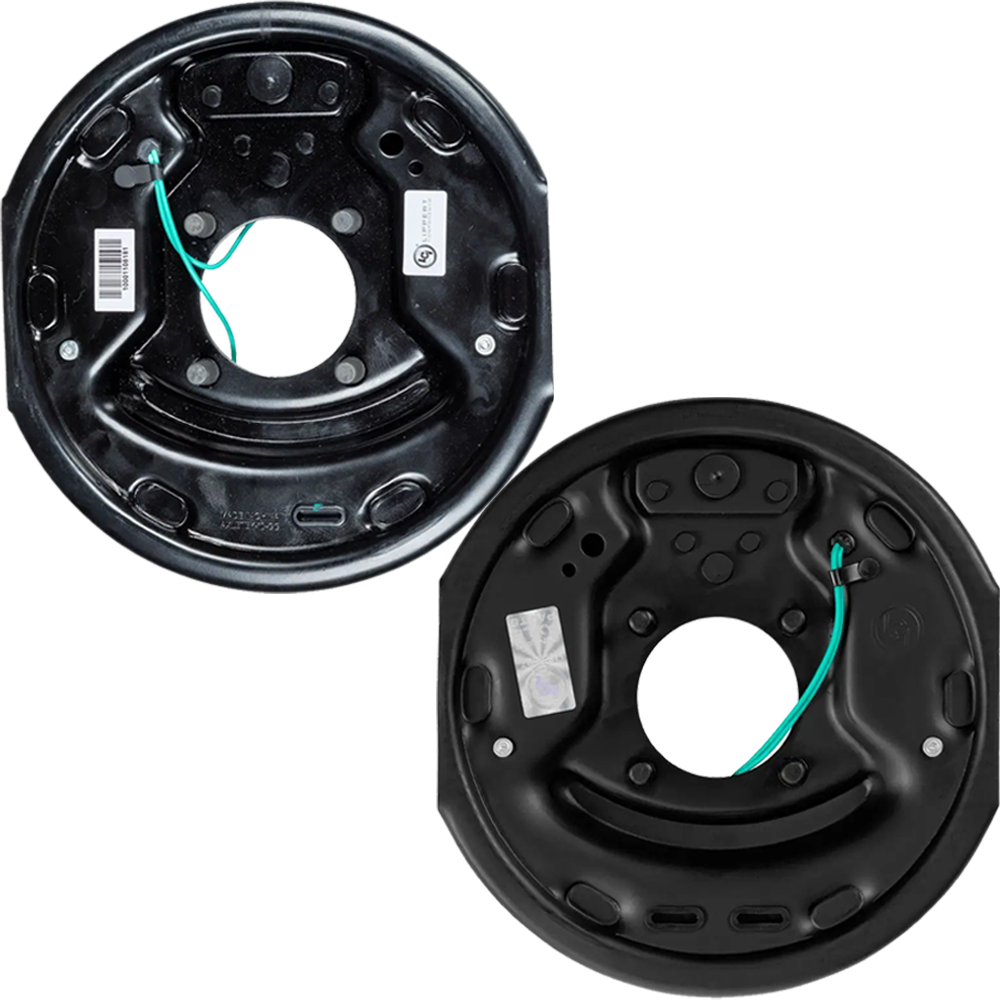

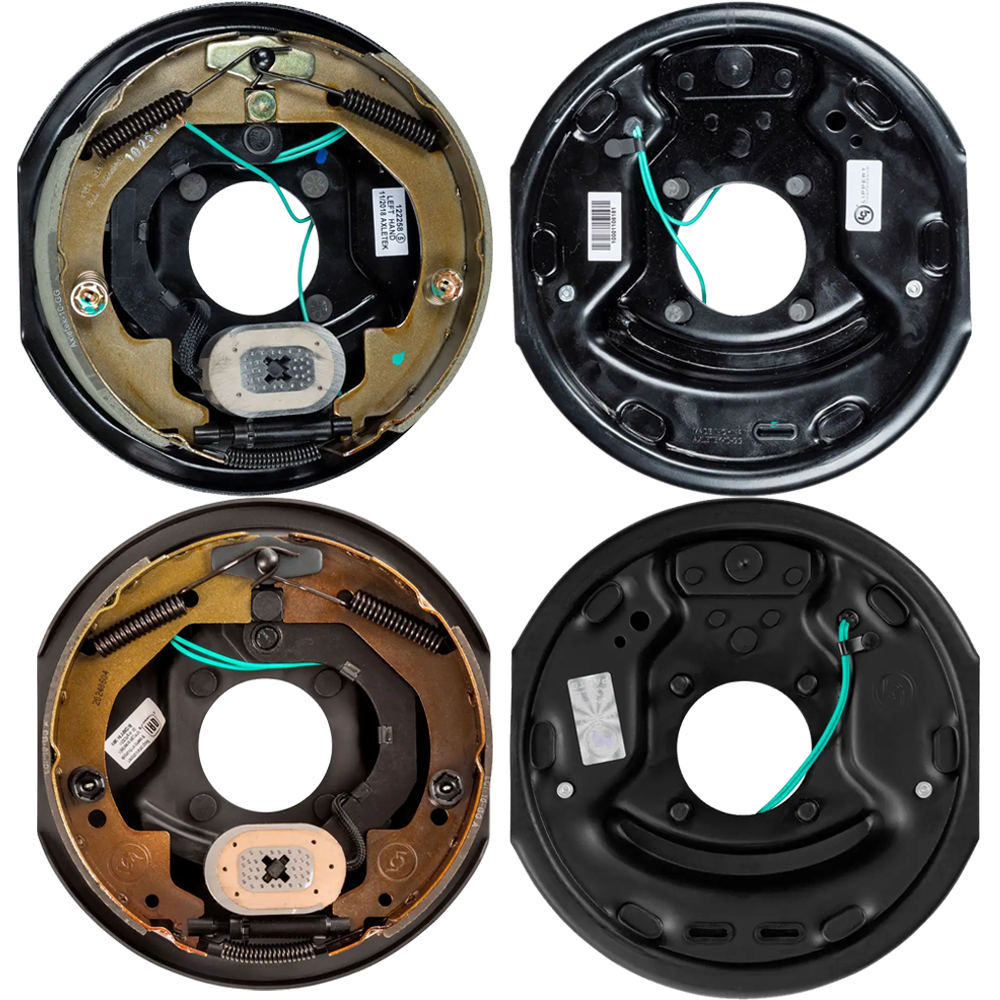

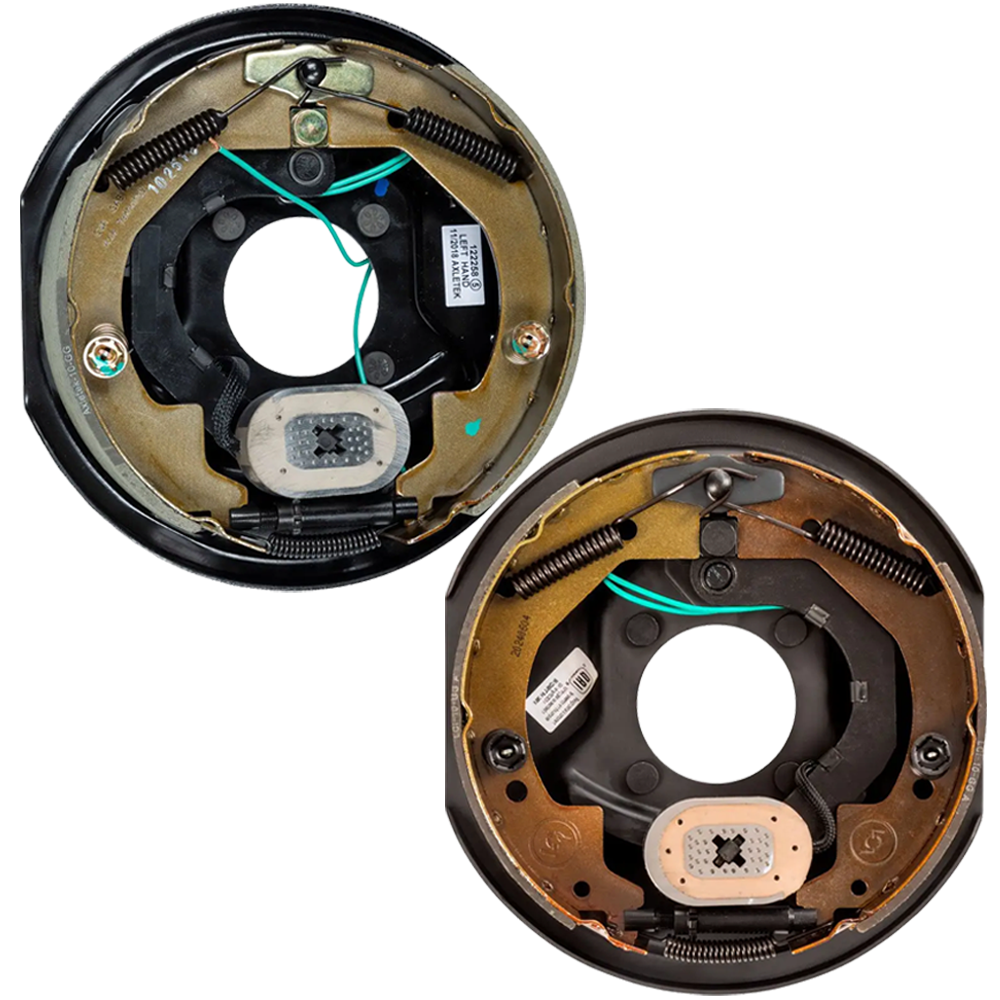

• QTY (1): Lippert Electric Trailer Brake Assembly – 10″ × 2.25″ / 3,500 lbs., Left Side
  • 10″ × 2.25″ electric drum brake with parking feature
  • Manual-adjust, 4-bolt roadside (LH) mount
  • Rated for 3,500-lb axles & 13-15″ wheels
  • Dexter Compatible Part Number: K23-026-00 | 023-026-00
  • Direct OEM replacement; requires break-in
• QTY (1): Lippert Electric Trailer Brake Assembly – 10″ × 2.25″ / 3,500 lbs., Right Side
  • Matching 10″ × 2.25″ electric drum brake with parking feature
  • Manual-adjust, 4-bolt curb-side (RH) mount
  • Rated for 3,500-lb axles & 13-15″ wheels
  • Dexter Compatible Part Number: K23-027-00 | 023-027-00
  • Direct OEM replacement; requires break-in

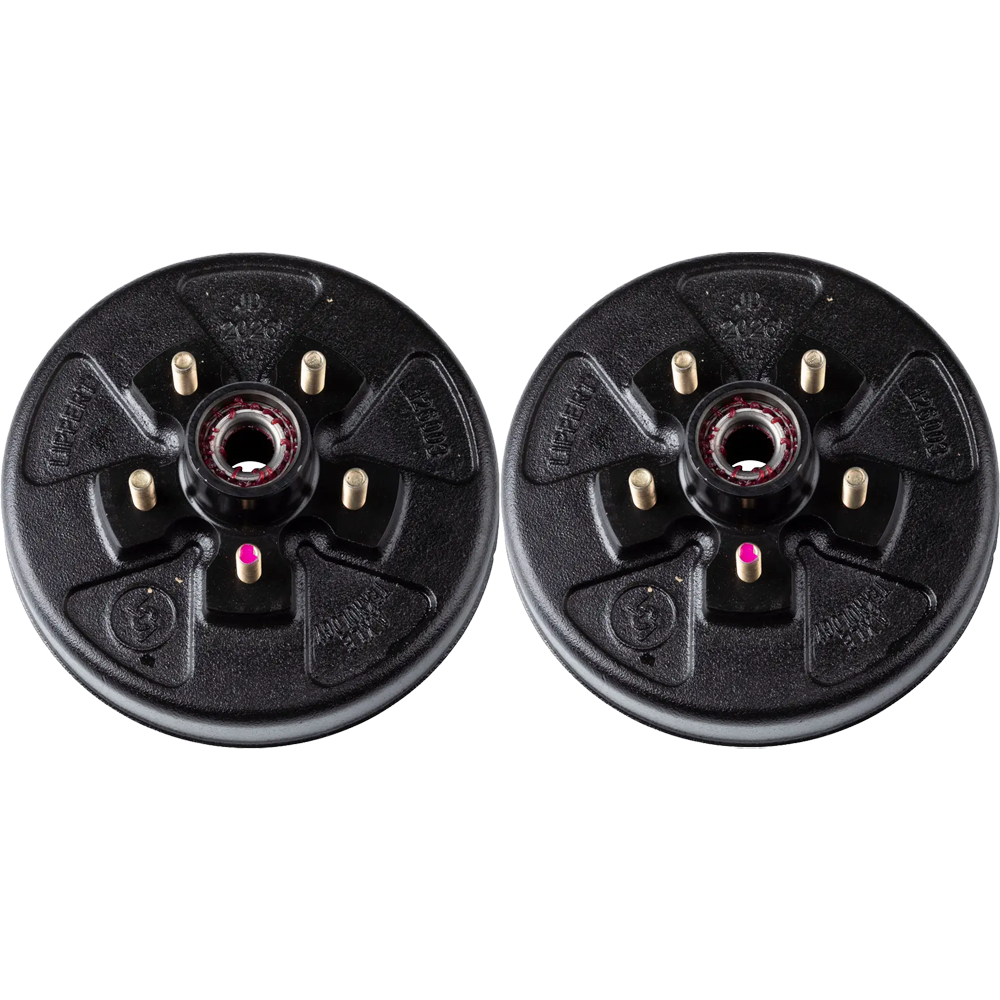

• QTY (2): Lippert 10″ RV Brake Drum Hub Assembly for 3,500-lb Axle – 5 on 4.5″, 1/2″ Stud
  • Fully assembled, pre-greased 10″ hub & drum
  • 5-on-4.5″ pattern with 1/2″ studs
  • Fits Lippert, Dexter, Al-Ko & Rockwell 3,500-lb axles
  • Bearings, seal & grease factory-installed
  • Cast-iron strength; 1-year limited warranty

Always match parts to your original axle specs, torque lug nuts after 50 miles, and service brakes annually for safe, confident towing.
