Lippert 3,500?lb. Single-Axle Pre-Greased Hub Assembly (5 on 4.5) � 2-Pack w/ Lug Nuts

Lippert 3,500 lb. Single-Axle Pre-Greased Hub Assembly Bundle – 2-Pack

This convenient kit provides all the essential components you need to replace or upgrade your single-axle trailer’s hub assembly. Each fully pre-greased hub assembly comes ready to install, saving time and eliminating guesswork. Ideal for 3,500 lb. axles with a 5 on 4.5 bolt pattern.

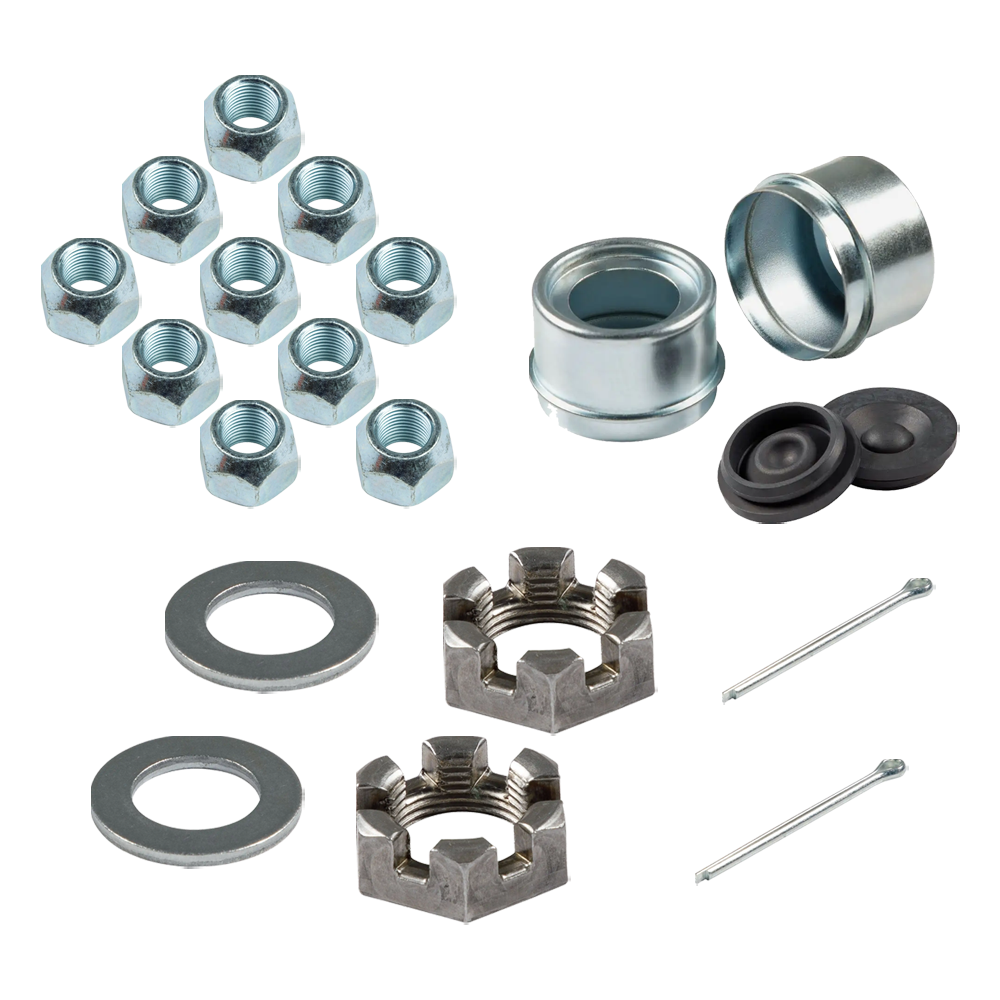

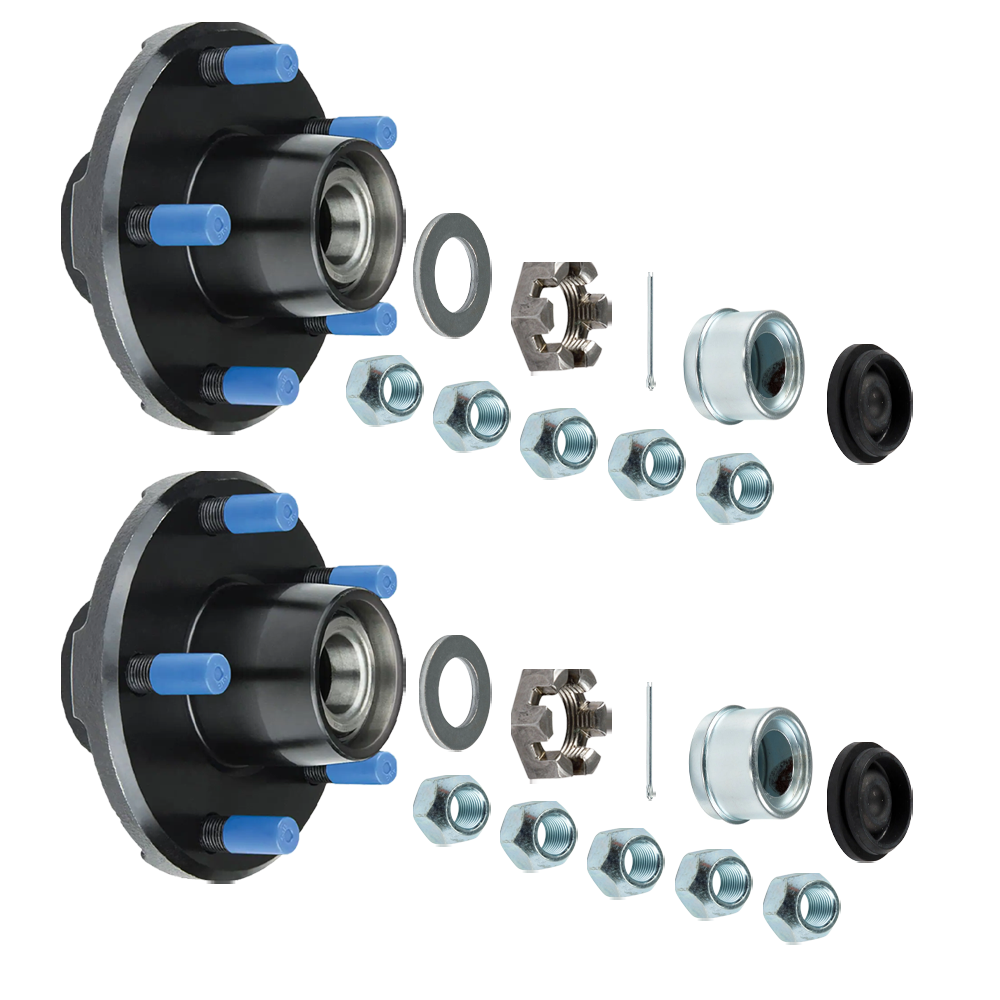

Bundle Contents:

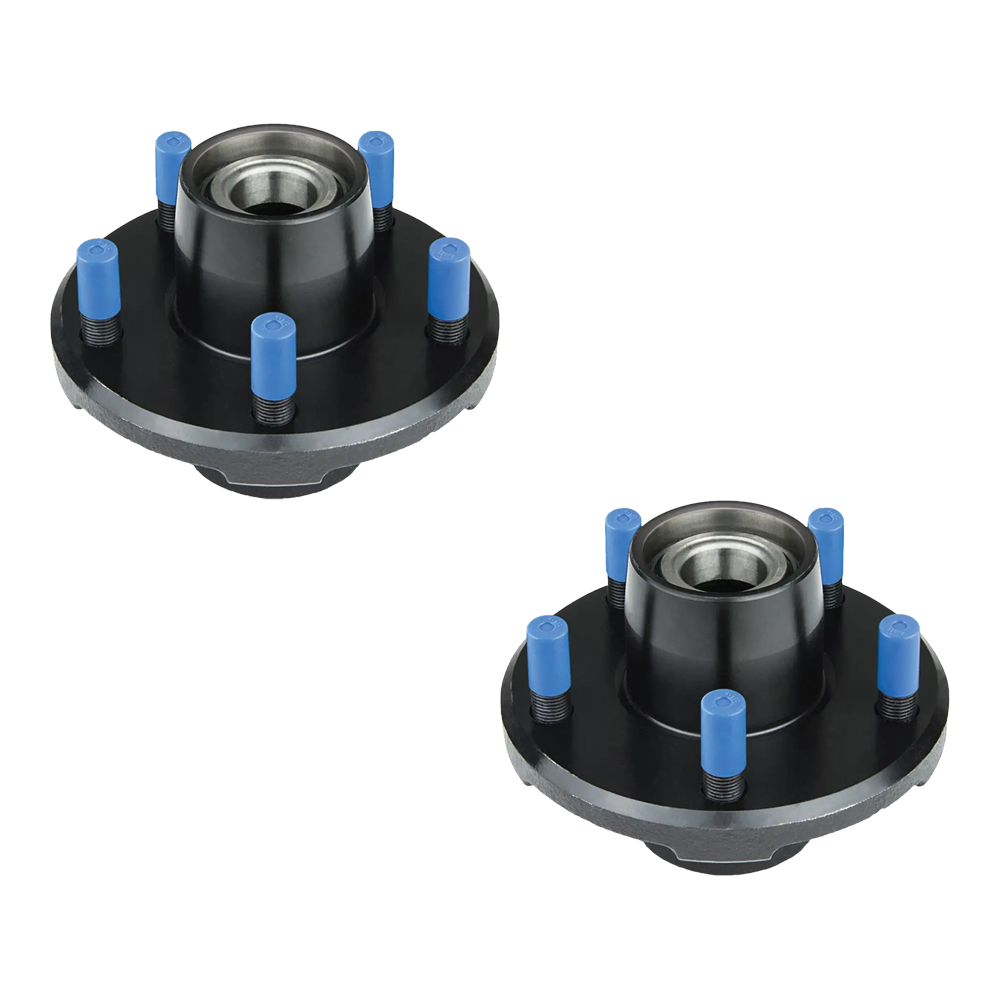

• QTY (2): Idler Hub Assembly, 5 on 4.5" (3,500 lbs. Fully Assembled)
  • Bearing cones, seal, and grease come pre-installed
  • Bolt Pattern: 5 on 4.5"
  • 1/2" stud size
  • 3,500 lb. weight capacity
  • 1-year limited warranty
• QTY (2): 1" Spindle Nut – 6-Slot Castle
  • Replacement spindle nut for 3,500 to 8,000 lb. axles
  • 6-slot castle nut with 1"-14 threads
  • 1-1/2" hex, 9/16" tall
• QTY (2): Round Spindle Washer (1" ID – 1.68" OD)
  • Replacement washer for 2,000 to 8,000 lb. axles
  • Inside diameter: 1.03"; outside diameter: 1.68"
  • Fits over 1" round spindle end
• QTY (2): Cotter Pin – 1.75"
  • Standard cotter pin for up to 8,000 lb. axle capacities
  • Overall length: 1-3/4"

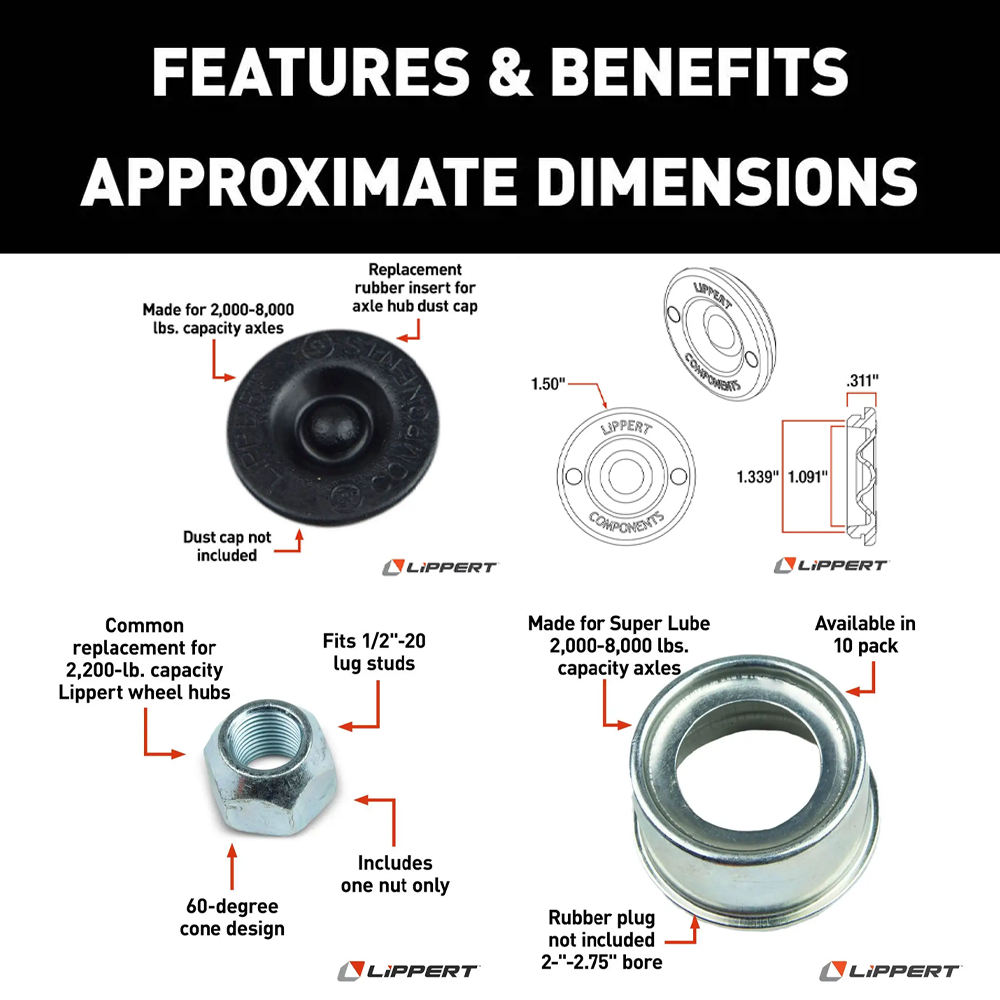

• QTY (10): Lippert 60° Cone Trailer Lug Nut – 1/2"-20
  • Fits 1/2"-20 lug studs
  • 60-degree cone design
  • Commonly used on 2,200 lb. Lippert wheel hubs
• QTY (1): Lippert Dust Cap Kit for 2,000 to 3,500 lb. Axle Hubs – 1.988" OD
  • Complete replacement dust cap kit
  • Includes (2) dust caps and (2) universal rubber inserts

For best performance, confirm your axle rating, spindle size, and bolt pattern before installation. Regular inspections and proper maintenance are recommended to ensure safety and longevity.
