Lippert 3,500-lb Single-Axle Self-Adjusting Brake & 10″ Drum/Hub Kit – 5-on-4.5″

Refresh the stopping power on your 3,500-lb trailer axle with this complete Lippert bundle. It combines forward self-adjusting electric brake assemblies with matching 10″ cast-iron drum/hubs, giving you smoother, safer stops and eliminating the need for periodic manual adjustments.

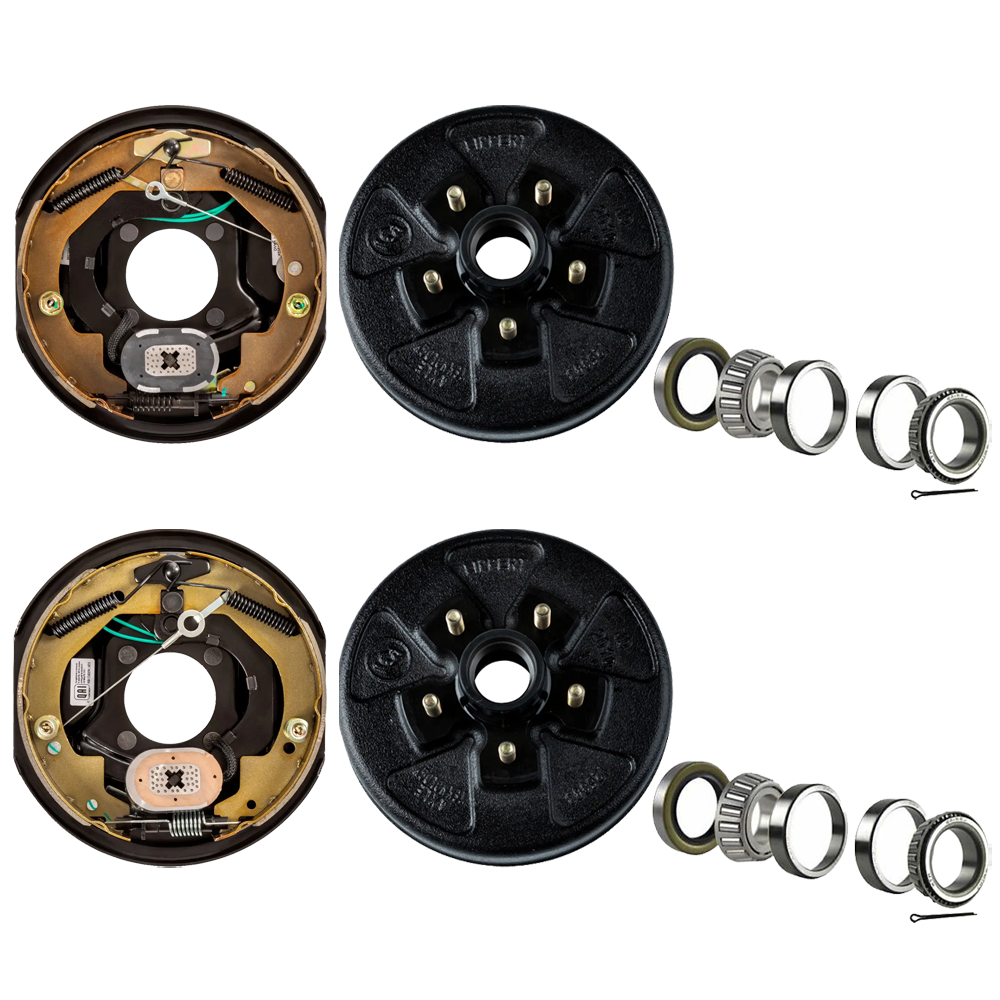

Bundle Contents:

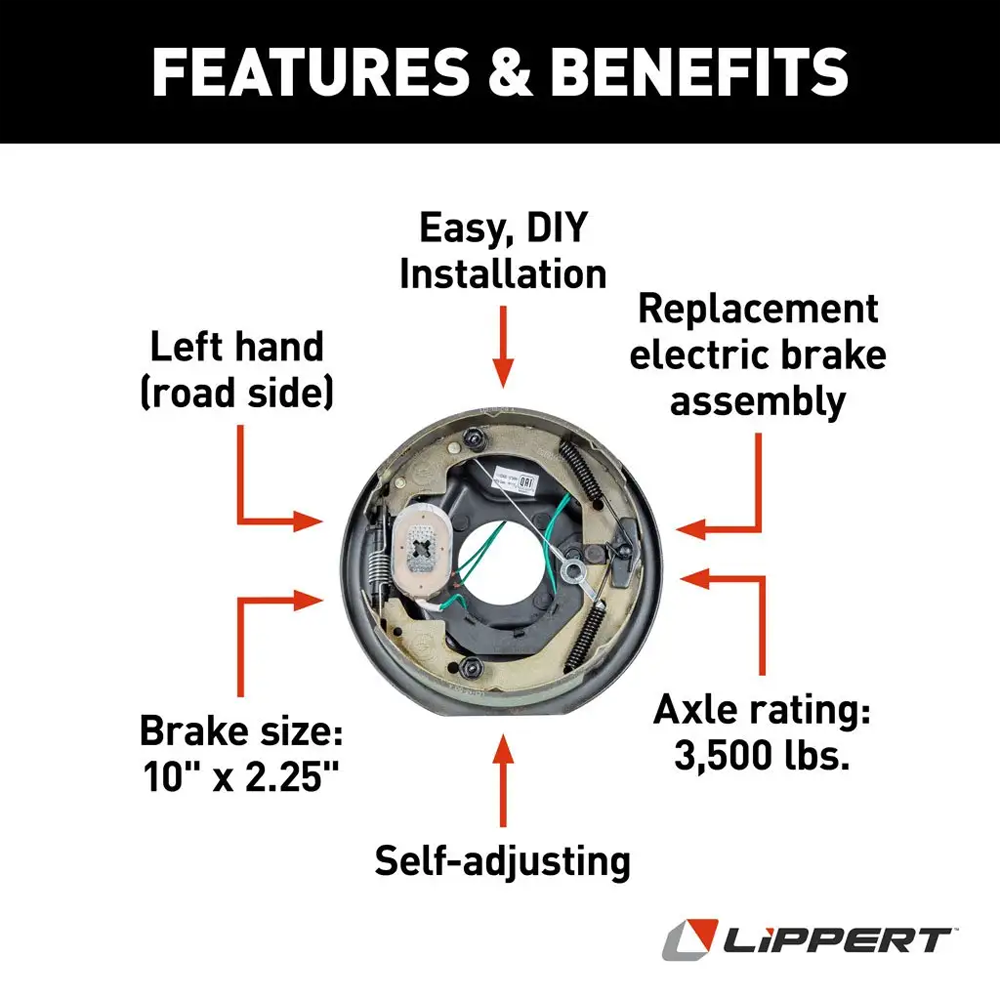

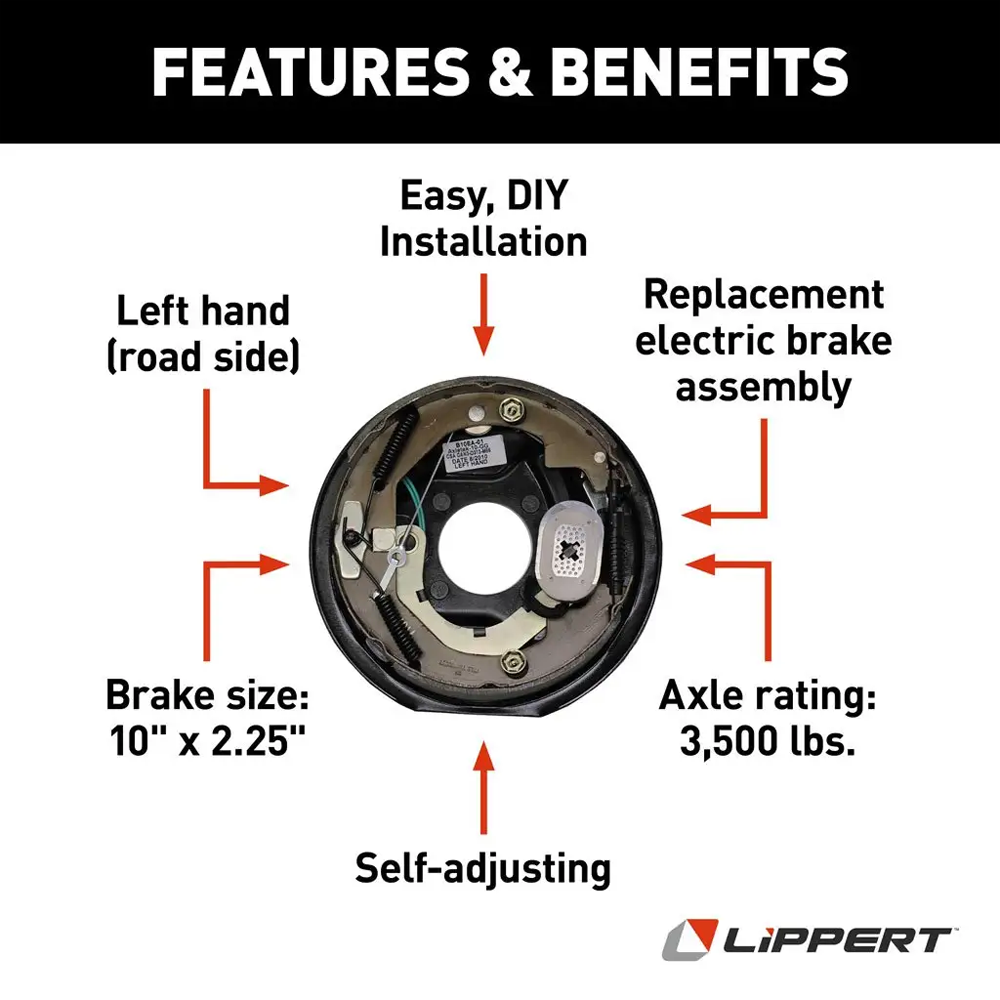

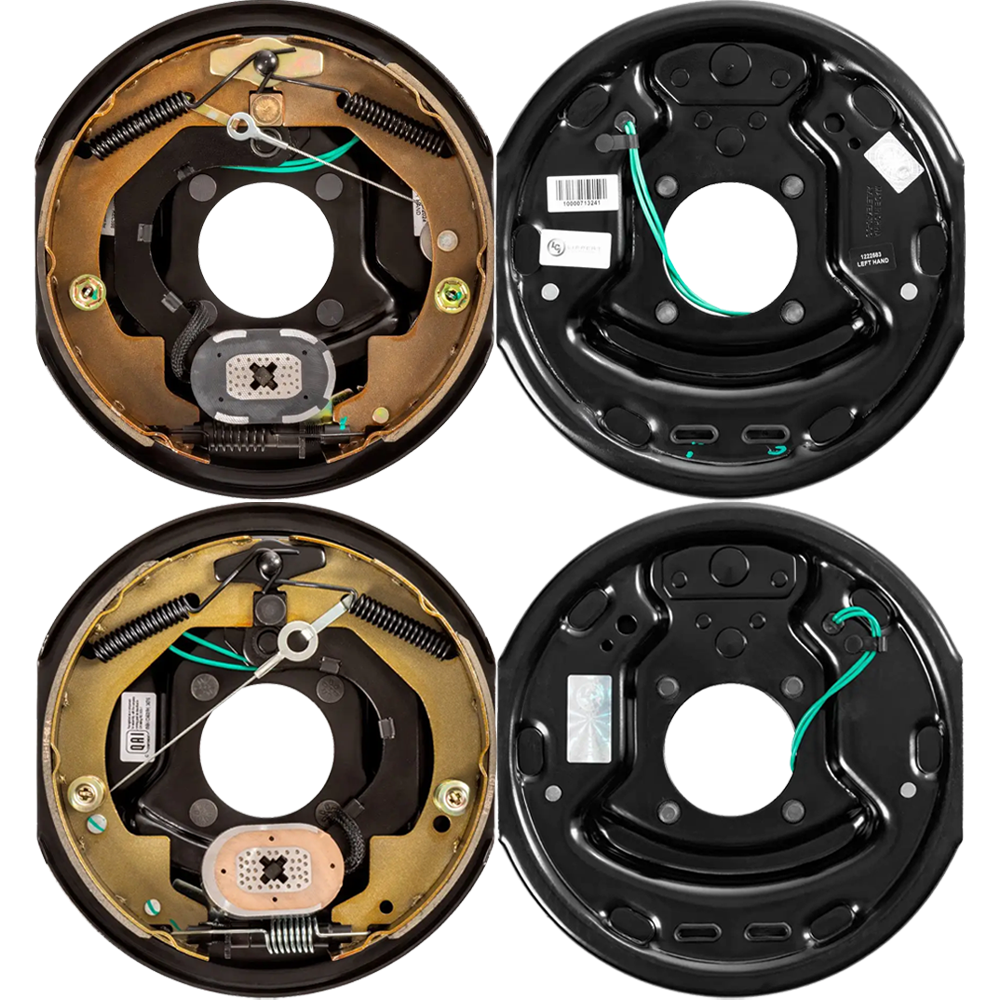

• QTY (1): Lippert Forward Self-Adjusting Brake Assembly – 10″ × 2.25″, 4-Bolt, 3.5K (Left)
  • Road-side electric brake for 3,500-lb axle
  • Forward self-adjusting; maintenance-free
  • 10″ × 2.25″ drum size, 4-bolt flange
  • Quick, DIY bolt-on replacement
  • Dexter Compatible Part Number: K23-468-00 | 023-468-00
  • 1-year Lippert warranty
• QTY (1): Lippert Forward Self-Adjusting Brake Assembly – 10″ × 2.25″, 4-Bolt, 3.5K (Right)
  • Curb-side match to left-hand unit
  • Self-adjusts on every forward stop
  • 4-bolt mounting pattern
  • Smooth, balanced braking
  • Dexter Compatible Part Number: K23-469-00 | 023-469-00
  • 1-year Lippert warranty

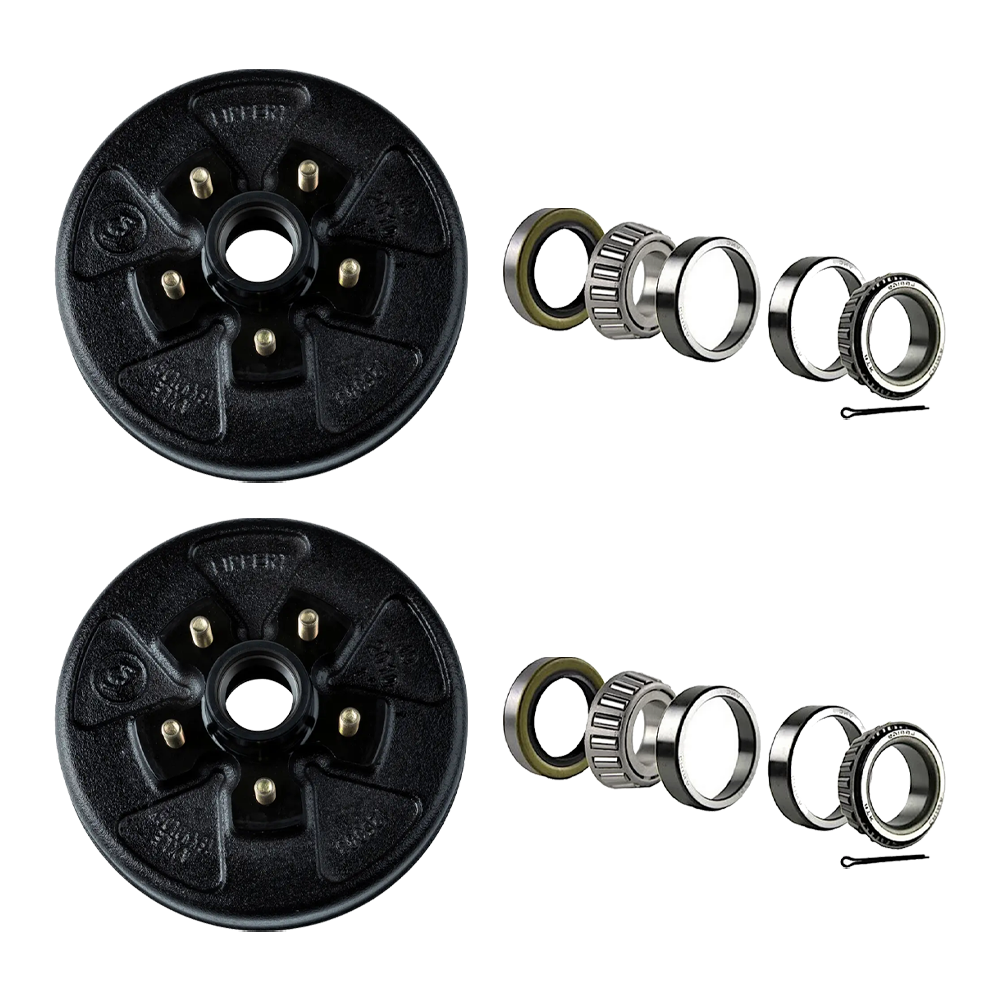

• QTY (2): Lippert 10″ Brake Drum/Hub Assembly – 5-on-4.5″, 1/2″ Stud
  • Cast-iron hub with integrated 10″ drum
  • 5-on-4.5″ bolt pattern, 1/2″ wheel studs
  • Compatible with 13″-15″ wheels
  • Bearing kit (bagged separately, one kit per hub) includes:
    • Inner bearing cone & cup
    • Outer bearing cone & cup
    • Cotter pin
    • Double-lip grease seal
  • Dexter Compatible Part Number: K08-247-94 | 008-247-94
  • Rated for 3,500-lb axles; 1-year warranty

Verify your axle rating, wheel size, and mounting pattern before ordering, and perform routine inspections to keep your trailer running safely mile after mile.
