Lippert 3,500-lb Single-Axle Self-Adjusting Electric Brake & Fully Assembled Greased 10? Drum-Hub Kit – 5-on-4.5? Bolt Pattern | Dexter, Alko Compatible

Lippert 3,500-lb Single-Axle Self-Adjusting Electric Brake & Fully Assembled Greased 10″ Drum-Hub Kit – 5-on-4.5″ Bolt Pattern

Give your trailer the stopping power it deserves with this all-inclusive Lippert kit. Two forward self-adjusting 10″ electric brakes pair with fully assembled, factory-greased 10″ drum hubs to deliver smoother, safer braking and up to 50 % shorter stopping distances—no manual adjustments required.

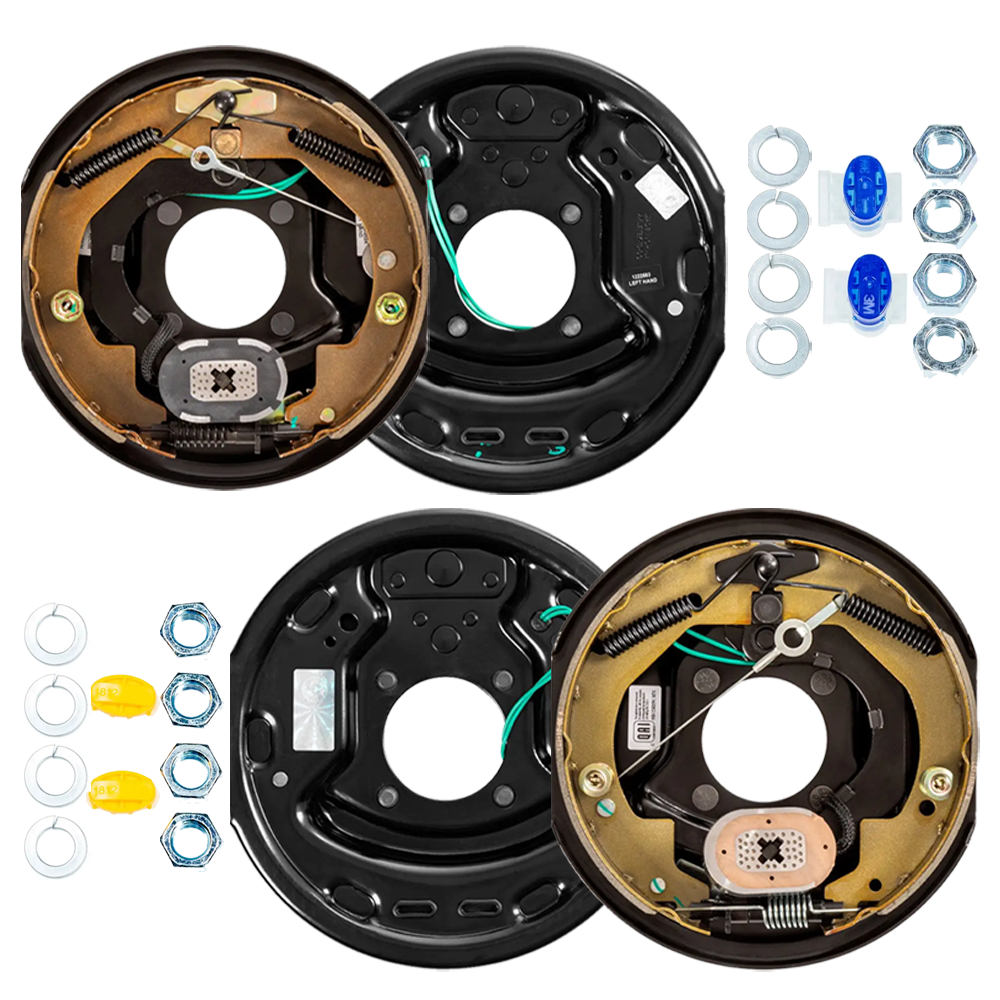

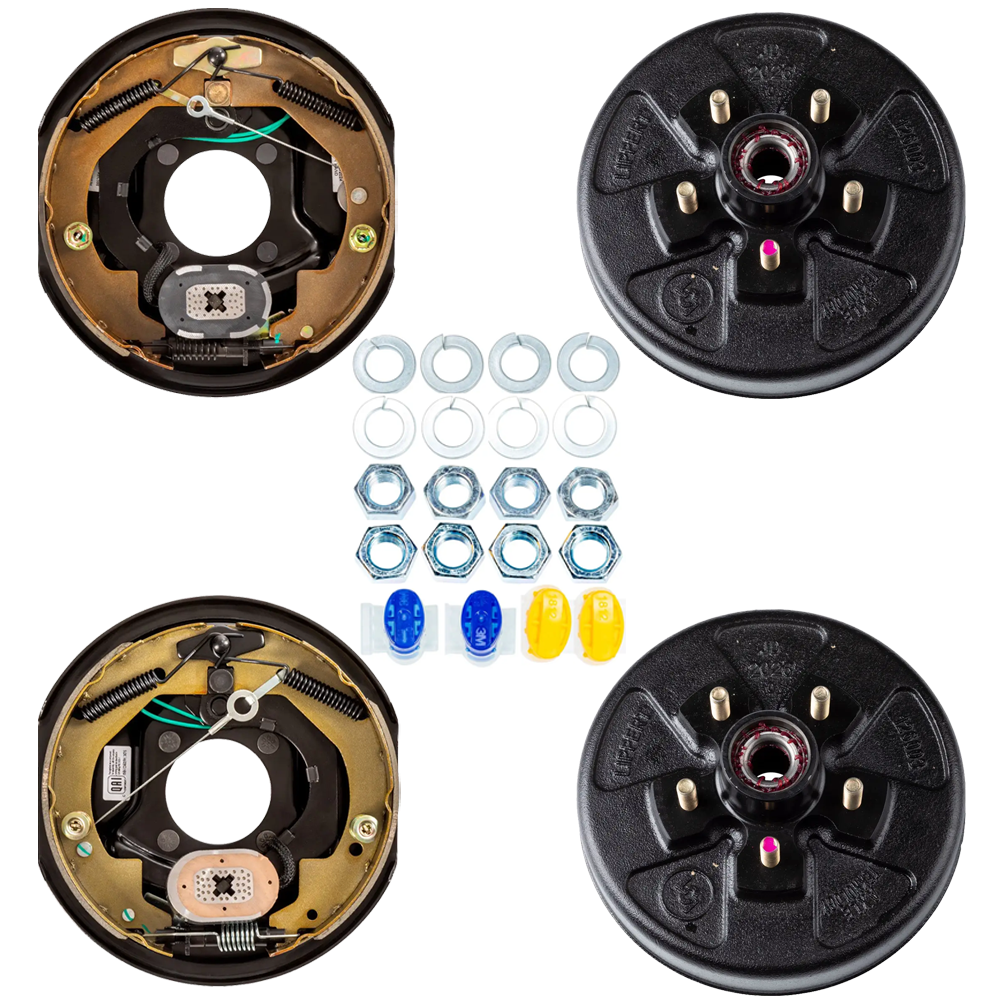

Bundle Contents:

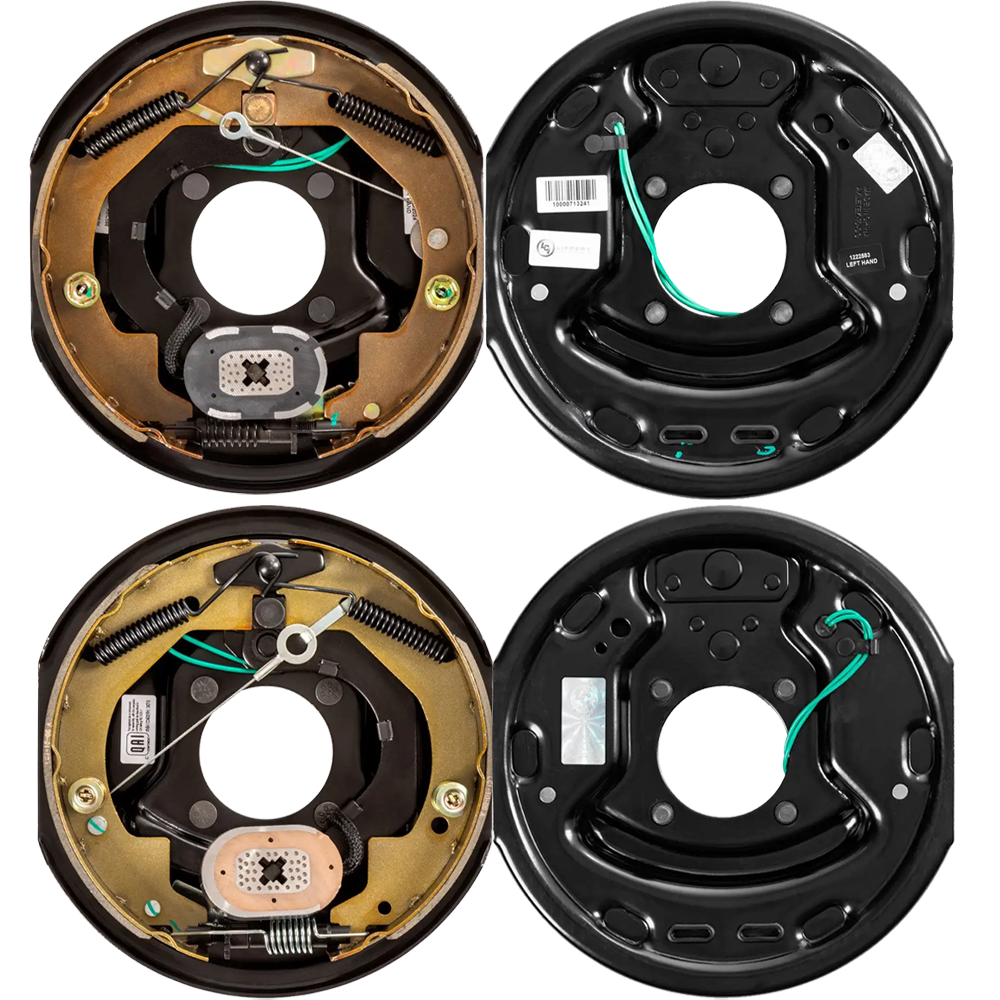

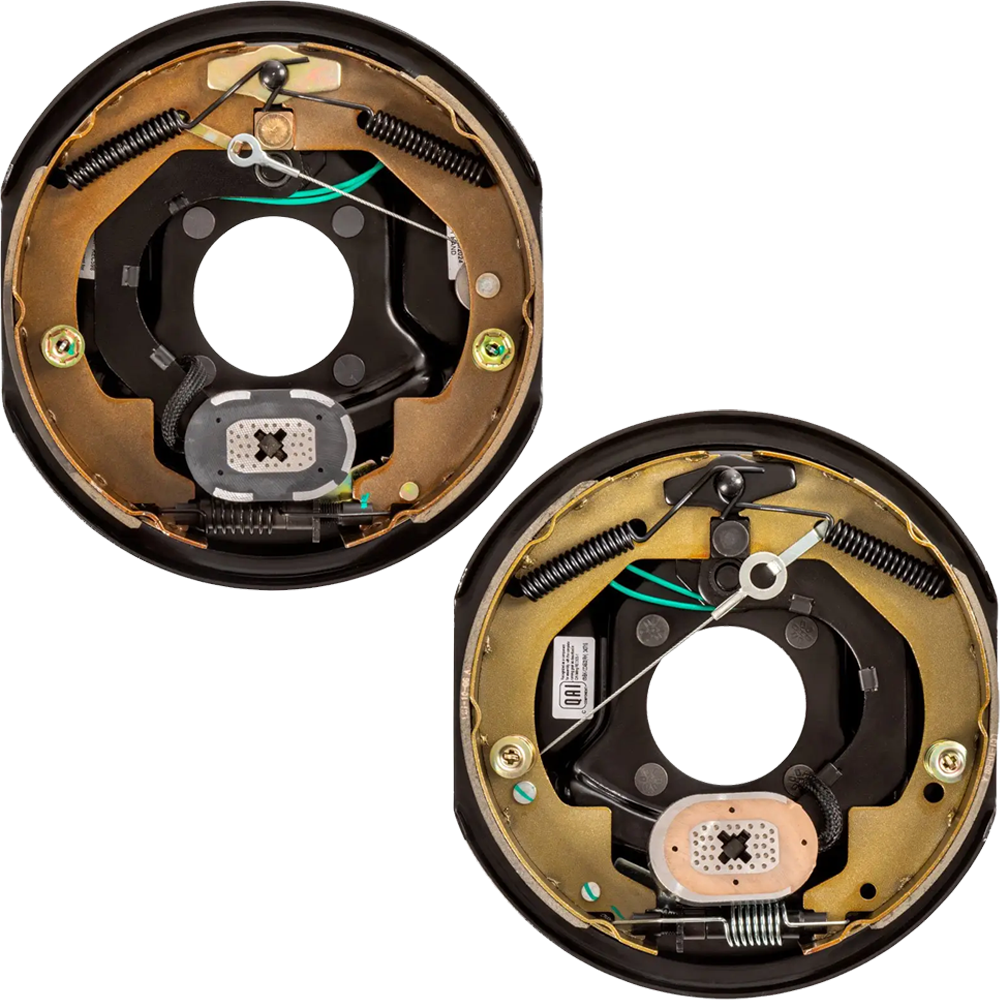

• QTY (1): Lippert Forward Self-Adjusting Brake Assembly – 10″ × 2.25″, 3,500 lbs. (Left)
  • Electric brake – left / road side
  • 10″ × 2.25″ shoe & lining
  • Fits 13″–15″ wheels; 3,500-lb axle
  • Automatically self-adjusts on every forward stop
  • 4-bolt mounting, DIY-friendly install
  • Dexter compatible part number: K23-468-00 | 023-468-00
  • 1-year Lippert warranty
• QTY (1): Lippert Forward Self-Adjusting Brake Assembly – 10″ × 2.25″, 3,500 lbs. (Right)
  • Electric brake – right / curb side
  • 10″ × 2.25″ shoe & lining
  • Fits 13″–15″ wheels; 3,500-lb axle
  • Automatically self-adjusts on every forward stop
  • 4-bolt mounting, DIY-friendly install
  • Dexter compatible part number: K23-469-00 | 023-469-00
  • 1-year Lippert warranty

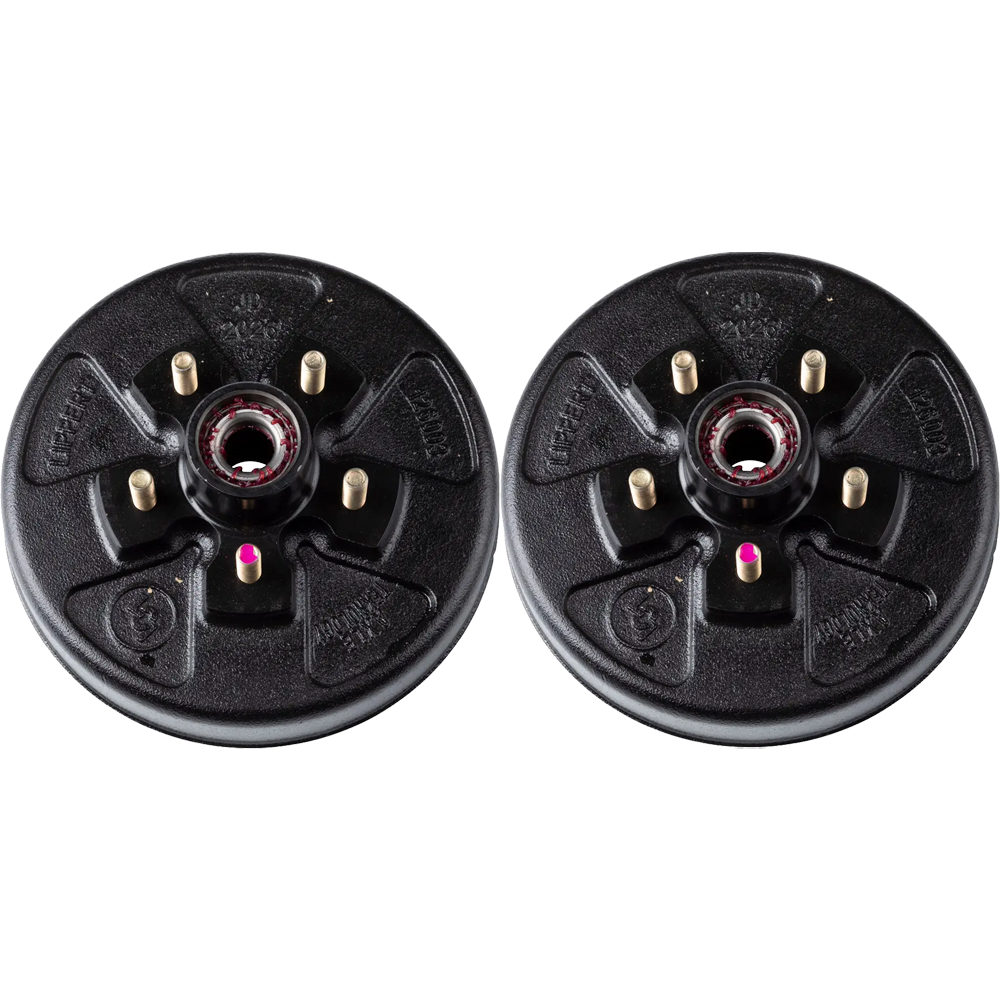

• QTY (2): Lippert 10″ Fully Assembled Greased Brake Drum Hub – 5 on 4.5″, 1/2″ Stud
  • Fully assembled hub/drum—ready to install
  • Factory-packed grease, bearings & seal installed
  • 5 on 4.5″ bolt pattern with 1/2″ studs
  • Fits 3,500-lb axle & 13″–15″ wheels
  • Durable cast-iron construction
  • Hub / drum assembly #122460
  • 1-year Lippert warranty

Confirm your original equipment specifications before installation and inspect braking components regularly for optimal performance.
