Lippert 3,500 lb Single-Hub Pre-Greased Idler Hub Assembly (5 on 4.5) w/Lug Nuts – Dexter, Alko, Rockwell

Lippert 3,500 lb Single-Hub Pre-Greased Idler Hub Assembly (5 on 4.5) w/Lug Nuts

Upgrade your trailer setup with this complete, pre-greased Lippert idler hub assembly designed for 3,500 lb axles. This single-hub configuration includes all the essential hardware you need—bearing cones, seal, lug nuts, and more—to help you get back on the road quickly and with confidence.

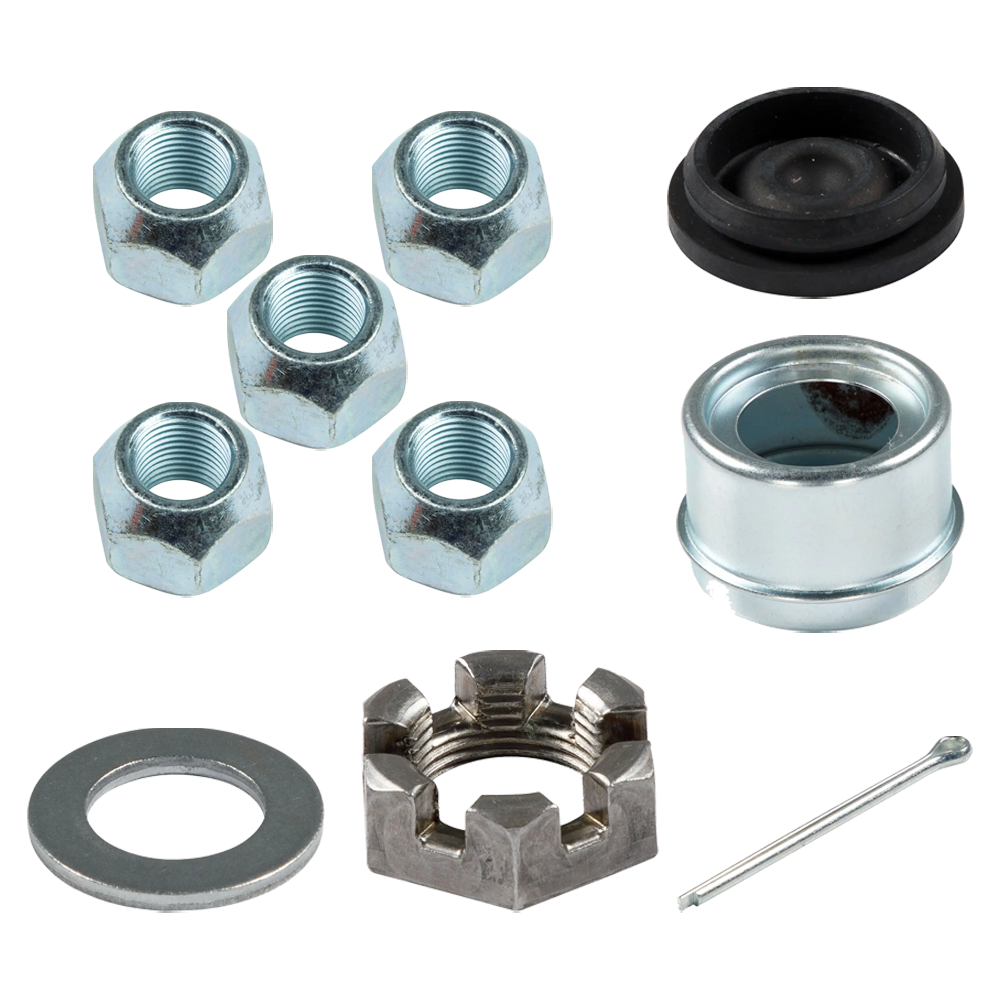

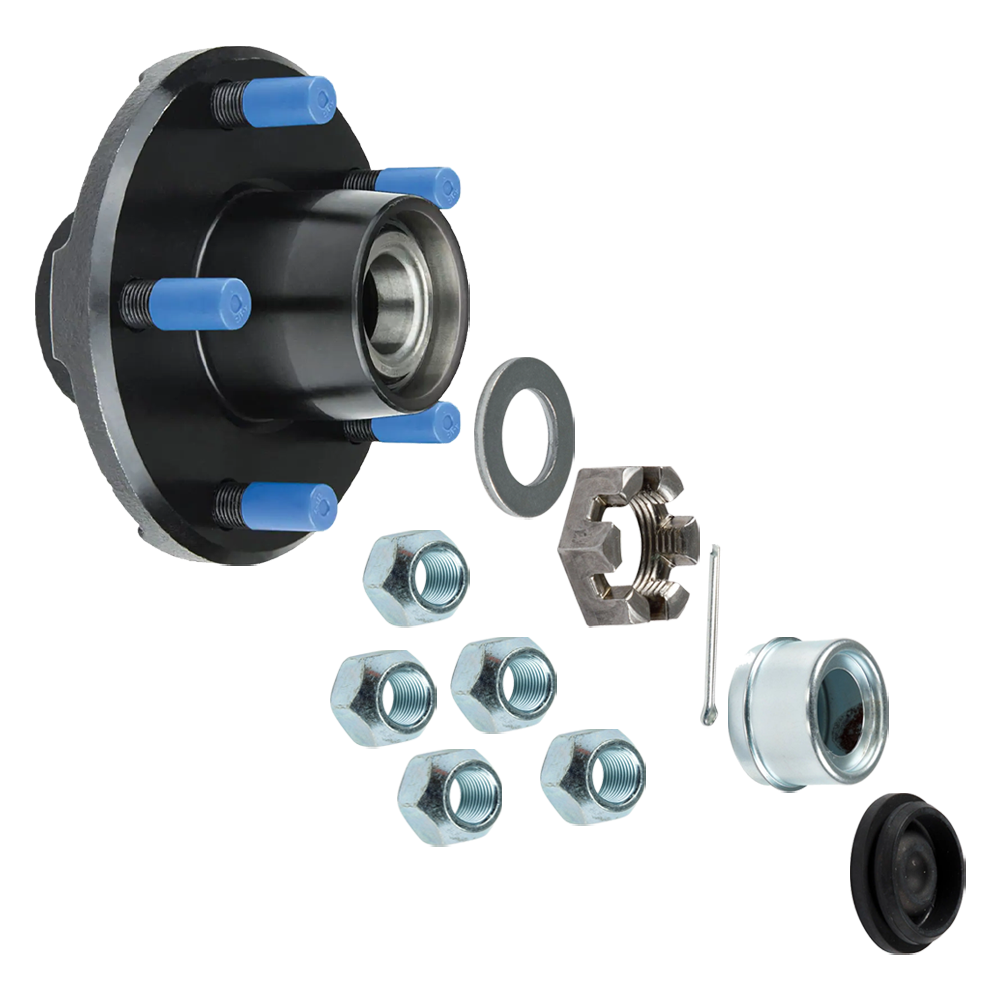

Bundle Contents:

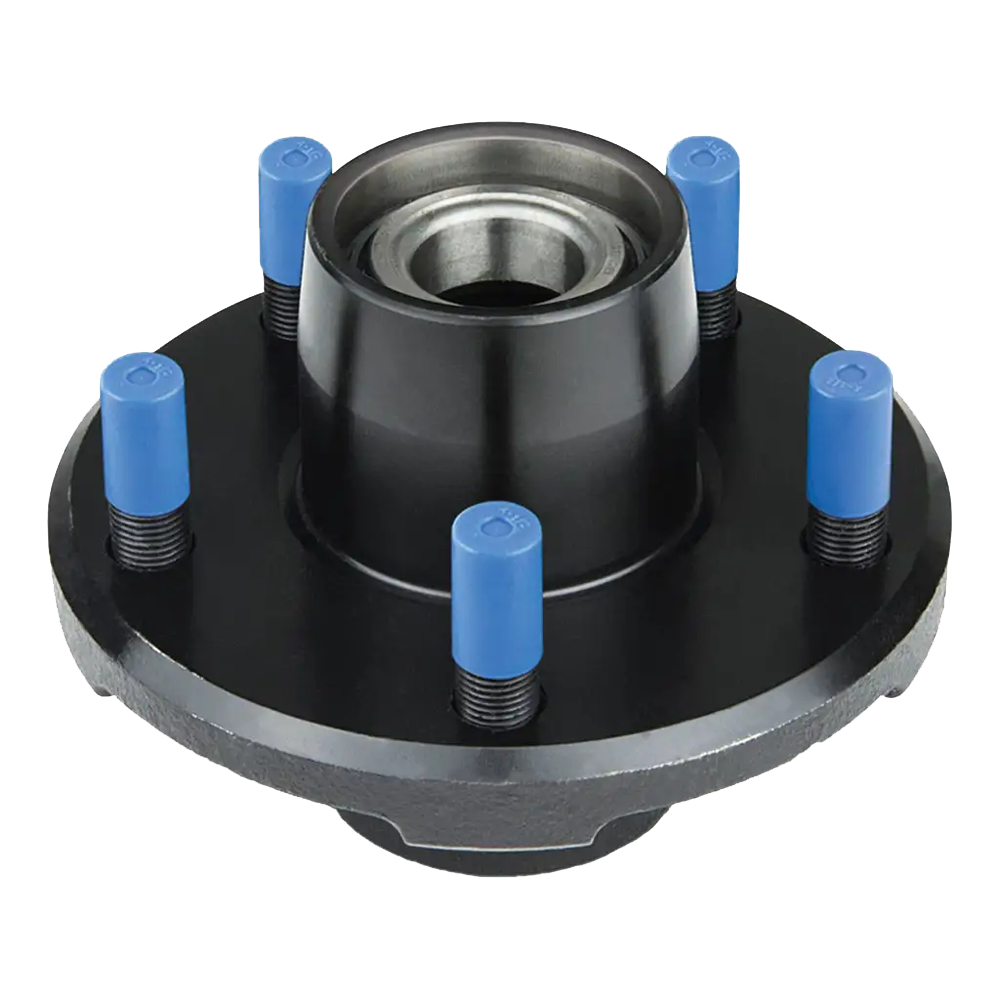

• QTY (1): Idler Hub Assembly, 5 on 4.5"
  • Bearing cones, seal, and grease already installed
  • Bolt Pattern: 5 on 4.5"
  • Stud Size: 1/2"
  • 3,500 lb capacity
  • One-year warranty
• QTY (1): 1" Spindle Nut - 6-Slot Castle
  • 1"-14 threads
  • 6-slot castle design
  • Fits 3,500–8,000 lb axles
• QTY (1): Round Spindle Washer (1" ID – 1.68" OD)
  • Inside diameter: 1.03"
  • Outside diameter: 1.68"
  • Thickness: 1/8"
• QTY (1): Cotter Pin - 1.75"
  • Secures the spindle nut in place
  • Standard 1.75" length
• QTY (5): Lippert 60° Cone Trailer Lug Nut - 1/2"-20
  • Fits 1/2"-20 lug studs
  • 60° cone design
  • Common replacement for many Lippert hubs

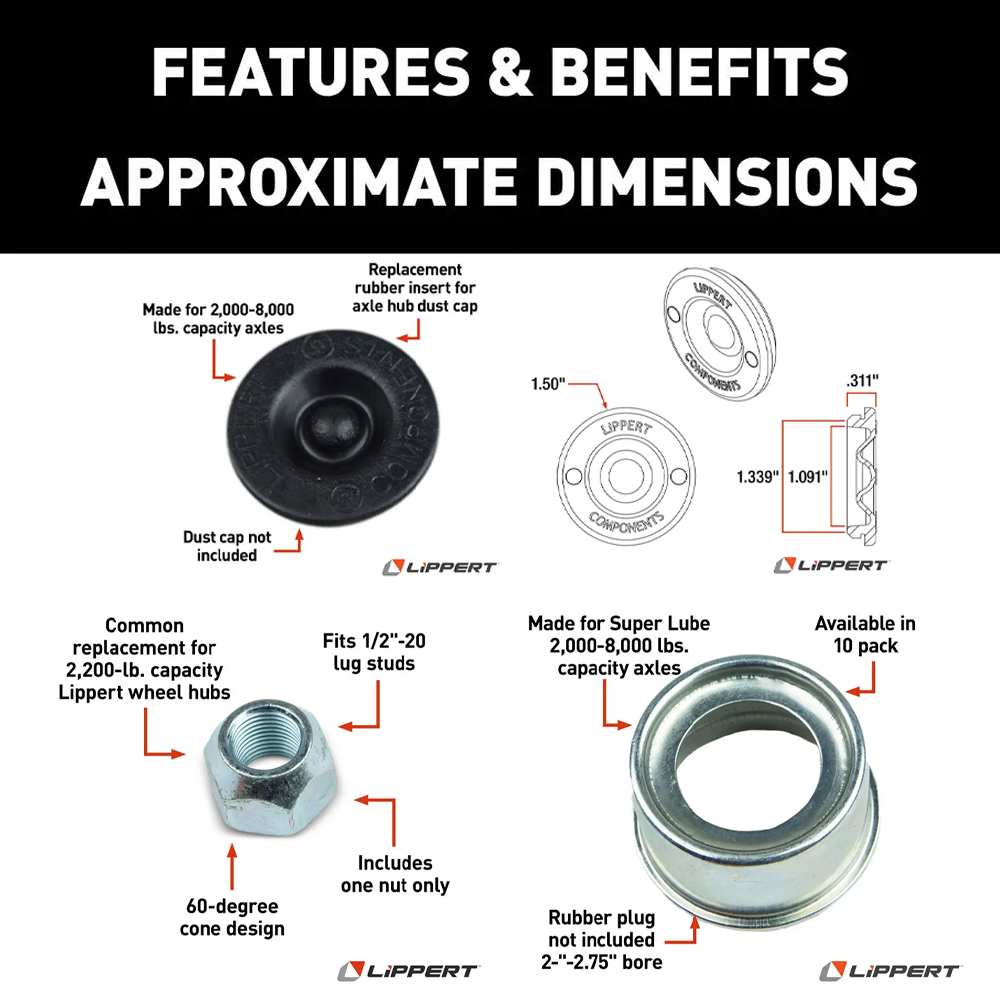

• QTY (1): Dust Cap for Super Lube Axle Hub (2,000–3,500 lb)
  • Outer diameter: 1.988"
  • Use with lubricated spindles
• QTY (1): Lippert Universal Rubber Insert for Axle Hub Dust Cap (2,000–8,000 lb)
  • 1-1/2" outer diameter
  • Fits 1-3/16" hole size

Always confirm dimensions and specifications to ensure compatibility with your trailer. Regular inspections and maintenance will help extend the life of your components and keep your trailer safe on the road.
