Lippert 3,500-lb Tandem Axle Self-Adjusting Electric Brake & 10? Drum Hub Kit � 5 on 4.5 � Dexter / AL-KO Compatible

Lippert 3,500-lb Tandem Axle Electric Brake & 10″ Drum Hub Kit – 5-on-4.5

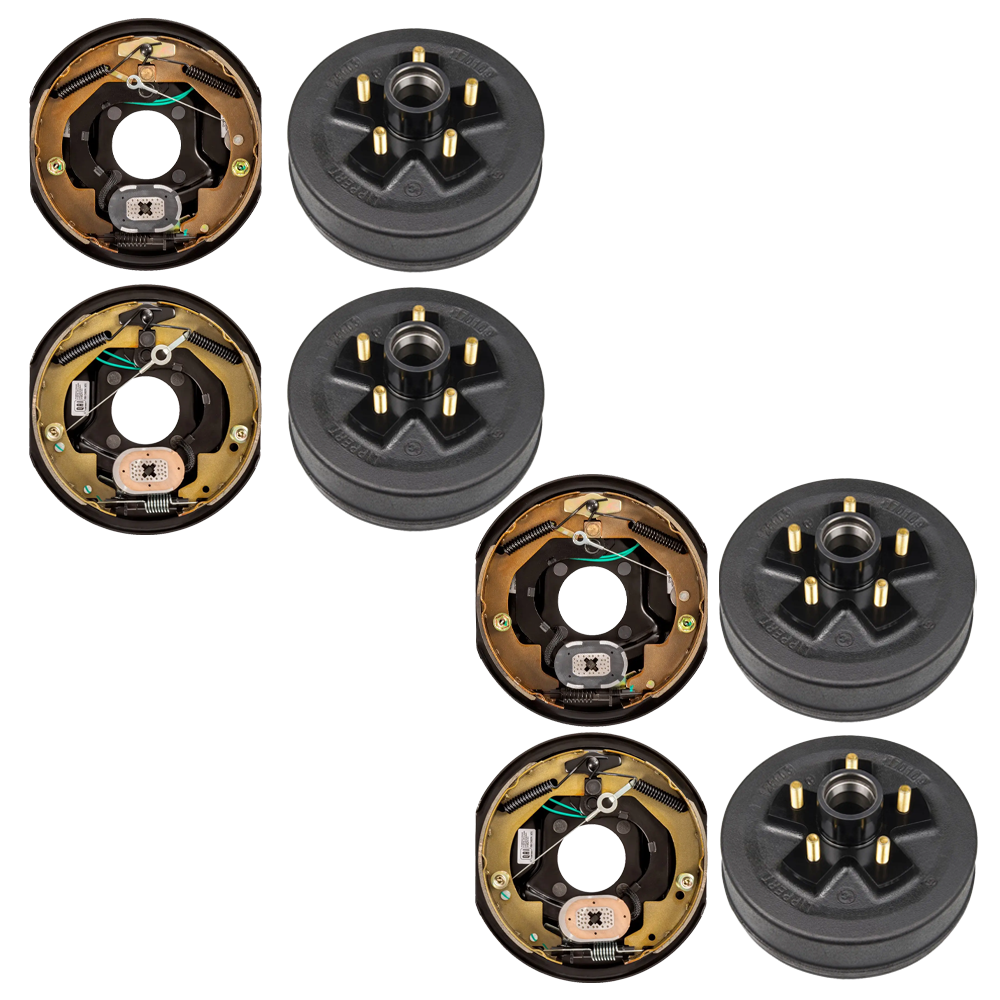

Service both 3.5K axles on your trailer in one convenient package. This Lippert bundle pairs forward self-adjusting electric brakes with matching 10″ hub-drums, restoring factory-fresh stopping power and smoother braking distances on Lippert, Dexter or AL-KO 3,500-lb axles.

Bundle Contents:

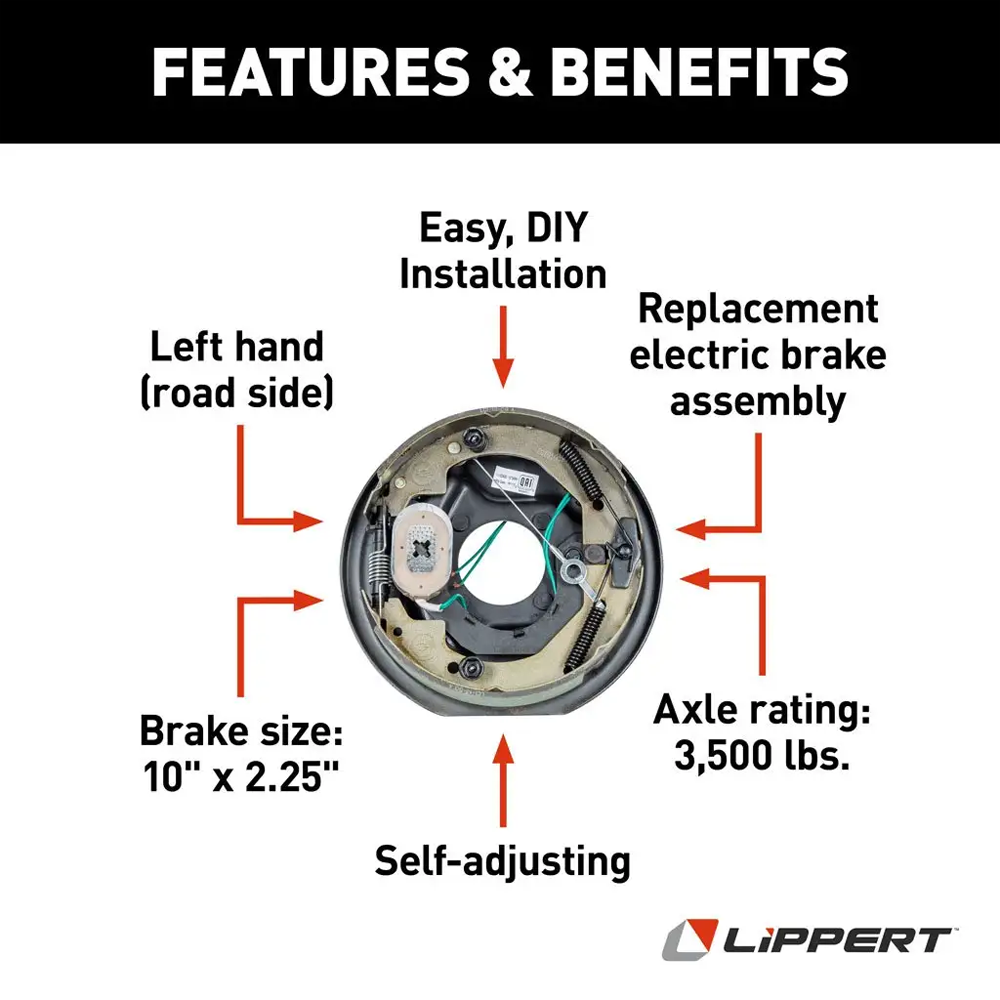

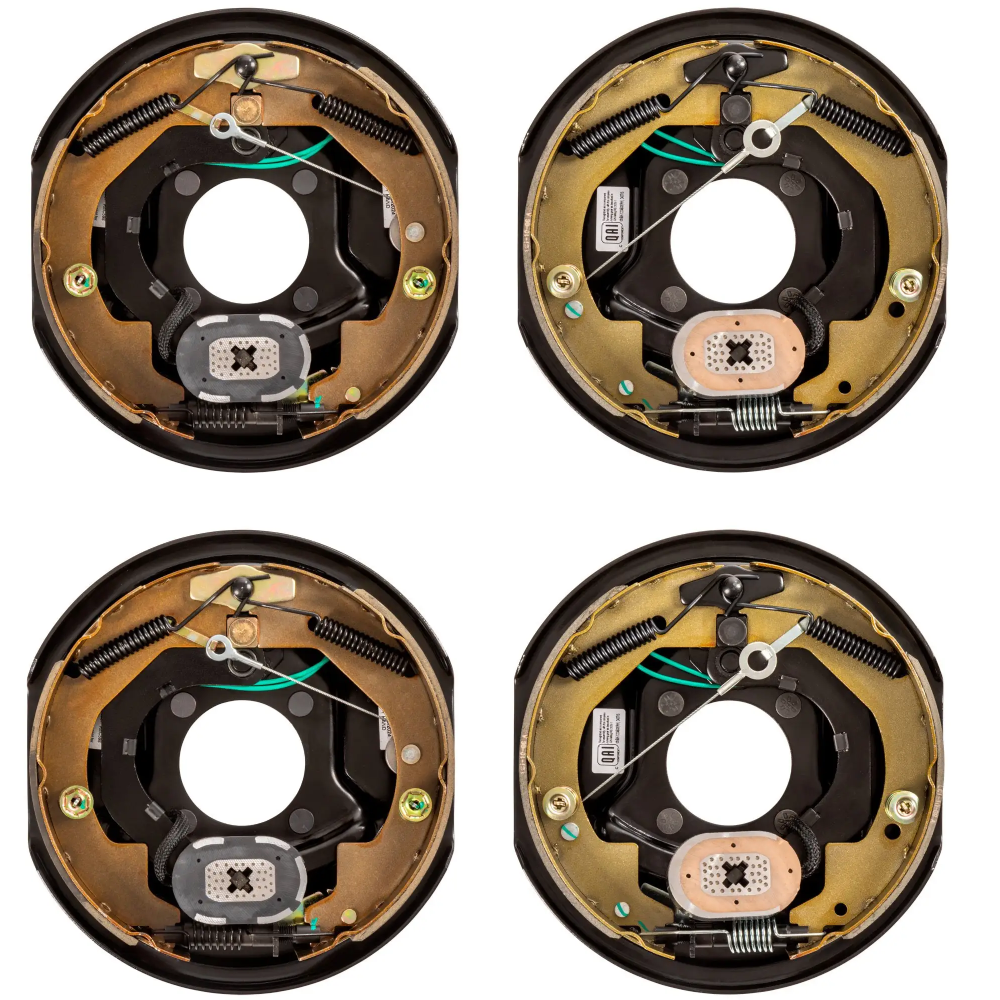

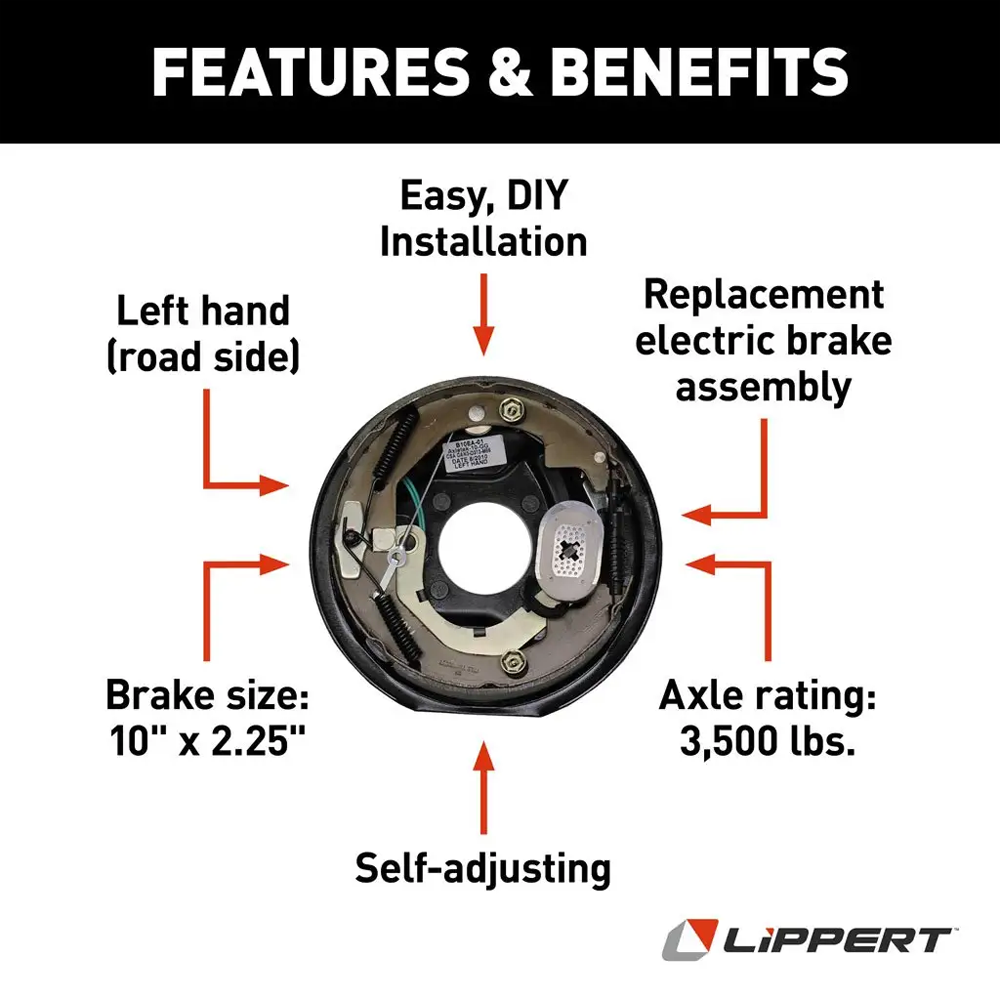

• QTY (2): Lippert Forward Self-Adjusting Brake Assembly – 10″ × 2.25″, 4-Bolt, 3.5K (Left-Hand)
  • Road-side replacement electric brake
  • Self-adjusts every forward stop for up to 50 % shorter braking distance
  • Fits standard 4-bolt brake flange on 3,500-lb axles
  • Heavy-duty 10″ × 2.25″ shoes & high-energy magnet
  • Dexter compatible part numbers: K23-468-00 | 023-468-00
  • DIY friendly; includes 1-year Lippert warranty
• QTY (2): Lippert Forward Self-Adjusting Brake Assembly – 10″ × 2.25″, 4-Bolt, 3.5K (Right-Hand)
  • Curb-side replacement electric brake
  • Self-adjusting mechanism reduces wear & maintenance
  • Bolts to 4-bolt flange on Lippert/Dexter/AL-KO axles
  • 10″ × 2.25″ shoe size rated for 3,500-lb axles
  • Dexter compatible part numbers: K23-469-00 | 023-469-00
  • OEM quality with 1-year warranty

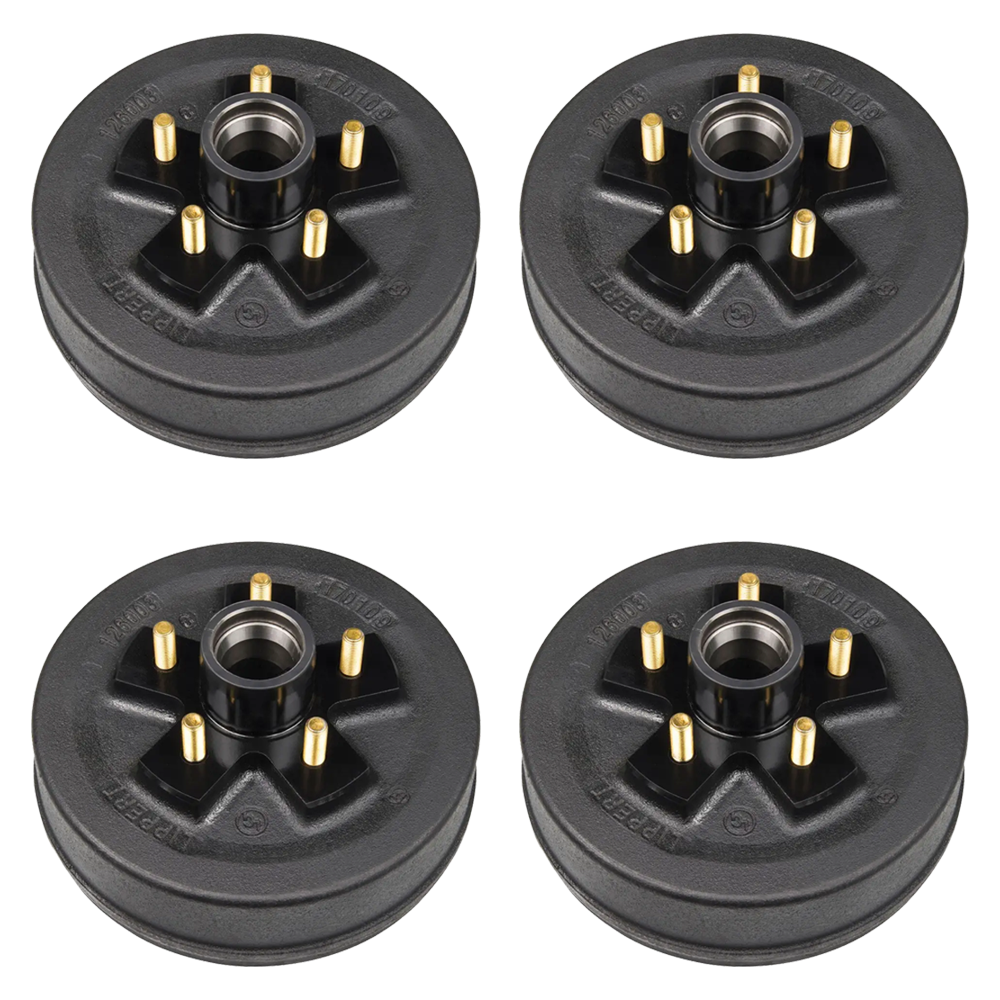

• QTY (4): 10″ Trailer Brake Hub-Drum – 3,500-lb, 5 on 4.5″, 1/2″ Studs
  • Cast-iron hub with integrated 10″ drum
  • Hub only – full assembly not included
  • 5 on 4.5″ bolt circle; 1/2″ zinc-plated studs & nuts
  • Compatible with 13″–15″ trailer wheels
  • Engineered for 3,500-lb axle assemblies
  • Backed by Lippert 1-year limited warranty

Always verify your existing axle tags, bolt patterns and brake flange dimensions before installation. Re-torque lug nuts after 50 miles and perform routine brake inspections for maximum safety and performance.
