Lippert 3,500 lb Tandem Axle Suspension Kit � 2.375? Tube, Standard Equalizer, 24? (2,000 lb) Leaf Springs, Hangers & Hardware � Dexter, Alko, Rockwell Compatible

Lippert Tandem Axle Suspension Kit – 3,500 lb, 2.375″ Tube, Standard Equalizer, 24″ (2,000 lb) Leaf Springs, Hangers & Hardware – Dexter, Alko, Rockwell Compatible

Upgrade your tandem axle trailer with this complete Lippert suspension kit. Specifically designed for 3,500 lb rated axles with 2.375″ tubes, it comes with four 24″ leaf springs (2,000 lb capacity each), a standard equalizer assembly, plus front, center, and rear hangers with all required hardware. Compatible with Dexter, Alko, Rockwell, and other quality axles, this kit provides smoother, safer towing.

Bundle Contents:

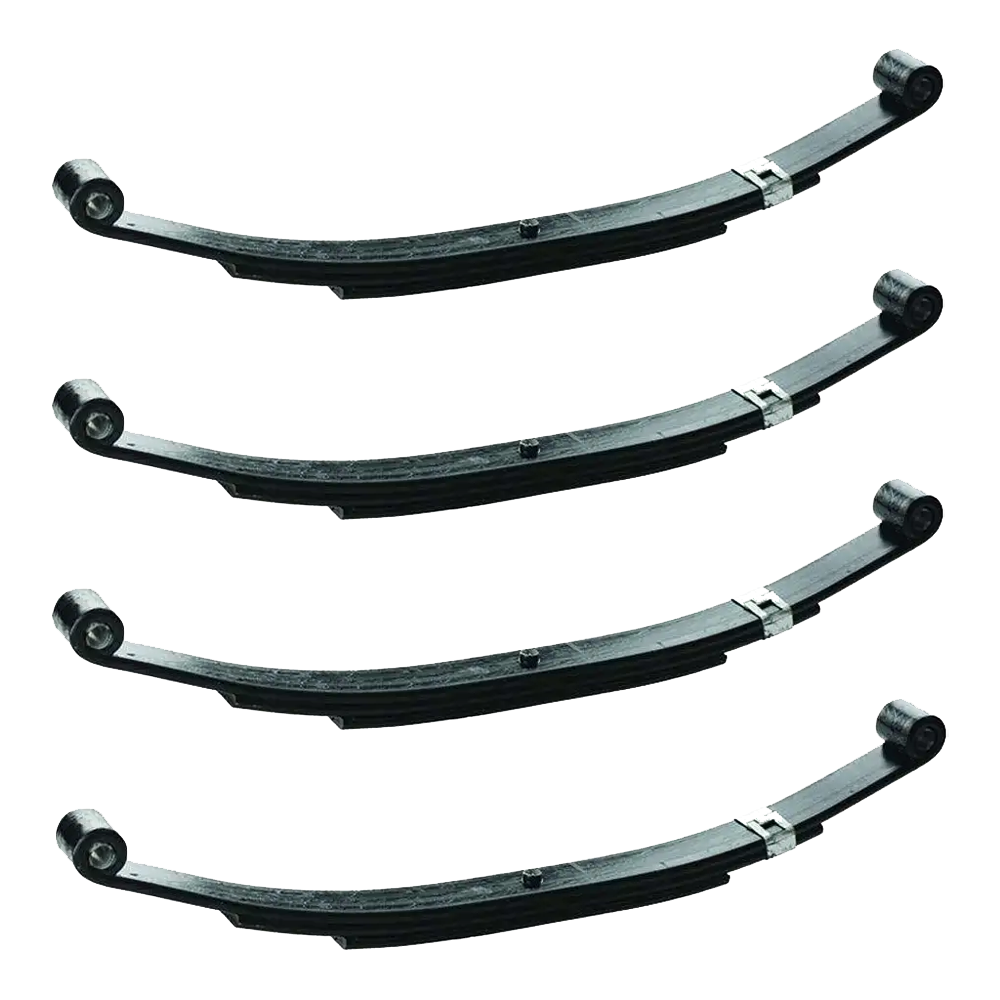

• QTY (4): Replacement Double-Eye Leaf Spring for RV Trailer Suspension System - 24", 2,000-lb. Weight Capacity
  • Replacement leaf spring for RV trailers
  • Length: 24"
  • Weight capacity: 2,000 lbs. each
  • Please consult your original equipment label before purchasing

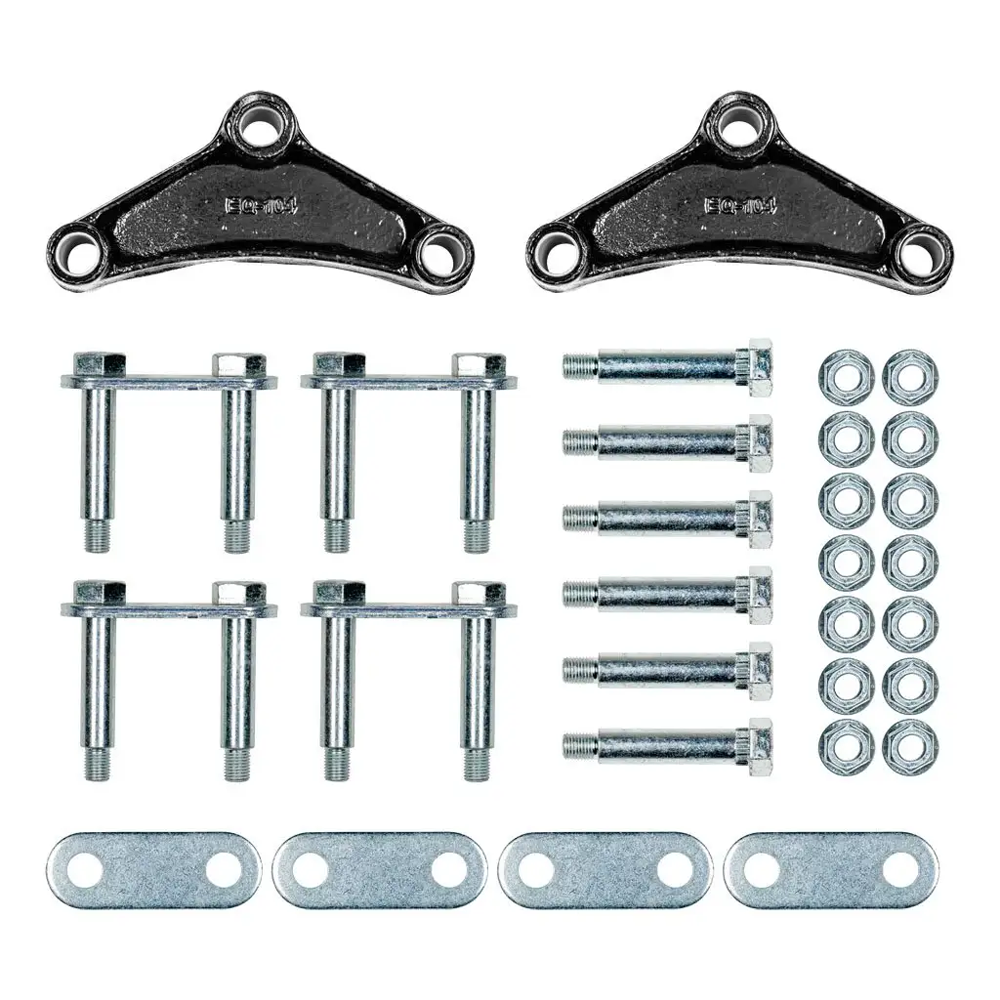

• QTY (1): Lippert Trailer Axle AP Kit for 2-7K Double-Eye Tandem Axles - Standard Equalizer
  • Equalizer Reference: EQ-104
  • Equalizer Bolt Qty: 2 • Length: 2.88"
  • Shackle Assembly Qty: 4 • Length: 2.25"
  • Shackle Plate Qty: 4 • Length: 2.25"
  • Shackle Bolt Qty: 6 • Length: 2.88"
  • Equalizer Nut Qty: 2 • Thread: 7/16"-20
  • Lock Nut Qty: 14 • Thread: 7/16"-20
  • Includes all required hardware for installation

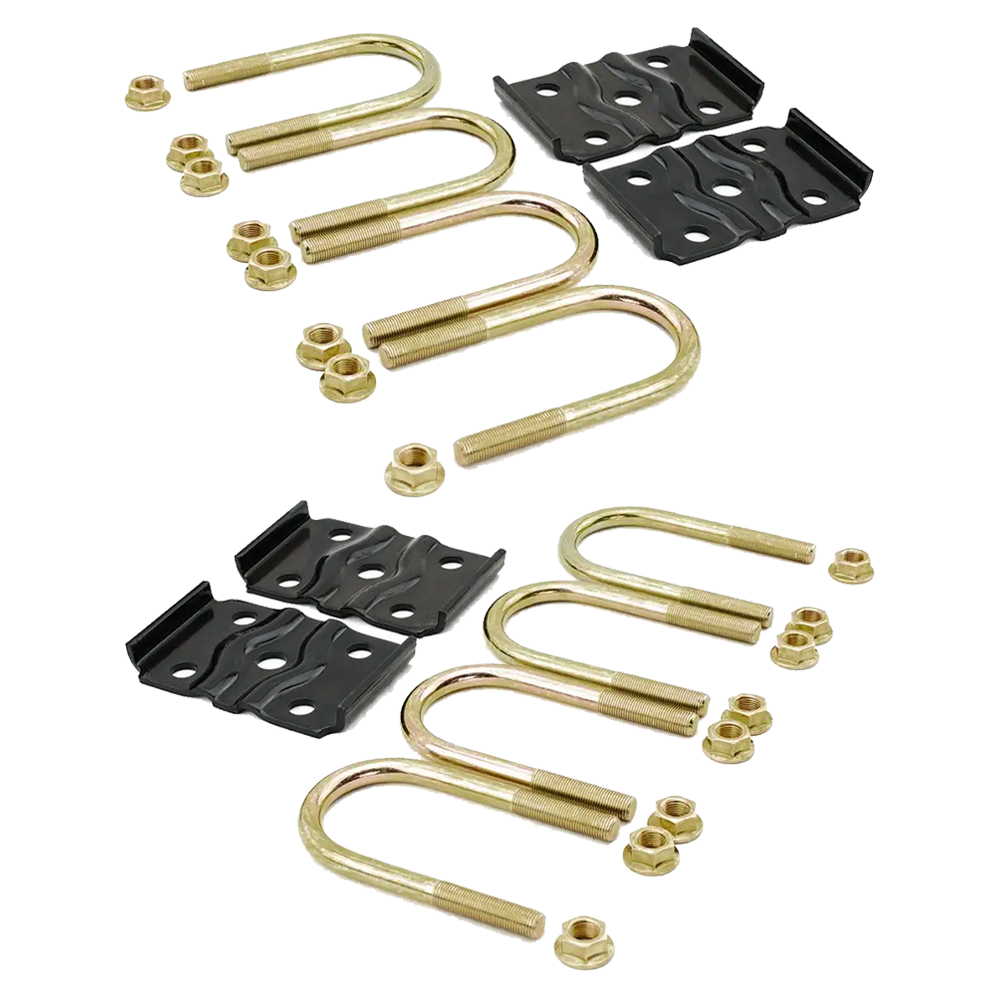

• QTY (2): Lippert Axle Mounting Kit - 2.375" Tube
  • Replacement axle mounting kit
  • U-bolt design for 2.375" axle tube
  • Includes hardware for secure axle-to-spring attachment
• QTY (2): Front Trailer Axle Hanger - 4-5/16" x 2-3/16", 2,200-8,000-lb. Axle Rating
  • Welded to chassis to allow mounting of axles and axle components
  • Axle capacity: 2,200 - 8,000 lbs.
  • Location: Front
  • Distance to hole: 3-9/16" on-center
  • Length: 4-5/16" • Width: 2-3/16"
  • Hole size: 9/16"
• QTY (2): Center Trailer Axle Hanger - 4-1/2" x 3-1/8", 2,200-8,000-lb. Axle Rating
  • Axle capacity: 2,200 - 8,000 lbs.
  • Location: Center
  • To hole: 3-5/16"
  • Length: 4-1/2" • Width: 3-1/8"
  • Hole size: 7/8"
• QTY (2): Rear Trailer Axle Hanger - 6" x 2-1/4", 2,200-8,000-lb. Axle Rating
  • Axle capacity: 2,200 - 8,000 lbs.
  • Location: Rear
  • To hole: 4"
  • Length: 6" • Width: 2-1/4"
  • Hole size: 5/16"

For the best performance and safety, always confirm compatibility with your original equipment before installation and conduct regular maintenance on your trailer’s suspension system.
