Lippert 3,500-lb Tandem Axle Suspension Kit � 24" Leaf Springs (1,750-lb Each), 1.75" Tube, Standard Equalizer, Hangers & Hardware � Fits Dexter, Alko, Rockwell, Quality Axles

Lippert 3,500-lb Tandem Axle Suspension Kit – 24" Springs, 1.75" Tube, Standard Equalizer

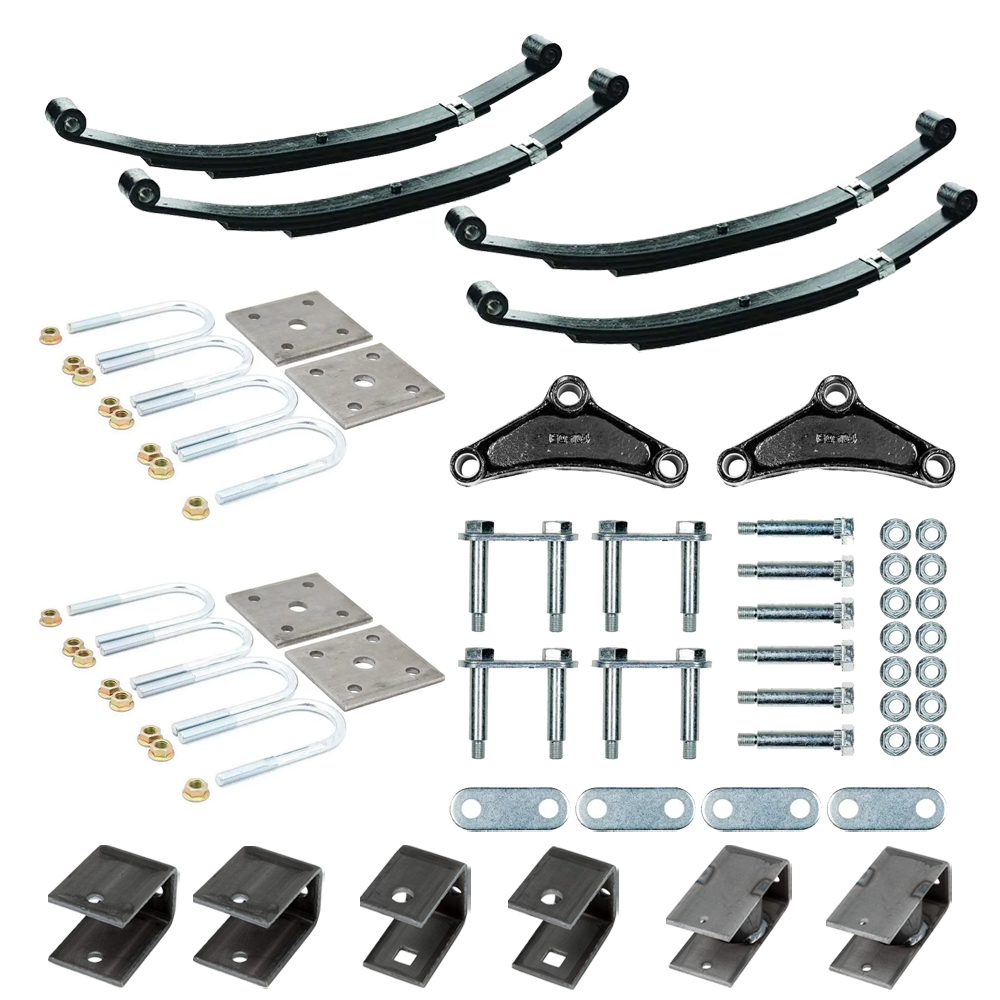

This complete suspension bundle includes everything you need for a smooth ride on your tandem 3,500-lb axles: four 24" leaf springs (1,750-lb each), a Lippert AP kit with a standard equalizer, plus front, center, and rear hangers with all necessary mounting hardware. Compatible with Dexter, Alko, Rockwell, and Quality Axles, this kit provides reliable, consistent performance for your trailer.

Bundle Contents (Hangers & Hardware Included):

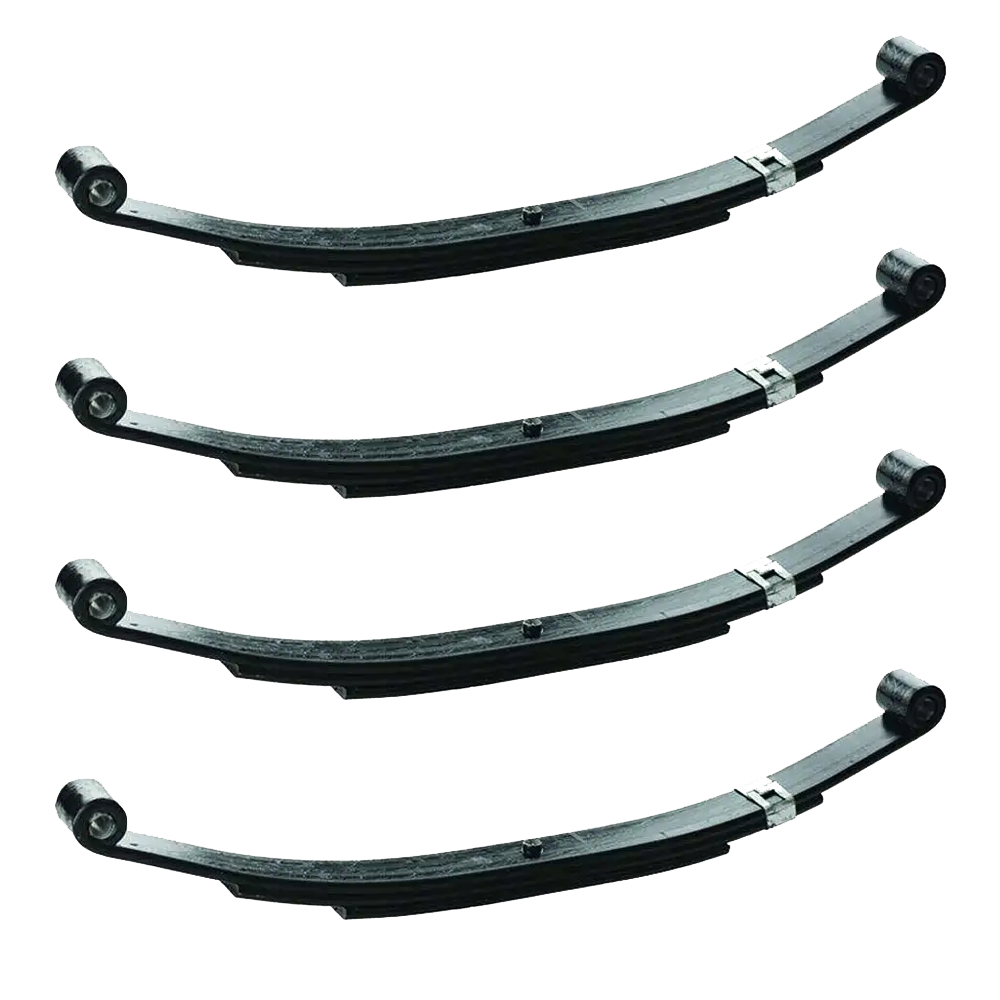

• QTY (4): 24" Double-Eye Leaf Spring (1,750-lb capacity each)
  • Replacement leaf springs for trailers up to 3,500-lb axles
  • 24" eye-to-eye length
  • 1,750-lb capacity per spring
  • Double-eye design for a stable ride

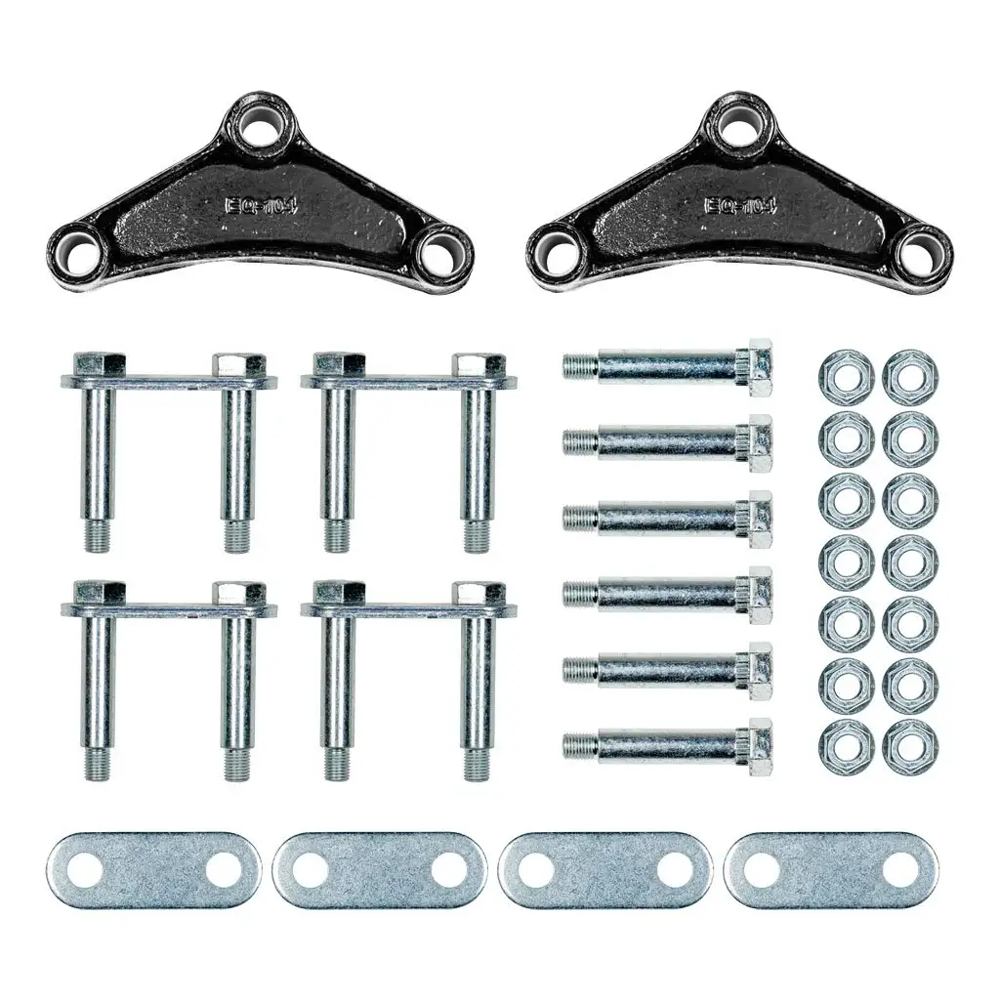

• QTY (1): Lippert Trailer Axle AP Kit (Standard Equalizer)
  • Equalizer Reference: EQ-104
  • Equalizer Bolt Qty: 2 (Length: 2.88")
  • Shackle Assembly Qty: 4 (Length: 2.25")
  • Shackle Plate Qty: 4 (Length: 2.25")
  • Shackle Bolt Qty: 6 (Length: 2.88")
  • Equalizer Nut Qty: 2 (Thread: 7/16"-20)
  • Lock Nut Qty: 14 (Thread: 7/16"-20)

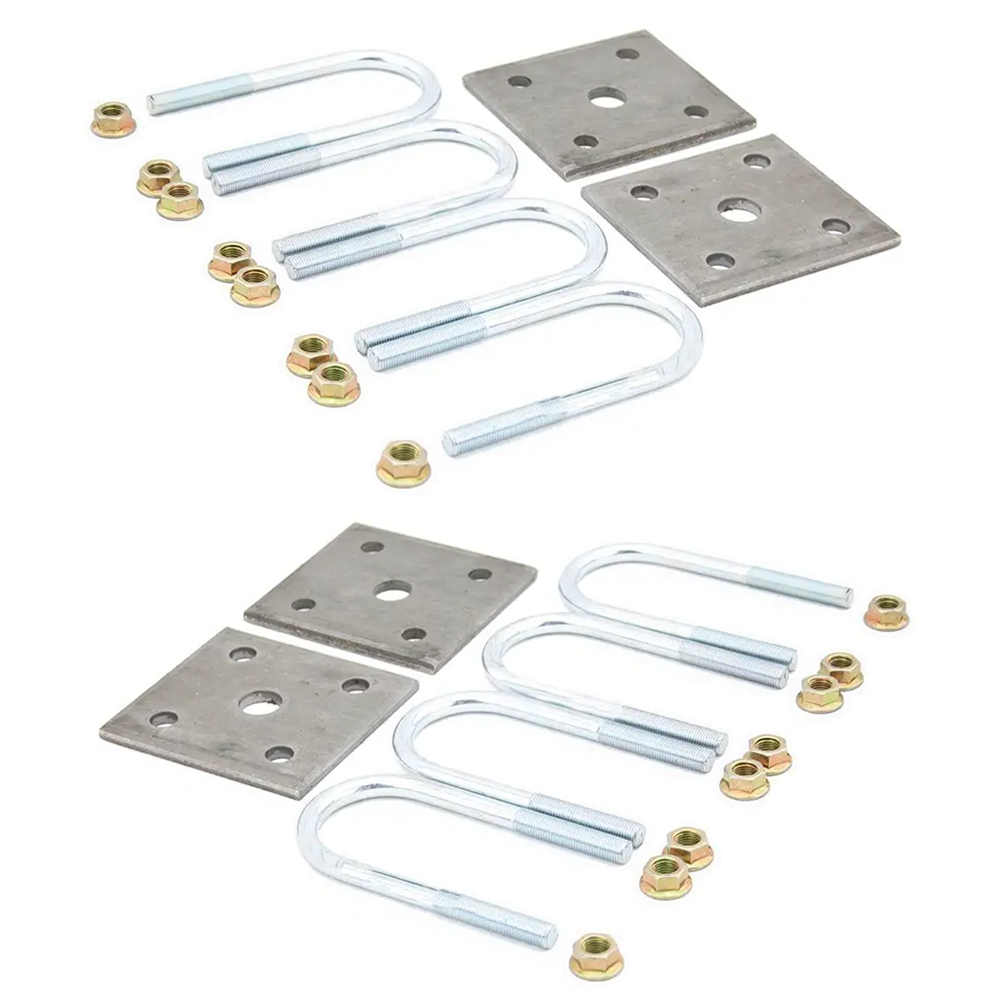

• QTY (2): Axle Mounting Kit – U-Bolts for 1.75" Tube
  • U-bolt replacement kit for 1.75" axle tubes
  • Ensures secure mounting of axle to springs
  • All mounting hardware included

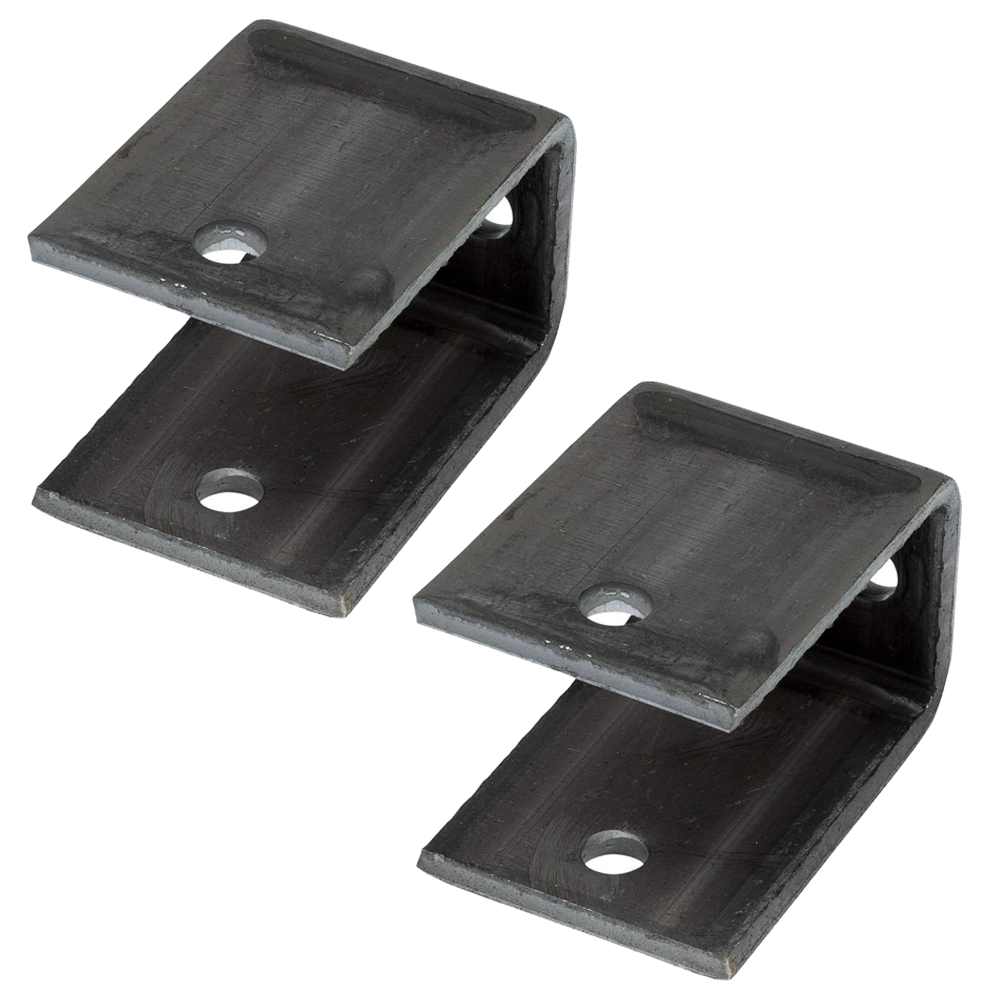

• QTY (2): Front Trailer Axle Hanger (Part #127784) – 4-5/16" x 2-3/16", 2,200-8,000-lb Axle Rating
  • Welded to chassis for mounting of axles and axle components
  • Axle capacity: 2,200-8,000 lbs
  • Location: Front
  • Distance to hole: 3-9/16" on-center
  • Length: 4-5/16"
  • Width: 2-3/16"
  • Hole size: 9/16"
• QTY (2): Center Trailer Axle Hanger (Part #127782) – 4-1/2" x 3-1/8", 2,200-8,000-lb Axle Rating
  • Welded to chassis for center connection
  • Axle capacity: 2,200-8,000 lbs
  • Location: Center
  • Distance to hole: 3-5/16"
  • Length: 4-1/2"
  • Width: 3-1/8"
  • Hole size: 7/8"
• QTY (2): Rear Trailer Axle Hanger (Part #127783) – 6" x 2-1/4", 2,200-8,000-lb Axle Rating
  • Welded to chassis for rear axle support
  • Axle capacity: 2,200-8,000 lbs
  • Location: Rear
  • Distance to hole: 4"
  • Length: 6"
  • Width: 2-1/4"
  • Hole size: 5/16"

Always confirm your existing components and consult your trailer’s documentation for proper maintenance intervals and torque specifications.
