Lippert 3,500?lb Tandem Axle Suspension Kit w/1.75" Tube, 25-1/4" (2,600?lb) Leaf Springs, Long Equalizer + Hangers & Hardware � Dexter, Alko, Rockwell Compatible

Lippert 3,500 lb Tandem Axle Suspension Kit – 1.75" Tube, 25-1/4" Leaf Springs (2,600 lb), Long Equalizer

Get a complete solution for your tandem axle trailer with this Lippert kit. Engineered for a 3,500 lb axle rating and compatible with Dexter, Alko, Rockwell, and Quality Axles, this bundle includes leaf springs with a 25-1/4" unloaded eye-to-eye length (26" loaded), a long equalizer with standard bolts, plus hangers and mounting hardware—making installation straightforward and helping to ensure a smoother ride.

Bundle Contents:

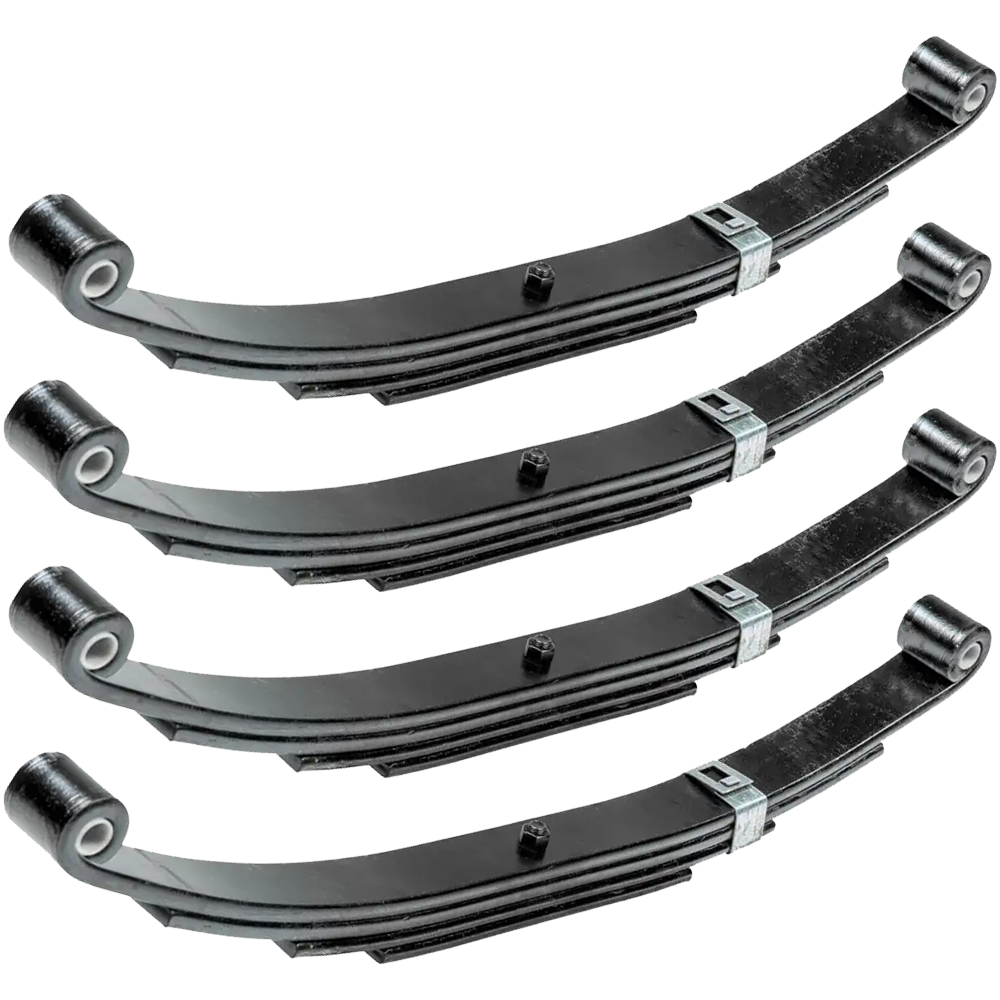

• QTY (4): Lippert 25-1/4" (Unloaded) Leaf Spring (2,600 lb capacity)
  • Double-eye leaf spring design (4 leaves)
  • Unloaded eye-to-eye length: 25-1/4"
  • Loaded eye-to-eye length: 26"
  • Weight capacity: 2,600 lb per spring
  • Width: 1-3/4"
  • Arch height (unloaded): 1-3/4"
  • Arch height (loaded): 1-1/2"
  • Spring eye diameter: 9/16"

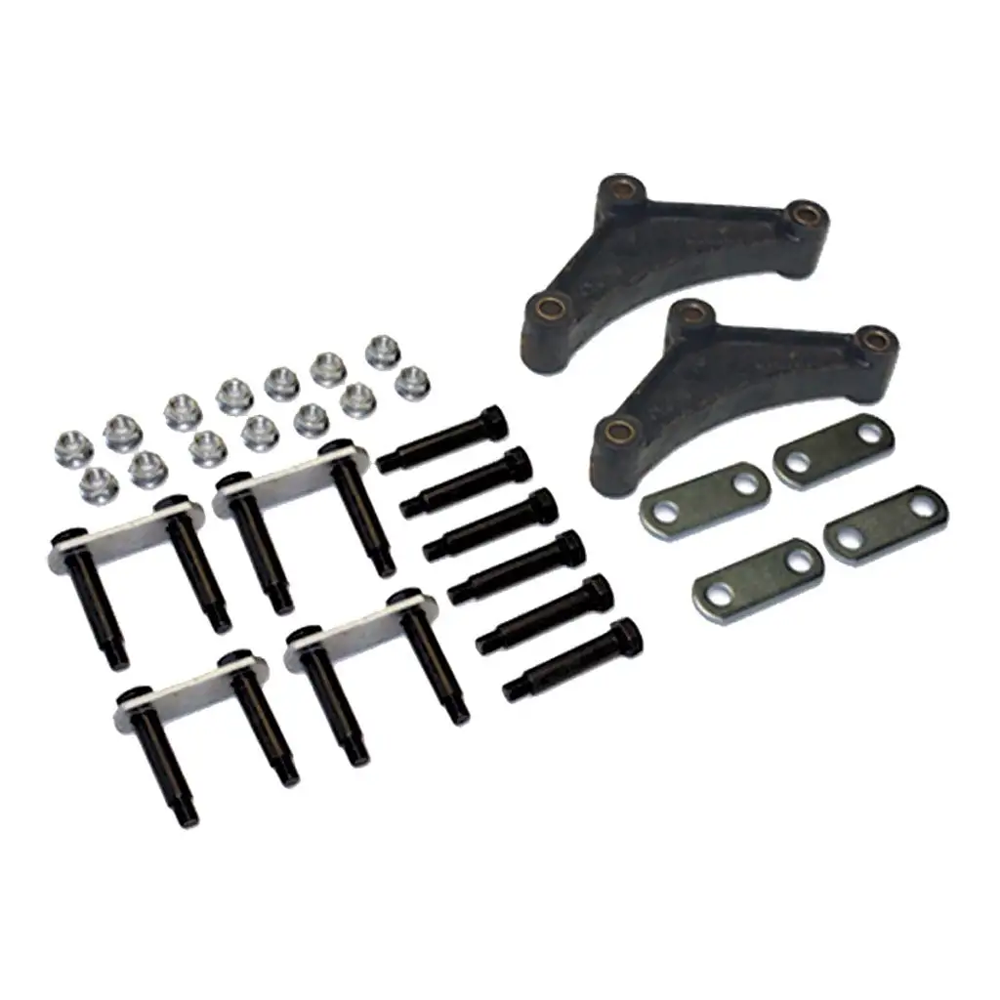

• QTY (1): Lippert Tandem Axle AP Kit w/Long Equalizer (Standard Bolts)
  • Includes shackle links, standard bolts, mounting hardware, and equalizers
  • Long equalizer style for smoother ride

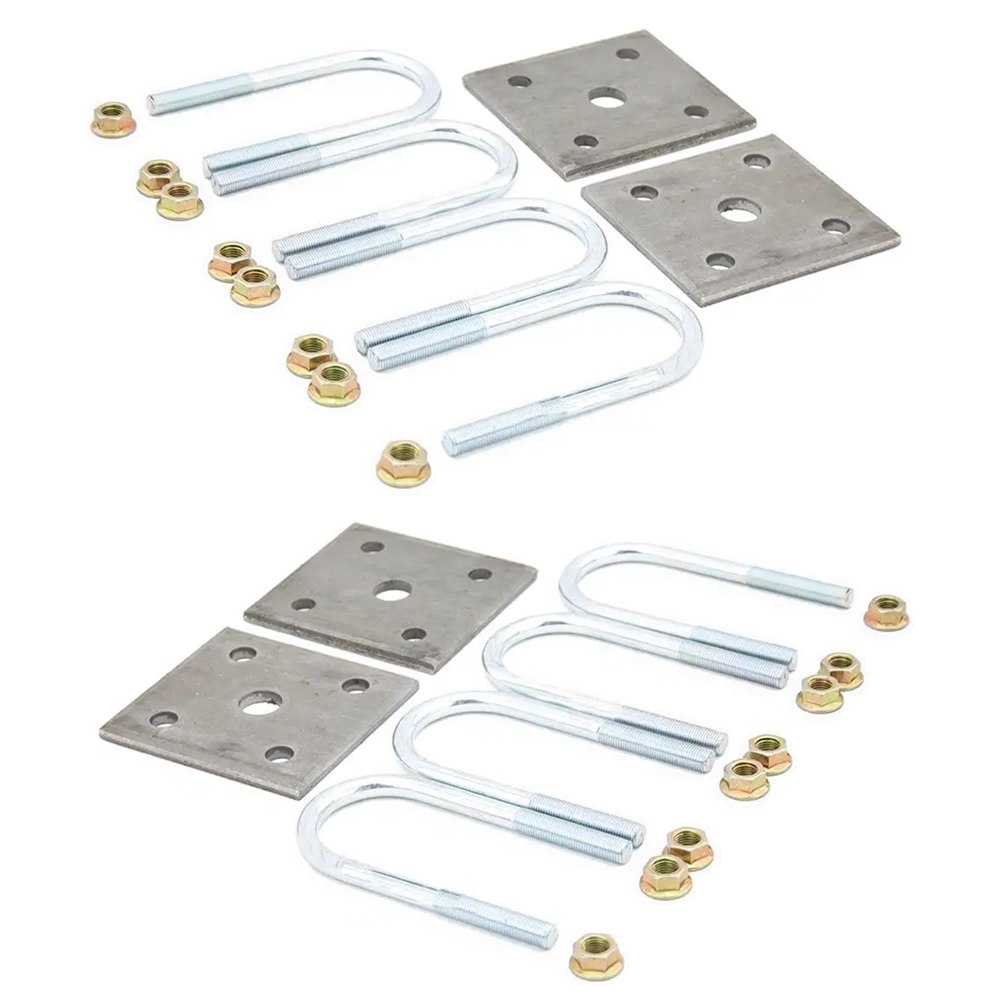

• QTY (2): Axle Mounting Kit – 1.75" Tube
  • Replacement mounting kit with U-bolts sized for 1.75" axle tubes
  • All hardware included for secure installation
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16"
  • Welded to chassis for secure axle mounting
  • Distance to hole (on-center): 3-9/16"
  • Width: 2-3/16"
  • Length: 4-5/16"
  • Hole size: 9/16"
• QTY (2): Center Trailer Axle Hanger – 4-1/2" x 3-1/8"
  • Axle capacity range: 2,200 – 8,000 lbs.
  • Distance to hole: 3-5/16"
  • Width: 3-1/8"
  • Length: 4-1/2"
  • Hole size: 7/8"
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4"
  • Axle capacity range: 2,200 – 8,000 lbs.
  • Distance to hole: 4"
  • Width: 2-1/4"
  • Length: 6"
  • Hole size: 5/16"

We recommend verifying all replacement parts against your trailer’s original components and adhering to a regular maintenance schedule to ensure maximum performance and safety.
