Lippert 3,500 lb Tandem Suspension Kit – 24″ Leaf (1,250 lb), 2.375″ Tube, Tall Equalizer

This complete Lippert tandem axle suspension kit includes 24" (1,250 lb) leaf springs, a tall equalizer AP kit, and all necessary hangers & hardware for a quick, reliable installation. Engineered for trailers running 3,500 lb axles with 2.375″ tubes, it’s also fully compatible with Dexter, Alko, Rockwell, and Quality Axles. Get everything you need to refresh or upgrade your trailer’s suspension, all in one convenient bundle.

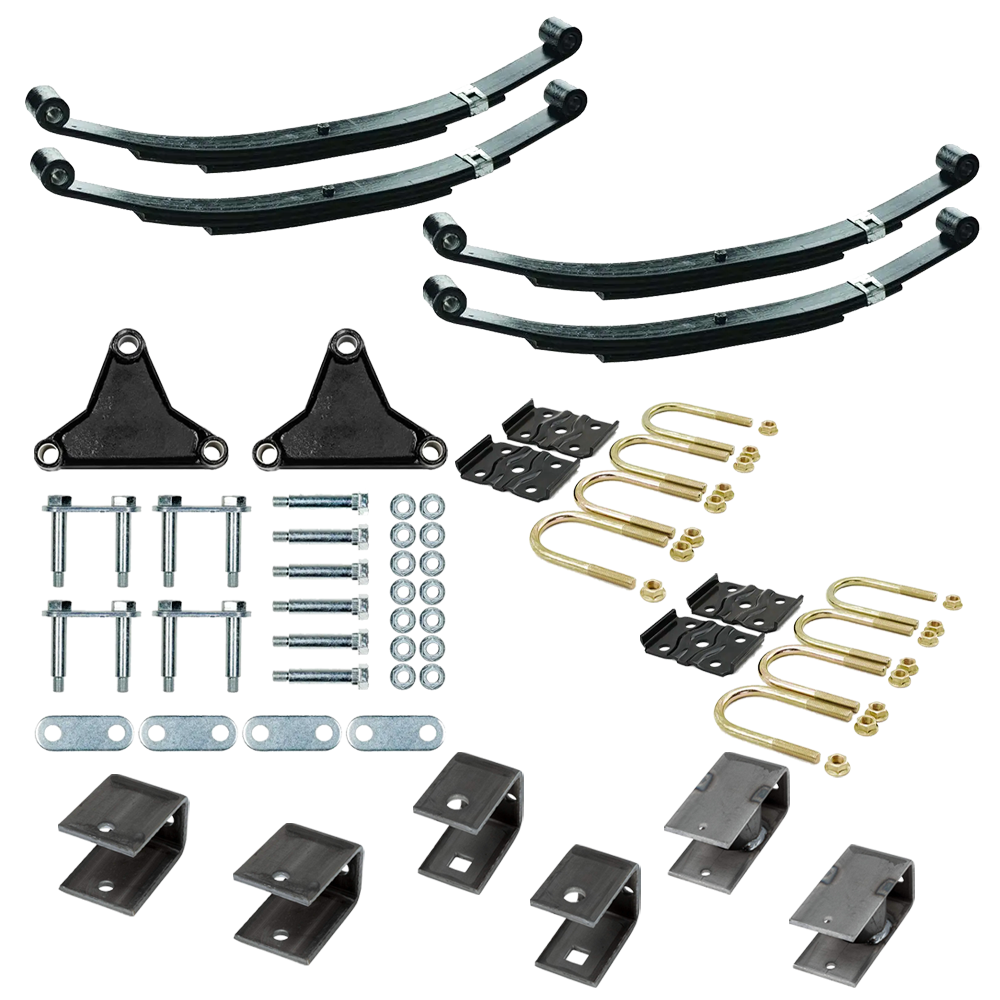

Bundle Contents:

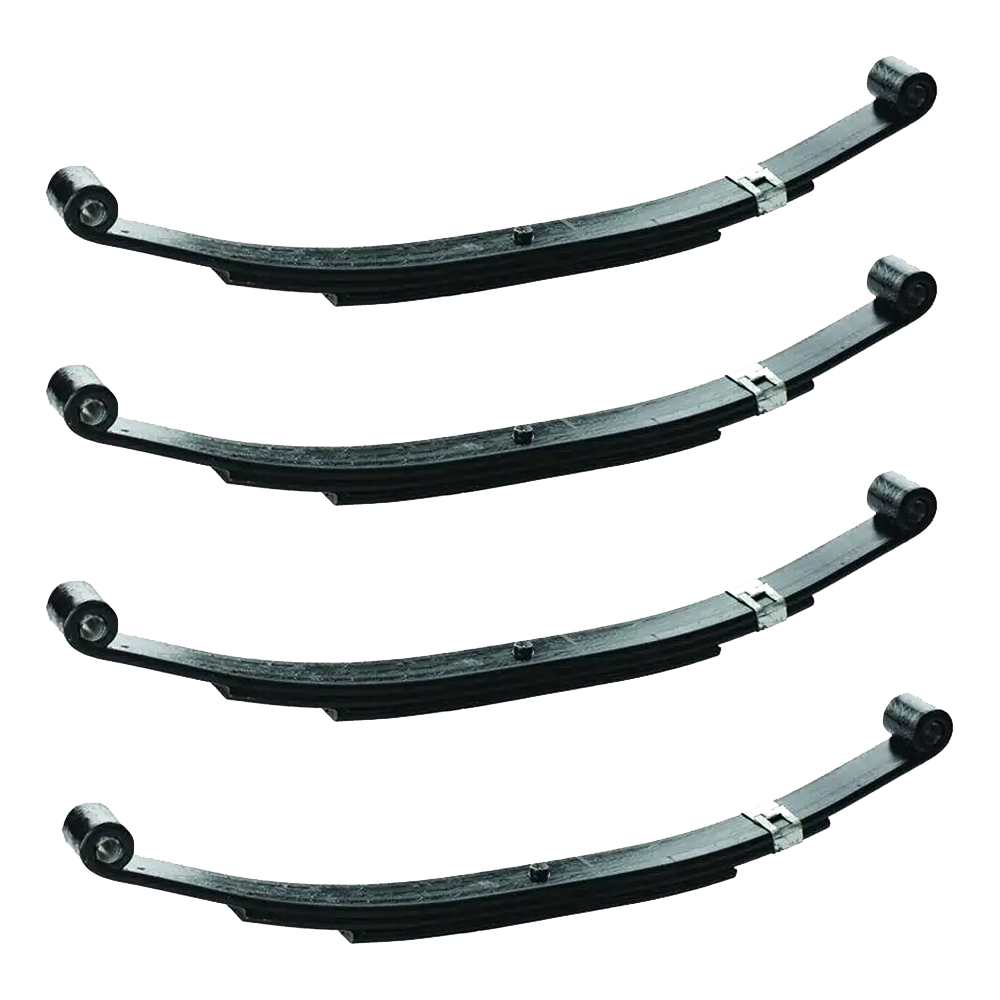

• QTY (4): 24" Leaf Spring (1,250 lbs capacity)
  • Replacement leaf spring for RV trailers
  • Length: 24"
  • Weight capacity: 1,250 lbs each
  • Consult original equipment label before purchasing

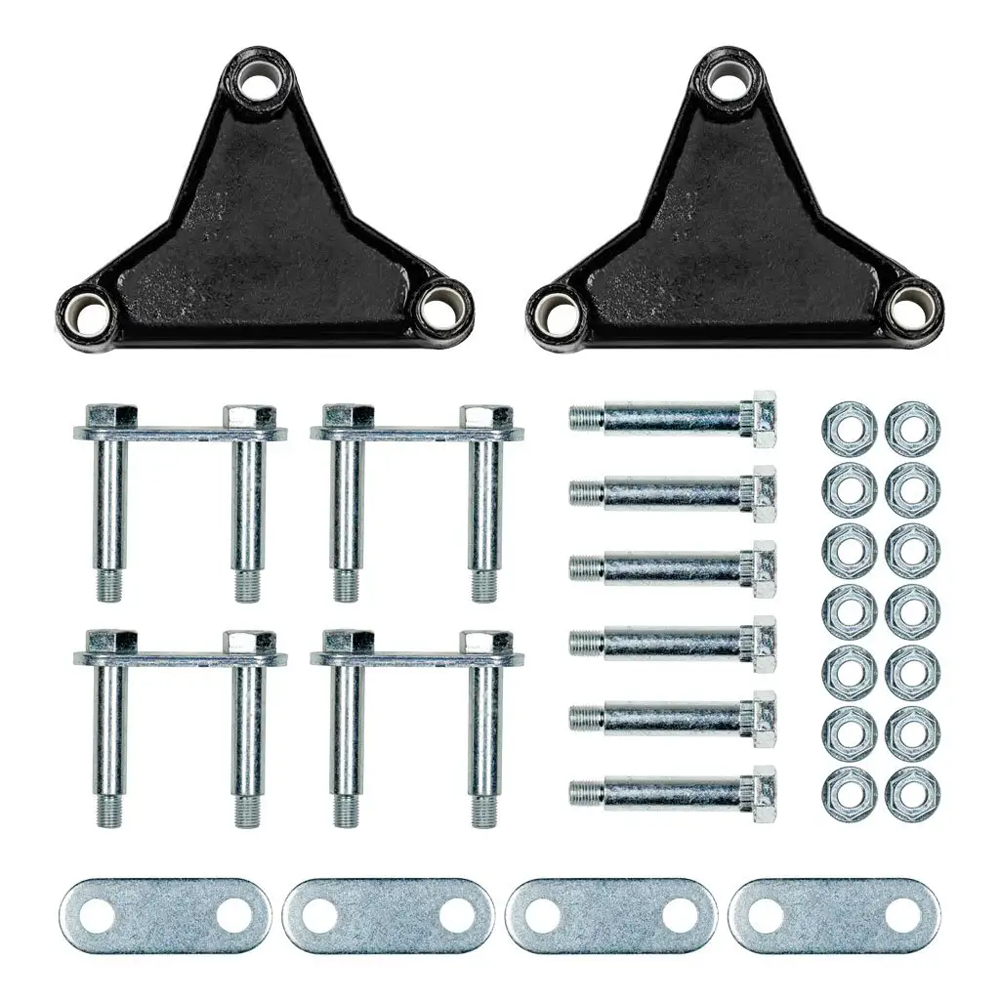

• QTY (1): Lippert Trailer Axle AP Kit for 2-7K Double-Eye Tandem Axles – Tall Equalizer
  • Includes equalizer, shackle assemblies, bolts, and lock nuts
  • Equalizer Reference: EQ-310
  • Quick replacement for worn or damaged suspension parts
  • Equalizer Bolt Length: 2.88"
  • Shackle Assembly Length: 2.25"
  • Shackle Bolt Length: 2.88"

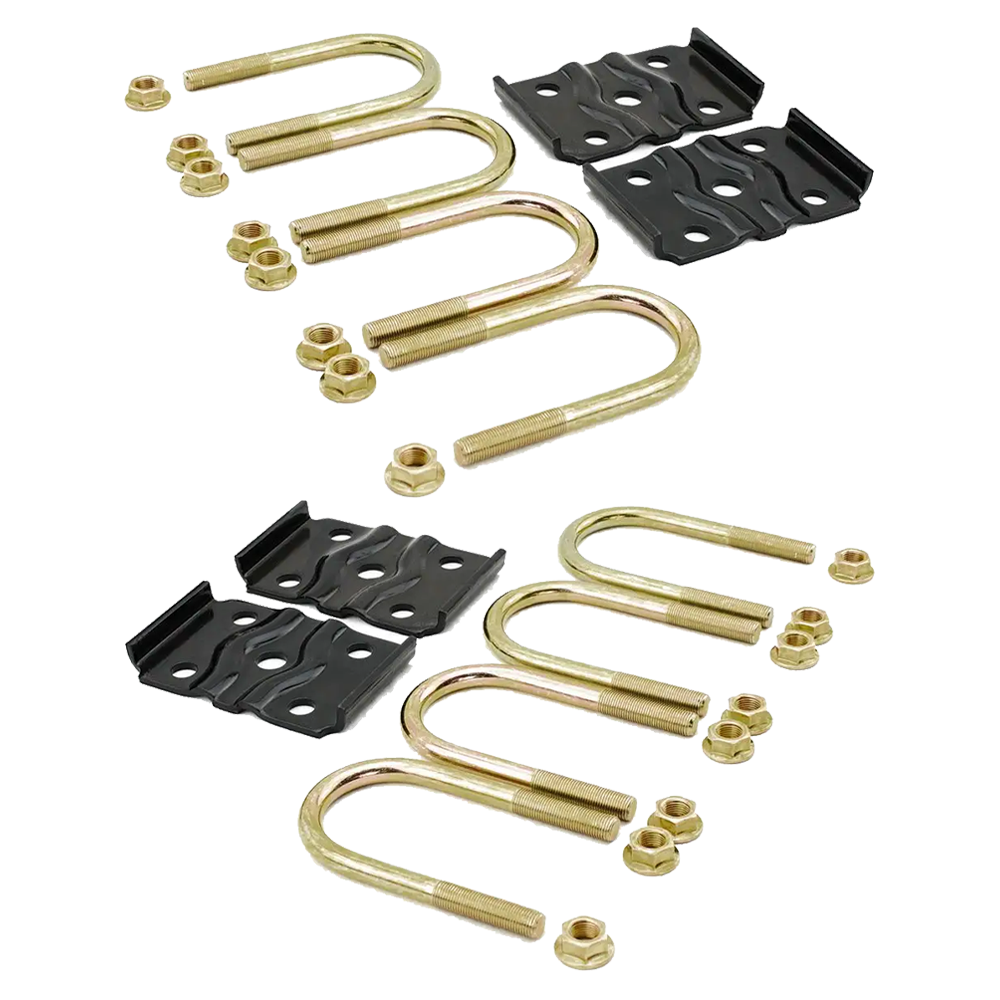

• QTY (2): Lippert Axle Mounting Kit – 2.375" Tube
  • Exact-match replacement for RV trailer axles
  • U-bolt design for secure mounting
  • Available sizes: 1.75", 2.375", and 3"
  • Installs like original equipment
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200-8,000-lb. Axle Rating
  • Welded to chassis to support front leaf spring position
  • Axle capacity: 2,200-8,000 lbs.
  • Overall Dimensions: 4-5/16" x 2-3/16"
  • Distance to bolt hole: 3-9/16" on-center
  • Hole size: 9/16"
• QTY (2): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200-8,000-lb. Axle Rating
  • Welded to chassis for middle leaf spring position
  • Axle capacity: 2,200-8,000 lbs.
  • Overall Dimensions: 4-1/2" x 3-1/8"
  • Distance to bolt hole: 3-5/16" on-center
  • Hole size: 7/8"
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200-8,000-lb. Axle Rating
  • Welded to chassis for rear leaf spring position
  • Axle capacity: 2,200-8,000 lbs.
  • Overall Dimensions: 6" x 2-1/4"
  • Distance to bolt hole: 4" on-center
  • Hole size: 5/16"

Always verify your trailer’s OEM guidelines before installation. Regular inspection and maintenance of your suspension system are recommended for optimal safety and performance.
