Lippert 3,500-lb Triple-Axle Electric Brake & 10? Drum-Hub Kit � Fits Dexter, AL-KO, Rockwell

Lippert Triple-Axle 3,500-lb Electric Brake & 10″ Drum-Hub Replacement Kit

Renew braking confidence on all three axles with genuine Lippert components that also fit many Dexter, AL-KO, and Rockwell 3,500-lb axles. This bundle delivers three left-hand and three right-hand 10″ × 2.25″ manual-adjust electric brake assemblies plus six 10″ drum-hubs (5-on-4.5″, 1/2″ studs) so you can complete a full suspension service in one purchase.

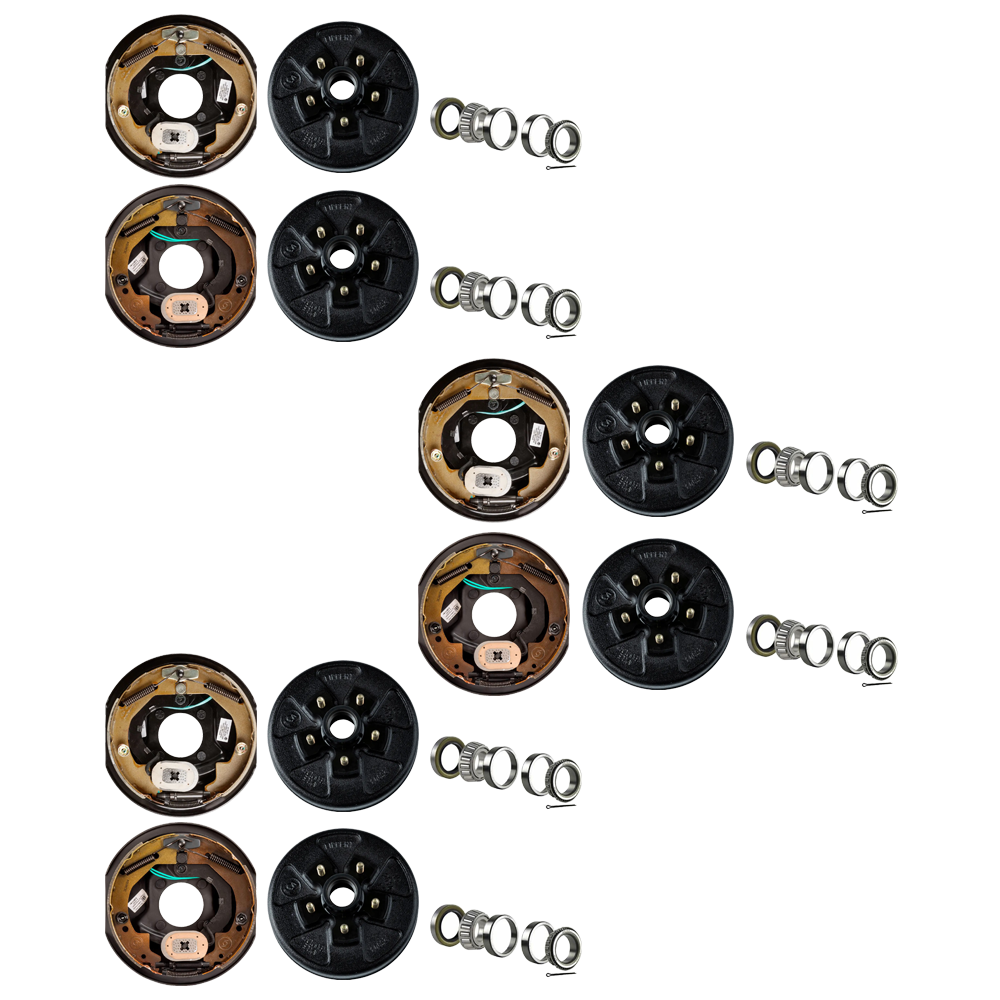

Bundle Contents:

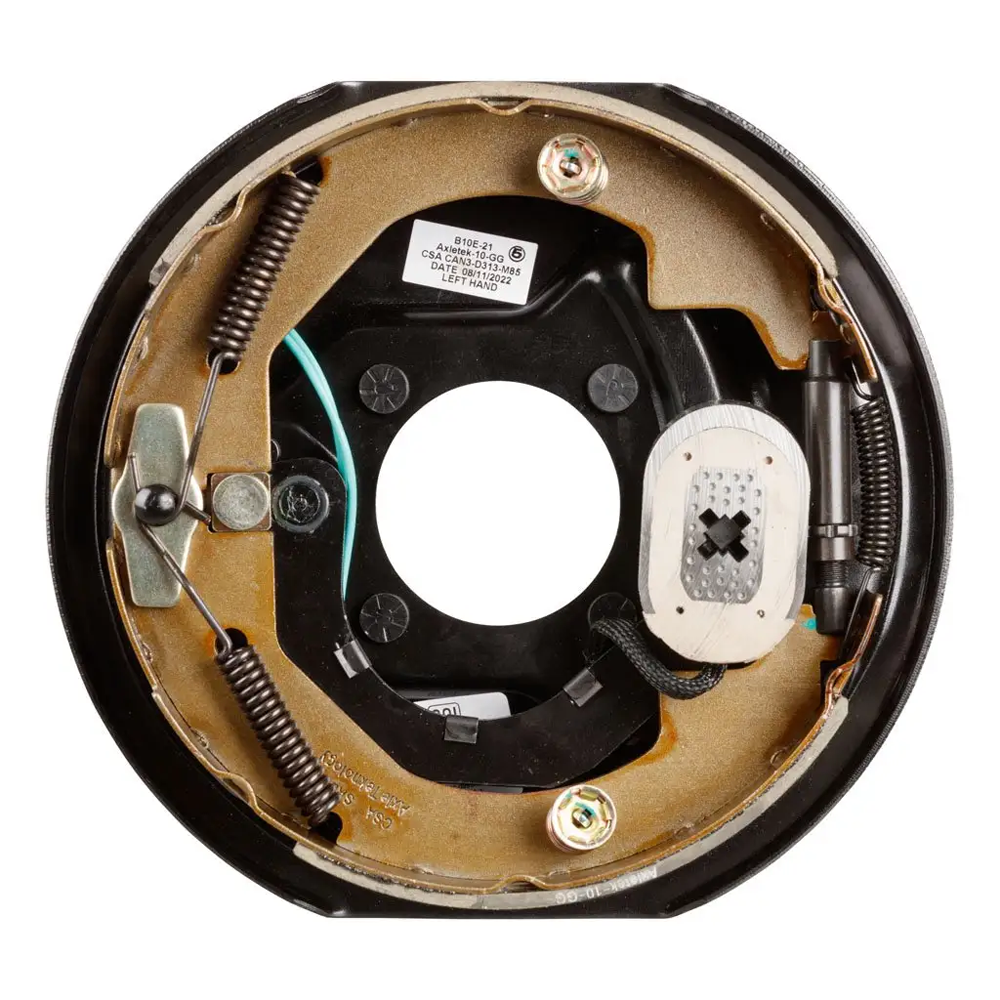

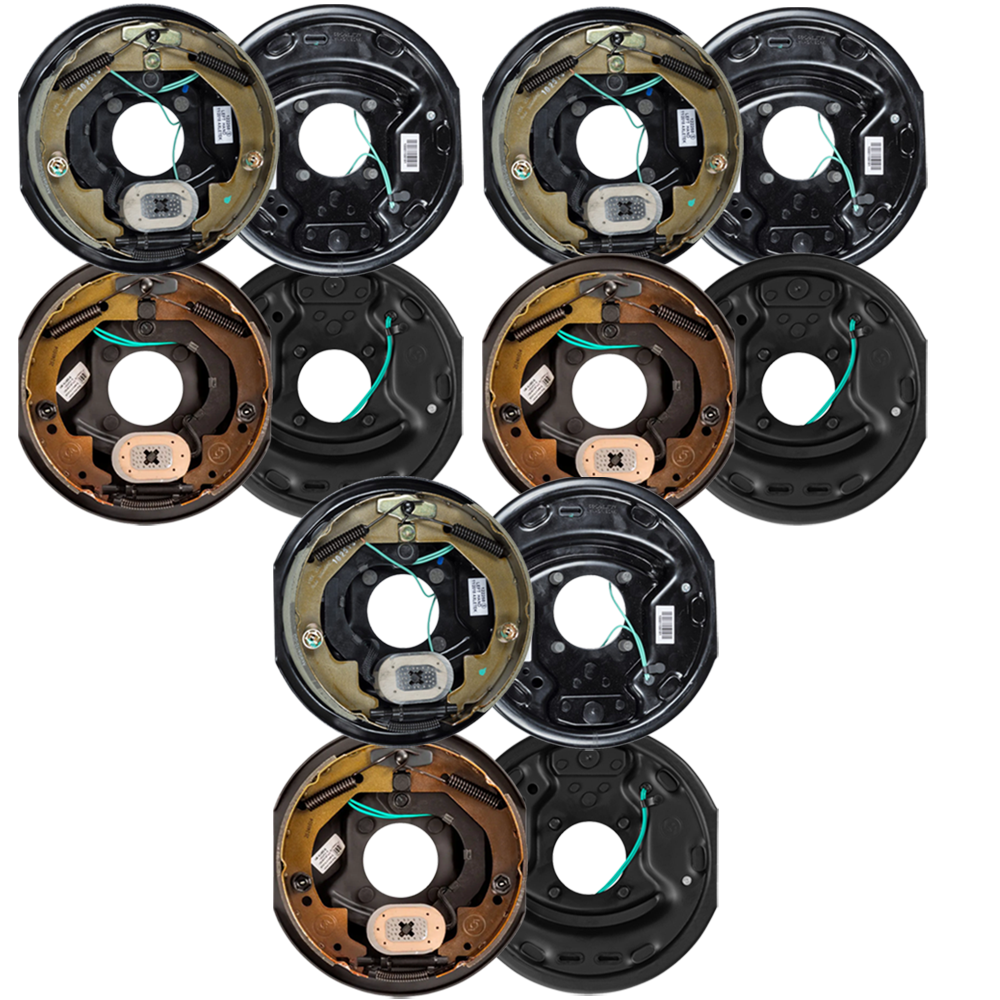

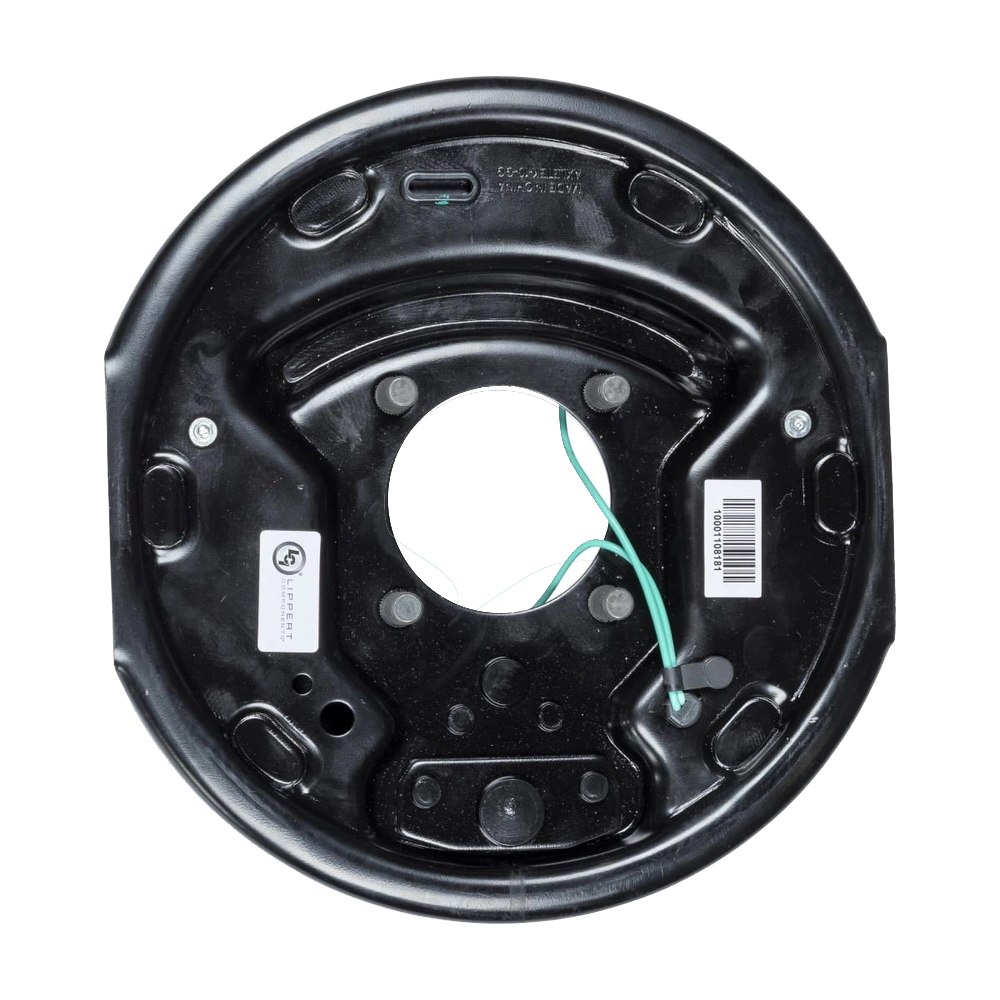

• QTY (3): Lippert Electric Brake Assembly – 10″ × 2.25″, 3,500 lbs (Left-Hand / Road Side)
  • Factory-fresh Lippert OE unit
  • Manual-adjust star wheel for precise braking
  • Pre-wired magnet leads for quick hook-up
  • Dexter Compatible P/N: K23-026-00 | 023-026-00
  • 1-year limited warranty
• QTY (3): Lippert Electric Brake Assembly – 10″ × 2.25″, 3,500 lbs (Right-Hand / Curb Side)
  • Perfectly matched to LH units for balanced stopping
  • Manual-adjust design
  • Dexter Compatible P/N: K23-451-00 | 023-451-00
  • 1-year limited warranty

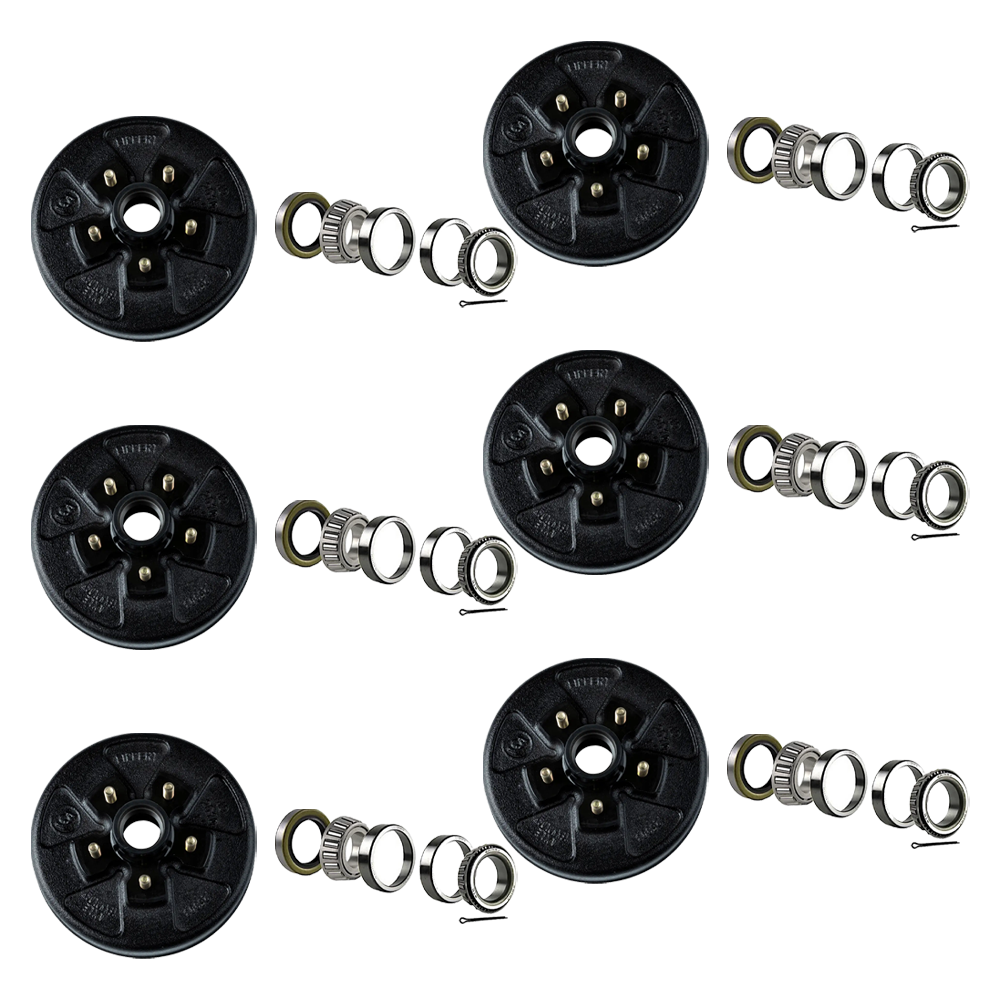

• QTY (6): Lippert 10″ Brake Drum-Hub Assembly – 5 on 4.5″, 1/2″ Stud
  • For 3,500-lb axles; wheels 13″ – 15″
  • Cast-iron drum with integrated hub
  • Bearing kit per hub includes:
    • (1) Inner bearing cone
    • (1) Inner bearing cup
    • (1) Outer bearing cone
    • (1) Outer bearing cup
    • (1) Double-lip grease seal
    • (1) Cotter pin
    Hardware above ×6 hubs (one kit per hub)
  • Lippert hub #126003 / bearing kit #333948

Verify axle capacity, bolt pattern, and brake flange before ordering. Repack bearings, inspect shoes, and torque lug nuts periodically for safe, reliable performance.
