Lippert 7" � 1.25" Electric Brake Assembly & 5-on-4.5 Hub Bundle � 2,200-lb LH Axle � Dexter / AL-KO / Rockwell Compatible
$163.99

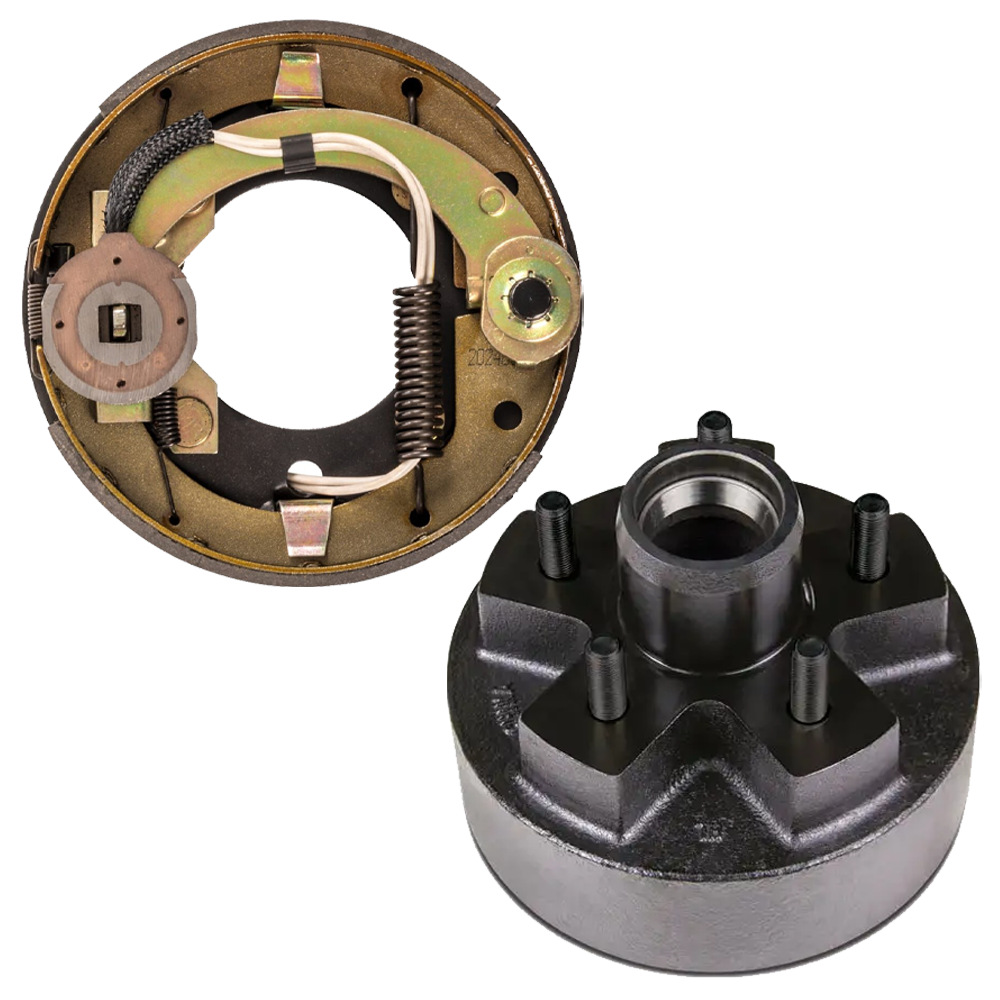

Lippert 7" Electric Brake & Hub Bundle – Left-Hand, 2,200-lb Axle
Restore safe, confident stopping power on your light-duty trailer with this genuine Lippert® replacement bundle. It combines a left-hand 7" × 1.25" electric brake assembly with a matching 5-on-4.5 hub, giving you everything you need to service one 2,200-lb axle in minutes—no hydraulic lines, just reliable electric performance.
Bundle Contents:
-

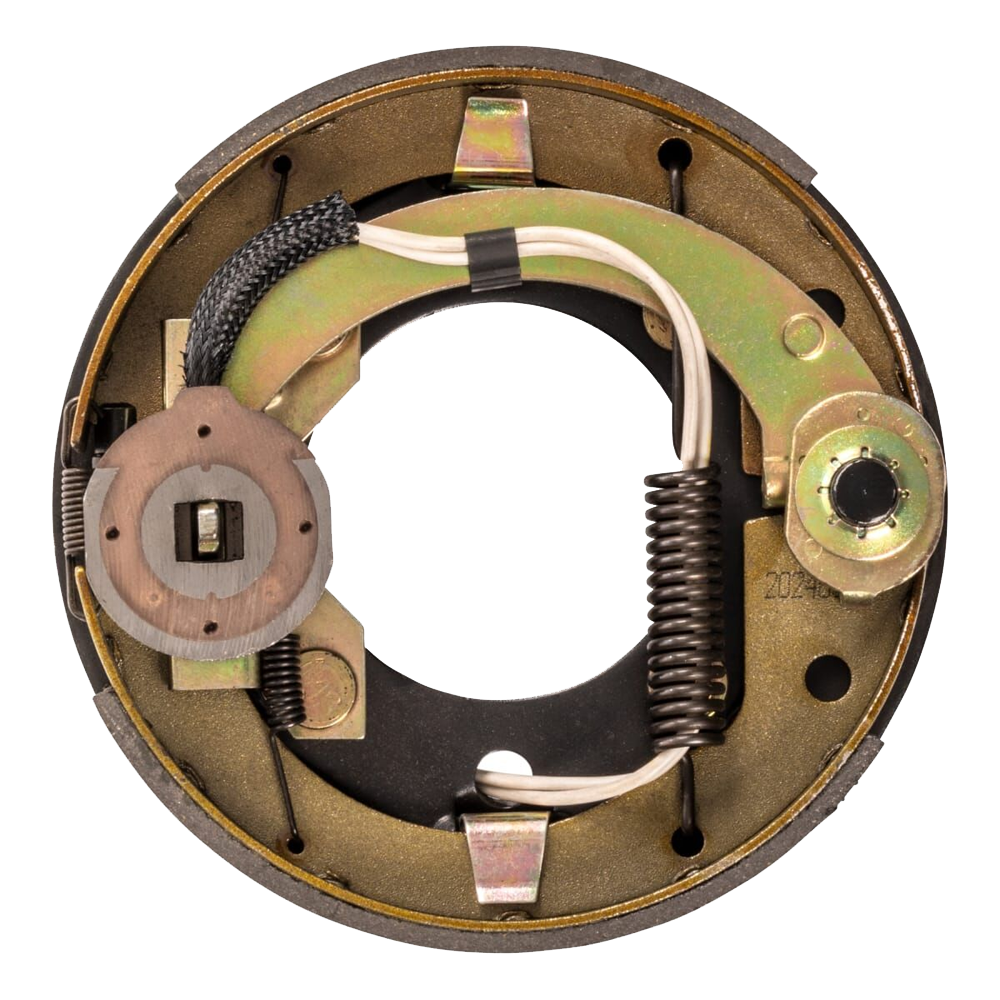

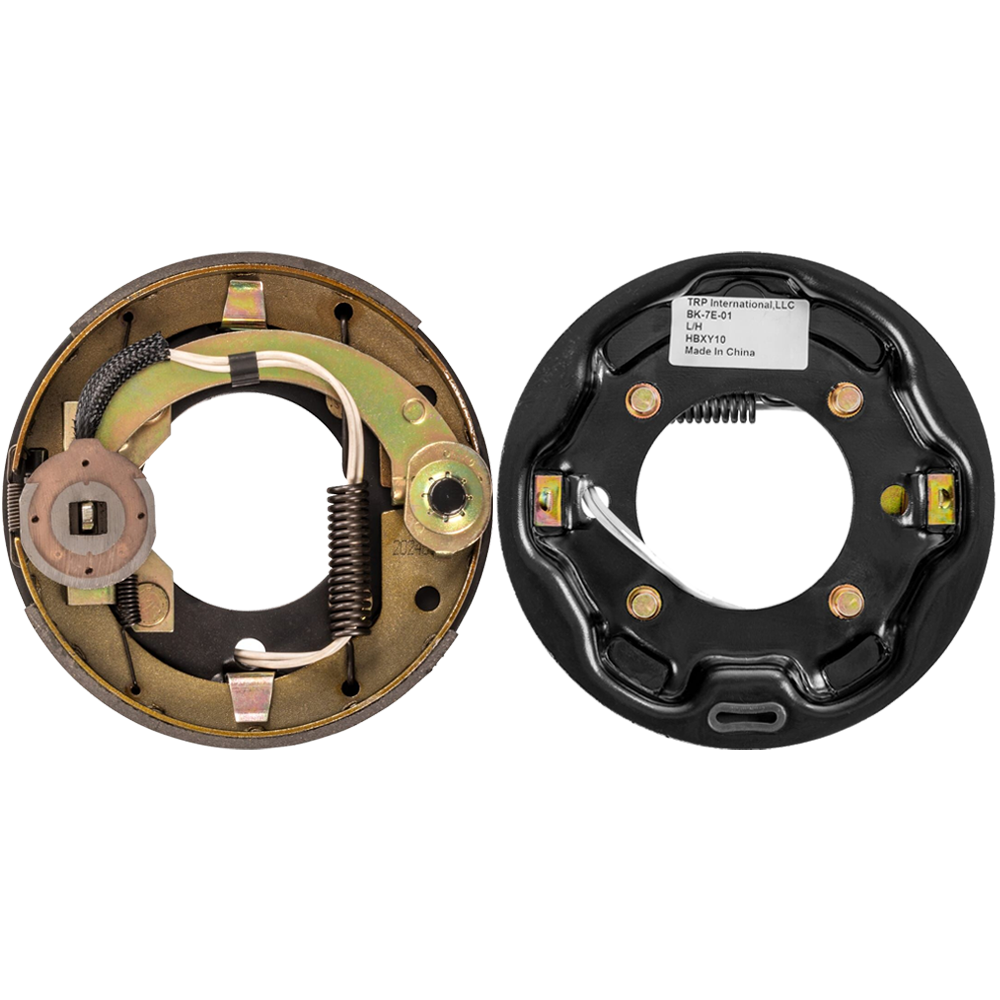

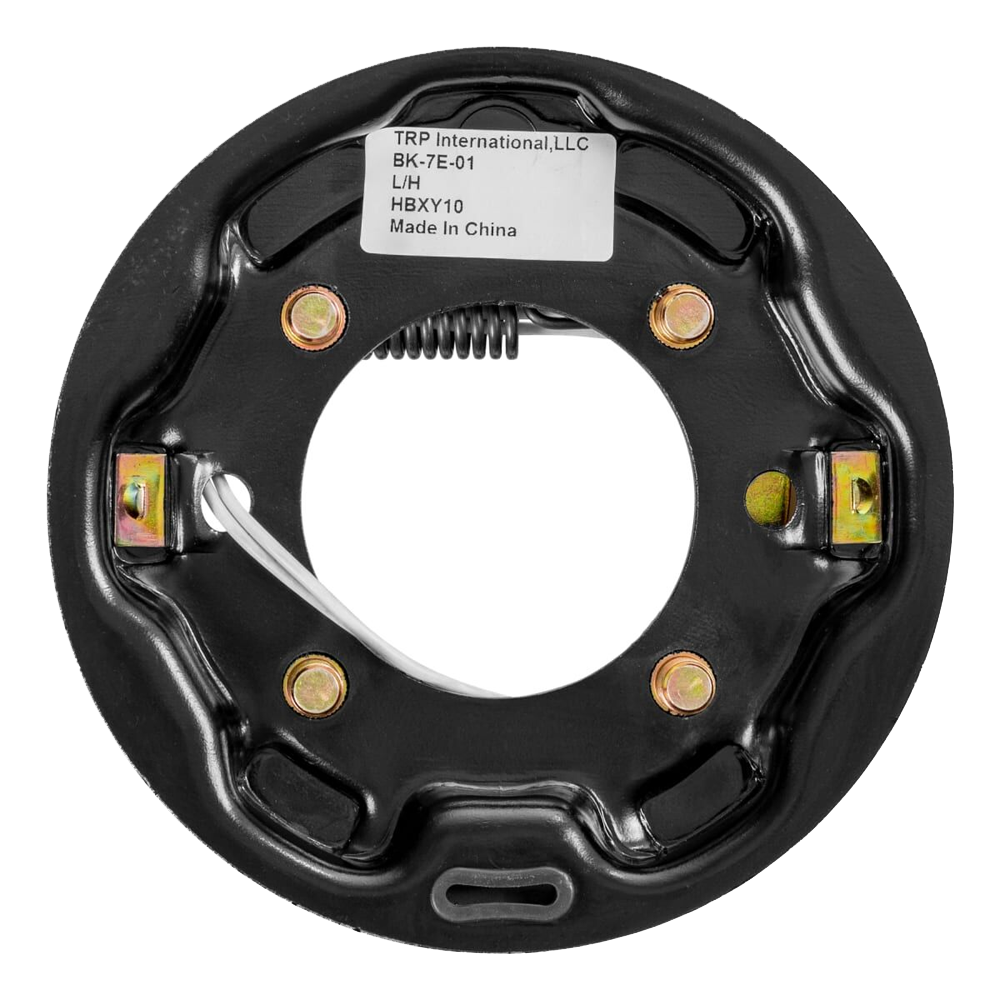

QTY (1): Electric Brake Assembly, 7" × 1.25", 2,200 lbs., Left Side
- Genuine Lippert® replacement part
- Left-hand (roadside) mounting
- Manual shoe adjustment for fine-tuned braking
- Fits 10 – 13" wheels; four-bolt backing plate
- Rated for 2,200-lb trailer axles
- Dexter compatible part numbers: K23-047-00, 023-047-00
-

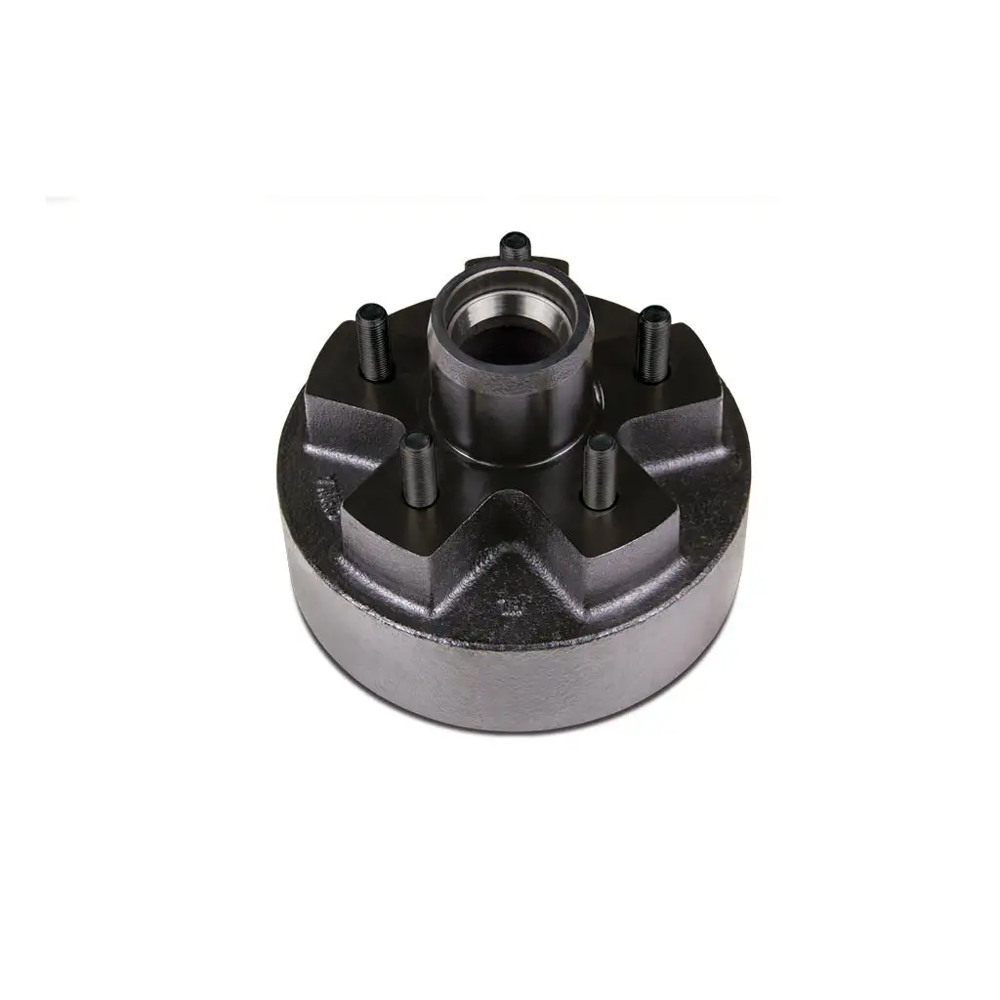

QTY (1): 7" Brake Hub, 5 on 4.5" Pattern, 1/2" Studs – 2,200 lbs.
- Hub only – full assembly not included
- Durable cast-iron hub with integrated drum
- Genuine Lippert™ replacement part
- 5 on 4.5" bolt pattern; 1/2" studs
- For 8", 9", and 10" wheels
- Engineered for 2,200-lb axles
Always verify axle rating, bolt pattern, and wheel size before installation, and perform regular brake inspections to keep your trailer road-ready.
| Specifications: | |
|---|---|
| Kit Type | Electric Brake Assembly (Left-Hand) |
| Brand | Lippert |
| Axle Rating | 2,200 lbs per axle |
| Brake Drum Dimensions | 7" × 1.25" |
| Brake Mounting Pattern | 4-bolt brake flange |
| Hub Bolt Pattern | 5 on 4.5" |
| Hub Type | Hub with integrated drum |
| Stud Size | 1/2" |
| Type of Adjustment | Manual |
| Brake Location | Left-hand (roadside) |
| Wheel Size Compatibility | Brakes 10"–13" | Hubs 8"–12" |
