Lippert 7" � 1.25" Electric Brake, Hub & Bearing Bundle � 5 on 4.5" Pattern, 2,200-lb Axle, Left-Hand � Compatible with Dexter & Al-Ko

Lippert 7" Electric Brake, Hub & Bearing Bundle – Left-Hand, 2,200 lb Axle

Restore safe, smooth stopping on your light-duty trailer with this genuine Lippert® bundle. It teams a left-hand 7" electric brake, a matching 5 on 4.5" hub-drum, and a complete bearing kit—everything you need for quick service on 2,200-lb axles used by Lippert, Dexter, Al-Ko, Rockwell and more.

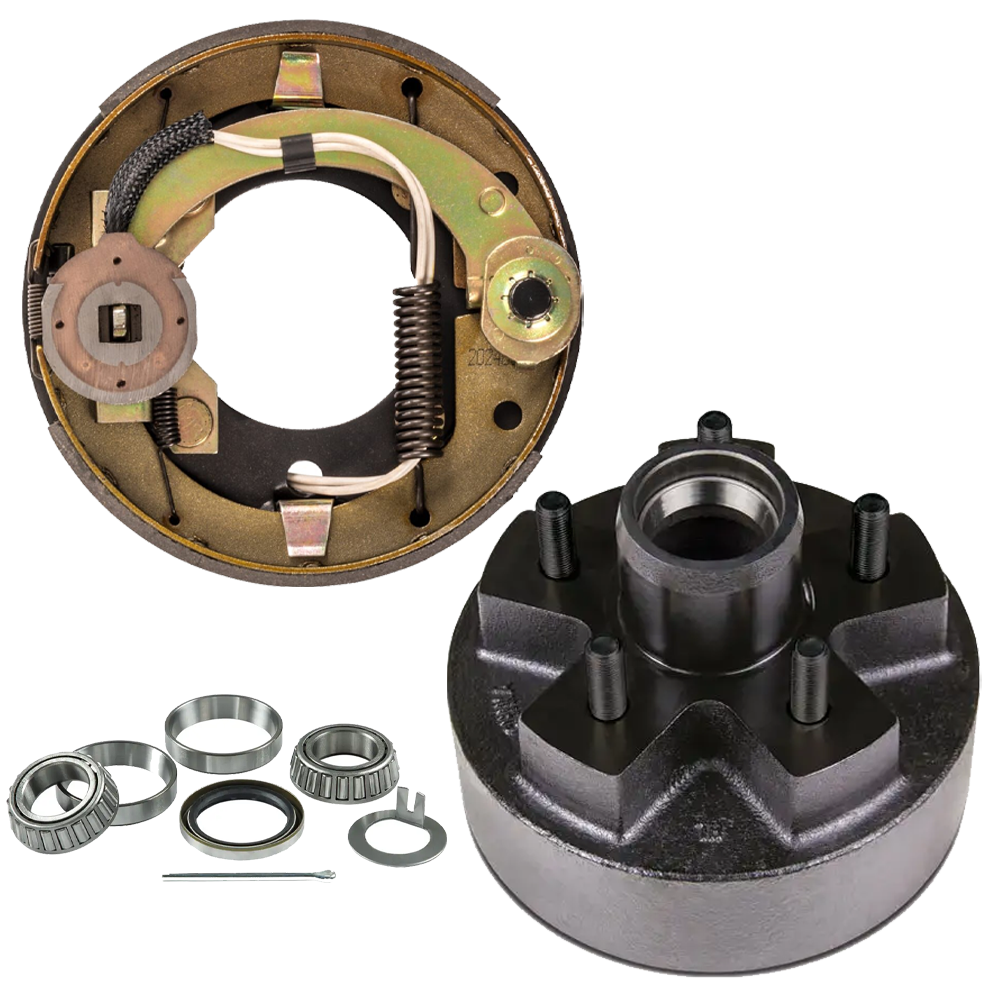

Bundle Contents:

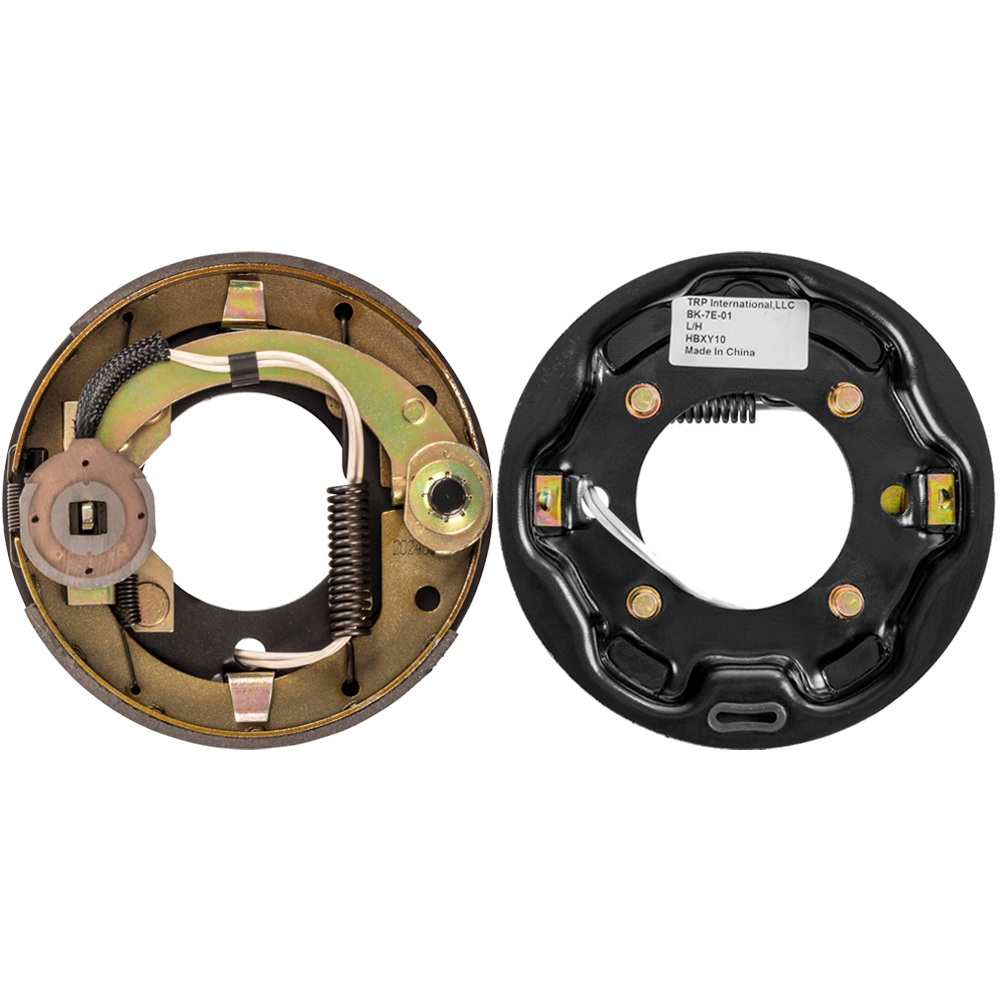

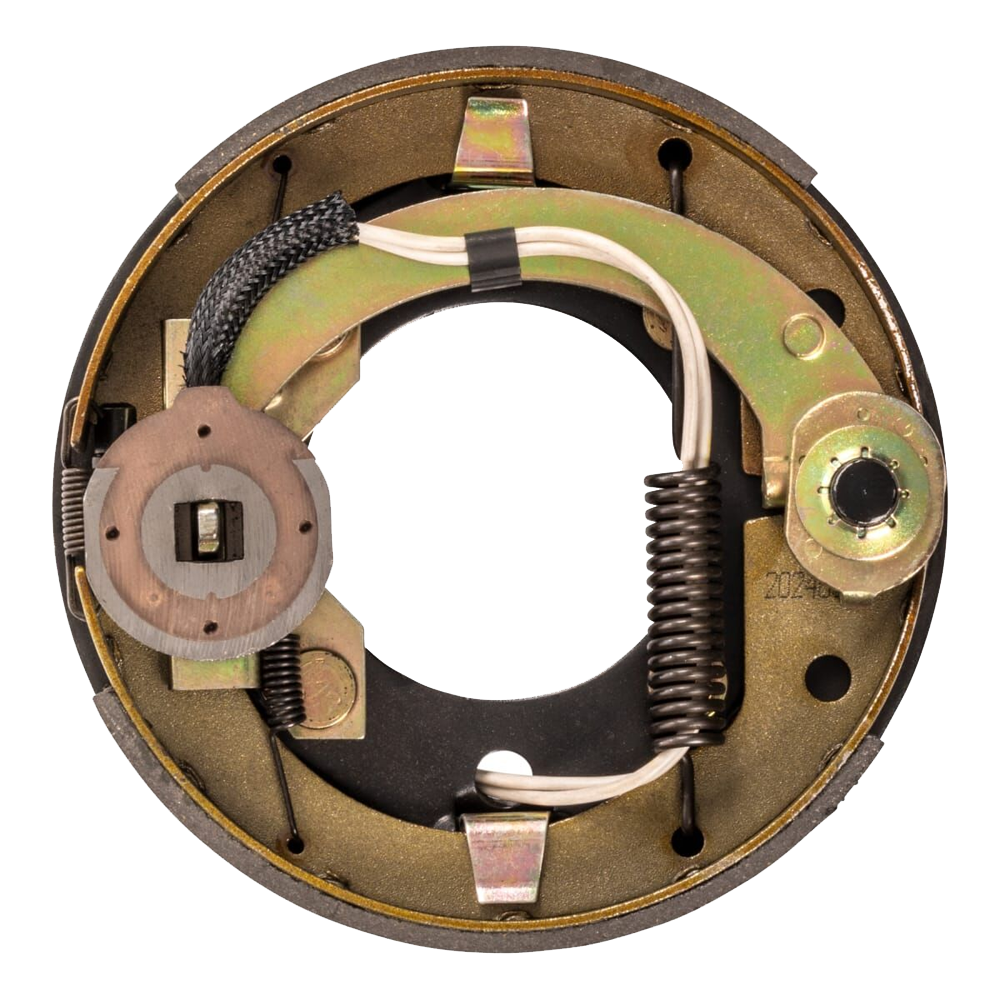

• QTY (1): 7" × 1.25" Electric Brake Assembly – Left Side
  • Genuine Lippert® replacement part
  • Dexter Compatible Part Number: K23-047-00 / 023-047-00
  • Manual-adjust for precise braking force
  • Fits 10", 12" & 13" wheels (brake)
  • Axle rating: 2,200 lbs • 4-bolt mount

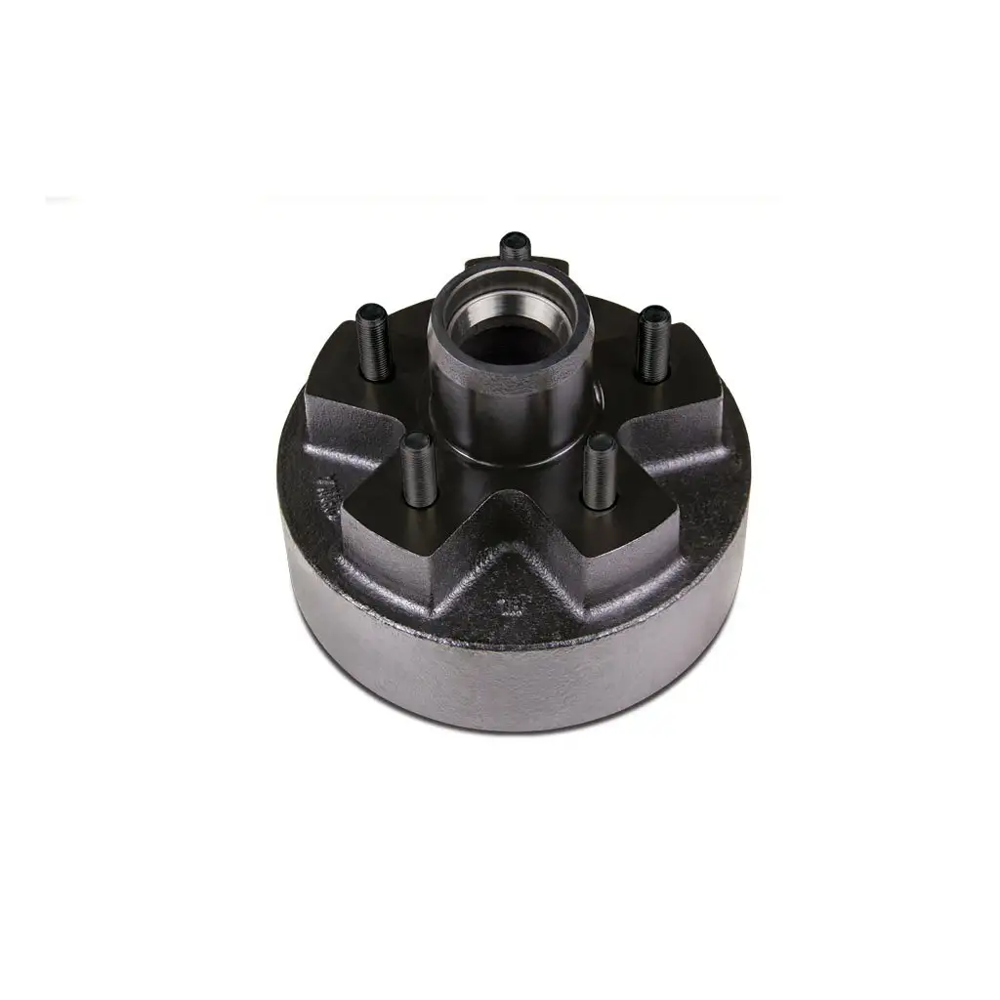

• QTY (1): 7" Hub-Drum – 5 on 4.5", 1/2" Studs
  • Durable cast-iron construction
  • 5 on 4.5" bolt pattern, 1/2" studs
  • Rated for 2,200 lb trailer axles
  • Designed for 8" – 12" wheels (drum)
  • Hub only – bearings included separately in kit

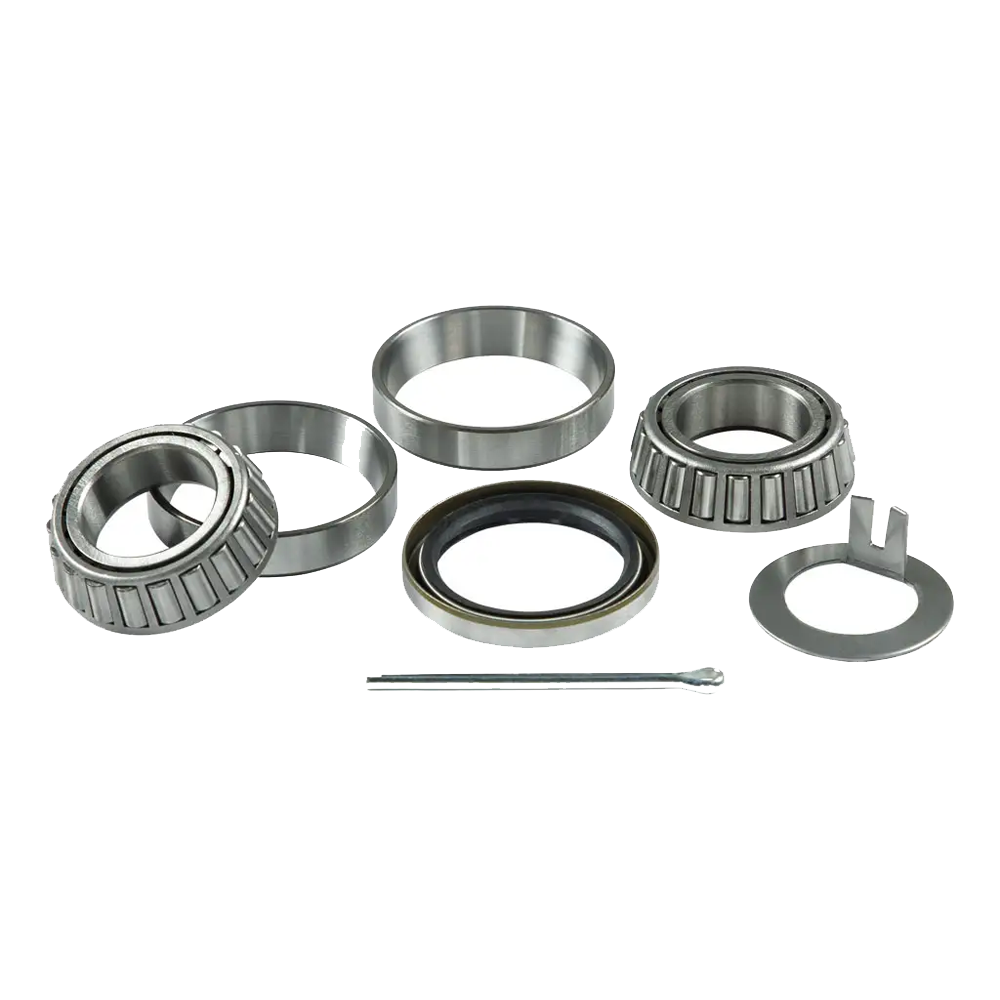

• QTY (1): Lippert Bearing Replacement Kit – 1.5" Seal ID
  (1 kit per hub included)
  • (2) Inner / outer bearing cones
  • (2) Inner / outer bearing races
  • (1) 1.5" ID double-lip grease seal
  • (1) 1.75" cotter pin
  • (1) 1.5" tang spindle washer

Verify axle specs, bolt pattern, and wheel size before installation, and perform regular bearing maintenance for maximum service life.
