Lippert 7" � 1.25" Electric Brake, Hub & Bearing Kit � 5 on 4.5", 2,200-lb Axle (Dexter / AL-KO / Rockwell Compatible)

Lippert 7" Electric Brake, Hub & Bearing Bundle – 2,200-lb Single-Axle Upgrade

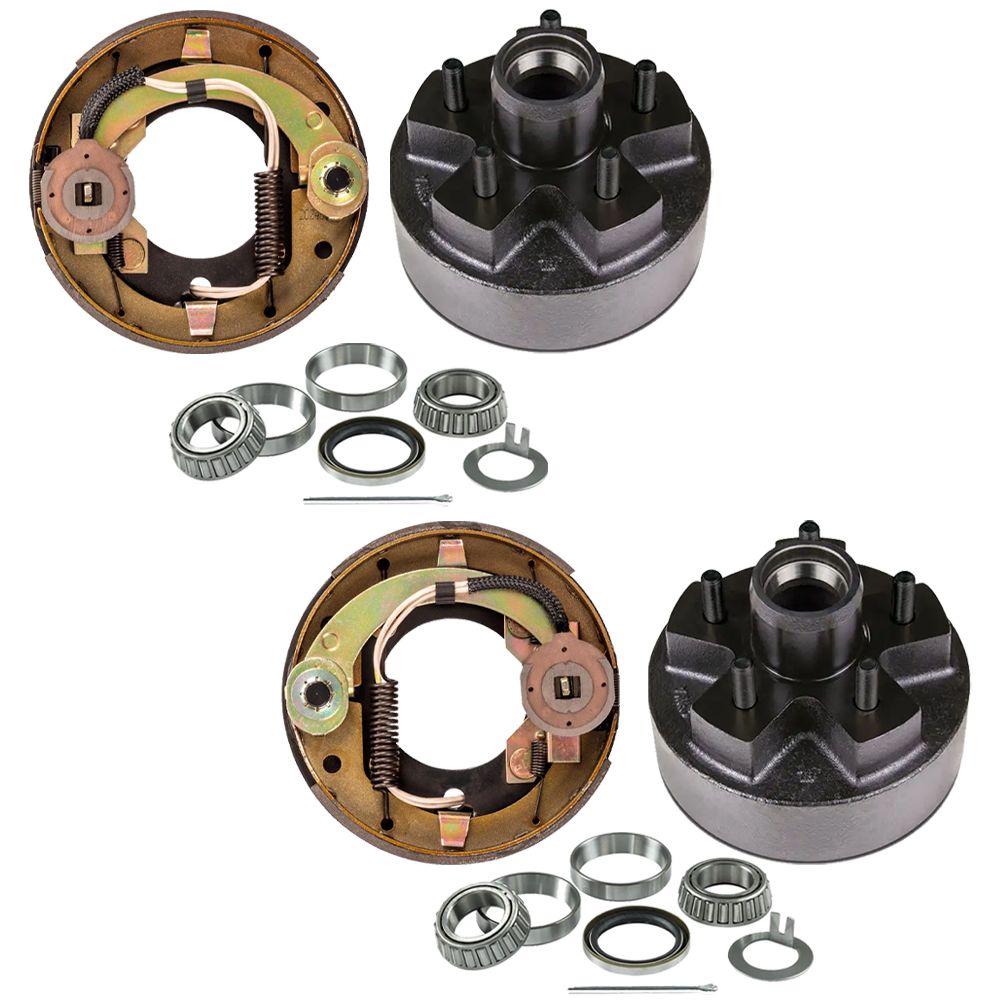

This complete Lippert package delivers everything you need to service one 2,200-lb light-duty axle: left- and right-hand 7" × 1.25" electric brakes, two 5-on-4.5" hub/drums, and matched bearing kits with all mounting hardware supplied (not pre-installed). Simply add quality grease and you’re road-ready.

Bundle Contents:

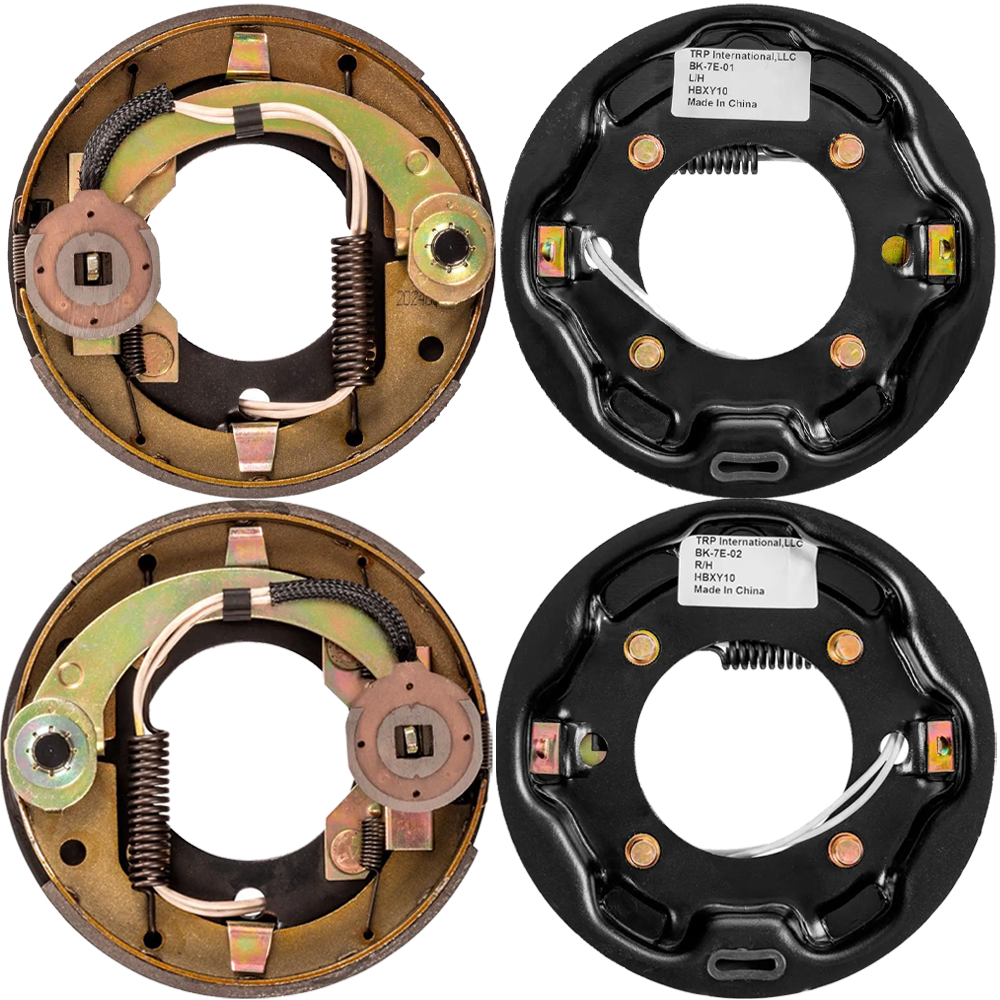

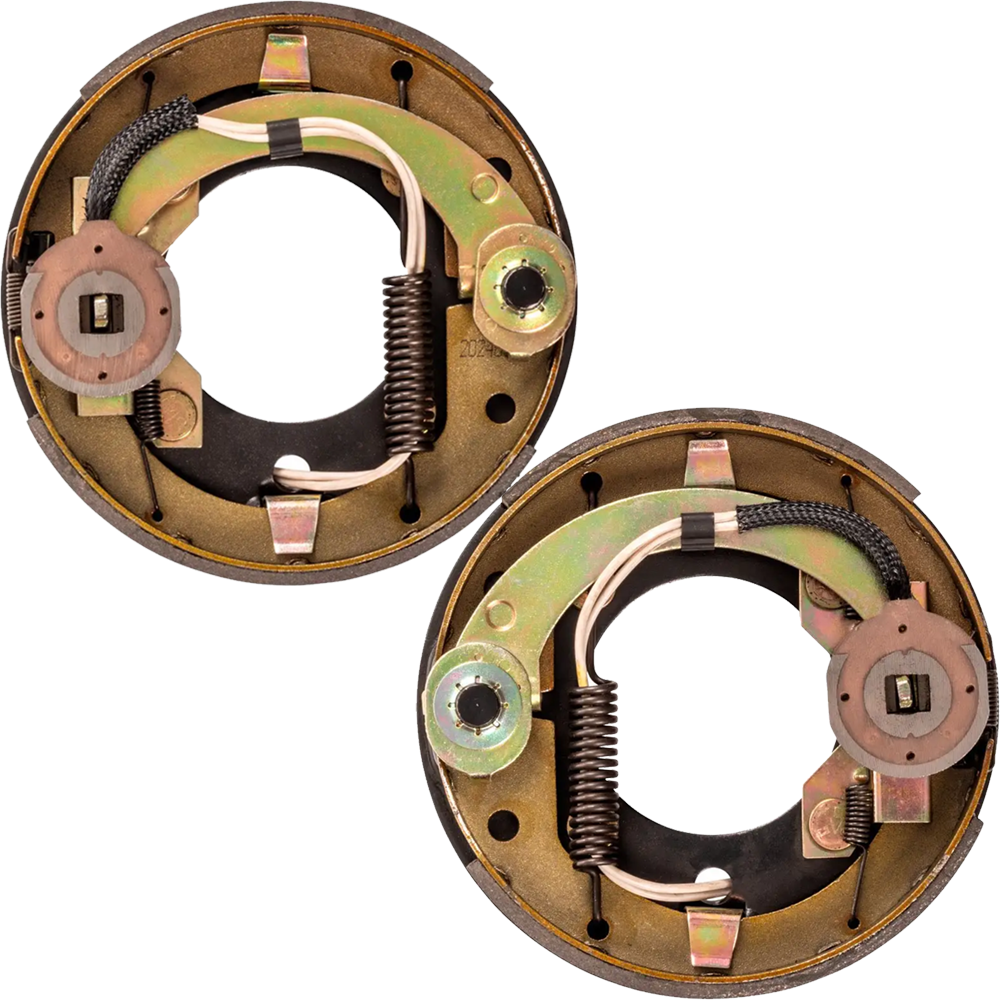

• QTY (1): Electric Brake Assembly – 7" × 1.25" (Left-Hand)
  • Genuine Lippert replacement; roadside/driver side
  • Dexter compatible part #: K23-047-00 | 023-047-00
  • Fits 2,200-lb axles, 10–13" wheels
  • Manual-adjust shoes for precise control
  • Four-bolt mounting flange
  • 1-year limited warranty
• QTY (1): Electric Brake Assembly – 7" × 1.25" (Right-Hand)
  • Genuine Lippert replacement; curb/passenger side
  • Dexter compatible part #: K23-048-00 | 023-048-00
  • Fits 2,200-lb axles, 10–13" wheels
  • Manual-adjust; four-bolt mount
  • 1-year limited warranty

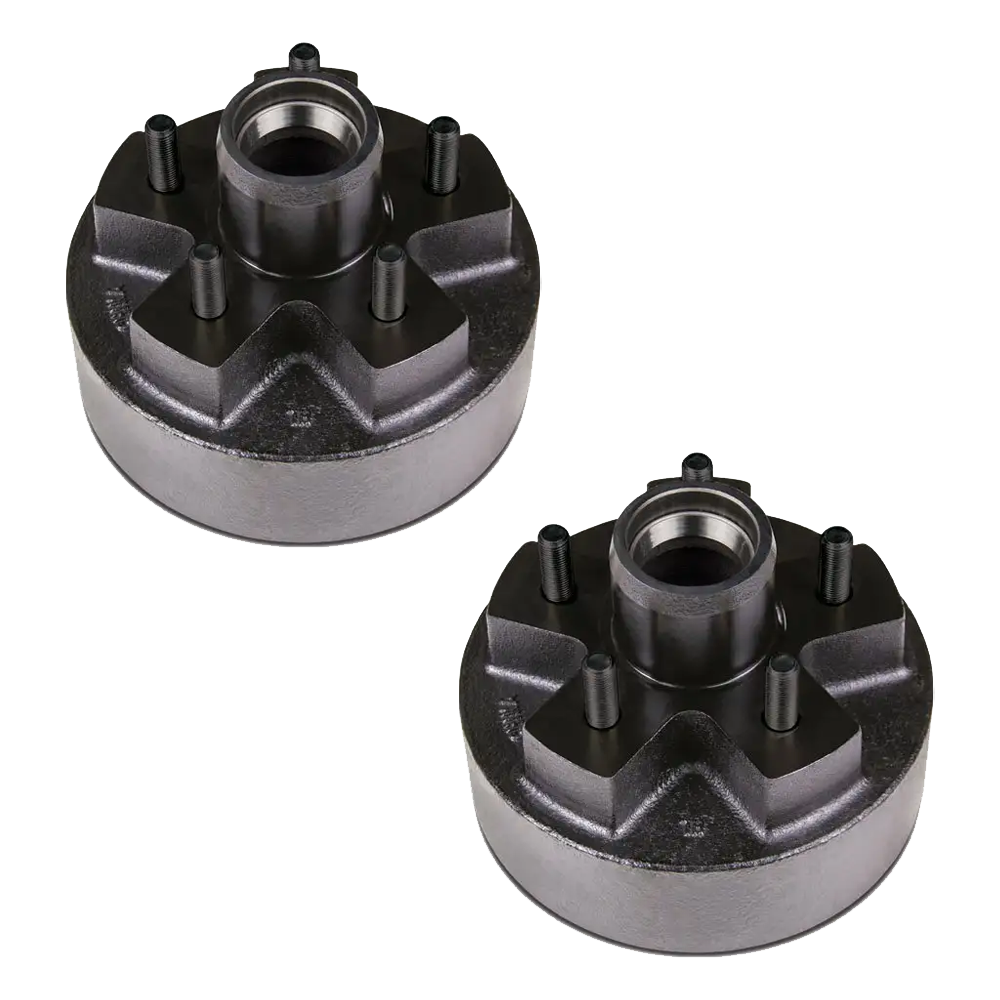

• QTY (2): 7" Hub/Drum – 5 on 4.5", 1/2" Stud
  • One-piece cast-iron hub with integrated 7" drum
  • 5 on 4.5" bolt circle, 1/2" press-in studs
  • Rated for 2,200-lb axles; fits 8–12" wheels
  • OE Lippert quality; hub only (bearings not pre-installed)

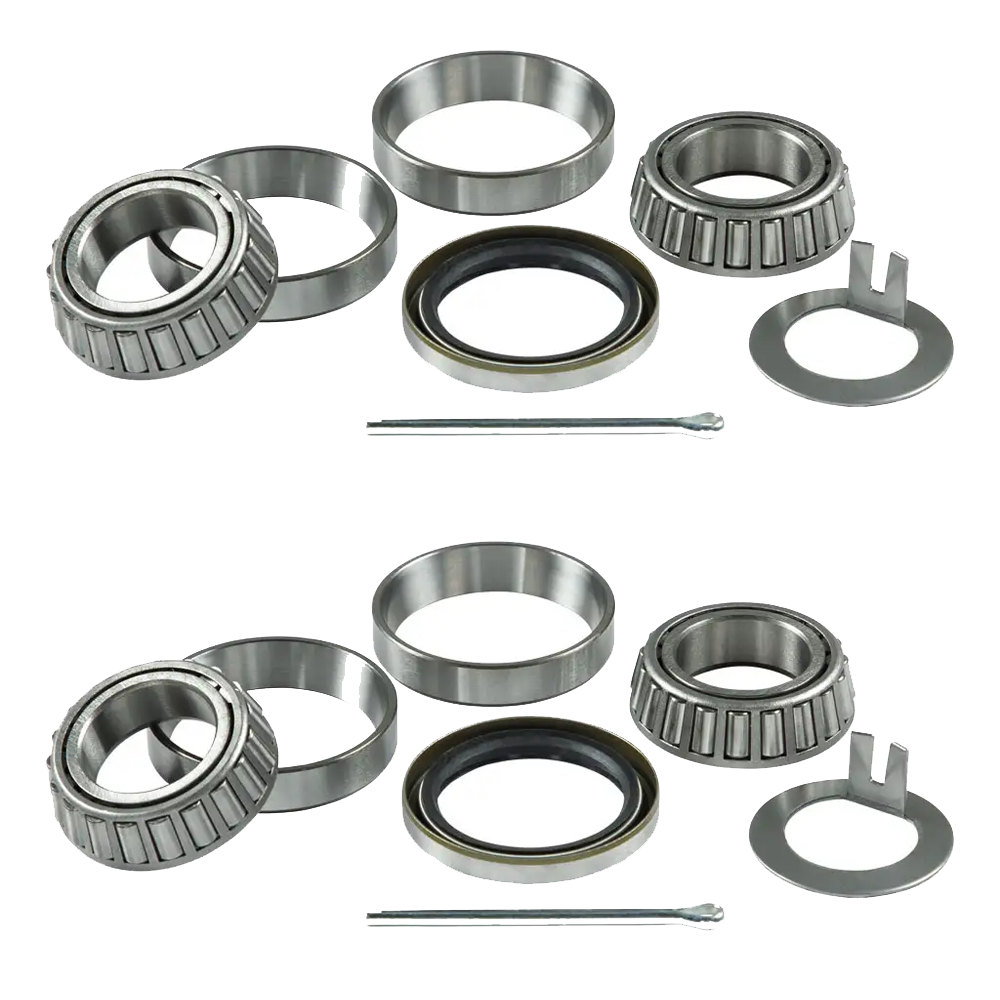

• QTY (2): Lippert Bearing Replacement Kit – 1.5" Seal (1 kit per hub)
  • Inner bearing cone & race
  • Outer bearing cone & race
  • 1.5" double-lip grease seal
  • 1.75" cotter pin
  • 1.5" tang spindle washer
  • Universal fit – Dexter, AL-KO, Rockwell & more

Confirm axle tag specs, pack bearings with high-quality grease, and inspect brakes, bearings and seals every 3,000 miles or annually for worry-free towing.
