Lippert?7?Bolt?12?1/4"?x?5"?Self?Adjust Brake Assemblies?+?8?on?6.5"?Hubs (5/8"?Studs)?|?Triple?Axle?12K?Kit?|?Dexter,?Alko,?Rockwell?Compatible

Lippert Triple‑Axle 12‑1/4" x 5" Self‑Adjusting Electric Brake & Drum Kit

Upgrade three heavy‑duty 12K axles at once. This Lippert bundle combines forward self‑adjusting 7‑bolt brake assemblies with rugged 8 on 6.5" hub‑drums and 5/8" studs—delivering dependable stopping power, easier installs, and lower maintenance on every haul.

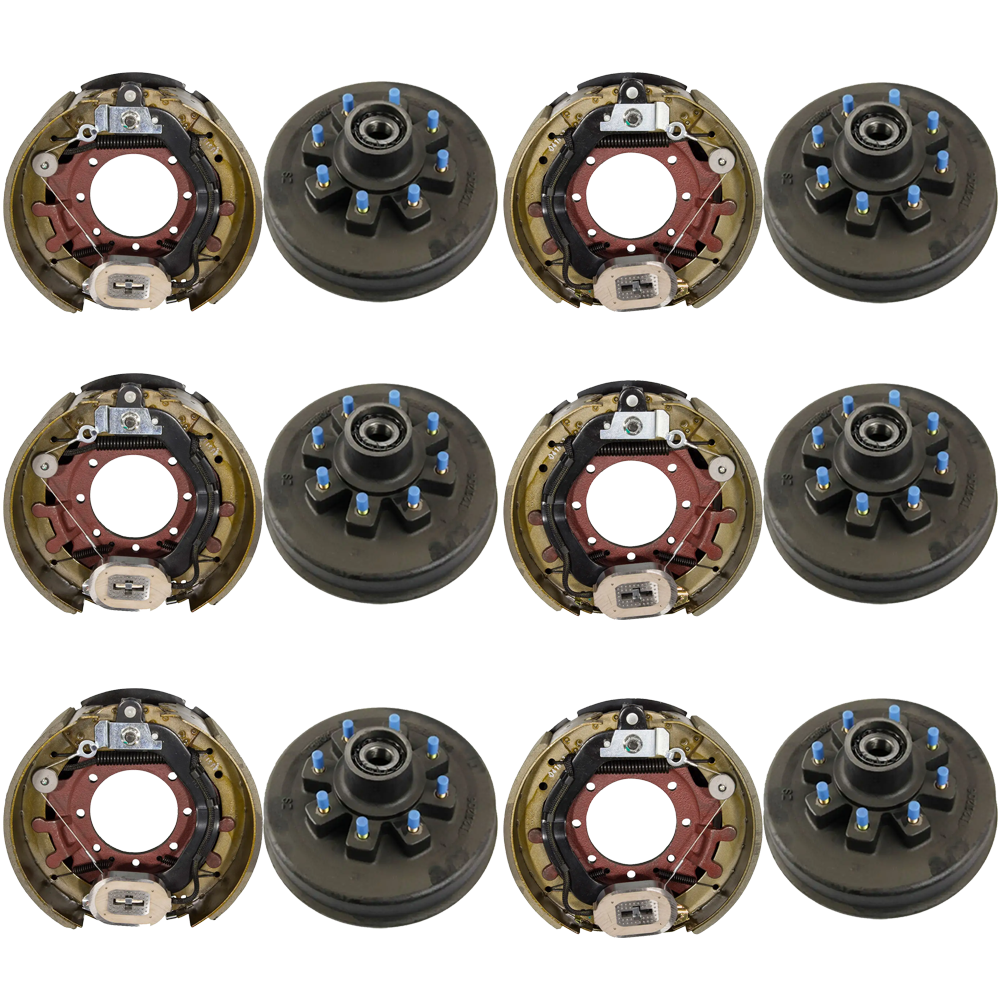

Bundle Contents:

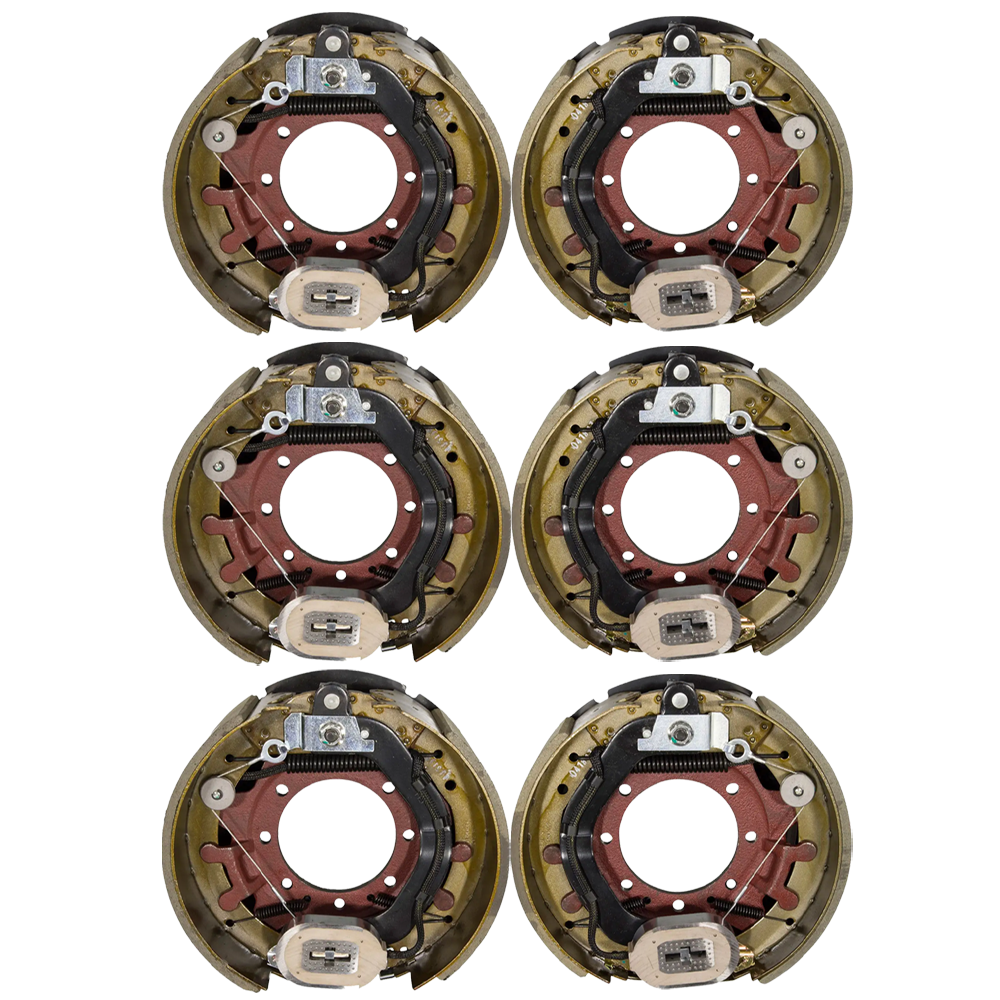

• QTY (3): 12‑1/4" x 5" Forward Self‑Adjusting Electric Brake Assembly – Driver Side (7‑Bolt)
  • Brake size: 12‑1/4" x 5"
  • Vehicle side: Driver / left
  • 7‑bolt mounting; fits 12K‑16K axles
  • Forward self‑adjusts for up to 50 % shorter stops
  • Genuine Lippert replacement; Dexter compatible PN: K23‑442‑00 | 023‑442‑00
• QTY (3): 12‑1/4" x 5" Forward Self‑Adjusting Electric Brake Assembly – Passenger Side (7‑Bolt)
  • Brake size: 12‑1/4" x 5"
  • Vehicle side: Passenger / right
  • 7‑bolt mounting; fits 12K‑16K axles
  • Forward self‑adjusts for up to 50 % shorter stops
  • Genuine Lippert replacement; Dexter compatible PN: K23‑443‑00 | 023‑443‑00

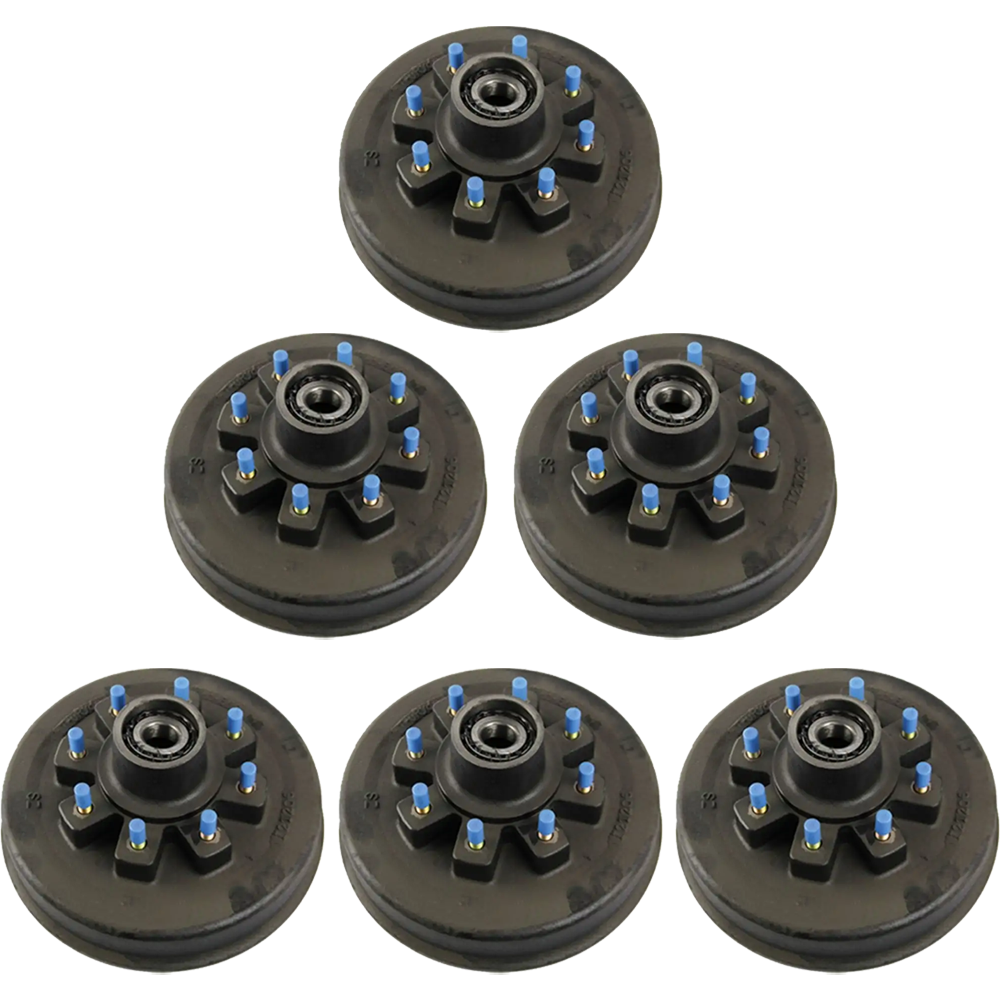

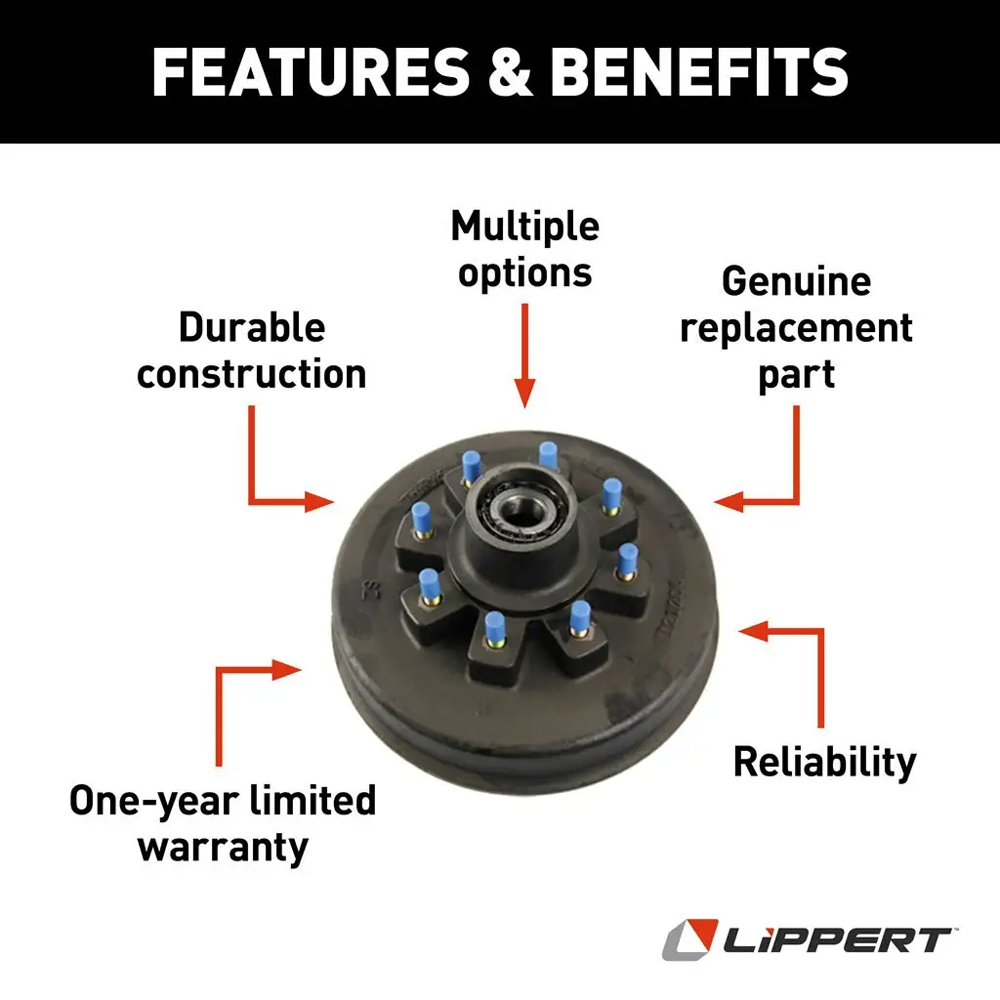

• QTY (6): 8 on 6.5" Brake Drum + Hub Assembly – 5/8" Studs
  • Race only installed
  • Bolt pattern: 8 on 6.5"
  • Stud diameter: 5/8"
  • 12,000 lb capacity each
  • Fits 16"–17‑1/2" wheels

Verify bolt pattern, mounting style, and axle rating before installation. Inspect brakes and hubs regularly and torque wheel nuts as specified.

Product image for reference only — minor cosmetic details (casting style, cap color, stud protectors, packaging) may vary between production runs. All items ship to the exact specifications listed.
