Lippert 7? x 1.25? 2,200-lb Complete Brake & Hub Kit (Left & Right) � 5 on 4.5, w/ Spindle Hardware, Dust Caps & Lug Nuts

Lippert 7″ x 1.25″ 2,200-lb Complete Brake & Hub Kit – 5 on 4.5

Upgrade or replace your trailer’s braking system with this all-in-one Lippert kit. Featuring genuine Lippert® parts and hardware, this bundle ensures smooth, reliable performance and simpler maintenance. Get peace of mind on the road with matched left- and right-side electric brake assemblies, brake hubs (including full bearing kits), spindle hardware, dust caps, and two packs of lug nuts (6-pack each)—all designed to fit 2,200-lb axles with a 5 on 4.5" bolt pattern.

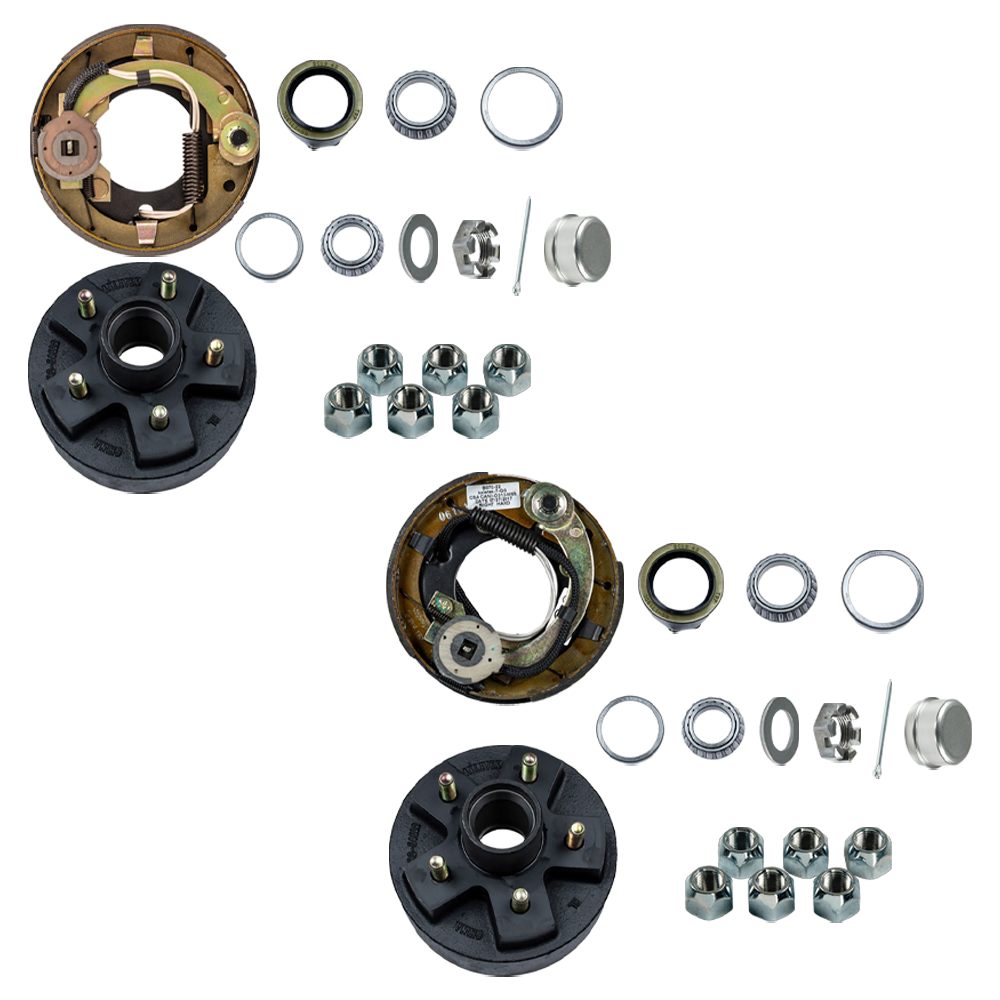

Bundle Contents:

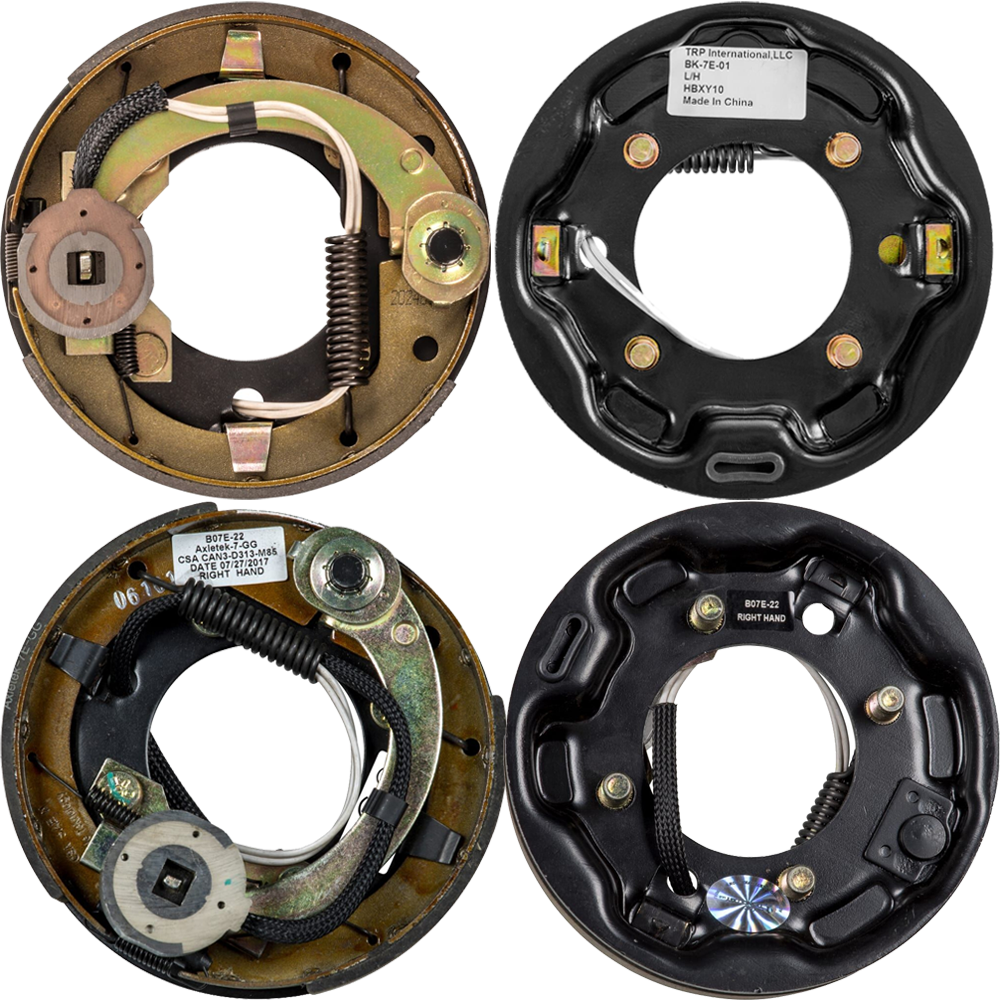

• QTY (1): Electric Brake Assembly, 7" x 1.25", 2,200 lbs., Left Side
  • Genuine Lippert® replacement part
  • Left-hand (roadside) brake assembly
  • Brake size: 7" x 1.25"
  • Axle rating: 2,200 lbs.
  • Four-bolt mounting pattern
  • Manual adjustment
  • Dexter Compatible Part Number: K23-047-00 | 023-047-00
• QTY (1): Electric Brake Assembly, 7" x 1.25", 2,200 lbs., Right Side
  • Genuine Lippert® replacement part
  • Right-hand (curbside) brake assembly
  • Brake size: 7" x 1.25"
  • Axle rating: 2,200 lbs.
  • Four-bolt mounting pattern
  • Manual adjustment
  • Dexter Compatible Part Number: K23-048-00 | 023-048-00

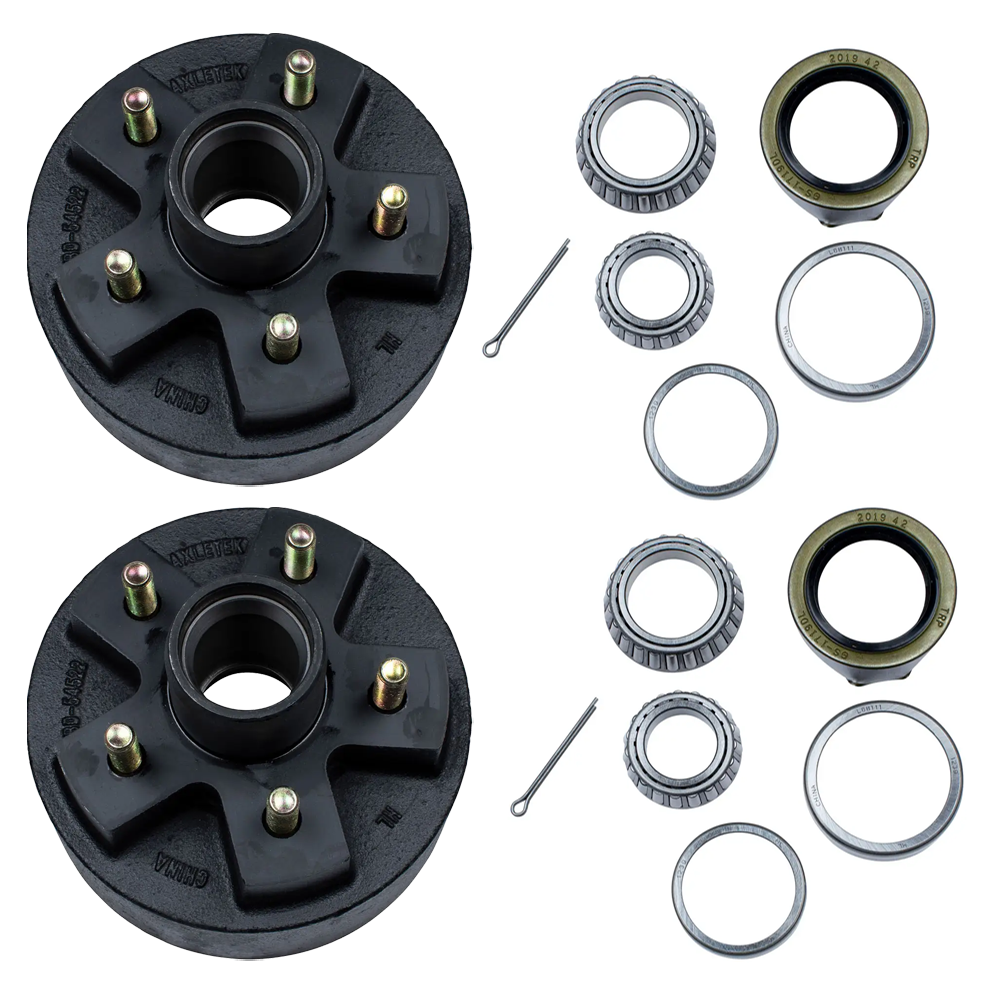

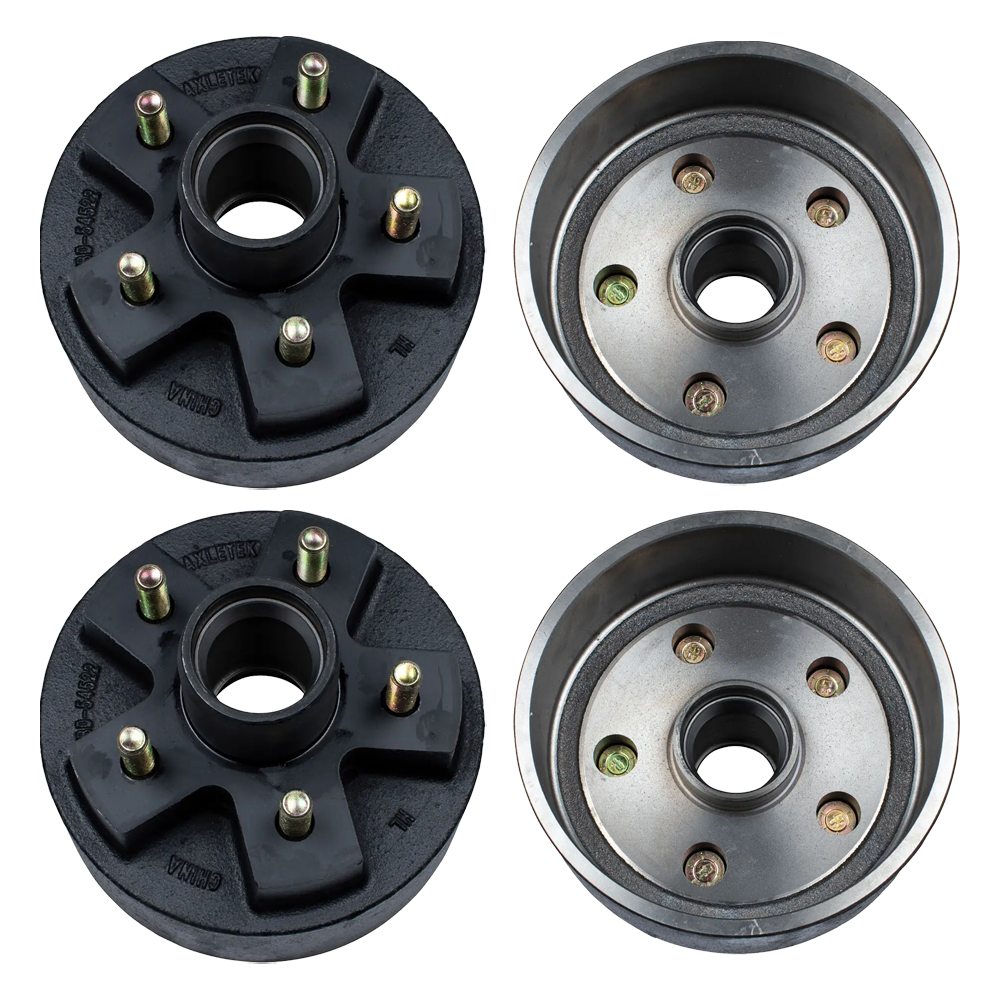

• QTY (2): 7" Brake Hub, 5 on 4.5", 2,200 lbs. (with Bearing Cone Kit)
  • Genuine Lippert® replacement hub #134206
  • Axle rating: 2,200 lbs.
  • Bolt pattern: 5 on 4.5"
  • Wheel size: 8" to 12"
  • 1-year warranty

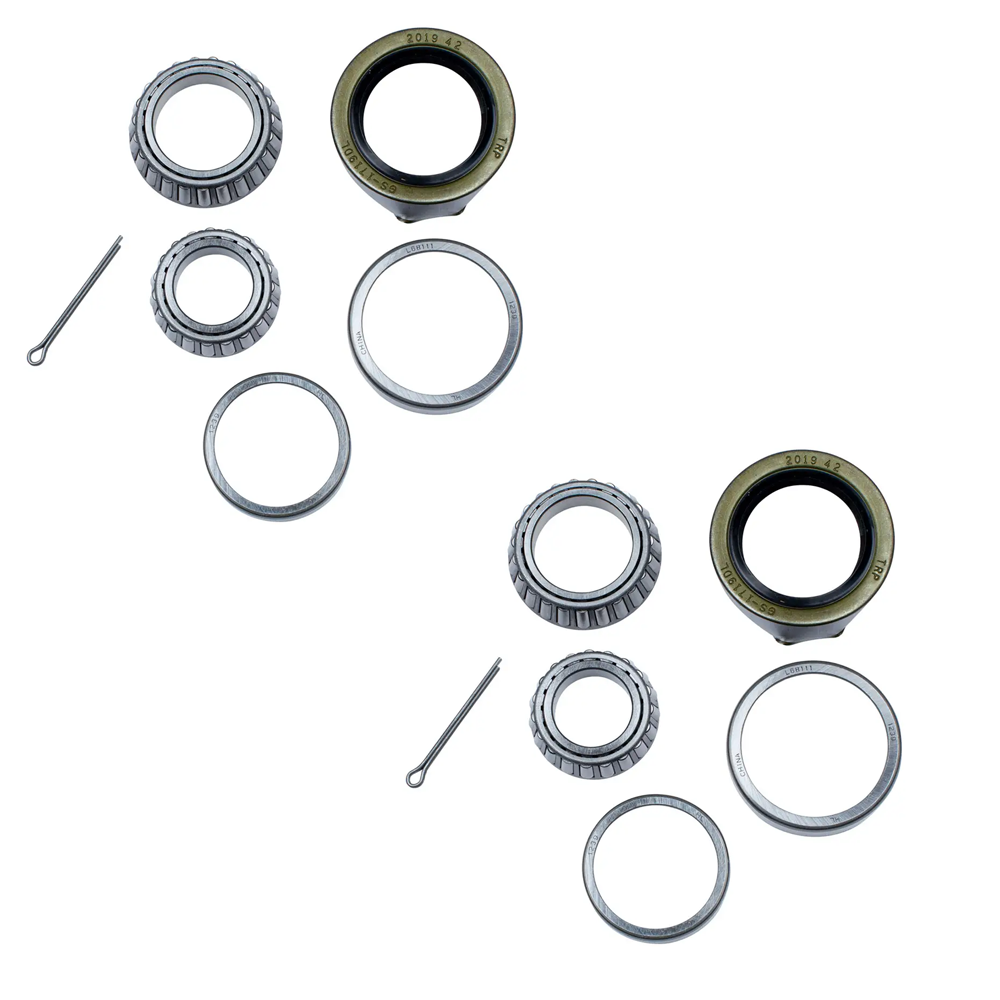

  • Each Bearing Kit (#333948) Contains:
    • (1) Inner bearing cone
    • (1) Outer bearing cone
    • (2) Bearing cups
    • (1) Double lip grease seal
    • (1) Cotter pin
• QTY (2): 1" Round Spindle Nut Retainer Kit for 3,500-8,000-lb. Axle Hubs
  • Complete spindle nut retainer kit
  • One 6-slot castle spindle nut (1"-14 threads)
  • One round spindle washer (1" ID, 1.68" OD)
  • One 1.75" cotter pin
• QTY (1): Dust Cap - 2,000-3,500-lb. Axles (Pack of 2)
  • Replacement dust caps, 1.988" OD
  • Fits 2,000-3,500-lb. axle capacities
  • Pack of 2
• QTY (2): Lippert 60° Cone Trailer Lug Nut - 1/2"-20 (6-Pack)
  • Two packs total — each pack includes 6 lug nuts (12 total)
  • Fits 1/2"-20 lug studs
  • 60-degree cone design
  • Common replacement for 2,200-lb. capacity hubs

For best performance, always confirm your axle rating, brake size, and bolt pattern. Regularly inspect and maintain your trailer’s braking system to ensure safety and longevity.
