Lippert 7? x 1.25? 2,200-lb Manual Electric Brake Assembly Pair & 5 on 4.5? Hub Installation Kit with Spindle Hardware, Dust Caps & Lug Nuts (Dexter Compatible)

Lippert 7″ x 1.25″, 2,200‑lb Manual Electric Brake Assembly Pair & Hub Installation Kit (Dexter Compatible)

Upgrade your trailer’s braking system with this convenient bundle. It combines a pair of Lippert 7″ x 1.25″, 2,200-lb manual electric brake assemblies (Dexter compatible) with matching 5 on 4.5″ brake hubs, spindle hardware, dust caps, and lug nuts. Designed for reliable performance and easy installation, this kit helps ensure your trailer is road-ready and safe.

Bundle Contents:

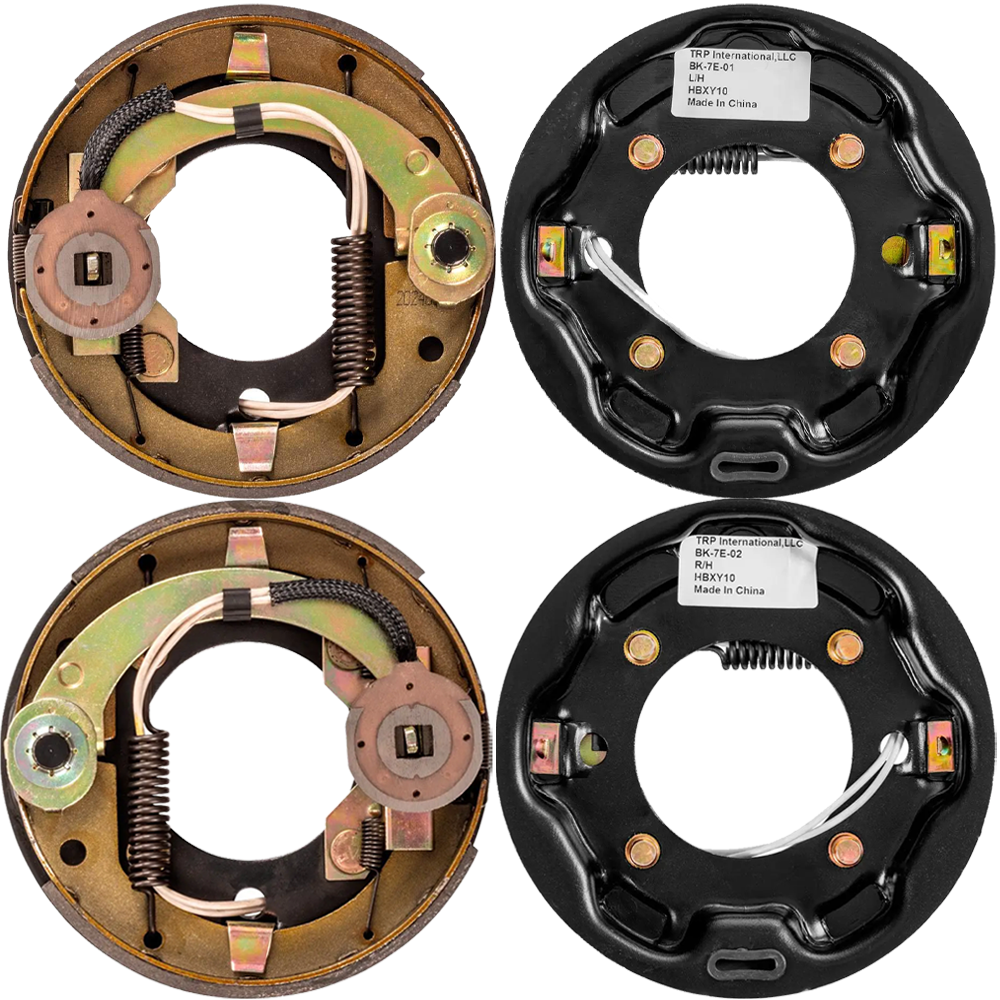

• QTY (1): Electric Brake Assembly, 7" x 1.25"; 2,200 lbs. – Left Side
  • Genuine Lippert® replacement part
  • Left hand (roadside)
  • For 10”, 12”, or 13” wheels
  • Brake size: 7” x 1.25”
  • Axle rating: 2,200 lbs.
  • Four-bolt mounting pattern
  • Manual adjustment
  • 1-year warranty
  • Dexter Compatible Part Number: K23-047-00 | 023-047-00
• QTY (1): Electric Brake Assembly, 7" x 1.25"; 2,200 lbs. – Right Side
  • Genuine Lippert® replacement part
  • Right hand (curb side)
  • For 10”, 12”, or 13” wheels
  • Brake size: 7” x 1.25”
  • Axle rating: 2,200 lbs.
  • Four-bolt mounting pattern
  • Manual adjustment
  • 1-year warranty
  • Dexter Compatible Part Number: K23-048-00 | 023-048-00

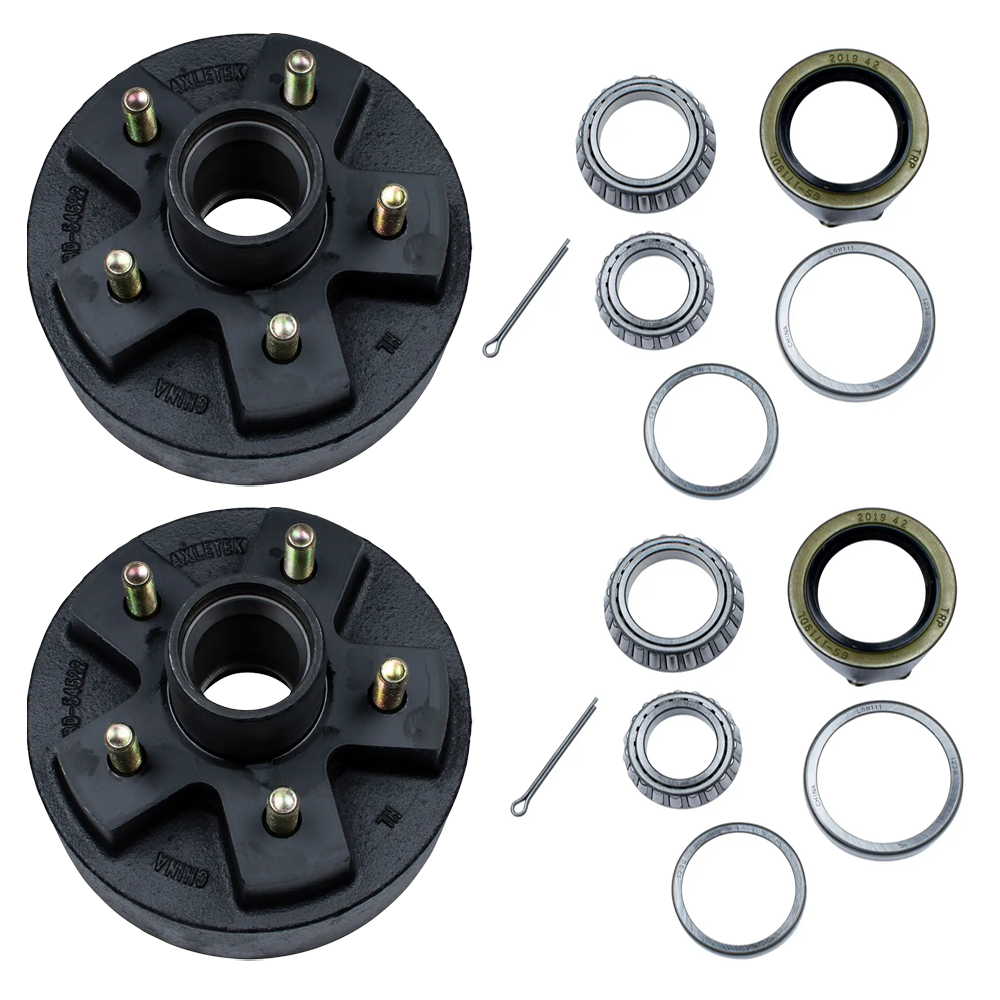

• QTY (2): 7" Brake Hub, 5 on 4.5"; 1/2" Stud – 2,200 lbs. (with Bearing Cone Kit)
  • Lippert® genuine replacement part
  • Brake Hub #134206
  • Each hub includes a Bearing Kit #333948:
    • (1) Inner Bearing Cone
    • (1) Outer Bearing Cone
    • (1) Inner Bearing Cup
    • (1) Outer Bearing Cup
    • (1) Cotter Pin
    • (1) Double Lip Grease Seal
    Because this bundle includes (2) hubs, these bearing components are multiplied accordingly.
  • Axle rating: 2,200 lbs.
  • Wheel size: 8" to 12"
  • Bolt pattern: 5 on 4.5"
  • Stud size: 1/2"
  • 1-year warranty

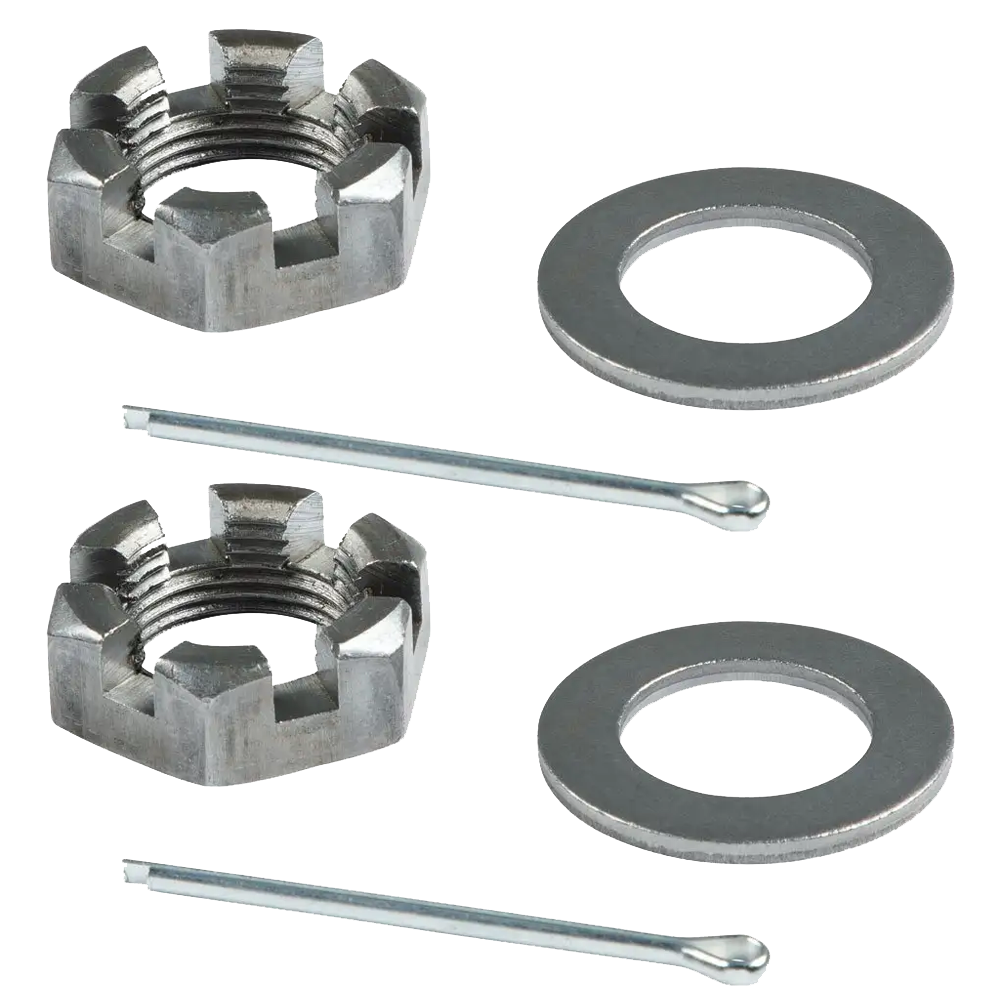

• QTY (2): 1" Round Spindle Nut Retainer Kit for 3,500–8,000-lb. Axle Hubs
  • Complete spindle nut retainer kit
  • (1) 6-slot castle spindle nut with 1"-14 threads
  • (1) Round spindle washer (1" ID, 1.68" OD)
  • (1) 1.75" Cotter pin

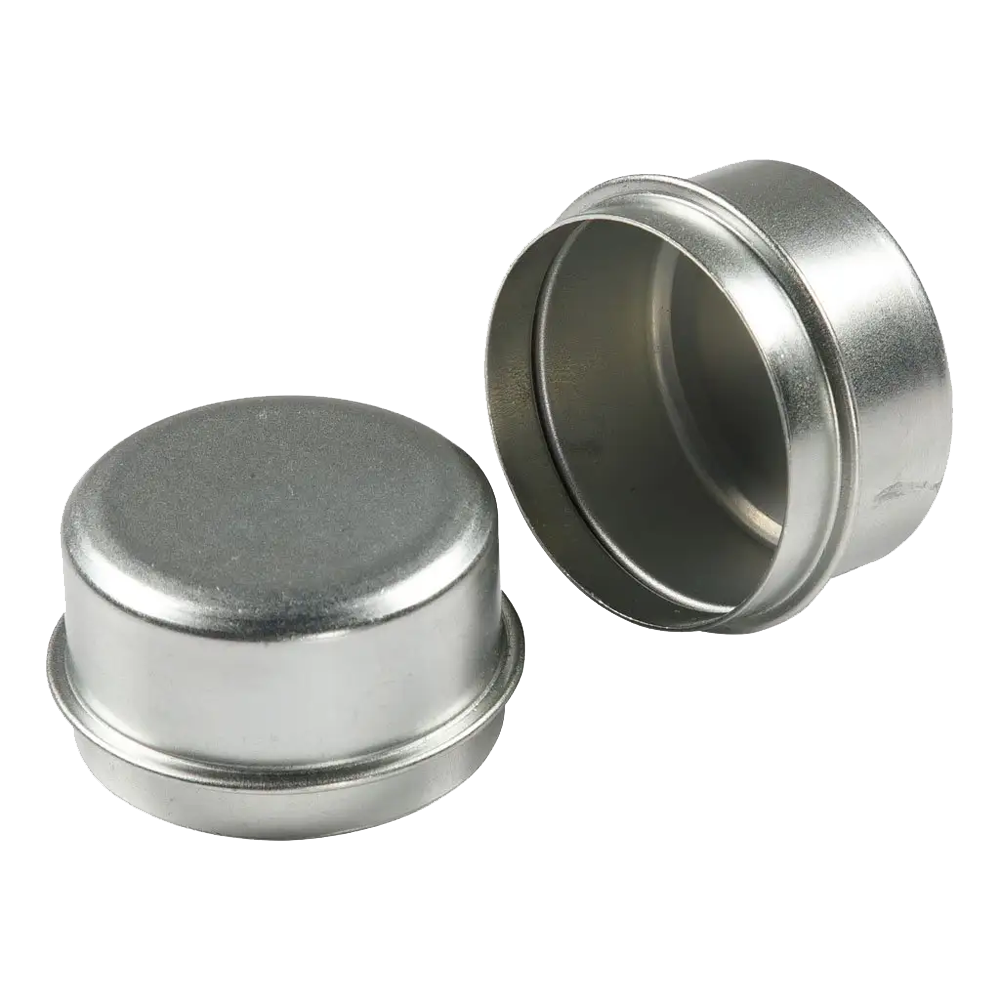

• QTY (1): Dust Cap – 2,000–3,500-lb. Axles (2-Pack)
  • Includes (2) dust caps in one pack
  • For 2,000–3,500-lb. axle capacities
  • 1.988" outer diameter
  • 1-1/4" tall
• QTY (2): Lippert 60° Cone Trailer Lug Nut – 1/2"-20 (6-Pack)
  • Two packs, each containing (6) 1/2"-20 lug nuts
  • Common replacement for 2,200-lb. capacity Lippert wheel hubs
  • 60-degree cone design
  • Retail clam shell packaging

Always confirm compatibility with your trailer’s original specifications, perform routine maintenance every 3,000 miles, and follow manufacturer guidelines to ensure safe towing.
