Lippert 7? x 1.25? 2,200-lb Manual Electric Brake Assembly Pair & 5 on 4.5? Hubs - Dexter / Al-Ko Compatible

Lippert 7″ x 1.25″ 2,200-lb Manual Electric Brake Assembly Pair & 5 on 4.5″ Hubs

Upgrade your trailer’s braking system with this complete Lippert® electric brake kit. It features manual-adjust brake assemblies for both the left (driver) and right (curb) sides, plus two 7″ brake hubs with a 5 on 4.5″ bolt pattern. Perfect for 2,200 lb. axles, these brakes provide reliable stopping power and straightforward installation, giving you added confidence on the road.

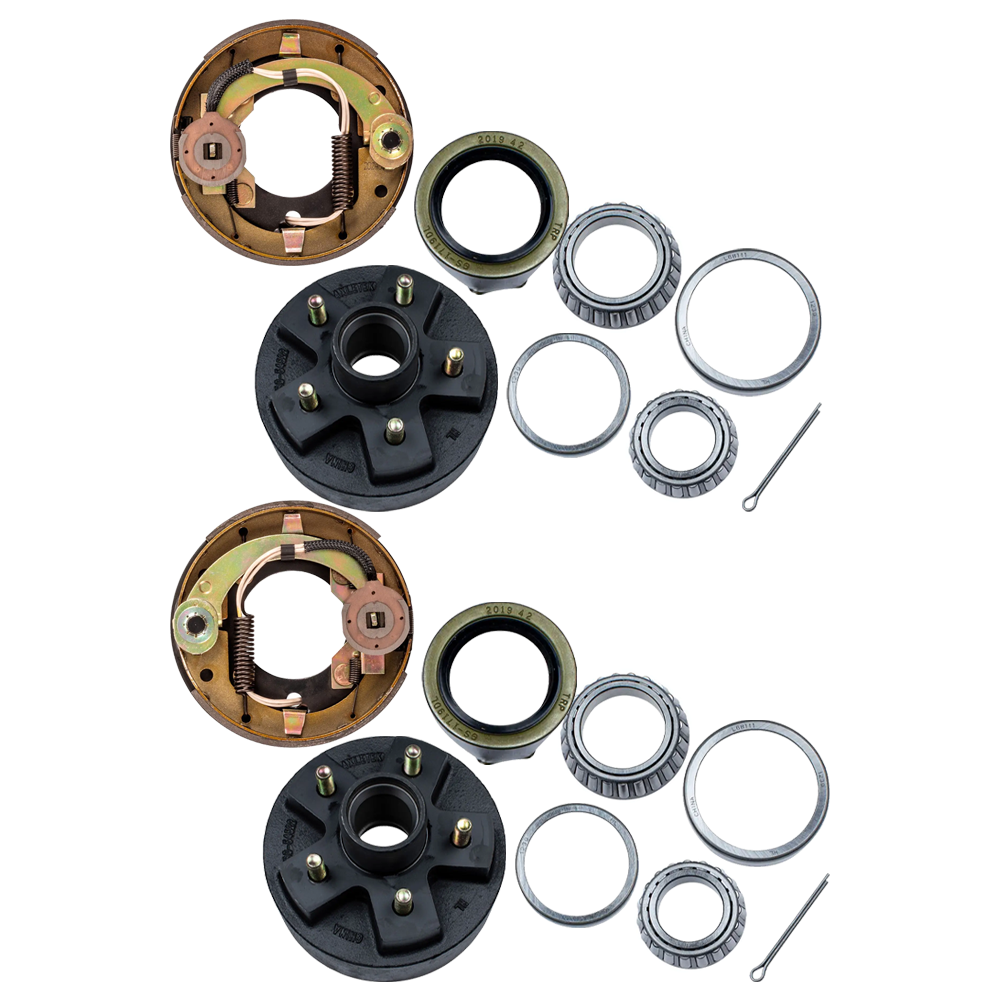

Bundle Contents:

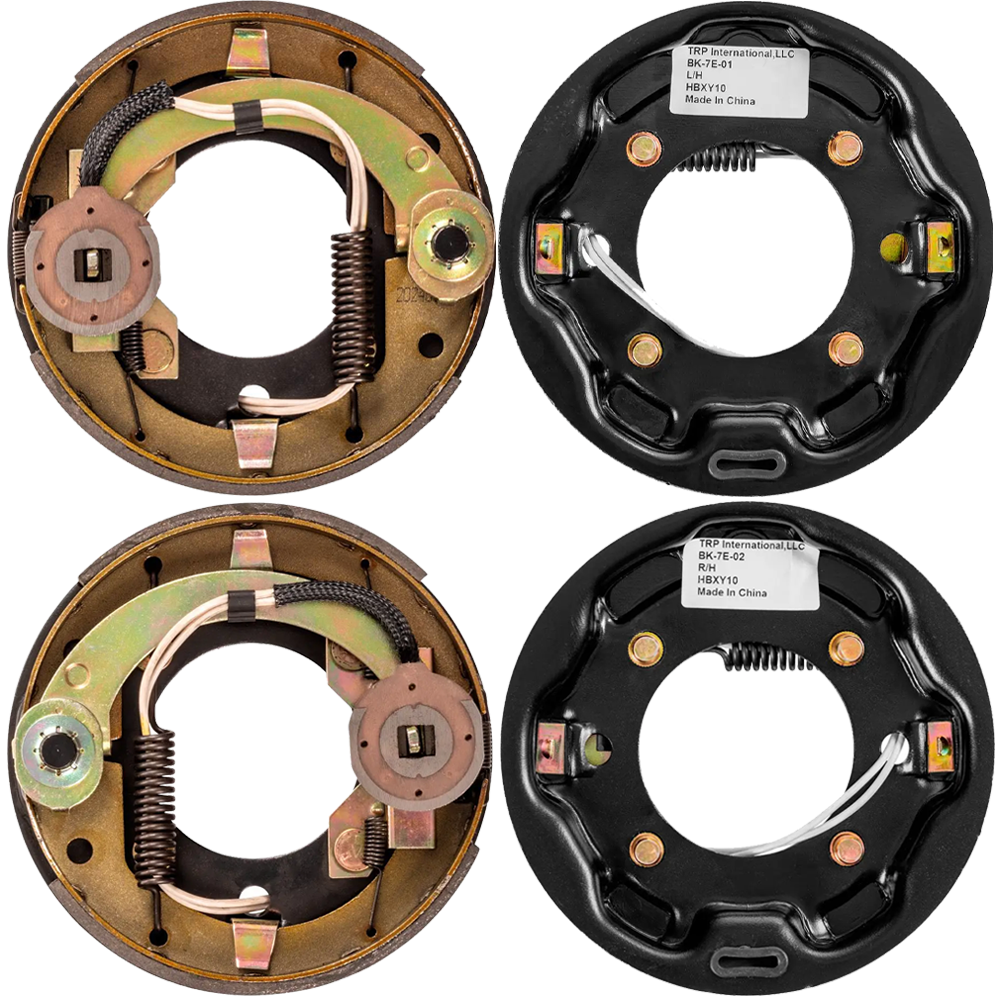

• QTY (1): Electric Brake Assembly, 7" x 1.25", 2,200 lbs. - Left Side
  • Genuine Lippert® replacement part
  • Left hand (roadside)
  • For 10”, 12”, or 13” wheels
  • Brake size: 7” x 1.25”
  • Axle rating: 2,200 lbs.
  • Four-bolt mounting pattern
  • Manual adjustment
  • 1-year warranty
  • Dexter Compatible Part Number: K23-047-00 | 023-047-00
• QTY (1): Electric Brake Assembly, 7" x 1.25", 2,200 lbs. - Right Side
  • Genuine Lippert® replacement part
  • Right hand (curb side)
  • For 10”, 12”, or 13” wheels
  • Brake size: 7” x 1.25”
  • Axle rating: 2,200 lbs.
  • Four-bolt mounting pattern
  • Manual adjustment
  • 1-year warranty
  • Dexter Compatible Part Number: K23-048-00 | 023-048-00

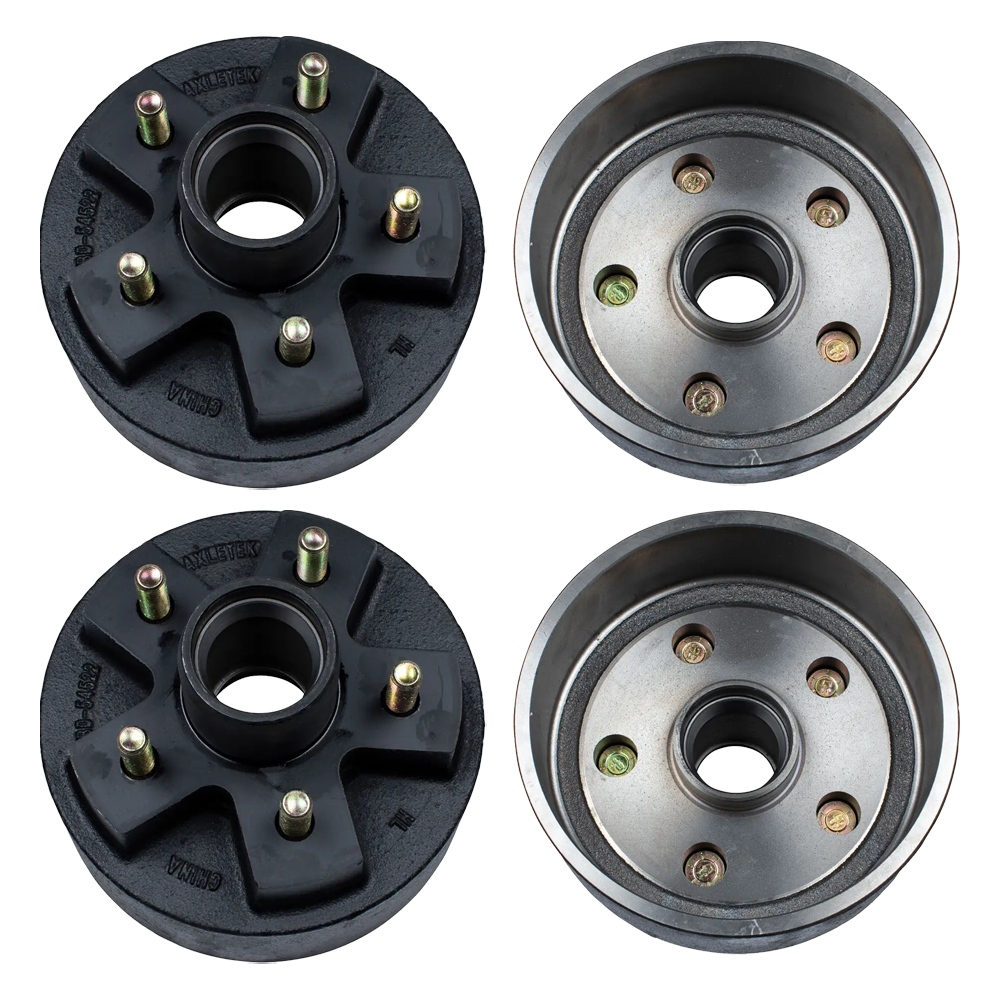

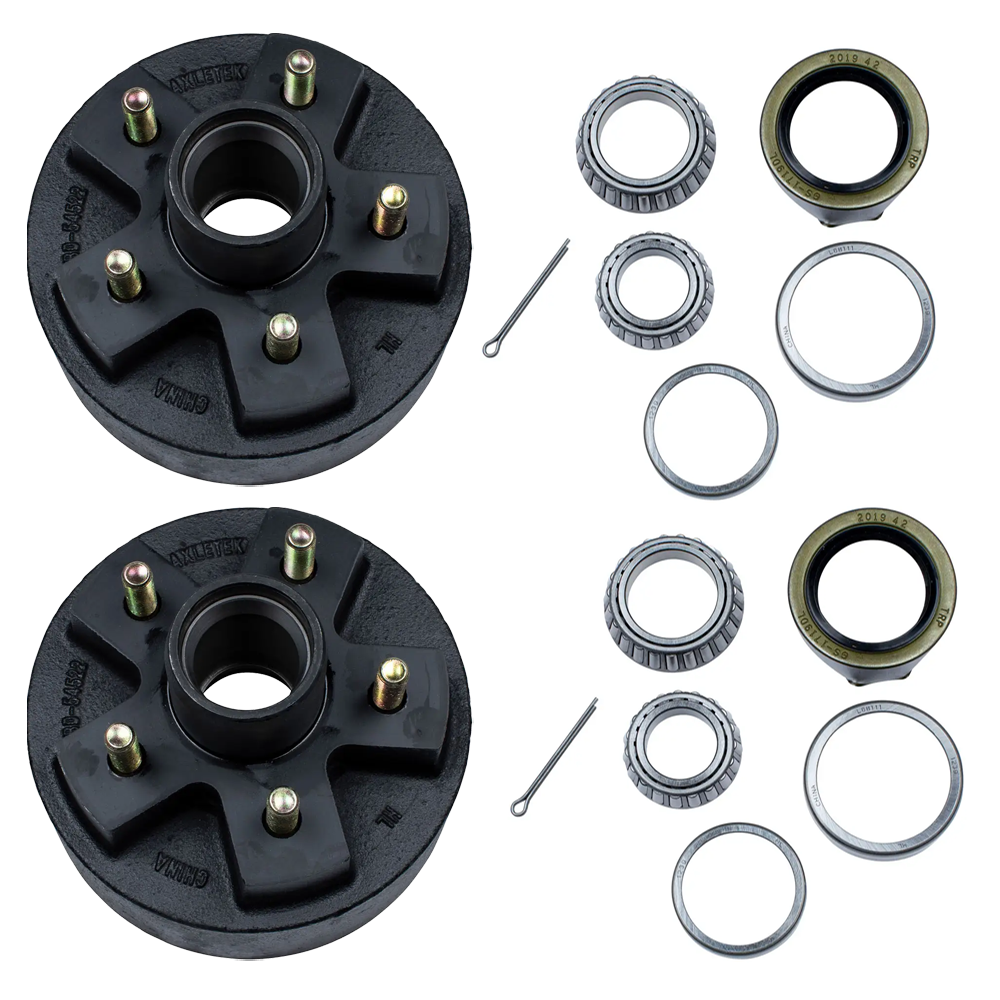

• QTY (2): 7" Brake Hub, 5 on 4.5", 1/2" Stud - 2,200 lbs. (with Bearing Cone Kit)
  • Lippert® genuine replacement part
  • Brake Hub #134206
  • Bearing Kit #333948
  • Axle rating: 2,200 lbs.
  • Wheel size: 8" to 12"
  • Bolt pattern: 5 on 4.5"
  • Stud size: 1/2"

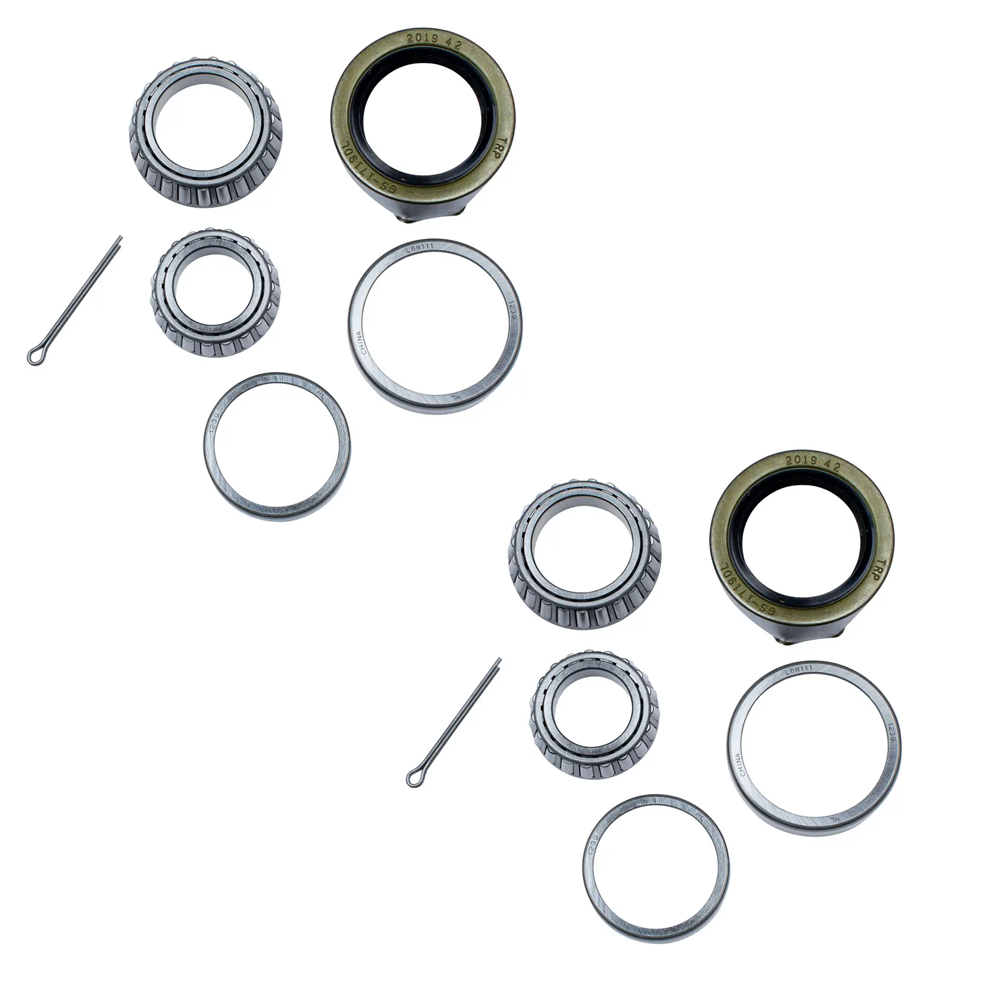

  • Each hub includes a bearing cone kit (multiplied by 2 hubs):
    • Inner Bearing Cone
    • Outer Bearing Cone
    • Inner Bearing Cup
    • Outer Bearing Cup
    • Cotter Pin
    • Double Lip Grease Seal
  • 1-year warranty

Always confirm your axle rating, wheel size, and mounting pattern before installation. Inspect trailer brakes regularly—at least every 3,000 miles—to ensure safety and performance.

Note: This bundle includes only the brake assemblies and hubs. For customers needing additional hardware or a more complete installation package, we offer a separate, more comprehensive bundle. Check our store for details.
