Lippert 7? x 1.25?, 2,200?lb Tandem Axle Complete Brake & Hub Kit – 5 on 4.5? Pattern, with Spindle Hardware, Dust Caps & Lug Nuts (Fits Dexter, Al-Ko, & Rockwell)

Lippert 7″ x 1.25″, 2,200‑lb Tandem Axle Complete Brake & Hub Kit – 5 on 4.5″

Enjoy a dependable and straightforward way to upgrade or replace the braking system on your tandem axle trailer. This complete Lippert® kit is designed for 2,200-lb axles and includes everything you need—electric brake assemblies, brake hubs, spindle hardware kits, dust caps, and lug nuts. Compatible with Dexter, Al-Ko, and Rockwell axles, it simplifies your parts search by bundling top-quality components in one convenient package.

Bundle Contents:

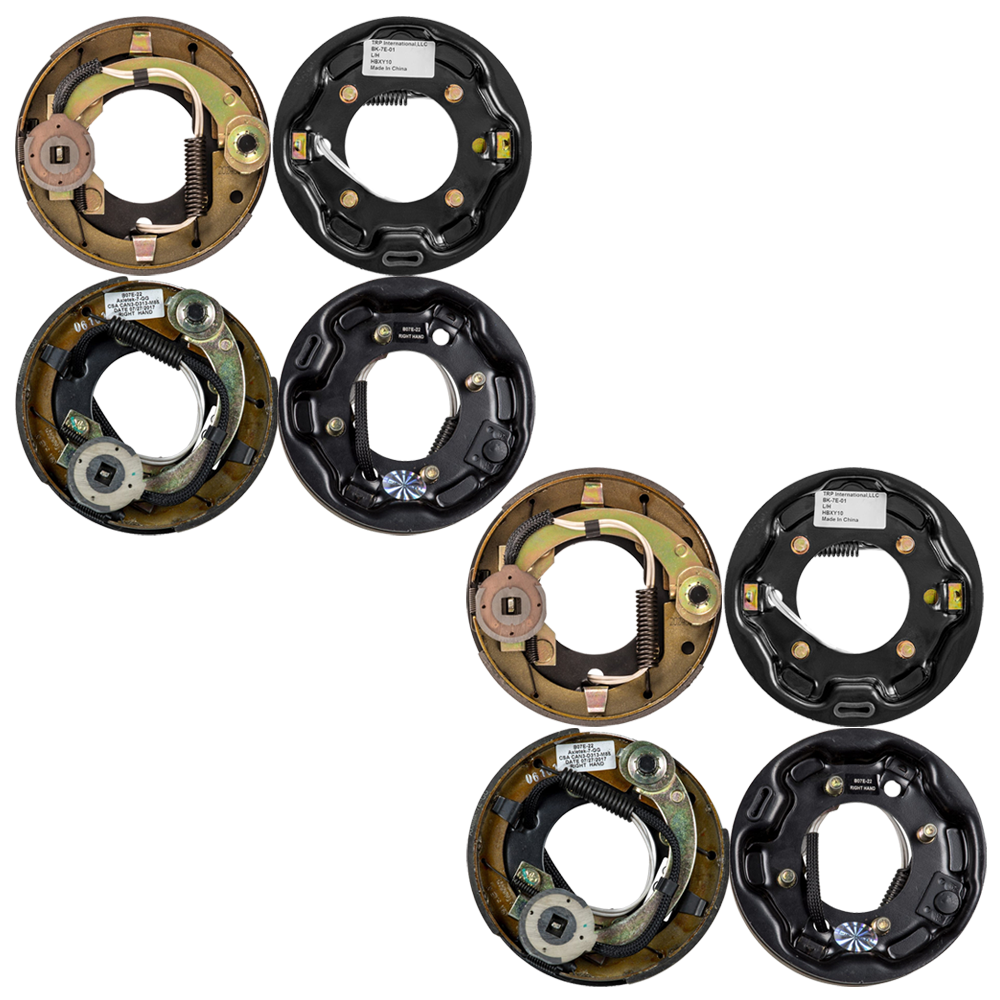

• QTY (2): Electric Brake Assembly, 7" x 1.25", 2,200 lbs., Left Side
  • Genuine Lippert® replacement part
  • Left hand (roadside)
  • For 10", 12", or 13" wheels
  • Brake size: 7" x 1.25"
  • Axle rating: 2,200 lbs.
  • Four-bolt mounting pattern
  • Manual adjustment
  • Dexter Compatible Part Number: K23-047-00 | 023-047-00
• QTY (2): Electric Brake Assembly, 7" x 1.25", 2,200 lbs., Right Side
  • Genuine Lippert® replacement part
  • Right hand (curb side)
  • For 10", 12", or 13" wheels
  • Brake size: 7" x 1.25"
  • Axle rating: 2,200 lbs.
  • Four-bolt mounting pattern
  • Manual adjustment
  • Dexter Compatible Part Number: K23-048-00 | 023-048-00

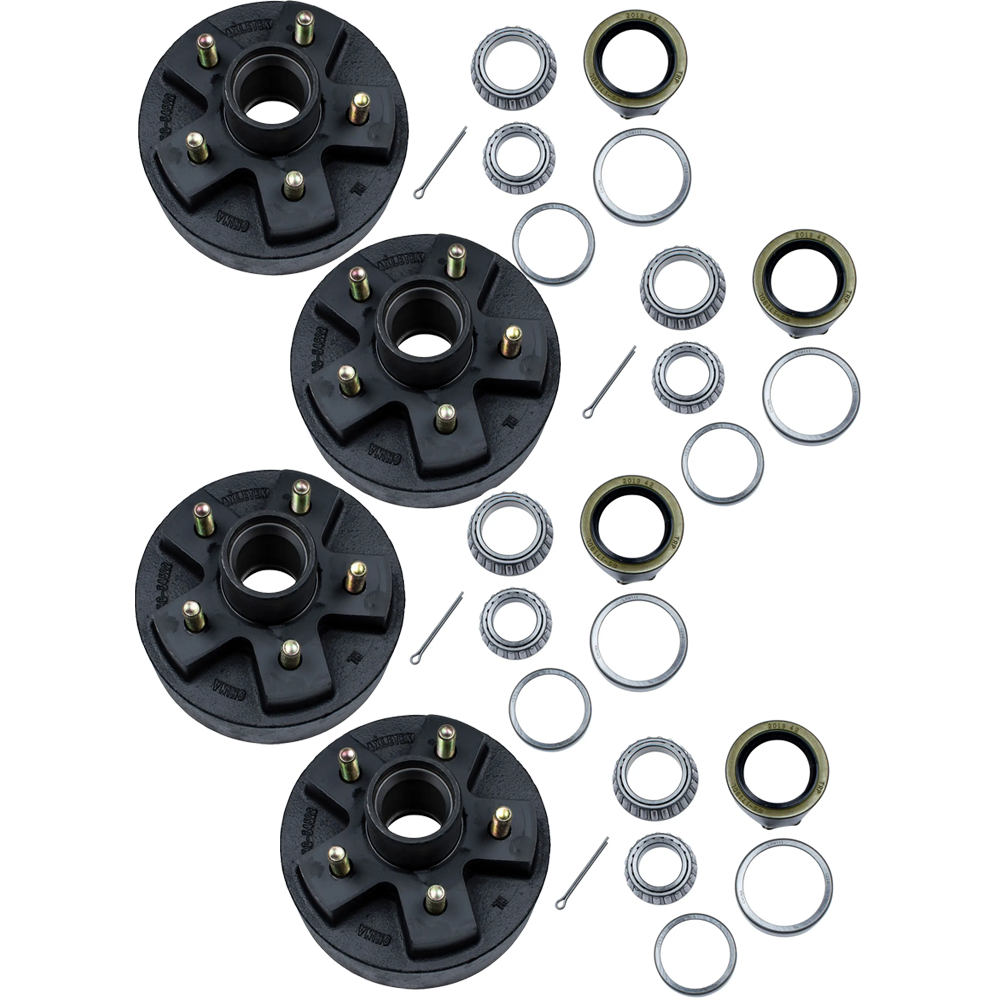

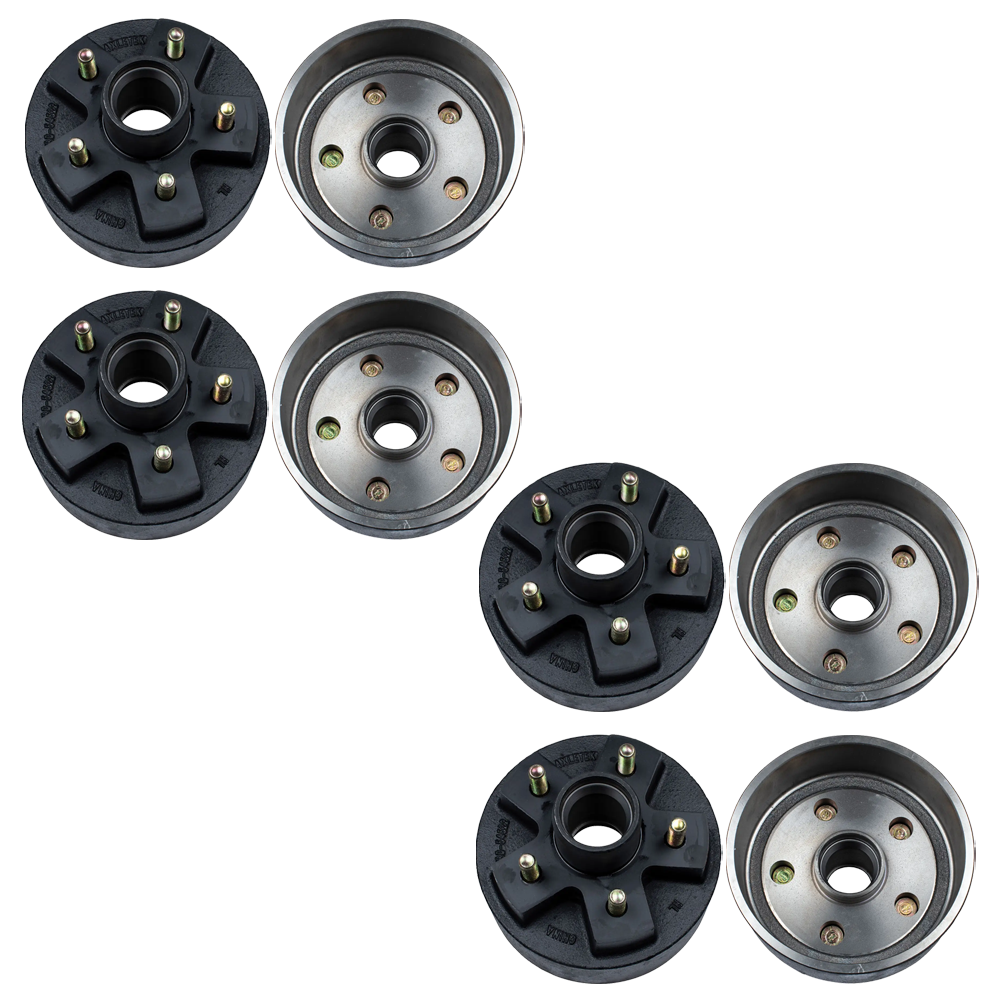

• QTY (4): 7" Brake Hub, 5 on 4.5", 2,200 lbs. (with Bearing Cone Kit)
  • Genuine Lippert® replacement part
  • Brake Hub #134206
  • Bearing Kit #333948 included (bagged separately)

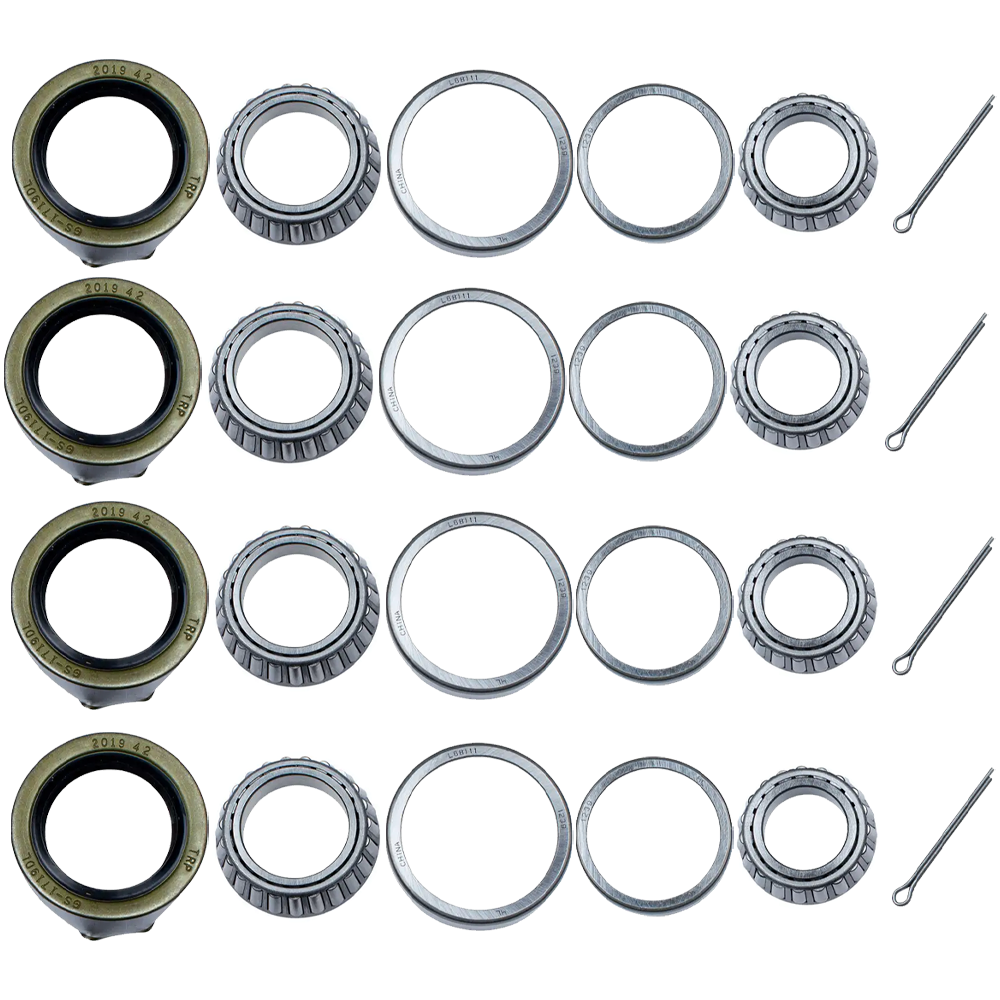

  • Each hub comes with its own bearing kit (you receive 4 complete kits total):
    • (1) Inner Bearing Cone
    • (1) Outer Bearing Cone
    • (1) Inner Bearing Cup
    • (1) Outer Bearing Cup
    • (1) Cotter Pin
    • (1) Double Lip Grease Seal
  • Axle rating: 2,200 lbs.
  • Wheel size compatibility: 8" to 12"
  • Bolt pattern: 5 on 4.5"
  • Stud size: 1/2"
  • 1-year warranty
• QTY (4): 1" Round Spindle Nut Retainer Kit for 3,500-8,000-lb. Axle Hubs
  • Complete spindle nut retainer kit
  • (1) 6-slot castle spindle nut with 1"-14 threads
  • (1) Round spindle washer (1" ID, 1.68" OD)
  • (1) 1.75" cotter pin
• QTY (2): 2-Pack Dust Cap - 2,000-3,500-lb. Axles
  • Each pack has 2 dust caps
  • 2 packs total = 4 dust caps
  • Replacement dust caps
  • 1.988" outer diameter
  • 1-1/4" tall
• QTY (4): 6-Pack of Lippert 60° Cone Trailer Lug Nut - 1/2"-20
  • Each pack includes six 60° cone lug nuts
  • Common replacement for 2,200-lb. capacity Lippert wheel hubs
  • 60-degree cone design
  • 4 packs total = 24 lug nuts
  • Ships in a retail clam shell package

Always confirm your trailer’s OEM specifications, perform regular maintenance, and ensure proper installation. Consult the original equipment manufacturer if you have any questions.
