Lippert 7? x 1.25? Electric Brake & 5-on-4.5 Hub Kit, 2,200-lb LH Axle � Dexter / Al-Ko Compatible

Lippert 7″ x 1.25″ Electric Brake & 5-on-4.5 Hub Kit – 2,200-lb Left-Hand Axle

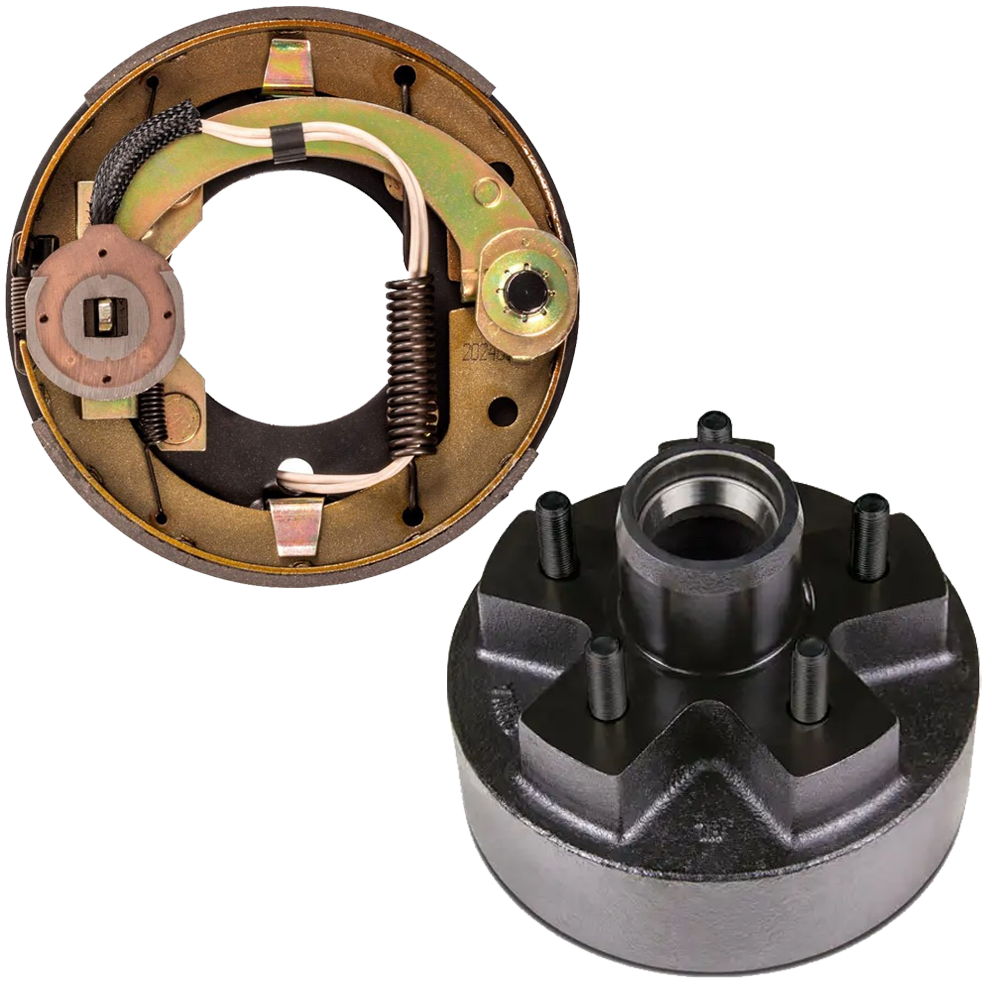

Bring back smooth, reliable stopping on your light-duty trailer with this matched Lippert bundle. It pairs a genuine 7″ × 1.25″ left-hand electric brake assembly with a precision 5-on-4.5 cast-iron hub/drum—everything required to service one 2,200-lb axle quickly and correctly.

Bundle Contents:

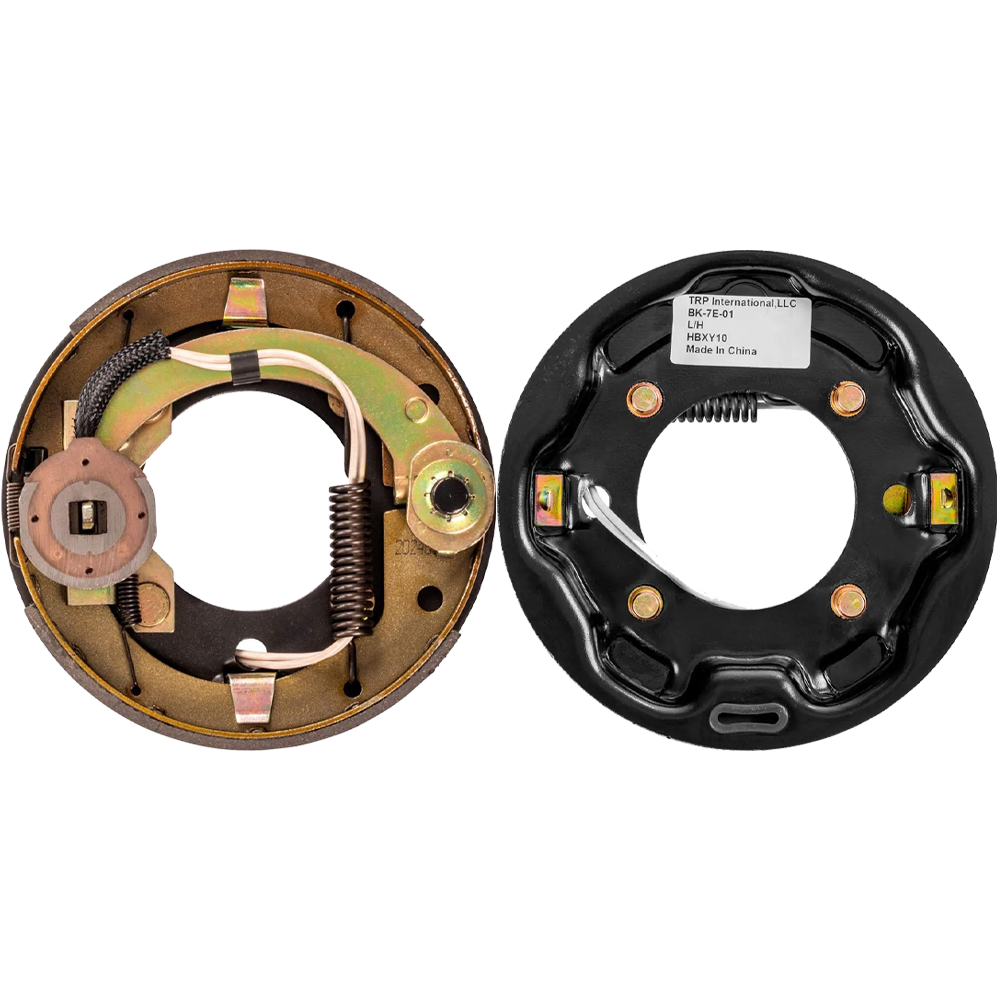

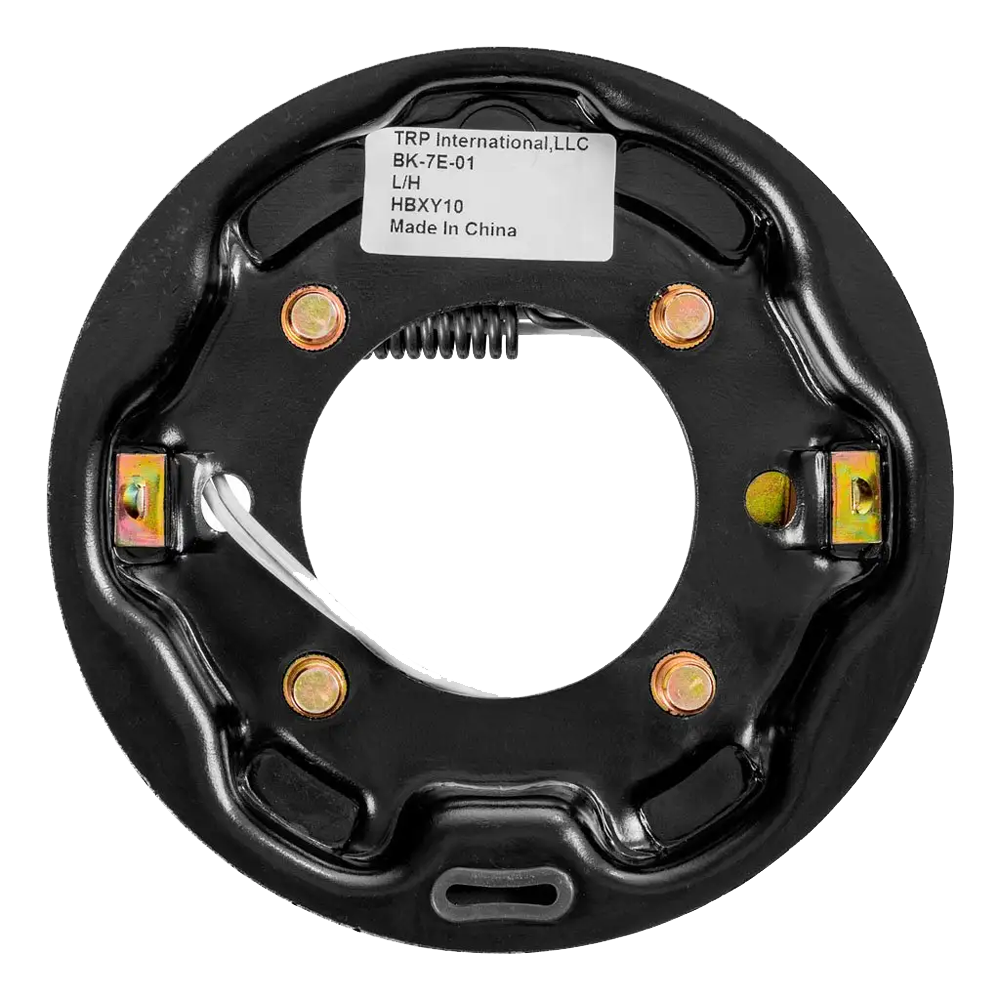

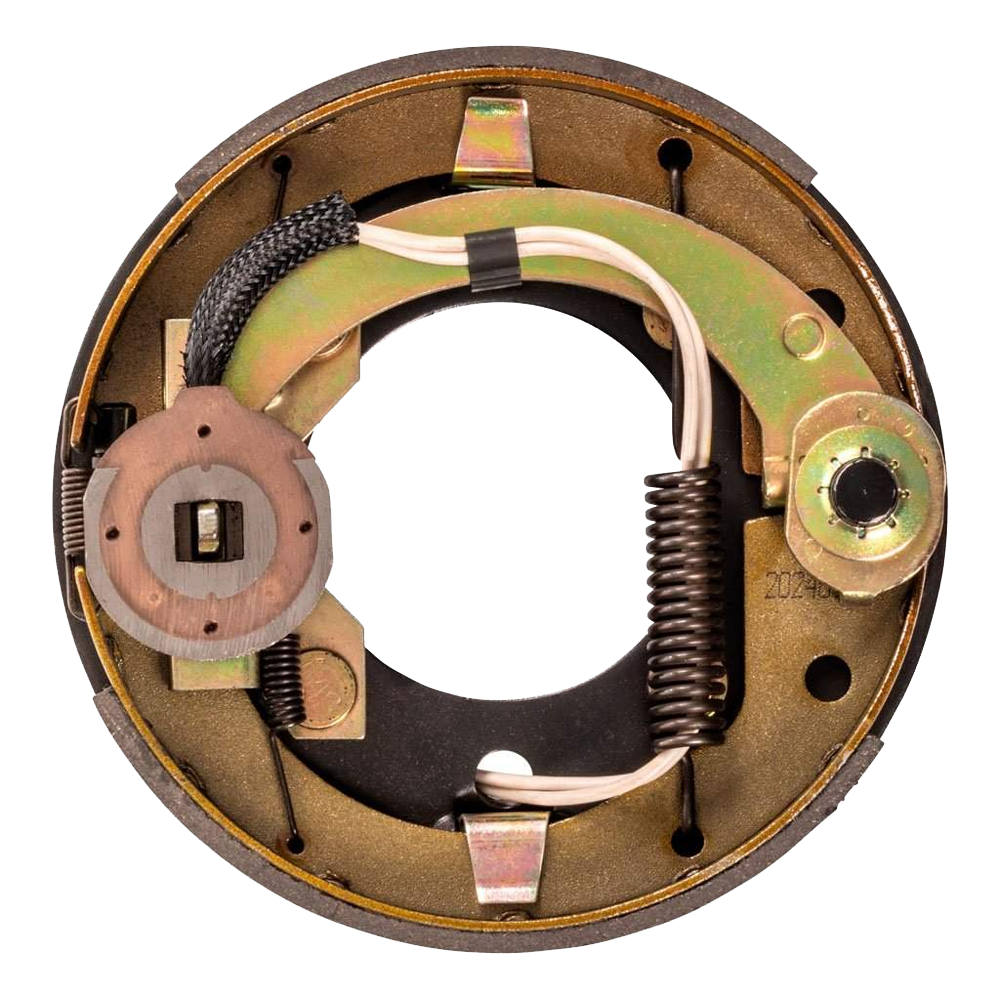

• QTY (1): 7″ × 1.25″ Electric Brake Assembly – Left Hand (Roadside)
  • Genuine Lippert® replacement – built to OE specs
  • Dexter compatible P/N: K23-047-00 | 023-047-00
  • Rated for 2,200-lb Dexter/Lippert/Al-Ko axles
  • Manual-adjust design for precise brake response
  • Four-bolt mounting pattern; fits 10–13″ wheels
  • Includes pre-installed brake shoes & magnet
  • 1-year manufacturer warranty

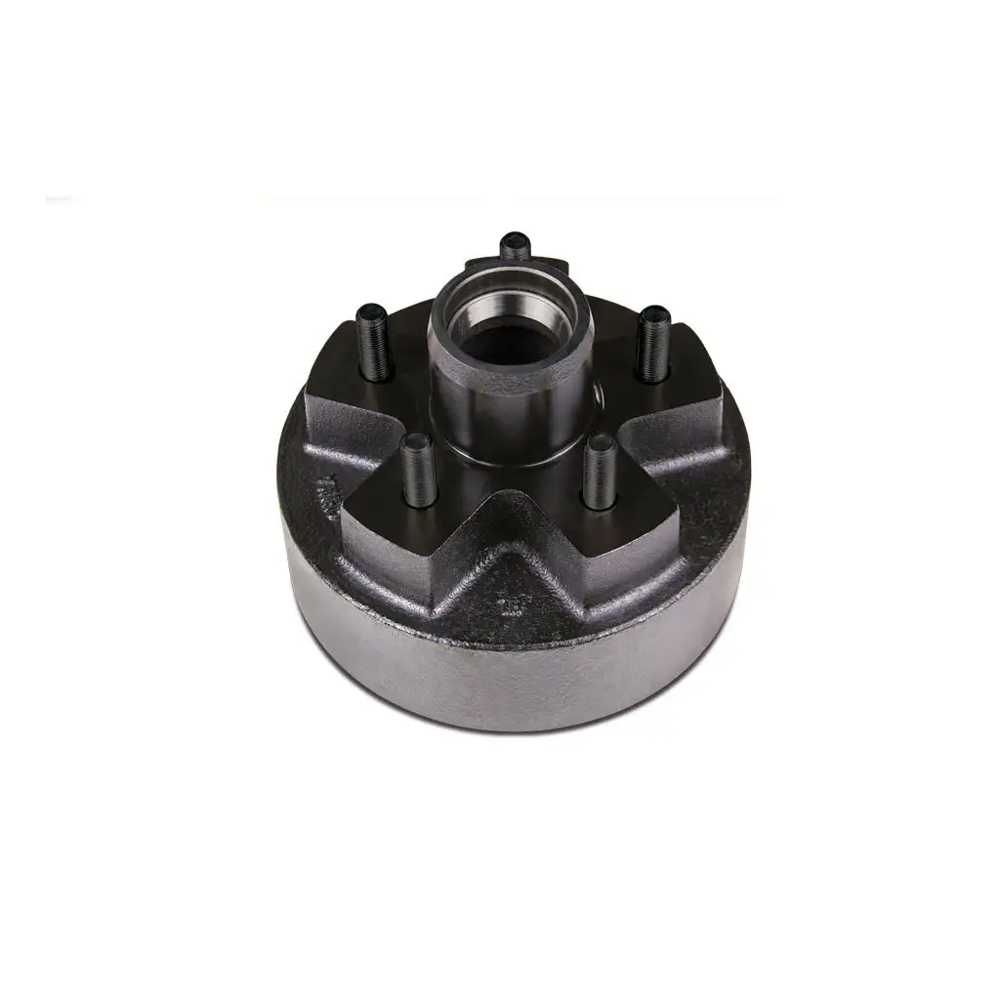

• QTY (1): 7″ Hub & Drum – 5 on 4.5″, 1/2″ Studs
  • Precision-machined cast-iron hub/drum
  • Hub only – full brake assembly not included; bearings, seal & hardware sold separately
  • 5 on 4.5″ bolt circle, 1/2″ studs
  • For 2,200-lb trailer axles
  • Accepts 8″–12″ wheels
  • 1-year manufacturer warranty

Always confirm your axle rating, bolt pattern, and mounting dimensions before ordering. Inspect linings and adjust brakes every 3,000 miles for long-term safety and performance.
