Lippert 7? x 1.25? Electric Brake, Hub & Bearing Bundle for 2,200-lb Tandem Axles � 5 on 4.5 Bolt Pattern (4 Brakes + 4 Hubs + 4 Bearing Kits) � Dexter / Alko / Rockwell Compatible

Lippert 7″ Electric Brake, Hub & Bearing Bundle – Fits 2,200-lb Tandem Axles

This all-in-one Lippert® bundle outfits both 2,200-lb axles with fresh 7″ × 1.25″ electric brakes, cast-iron hubs, and complete bearing kits. All required mounting hardware is included (not pre-installed) so installation is straightforward—just add high-temperature wheel bearing grease. OE-grade parts restore confident stopping power on utility, boat, cargo, and small RV trailers.

Bundle Contents:

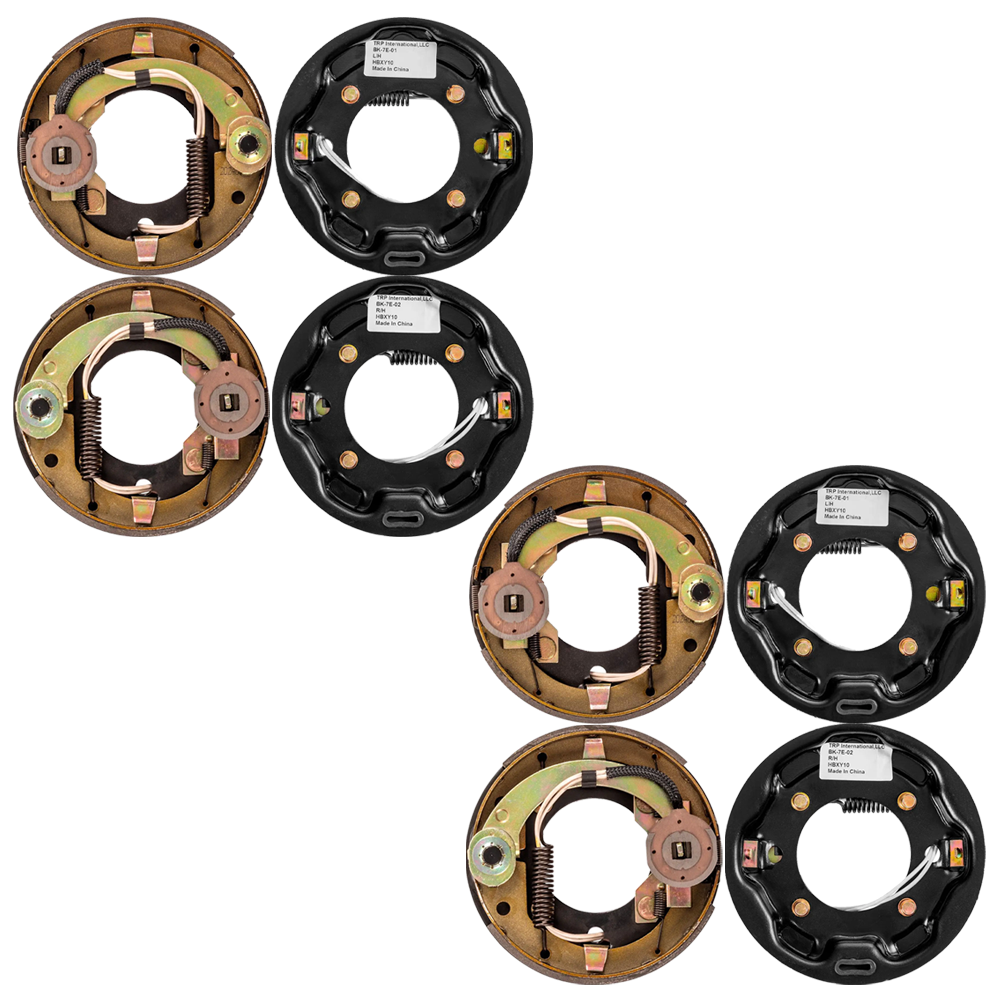

• QTY (2): Electric Brake Assembly – 7″ × 1.25″, 2,200 lb Axle, Left-Hand
  • Genuine Lippert® replacement electric brake
  • Driver/roadside (LH); manual adjust
  • Four-bolt brake flange
  • Compatible with 10–13″ wheels
  • Dexter Compatible Part No.: K23-047-00 | 023-047-00
  • 1-year manufacturer warranty
• QTY (2): Electric Brake Assembly – 7″ × 1.25″, 2,200 lb Axle, Right-Hand
  • Genuine Lippert® replacement brake
  • Curb/passenger (RH); manual adjust
  • Four-bolt brake flange
  • Compatible with 10–13″ wheels
  • Dexter Compatible Part No.: K23-048-00 | 023-048-00
  • 1-year manufacturer warranty

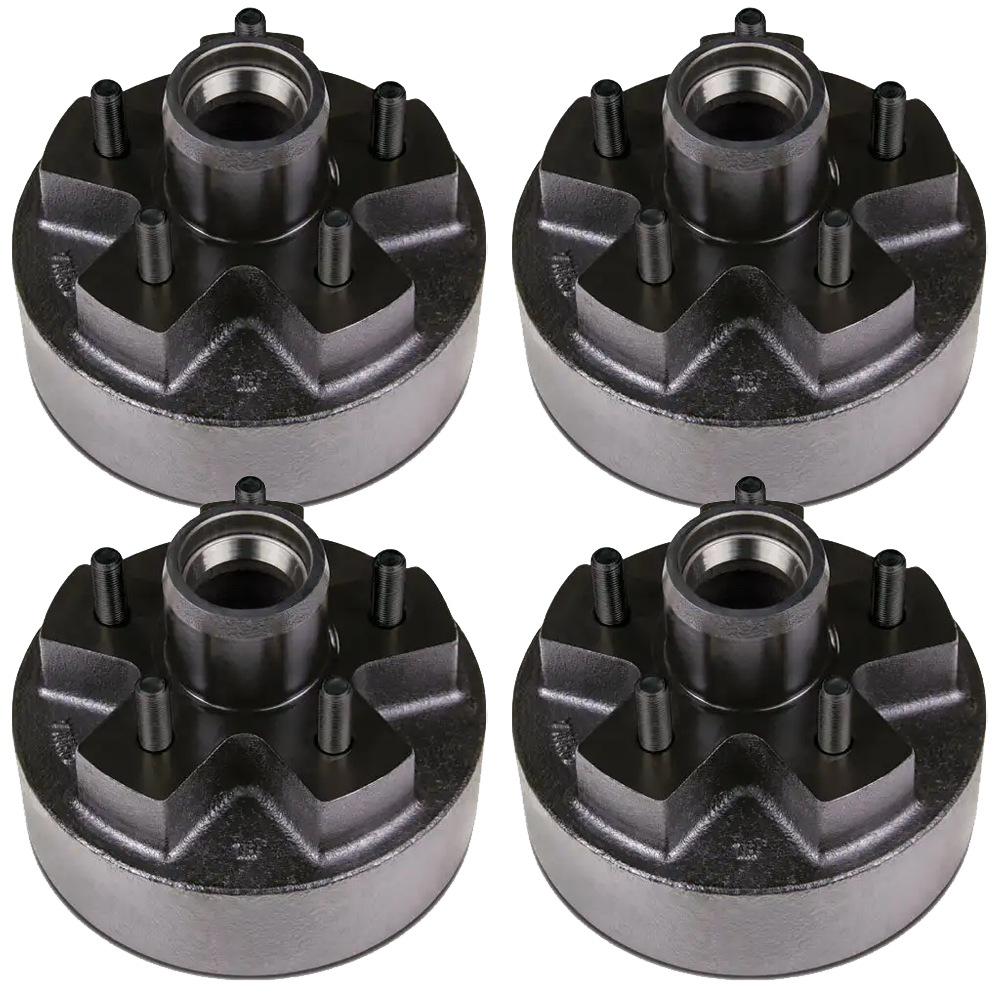

• QTY (4): 7″ Hub + Drum – 5 on 4.5″, 1/2″ Studs, 2,200 lb
  • Durable cast-iron hub with integrated drum
  • 5 × 4.5″ bolt circle; 1/2″ studs installed
  • Fits 8–12″ wheels on 2,200-lb axles
  • Lippert™ genuine replacement part

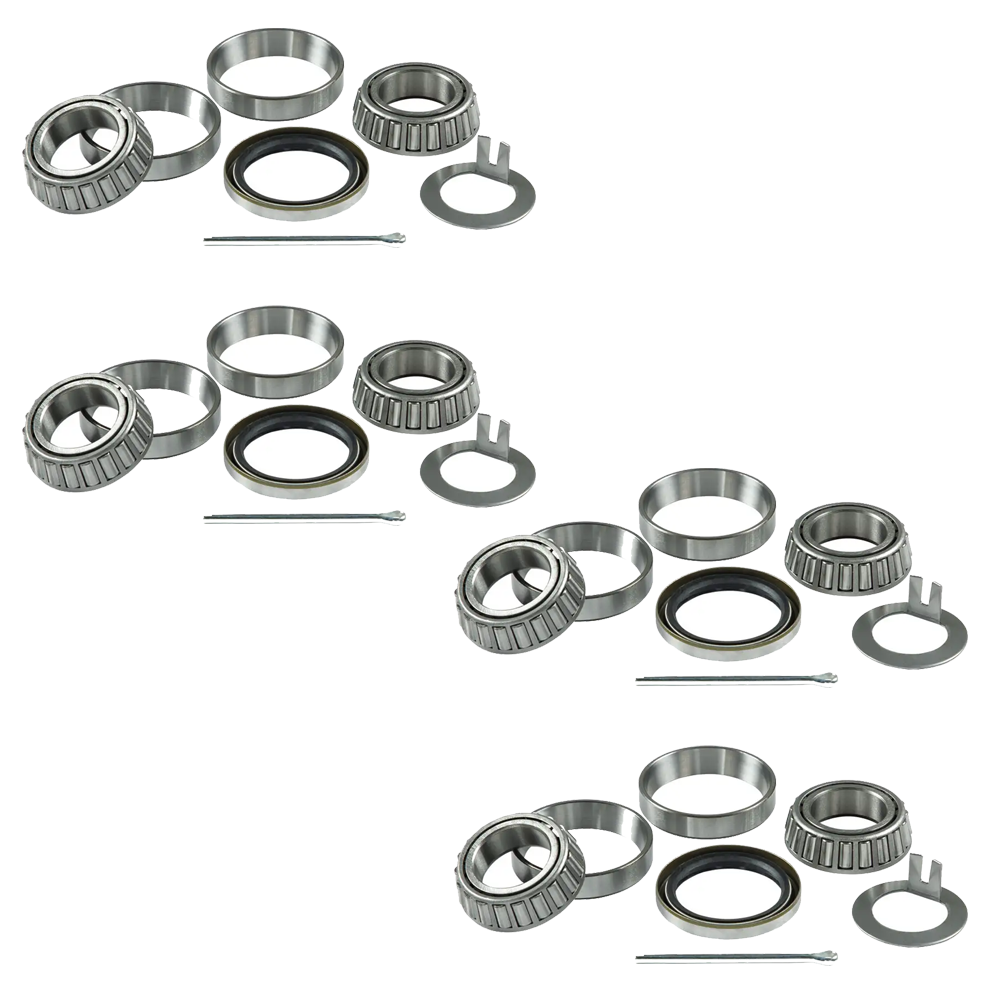

• QTY (4): Lippert Trailer Bearing Replacement Kit – 1.5″ Seal ID (1 kit per hub)
  • (2) Inner / outer bearing cones
  • (2) Inner / outer bearing races
  • (1) 1.5″ double-lip grease seal
  • (1) 1.75″ cotter pin
  • (1) 1.5″ tang spindle washer

Recommendation: Verify bolt pattern, brake flange, and axle rating before ordering. Inspect brakes and repack bearings every 3,000 miles for safe operation.
