Lippert 7" x 1.25" Electric Brake, Hub & Bearing Kit � 5 on 4.5", 2,200-lb Axle, RH � Dexter & AL-KO Compatible

Lippert 7" x 1.25" Electric Brake, Hub & Bearing Kit – 5 on 4.5", 2,200-lb Axle, Right-Hand – Dexter & AL-KO Compatible

Restore dependable stopping power on your light-duty trailer with this genuine Lippert® bundle. Built for 2,200-lb axles, it mates a right-hand 7" x 1.25" electric brake assembly to a matching 5-on-4.5" hub/drum and includes a complete bearing service kit—everything you need for a fast, worry-free repair or upgrade.

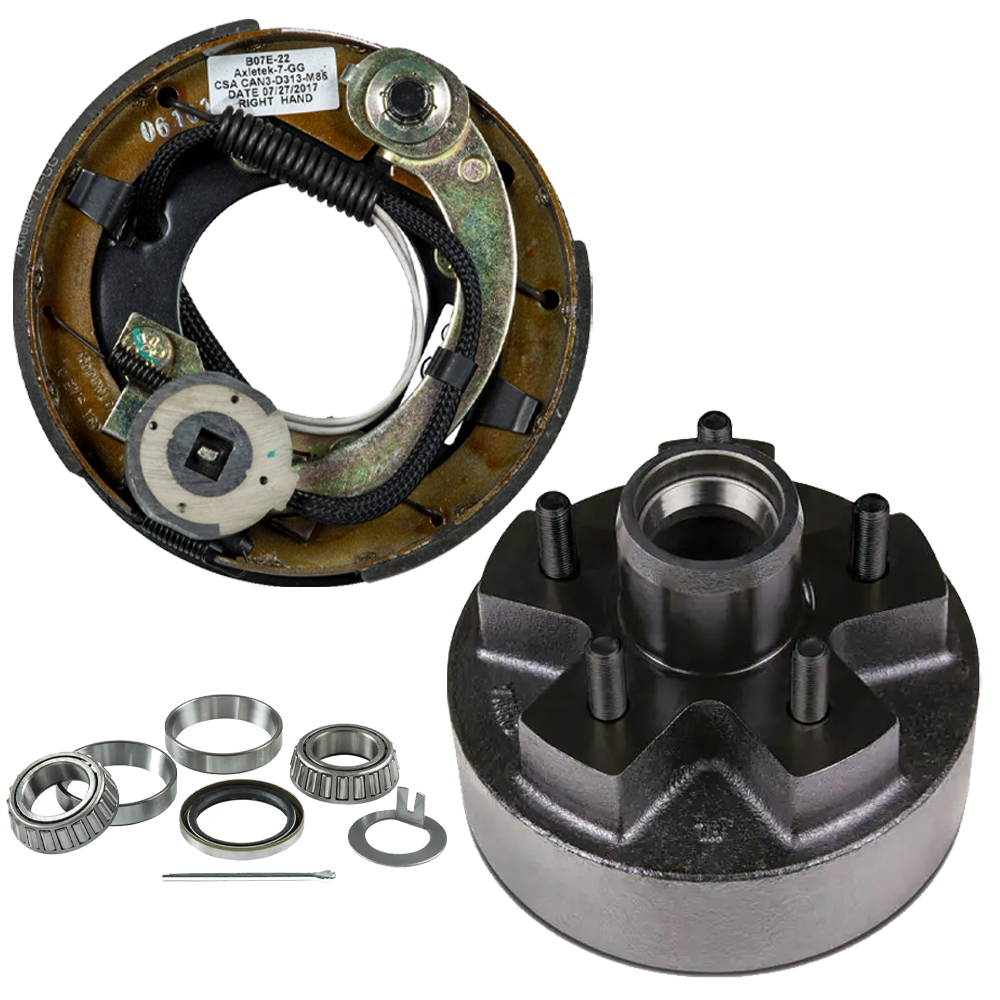

Bundle Contents:

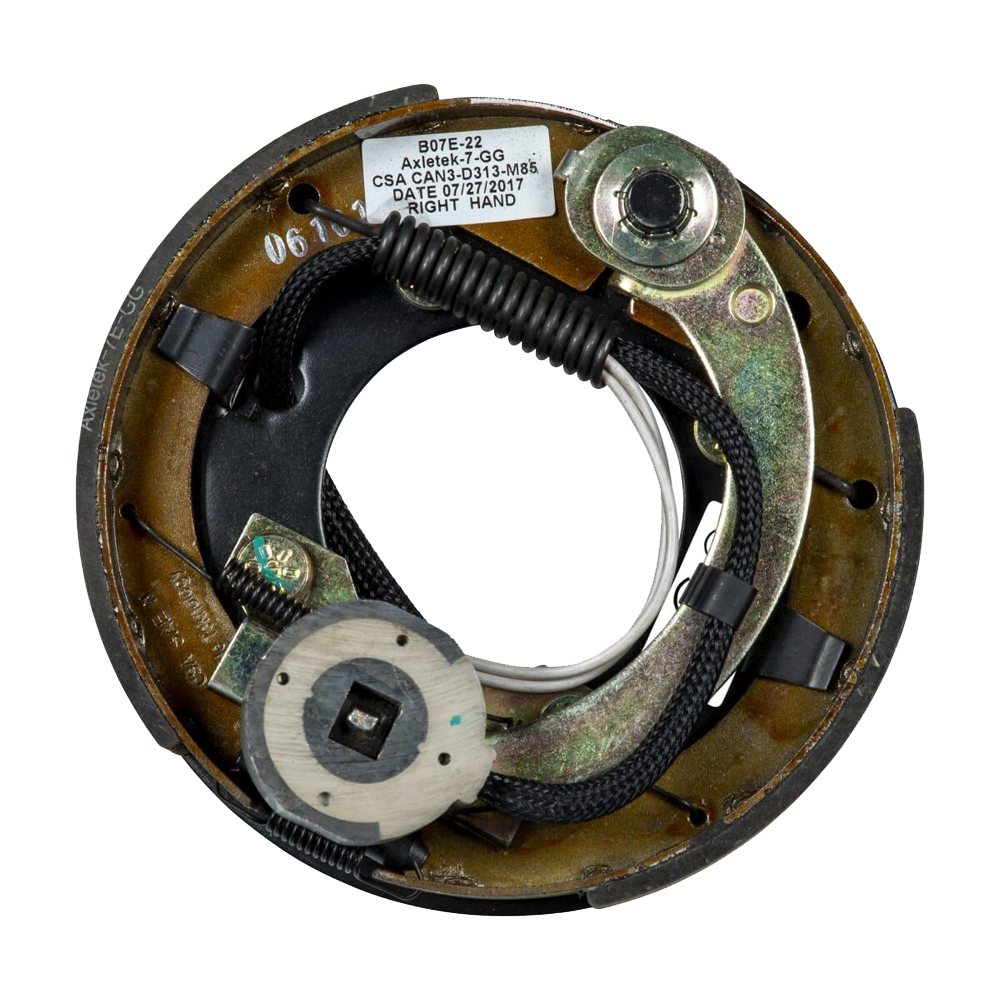

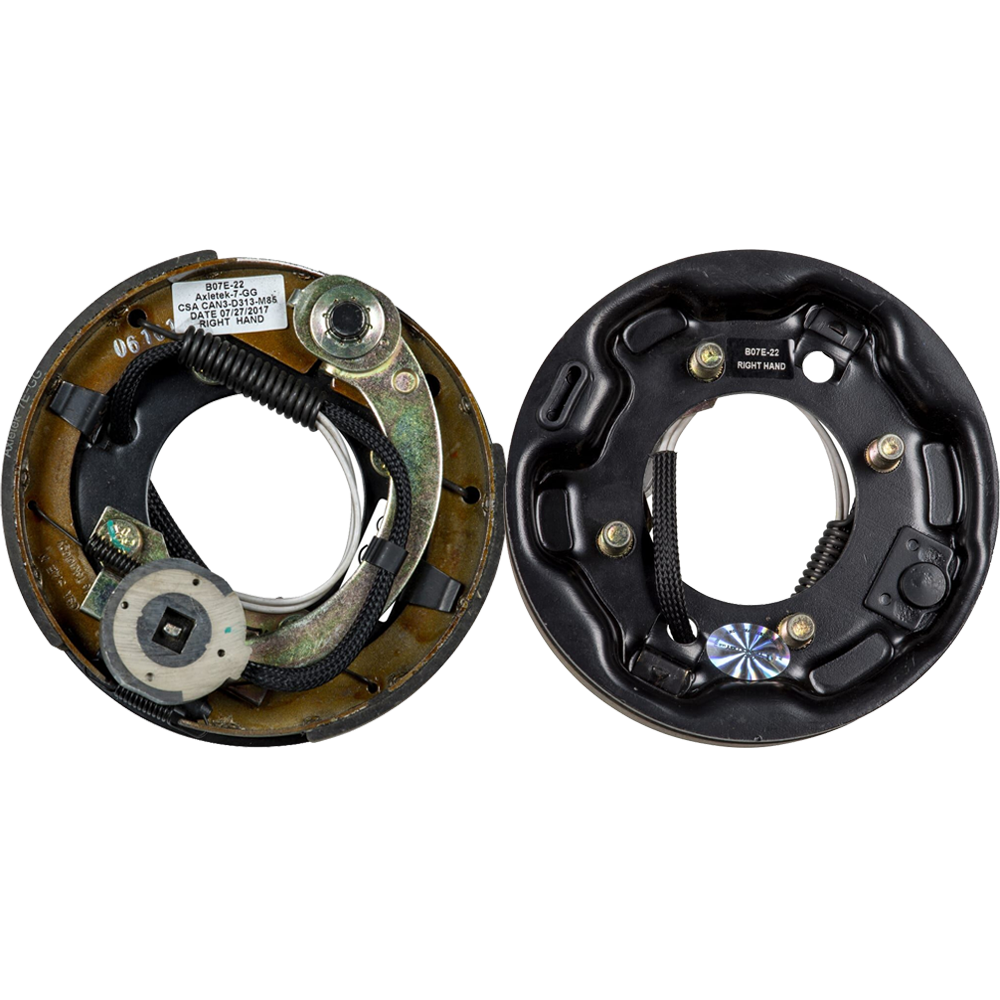

• QTY (1): 7" x 1.25" Electric Brake Assembly – Right-Hand
  • Genuine Lippert replacement part
  • Passenger / curb-side orientation
  • Manual-adjust design for precise braking
  • 4-bolt mounting pattern
  • Fits 10"–13" wheels on 2,200-lb axles
  • Dexter compatible part numbers: K23-048-00 / 023-048-00

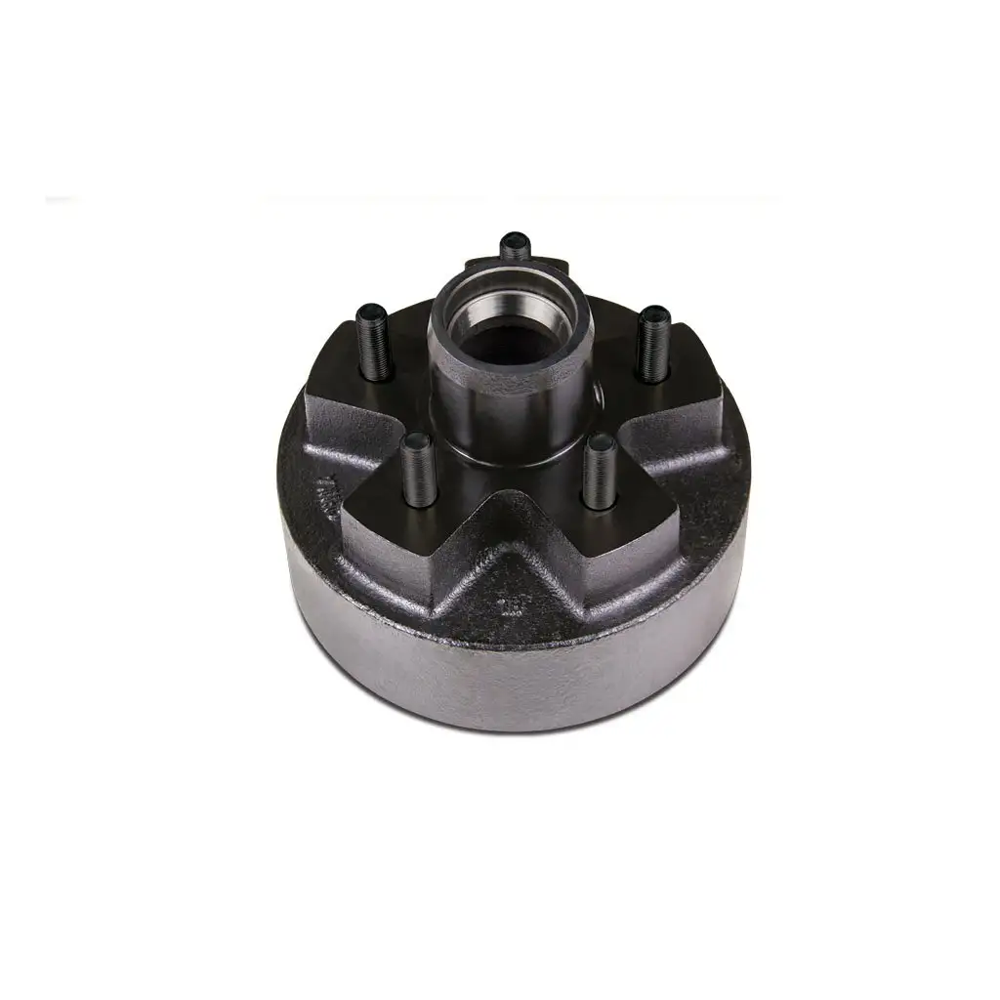

• QTY (1): 7" Hub & Drum – 5 on 4.5", 1/2" Studs
  • Durable cast-iron hub with integrated drum (hub only)
  • 5-on-4.5" bolt pattern with 1/2"-20 studs
  • Rated for 2,200-lb trailer axles
  • Compatible with 8"–12" wheels
  • One-year Lippert warranty

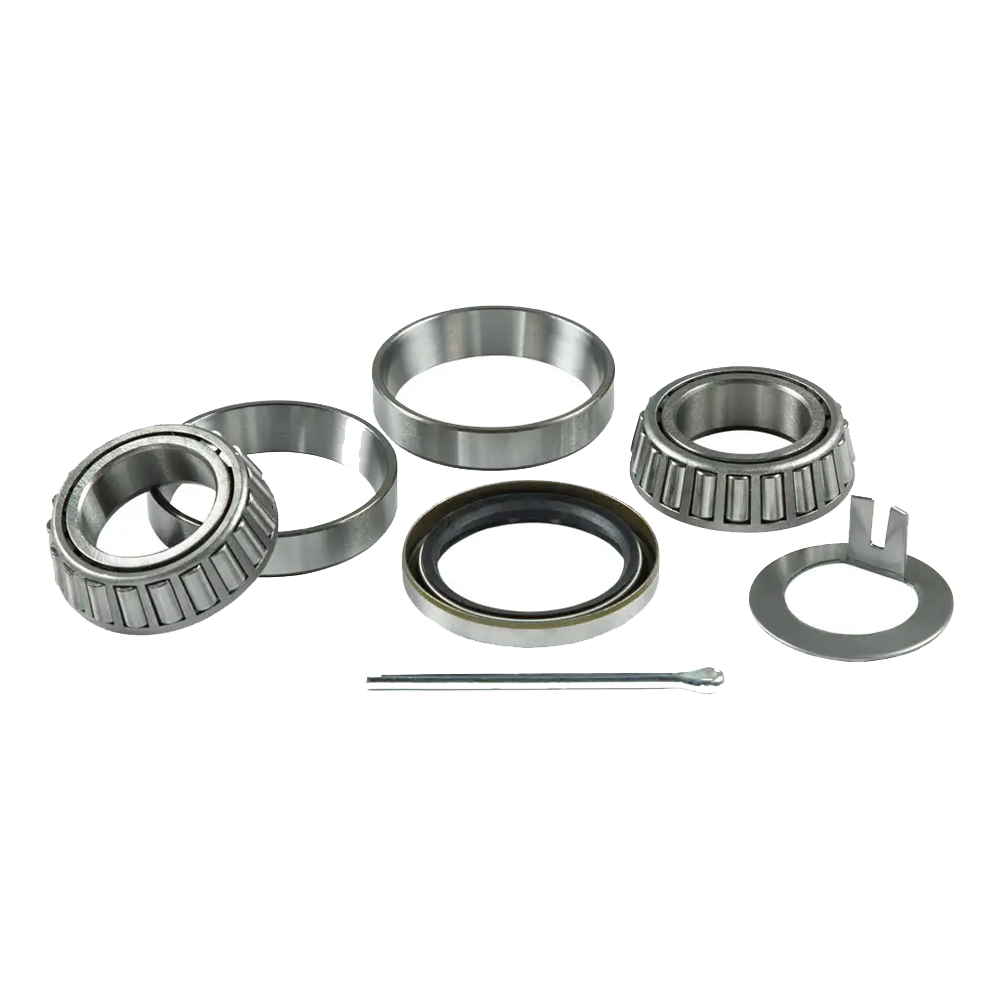

• QTY (1): Bearing & Seal Service Kit – 1.5" ID Seal (one kit per hub)
  • (2) Inner / outer bearing cones
  • (2) Inner / outer bearing races
  • (1) 1.5" ID double-lip grease seal
  • (1) 1.75" cotter pin
  • (1) 1.5" tang spindle washer

Always confirm your axle specifications and perform regular bearing maintenance to maximize performance and on-road safety.
