Lippert 7" x 1.25" Electric Brake, Hub & Bearing Kit � 5 on 4.5" Bolt Pattern � 2,200-lb Right-Hand Trailer Axle | Fits Dexter, AL-KO & More

Lippert 7" x 1.25" Electric Brake, Hub & Bearing Kit – Right-Hand 2,200-lb Axle

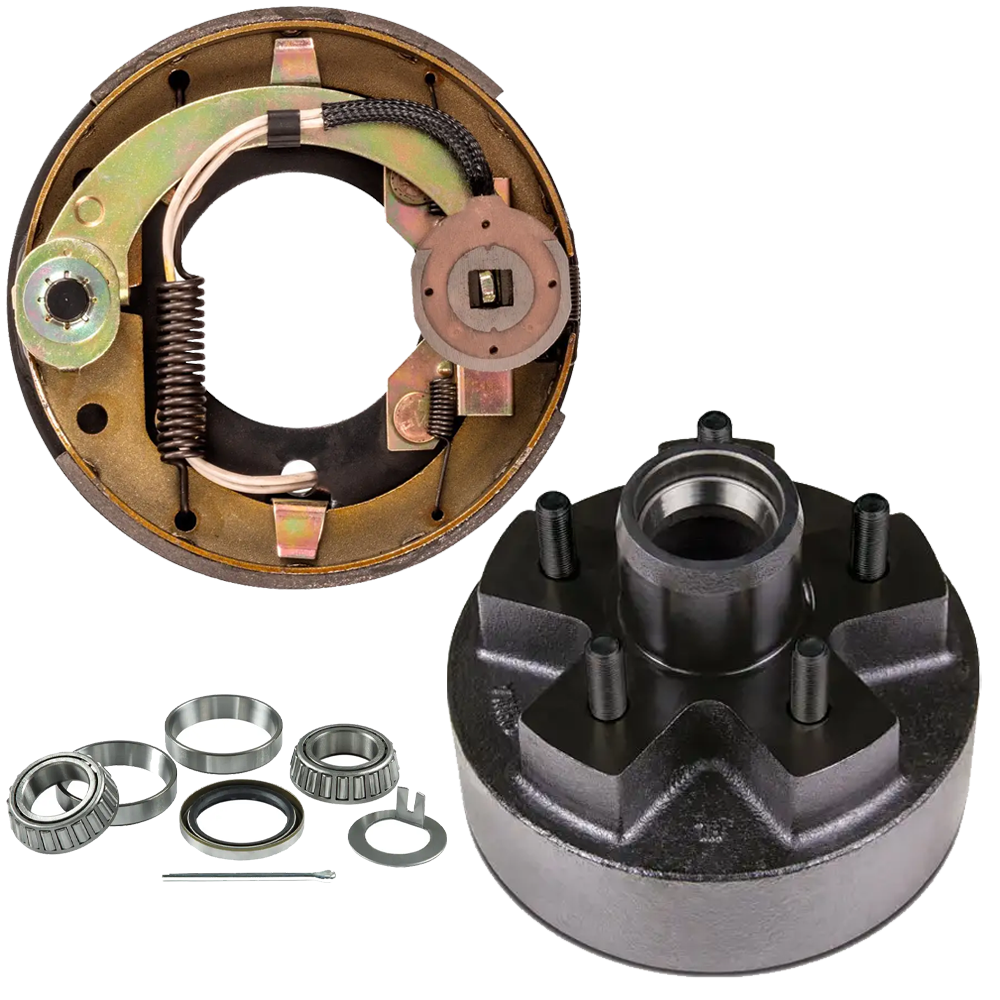

Service one 2,200-lb trailer axle with a single, convenient package. This genuine Lippert® bundle pairs a right-hand 7" x 1.25" electric brake assembly with a matching 5-on-4.5" hub-drum plus a complete bearing kit. It ships with all mounting hardware (nuts & washers, not pre-installed) so you can bolt on and go—just add your favorite high-temperature wheel-bearing grease.

Bundle Contents:

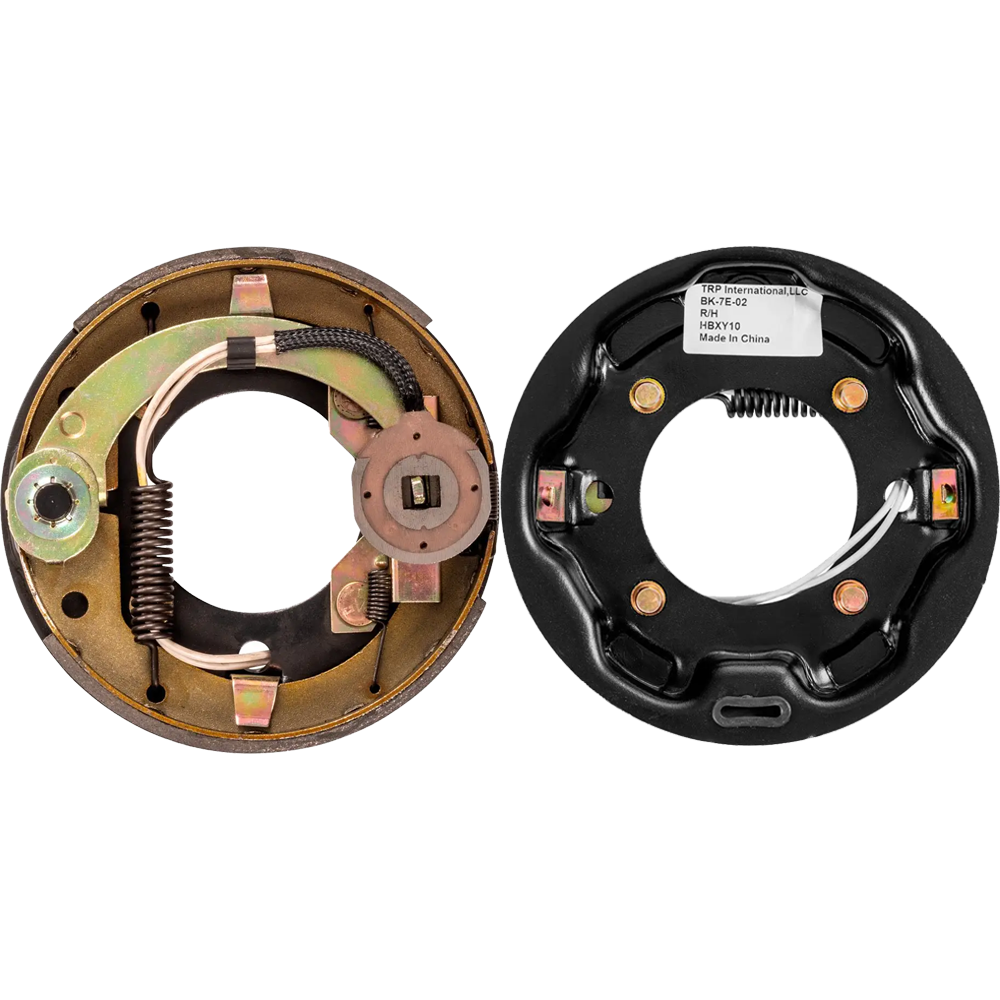

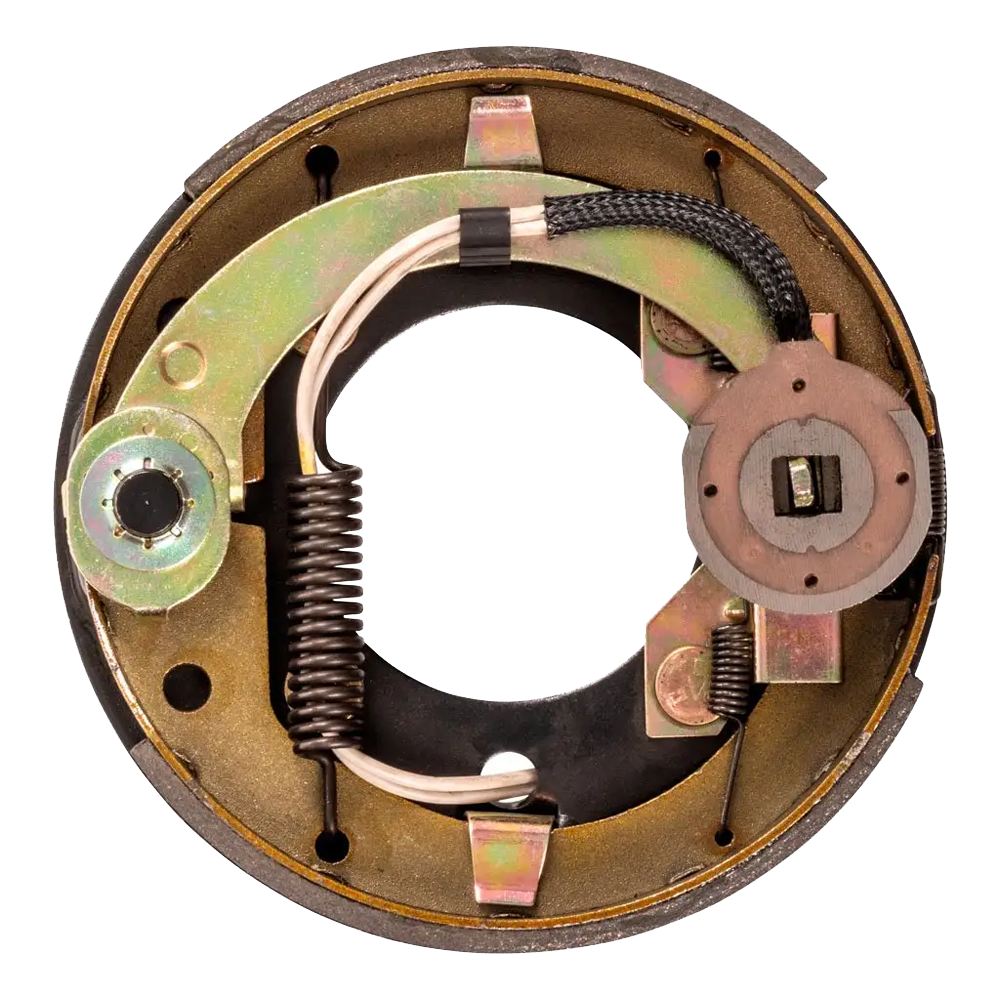

• QTY (1): Electric Brake Assembly, 7" x 1.25"; 2,200 lbs – Right Side
  • Genuine Lippert® replacement – quality you can trust
  • Dexter compatible part numbers: K23-048-00 | 023-048-00
  • Right-hand (curb-side) orientation
  • Fits 10", 12" & 13" wheels
  • Four-bolt mounting, manual adjustment
  • 1-year limited warranty

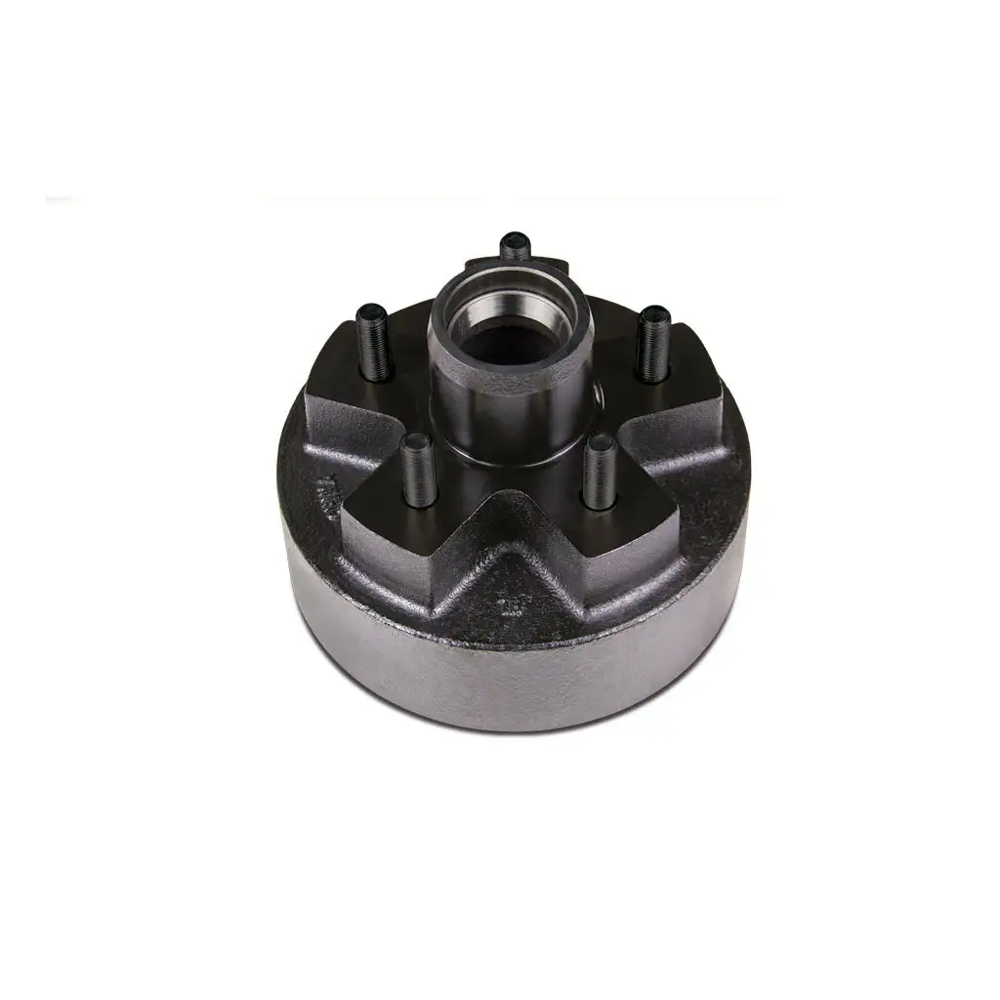

• QTY (1): 7" Brake Hub-Drum, 5 on 4.5"; 1/2" Stud – 2,200 lbs
  • Solid-iron hub-drum rated for 2,200-lb axles
  • 5-on-4.5" bolt circle, 1/2" wheel studs
  • Accepts 8"–12" wheels
  • One-year warranty

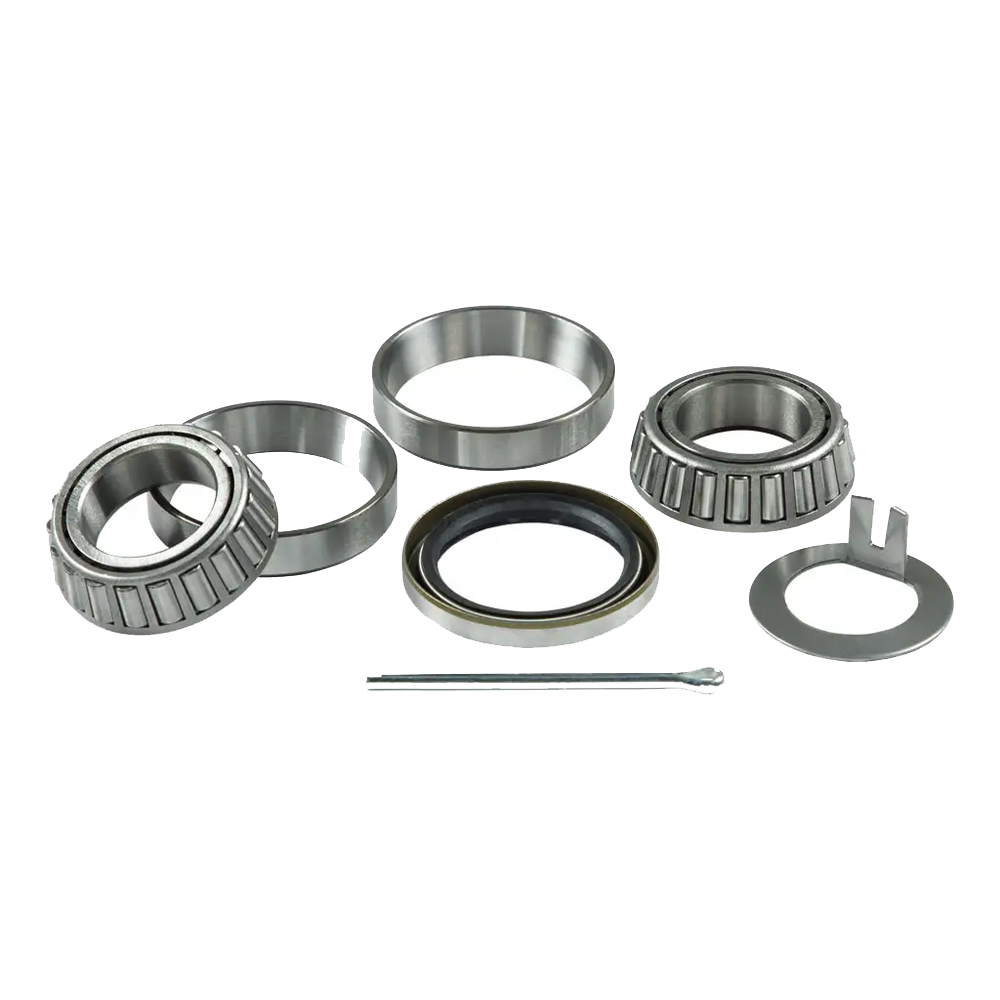

• QTY (1): Lippert Bearing Replacement Kit – 1.5" Seal ID
  • (2) Inner bearing cones & races
  • (2) Outer bearing cones & races
  • (1) 1.5" double-lip grease seal
  • (1) 1.75" cotter pin
  • (1) 1.5" tang spindle washer
  • One kit per hub is included

Recommendation: Verify bolt pattern and spindle dimensions before installation, use fresh high-temp wheel-bearing grease, and inspect brakes and bearings every 3,000 miles or annually—whichever comes first.
