Lippert Quad-Axle 7″ x 1.25″ Electric Brake, Hub & Bearing Kit – 5 on 4.5″, 2,200 lb (8 Wheels)

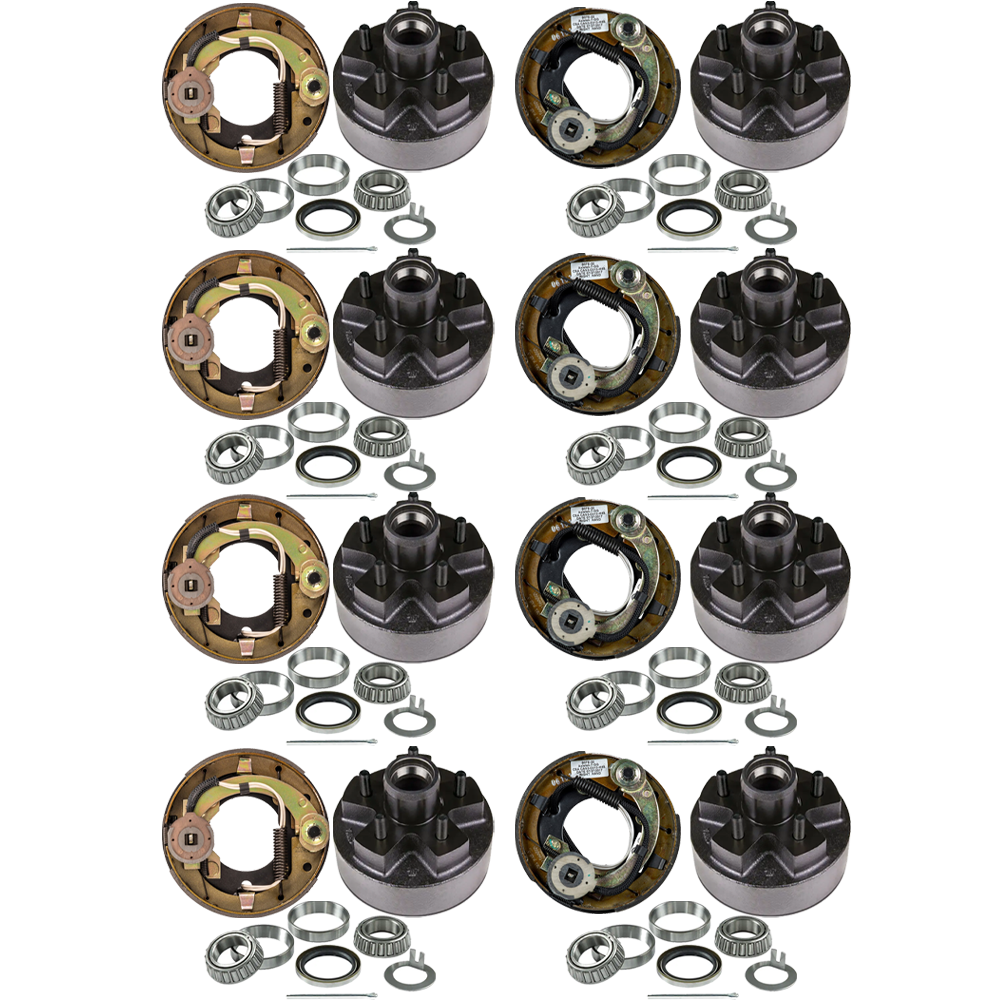

Refresh four 2,200-lb axles with this ready-to-install — just add grease Lippert bundle. Eight matched 7″ electric brakes pair with hub-and-drum units and individual bearing kits, giving you OE-quality stopping power and smooth-rolling hubs in one convenient package. Perfect for utility, boat and small RV trailers using the popular 5 on 4.5″ pattern.

Bundle Contents:

• QTY (4): Electric Brake Assembly, 7″ x 1.25″, 2,200 lb – Left Hand
  • Genuine Lippert® replacement
  • Left-hand (roadside) configuration
  • Fits 10″–13″ wheels
  • Manual shoe adjustment
  • Four-bolt brake flange
  • Axle rating: 2,200 lb
  • Dexter compatible part #: K23-047-00 / 023-047-00
• QTY (4): Electric Brake Assembly, 7″ x 1.25″, 2,200 lb – Right Hand
  • Genuine Lippert® replacement
  • Right-hand (curbside) configuration
  • Fits 10″–13″ wheels
  • Manual shoe adjustment
  • Four-bolt brake flange
  • Axle rating: 2,200 lb
  • Dexter compatible part #: K23-048-00 / 023-048-00

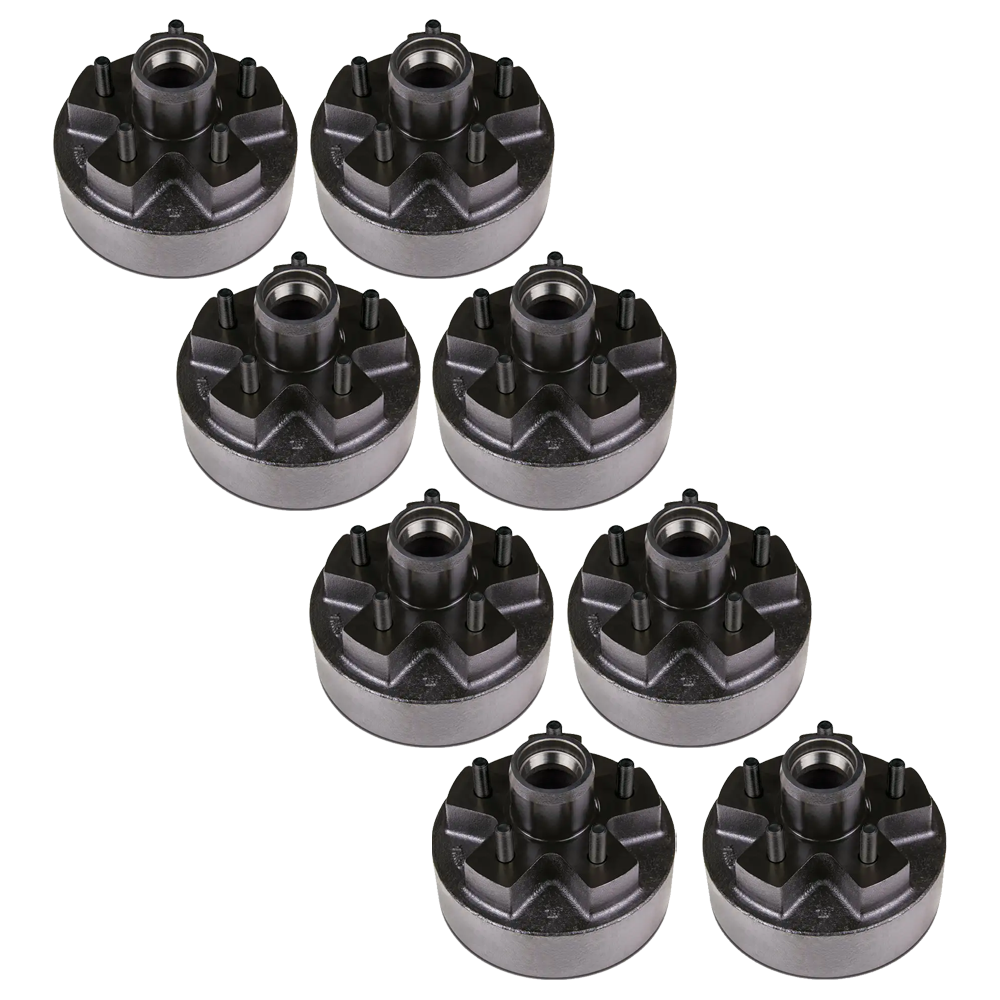

• QTY (8): 7″ Brake Hub & Drum – 5 on 4.5″, 1/2″ Studs, 2,200 lb
  • Durable cast-iron hub/drum
  • Bolt pattern: 5 on 4.5″ with 1/2″ studs
  • Fits 8″–12″ wheels (drum)
  • Axle rating: 2,200 lb
  • Lippert™ one-year warranty

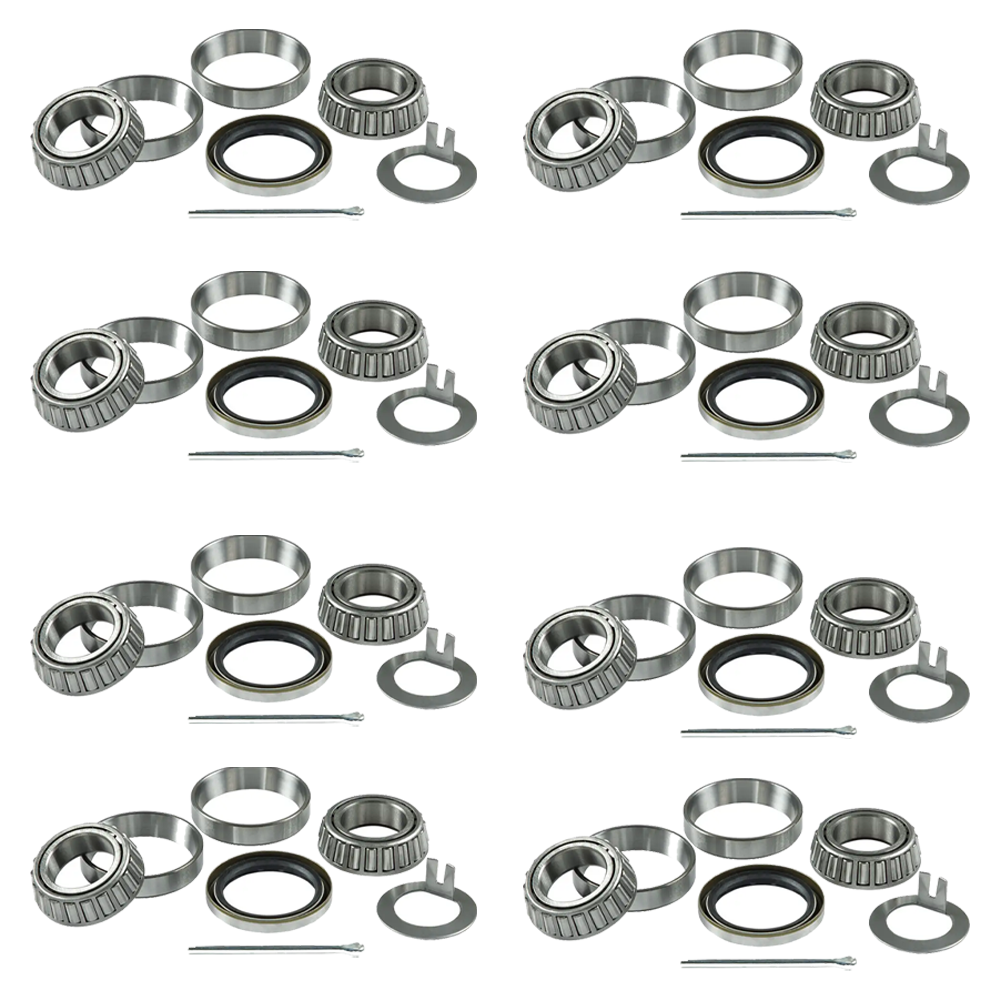

• QTY (8): Bearing & Seal Replacement Kit – 1.5″ ID Seal (1 kit per hub)
  • Inner bearing cone (×1) & race (×1)
  • Outer bearing cone (×1) & race (×1)
  • 1.5″ ID double-lip grease seal
  • 1.75″ cotter pin
  • 1.5″ tang spindle washer
  • OE-quality Lippert components

Verify bolt pattern, bearing part numbers and brake-flange dimensions before installation. Re-pack bearings with high-temperature grease and torque fasteners to manufacturer specs for long service life.
