Lippert 7? x 1.25? Electric Trailer Brake & 5-on-4.5? Hub Kit � 2,200-lb Tandem Axle (4 Brakes + 4 Drums) � Dexter/AL-KO Compatible

Lippert 7″ Electric Brake & Hub Kit – Complete 2,200-lb Tandem-Axle Solution

Restore smooth, reliable stopping power on your lightweight tandem-axle trailer with this genuine Lippert® bundle. The kit combines four 7″ x 1.25″ manual-adjust electric brake assemblies with four matching 5-on-4.5″ hub-and-drums, giving you a perfectly matched, ready-to-install solution for 2,200-lb axles.

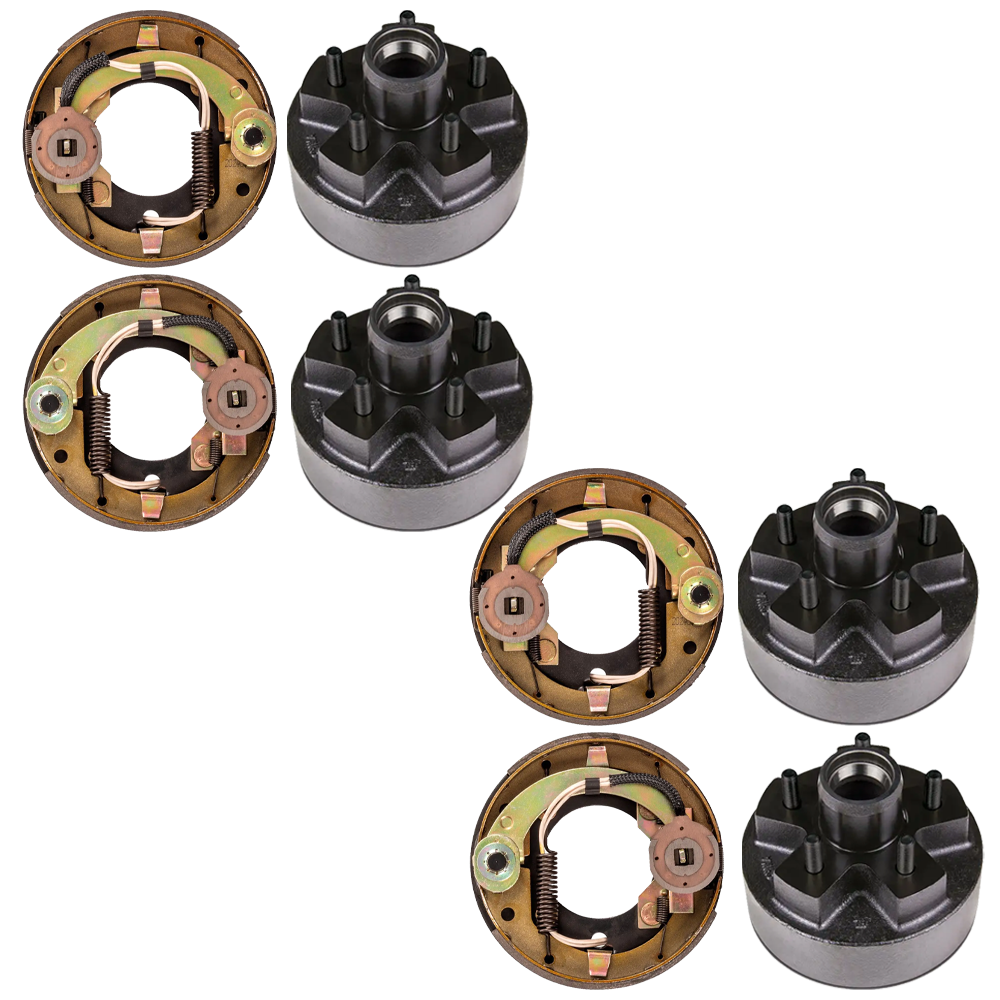

Bundle Contents:

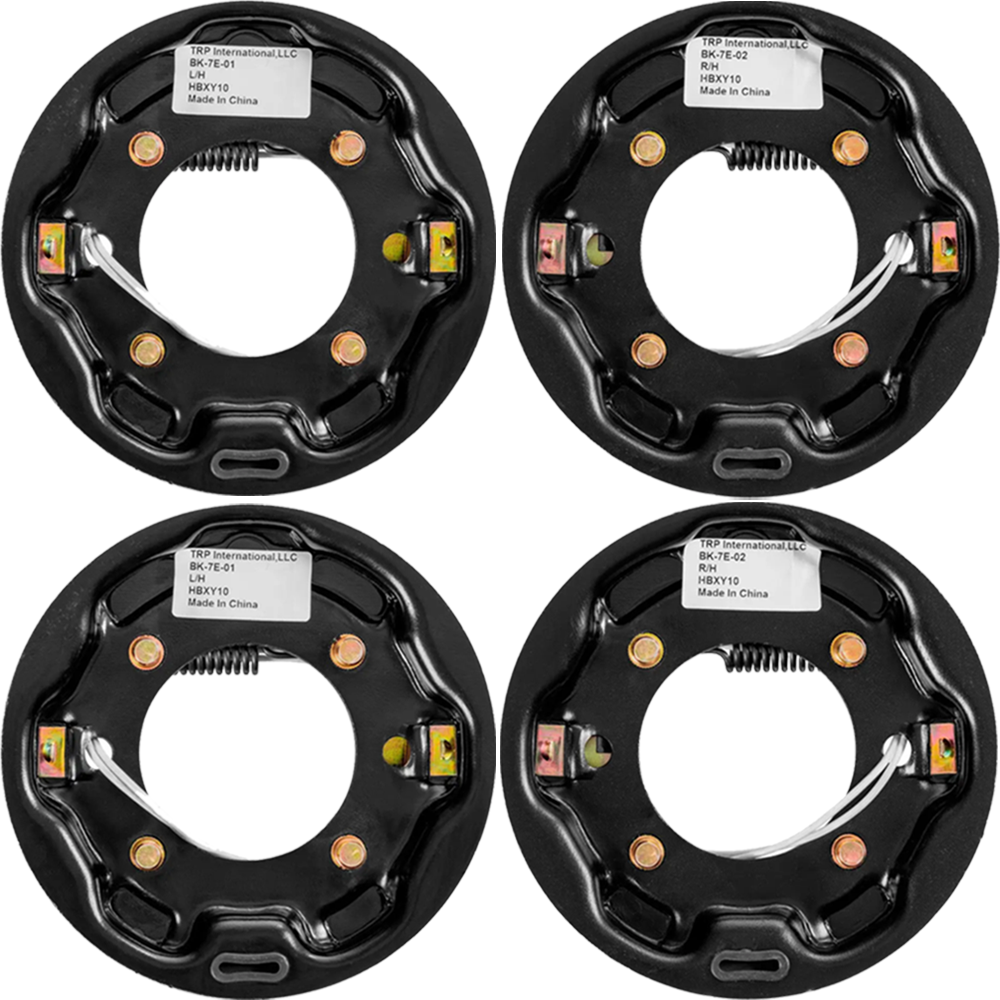

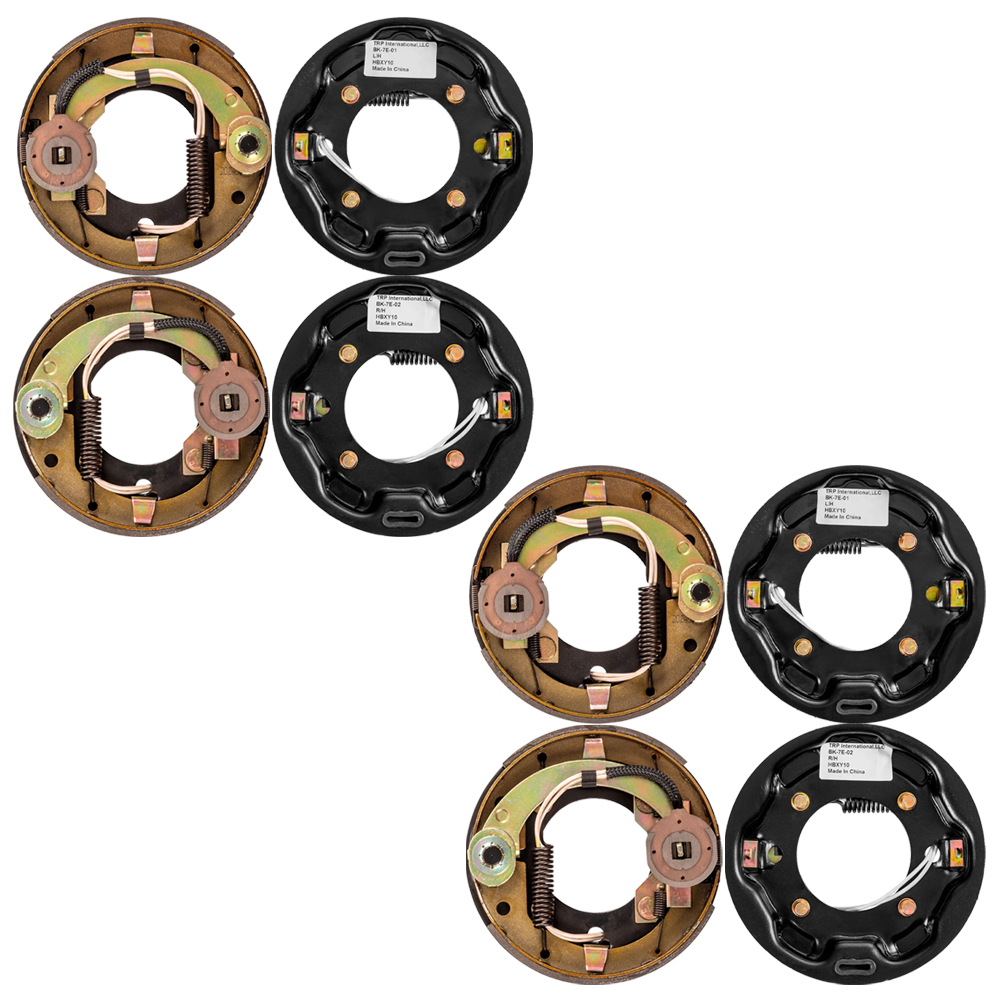

• QTY (2): Electric Brake Assembly, 7″ x 1.25″ – 2,200 lbs, Left / Roadside
  • Manual-adjust, 4-bolt mount
  • Fits 10–13″ wheels
  • Genuine Lippert® replacement
  • 7″ x 1.25″ shoe size; 2,200-lb axle rating
  • Dexter compatible part #: K23-047-00 | 023-047-00
  • 1-year limited warranty
• QTY (2): Electric Brake Assembly, 7″ x 1.25″ – 2,200 lbs, Right / Curbside
  • Manual-adjust, 4-bolt mount
  • Fits 10–13″ wheels
  • Genuine Lippert® replacement
  • 7″ x 1.25″ shoe size; 2,200-lb axle rating
  • Dexter compatible part #: K23-048-00 | 023-048-00
  • 1-year limited warranty

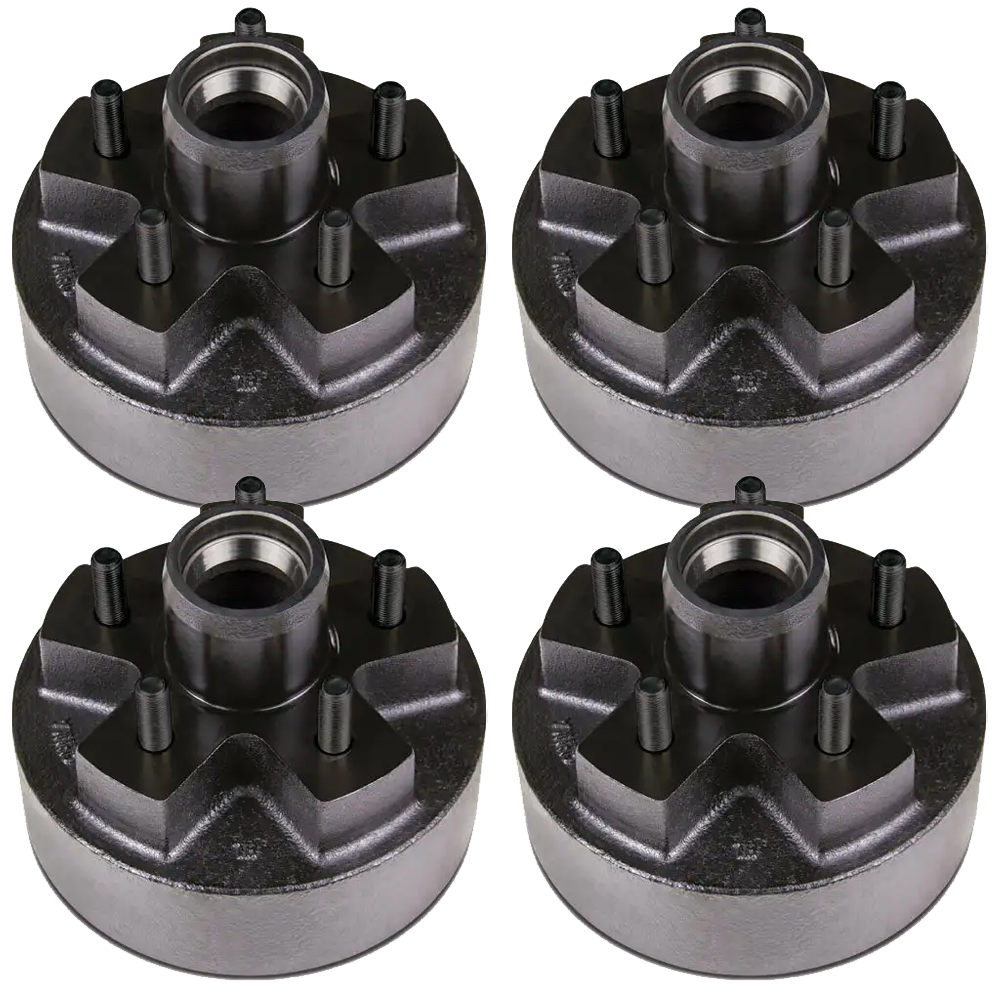

• QTY (4): 7″ Brake Hub & Drum, 5 on 4.5″, 1/2″ Studs – 2,200 lbs
  • Solid-iron hub/drum only (full assembly not included; bearings & seals sold separately)
  • 5-on-4.5″ bolt pattern, 1/2″ studs
  • Fits 8″–12″ wheels
  • Designed for 2,200-lb Lippert® axles
  • 1-year limited warranty

Always verify bolt pattern, wheel size, and axle rating before installation, and inspect your brakes every 3,000 miles for maximum safety and performance.
