Lippert 7? x 1.25? Triple Axle 2,200-lb Complete Brake & Hub Kit � 5 on 4.5?, w/ Spindle Hardware, Dust Caps & Lug Nuts

Lippert 7″ x 1.25″ Triple Axle 2,200-lb Complete Brake & Hub Kit – 5 on 4.5″

Upgrade your triple axle trailer with this complete Lippert brake and hub bundle. Designed for 2,200-lb axles, this kit provides reliable stopping power and easy installation. It comes with brake assemblies, hubs, spindle hardware, dust caps, and lug nuts – everything you need to keep your trailer rolling smoothly and stopping safely.

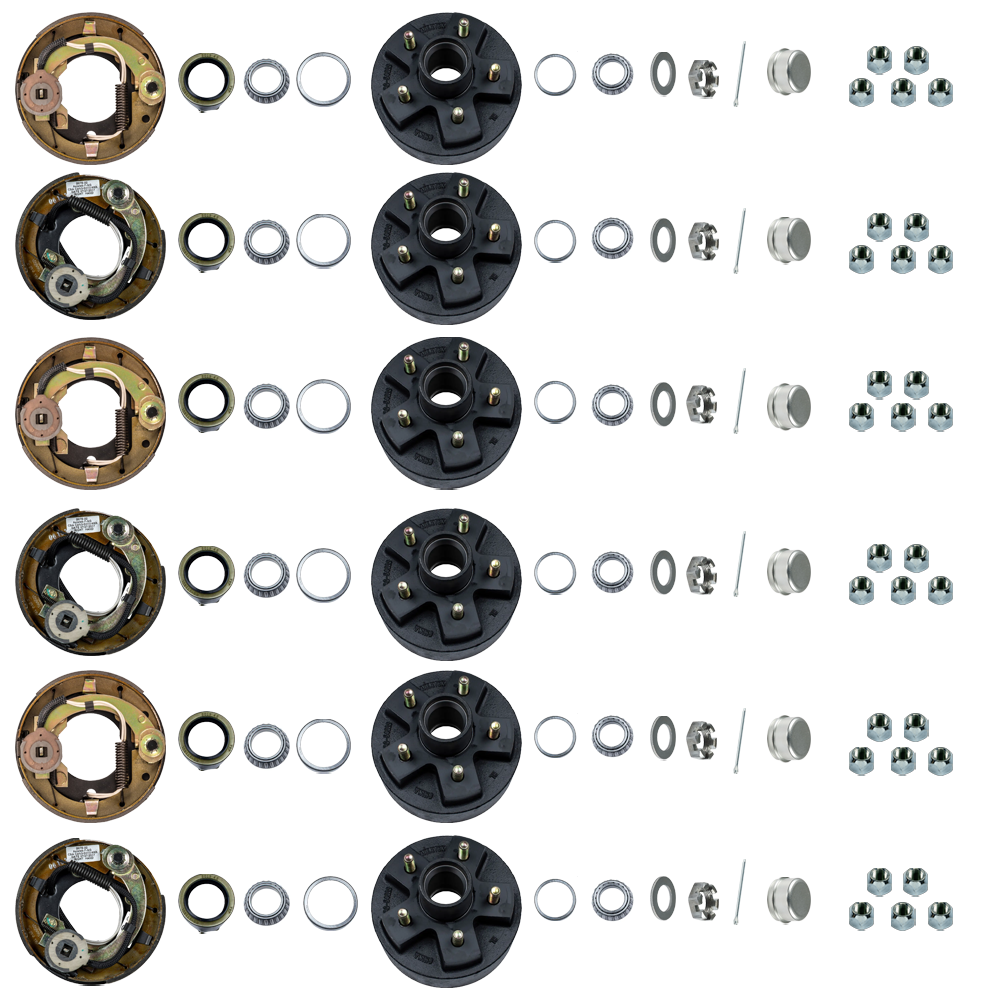

Bundle Contents:

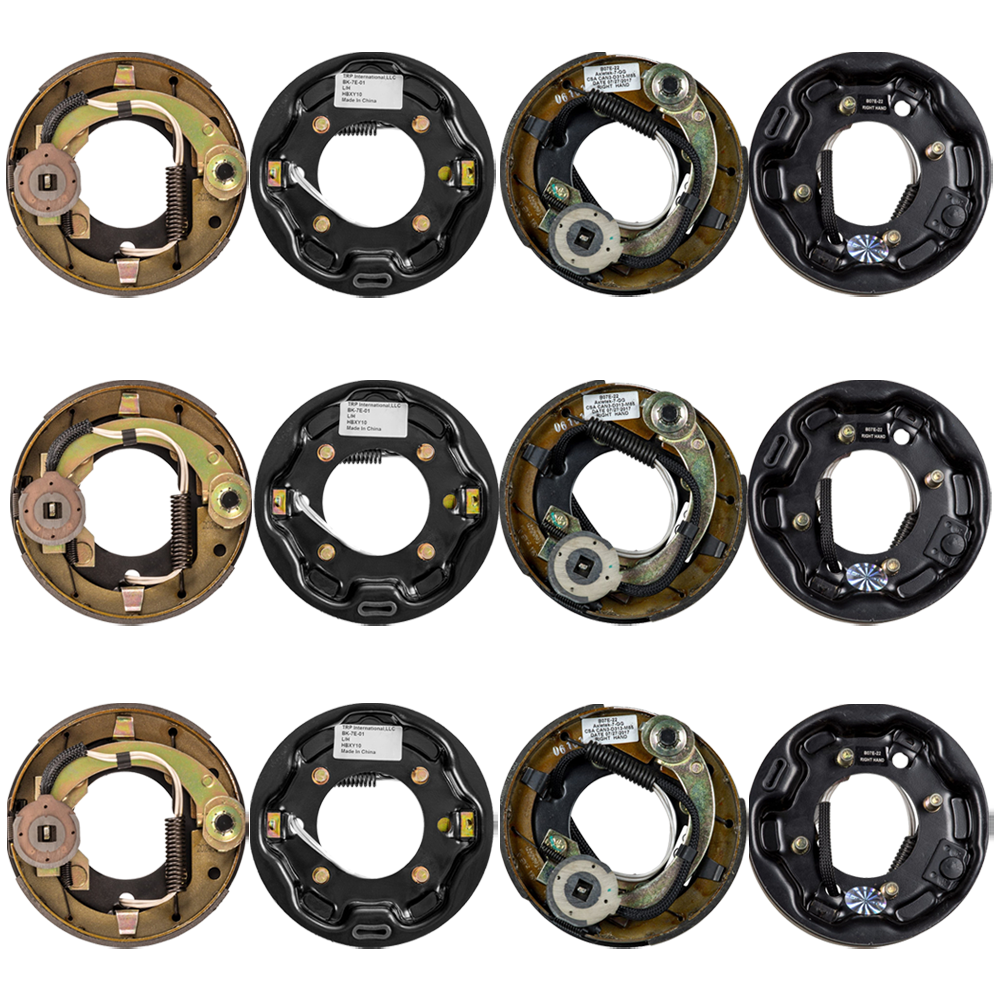

• QTY (3): Electric Brake Assembly, 7" x 1.25", 2,200 lbs., Left Side
  • Genuine Lippert® replacement part
  • Left hand (roadside)
  • For 10”, 12”, or 13” wheels
  • Brake size: 7” x 1.25”
  • Axle rating: 2,200 lbs.
  • Four-bolt mounting pattern
  • Manual adjustment
  • Dexter Compatible Part Number: K23-047-00 | 023-047-00
• QTY (3): Electric Brake Assembly, 7" x 1.25", 2,200 lbs., Right Side
  • Genuine Lippert® replacement part
  • Right hand (curb side)
  • For 10”, 12”, or 13” wheels
  • Brake size: 7” x 1.25”
  • Axle rating: 2,200 lbs.
  • Four-bolt mounting pattern
  • Manual adjustment
  • Dexter Compatible Part Number: K23-048-00 | 023-048-00

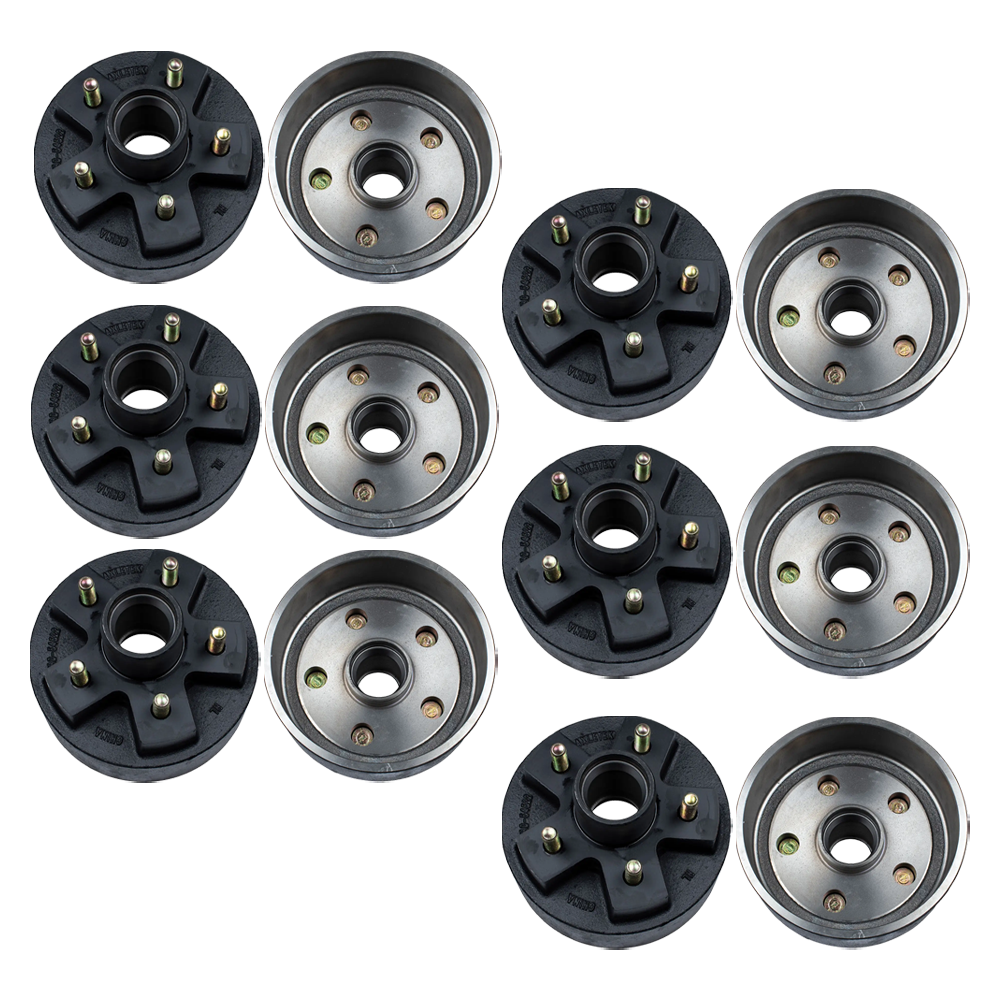

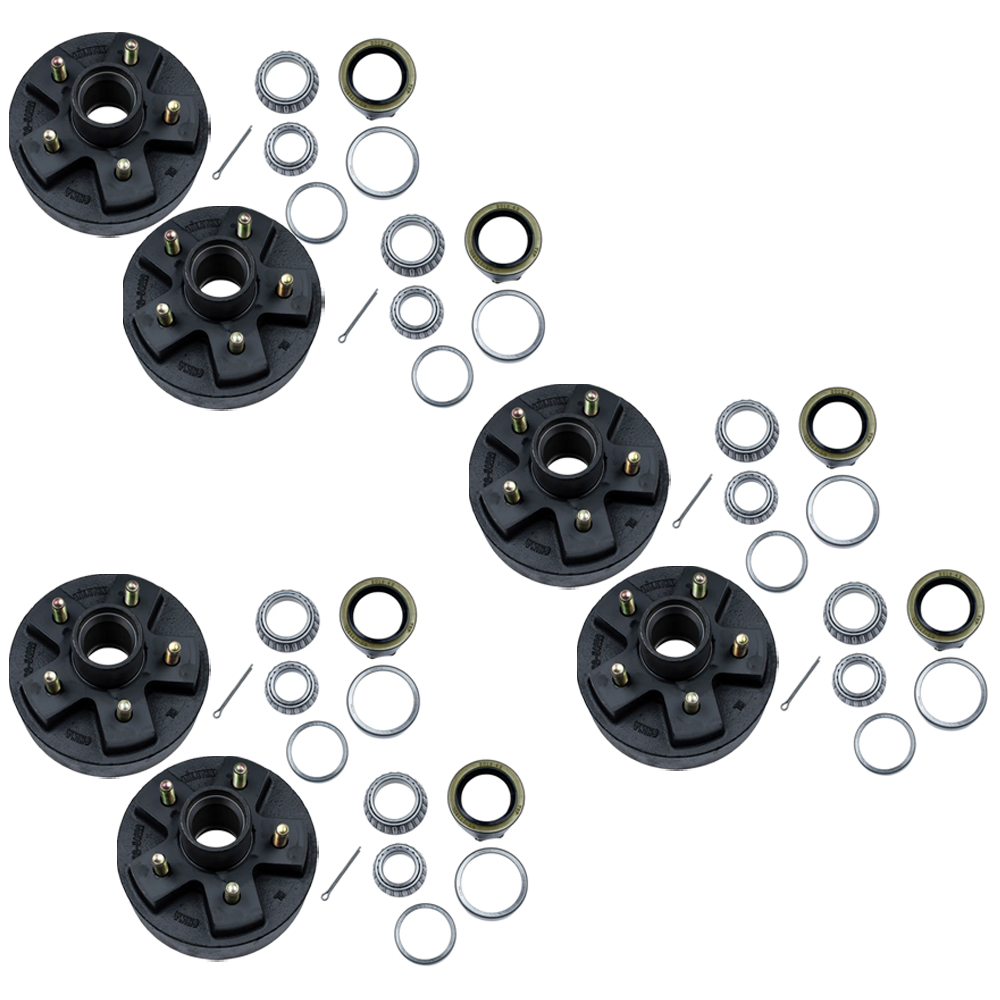

• QTY (6): 7" Brake Hub, 5 on 4.5"; 1/2" Stud - 2,200 lbs. (with Bearing Cone Kit)
  • Lippert® genuine replacement part
  • Brake Hub #134206 with Bearing Kit #333948
  • Axle rating: 2,200 lbs.
  • Wheel size compatibility: 8" to 12"
  • Bolt pattern: 5 on 4.5"
  • Stud size: 1/2"
  • 1-year warranty

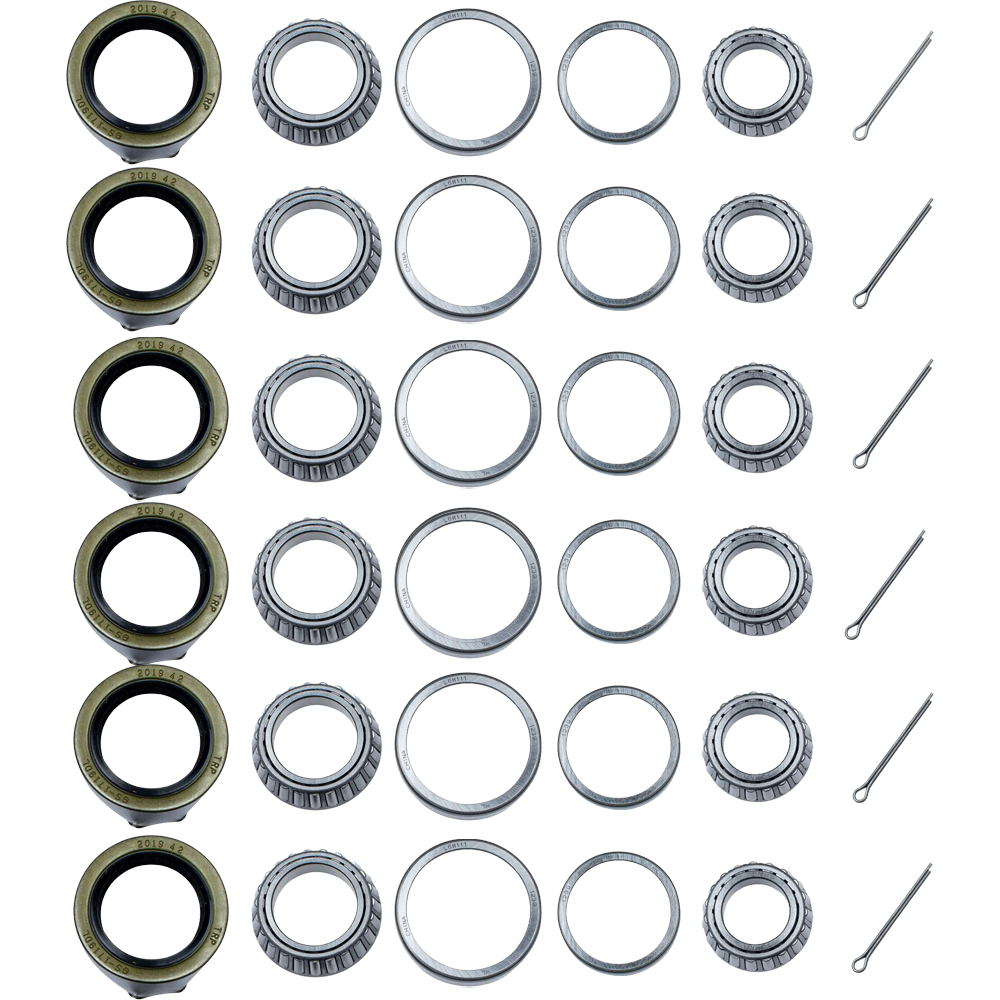

  • Each hub includes one bearing kit (#333948):
    • (1) Inner Bearing Cone
    • (1) Outer Bearing Cone
    • (1) Inner Bearing Cup
    • (1) Outer Bearing Cup
    • (1) Double-Lip Grease Seal
    • (1) Cotter Pin
    Since there are 6 hubs in this bundle, you receive 6 complete bearing kits.
• QTY (6): 1" Round Spindle Nut Retainer Kit for 3,500-8,000-lb. Axle Hubs
  • Complete spindle nut retainer kit
  • (1) 6-slot castle spindle nut (1"-14 threads)
  • (1) Round spindle washer (1" ID, 1.68" OD)
  • (1) 1.75" cotter pin
• QTY (3): 2-Pack Dust Cap - 2,000-3,500-lb. Axles
  • Replacement dust caps
  • For 2,000-3,500-lb. axle capacities
  • 1.988" outer diameter, 1-1/4" tall
  • Each pack has 2 dust caps
  • 3 packs total = 6 dust caps
• QTY (5): Lippert 60° Cone Trailer Lug Nut - 1/2"-20 (6-Pack)
  • 60-degree cone design lug nut
  • 1/2"-20 thread size
  • Common replacement for 2,200-lb. capacity Lippert wheel hubs
  • Ships in retail clam shell package
  • Each pack contains 6 lug nuts, so QTY (5) equals 30 total lug nuts

Always verify your original equipment specs and follow a regular maintenance schedule for optimal safety and performance. Proper upkeep of brakes, hubs, and hardware ensures your trailer is ready for any adventure.
