Lippert?7K?/?8K?Hybrid Tandem?Axle?12??Electric Brake?&?Drum Hub?Kit –?8?on?6.5?5/8??Studs – Dexter,?Al?Ko,?Rockwell?Compatible

Complete Lippert 7K / 8K Hybrid Tandem‑Axle 12″ Electric Brake & Drum Hub Kit – 8‑on‑6.5, 5/8″ Studs

Give your heavy‑duty trailer factory‑new stopping power with this matched Lippert bundle. Two left‑ and two right‑hand 12″ electric brake assemblies pair with four threaded hybrid‑grease drum hubs to create a seamless, ready‑to‑install solution for tandem axles. Designed for 7,000‑lb GAWR axles and Lippert 8,000‑lb hybrid axles, the kit is fully compatible with Dexter, Al‑Ko and Rockwell systems—eliminating guesswork and getting you back on the road faster.

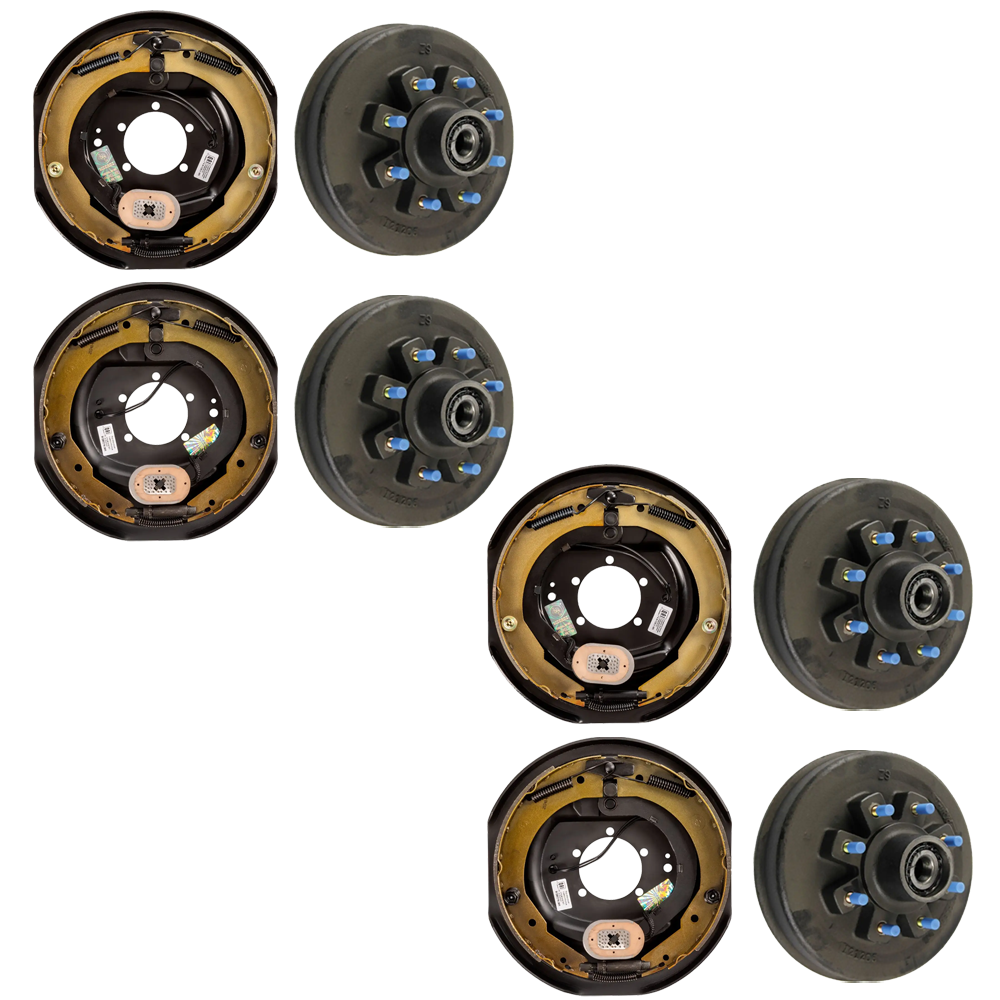

Bundle Contents:

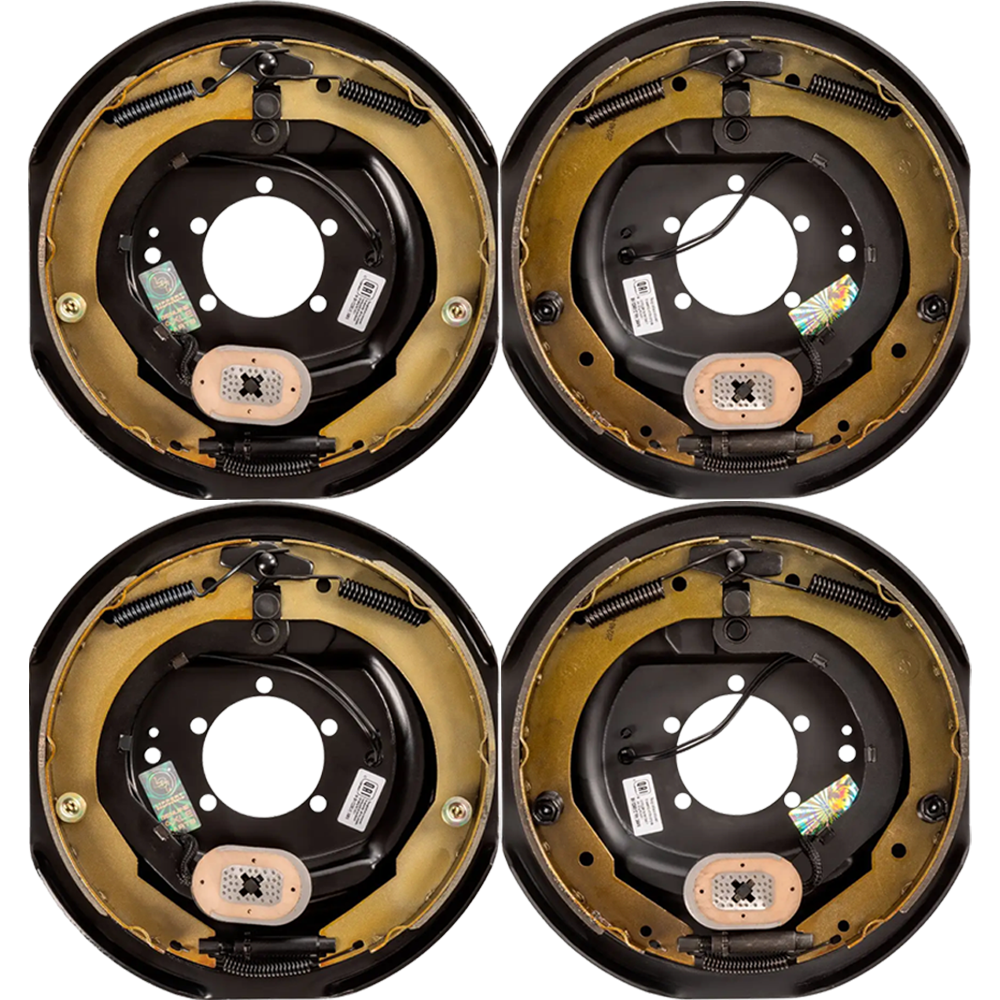

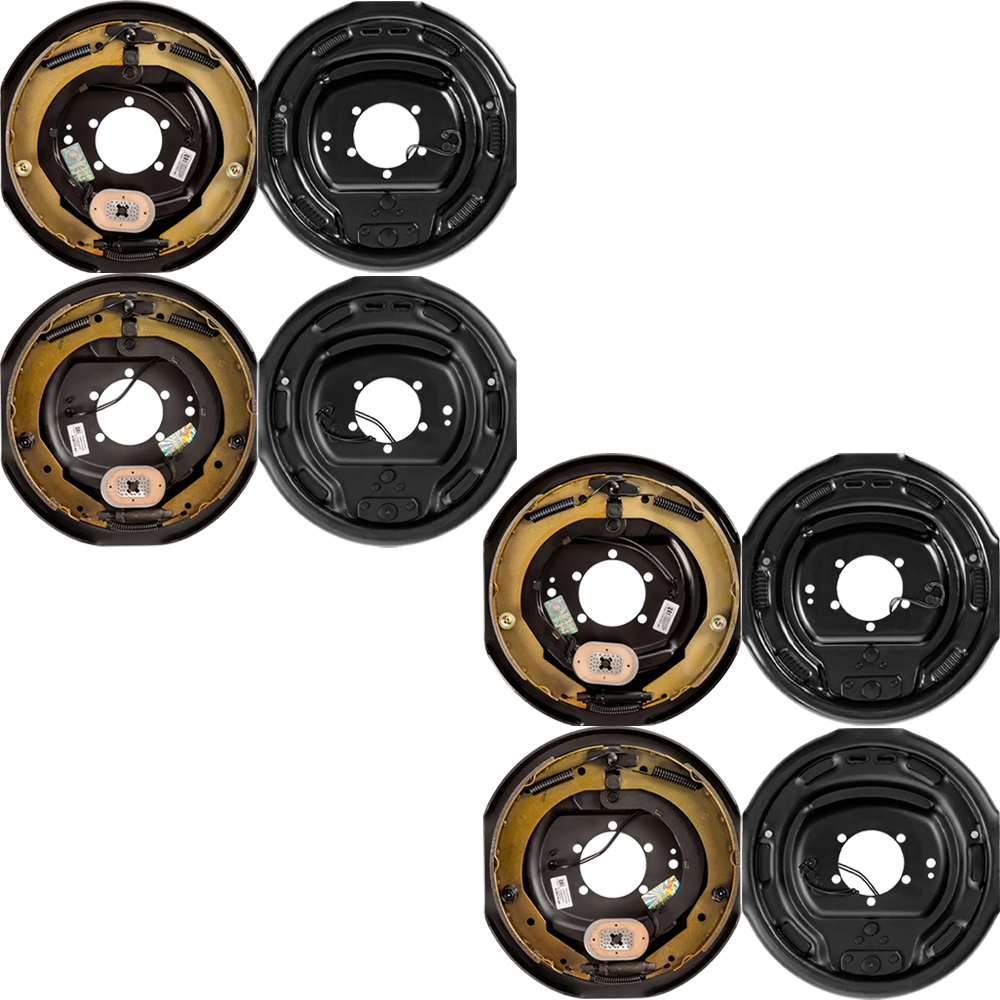

• QTY (2): Lippert 12″ × 2″ Electric Trailer Brake Assembly – Left‑Hand, 4K‑7K lbs
  • Manual‑adjust drum brake with integrated parking lever
  • Road‑side (LH) orientation; five‑bolt mounting flange
  • Fits 5,200‑7,000‑lb axles & 8K hybrid axles
  • Wheel size compatibility: 15″‑17.5″
  • Quick DIY replacement; hardware sold separately
  • Dexter OEM cross‑reference: K23‑180‑00 / 023‑180‑00
• QTY (2): Lippert 12″ × 2″ Electric Trailer Brake Assembly – Right‑Hand, 4K‑7K lbs
  • Manual‑adjust drum brake with parking lever
  • Curb‑side (RH) orientation; five‑bolt mounting flange
  • Fits 5,200‑7,000‑lb axles & 8K hybrid axles
  • Wheel size compatibility: 15″‑17.5″
  • Requires standard break‑in for full performance
  • Dexter OEM cross‑reference: K23‑181‑00 / 023‑181‑00

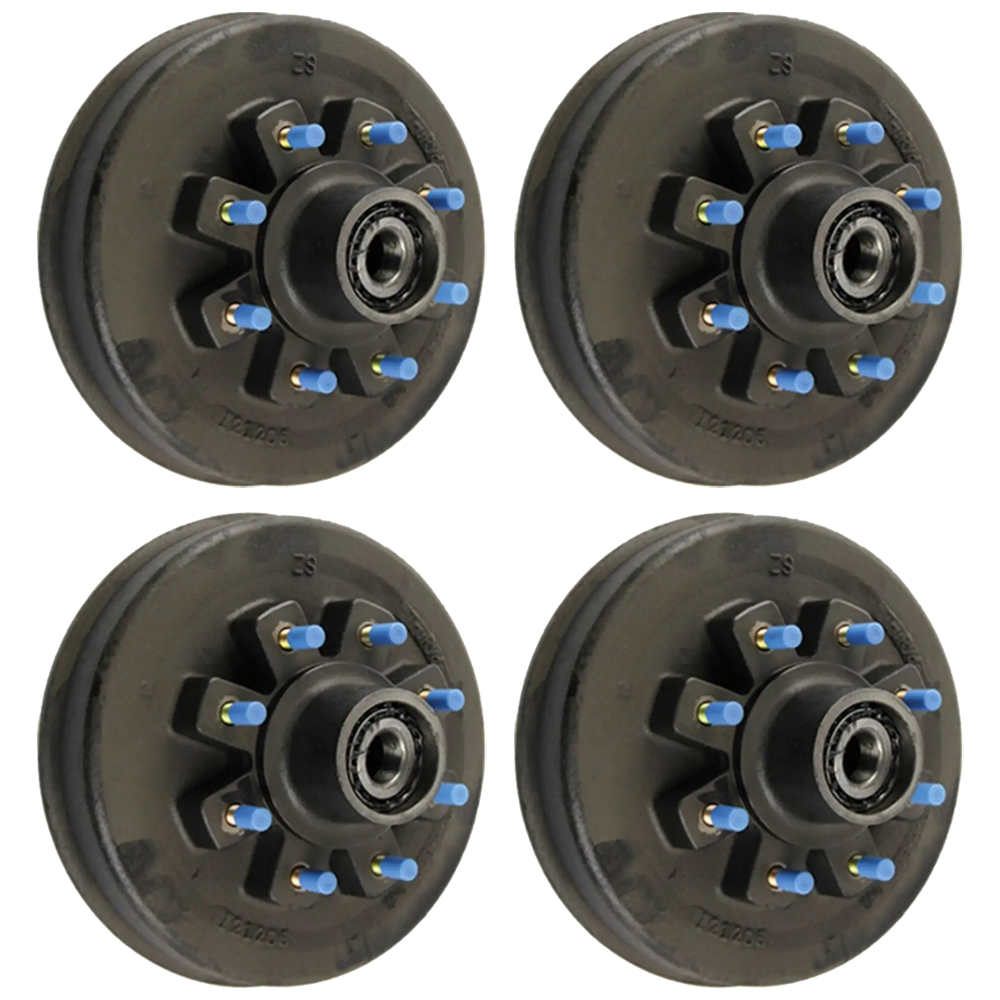

• QTY (4): 12″ Threaded Hybrid Grease Drum Hub – 8K, 8‑on‑6.5″, 5/8″ Studs
  • Rated for 8,000‑lb axles; cast‑iron durability
  • 8‑on‑6.5″ bolt circle with heavy‑duty 5/8″ studs installed
  • Races and wheel studs come pre‑installed
  • Wheel size compatibility: 17.5″
  • Accepts electric or hydraulic drum brakes
  • Valcrum threaded dust‑cap ready
  • Universally compatible with Dexter & other major brands
  • Backed by Lippert 1‑year warranty

Verify axle specifications, bearing numbers and bolt patterns before installation. Torque all hardware to spec and perform routine brake & hub maintenance to ensure long service life.
