Lippert 7K Axle?Right?Hand?12"?Electric Brake Assembly?&?8?on?6.5?Hub?Only Drum Kit?(1/2"?Stud)?�?Dexter, Alko Compatible
$217.99
Lippert 7K Axle Brake & Hub‑Only Drum Replacement Bundle
Restore confident stopping power on your heavy‑duty trailer. This genuine Lippert bundle pairs a right‑hand 12" manual‑adjust electric brake assembly with a rugged 8‑on‑6.5" hub‑only drum. It’s a fast, factory‑fit solution for refreshing one 7,000‑lb axle while keeping costs down by reusing your existing bearing components.

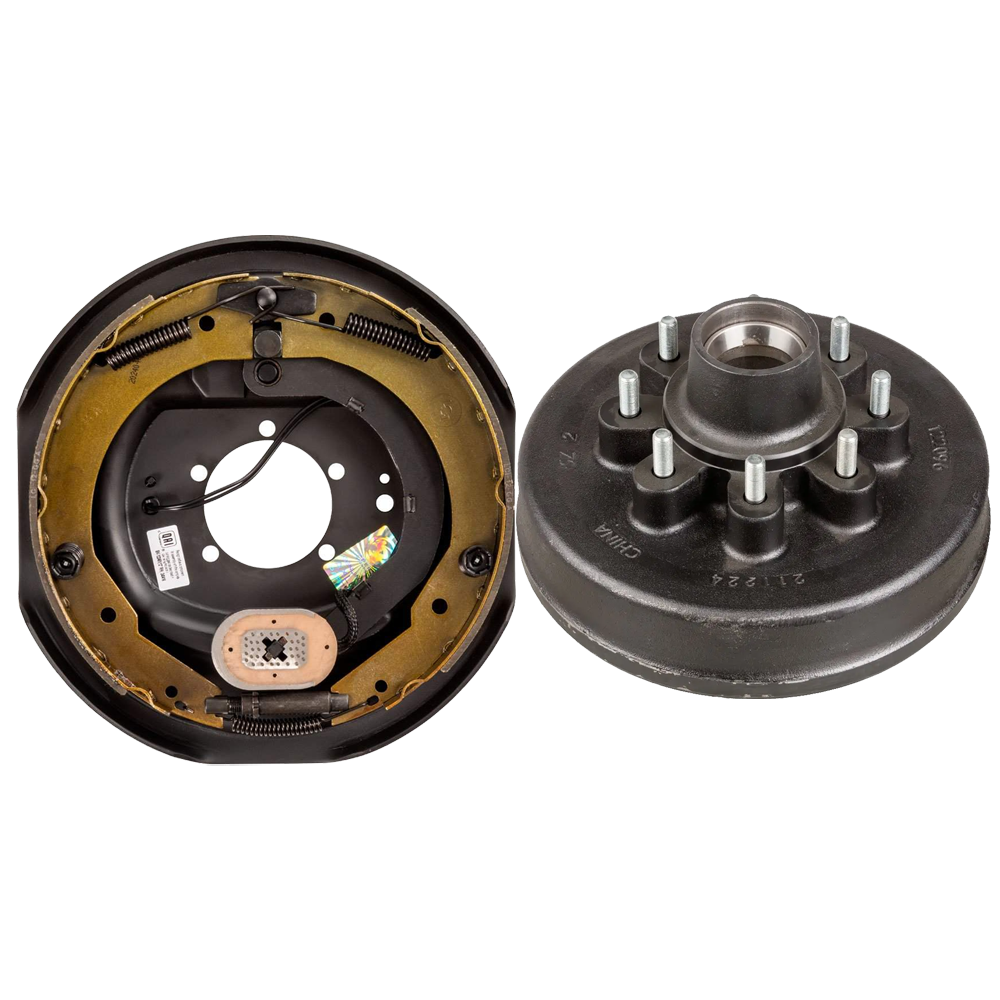

Bundle Contents:
-

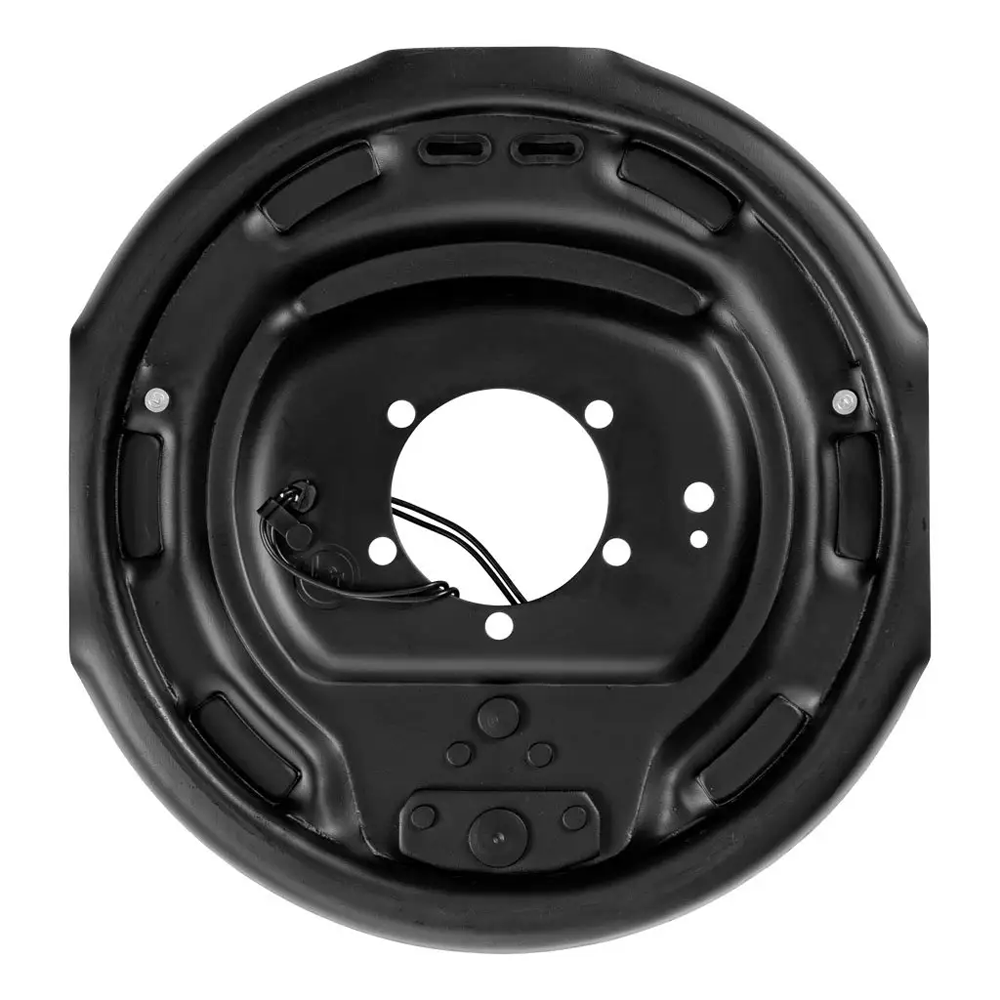

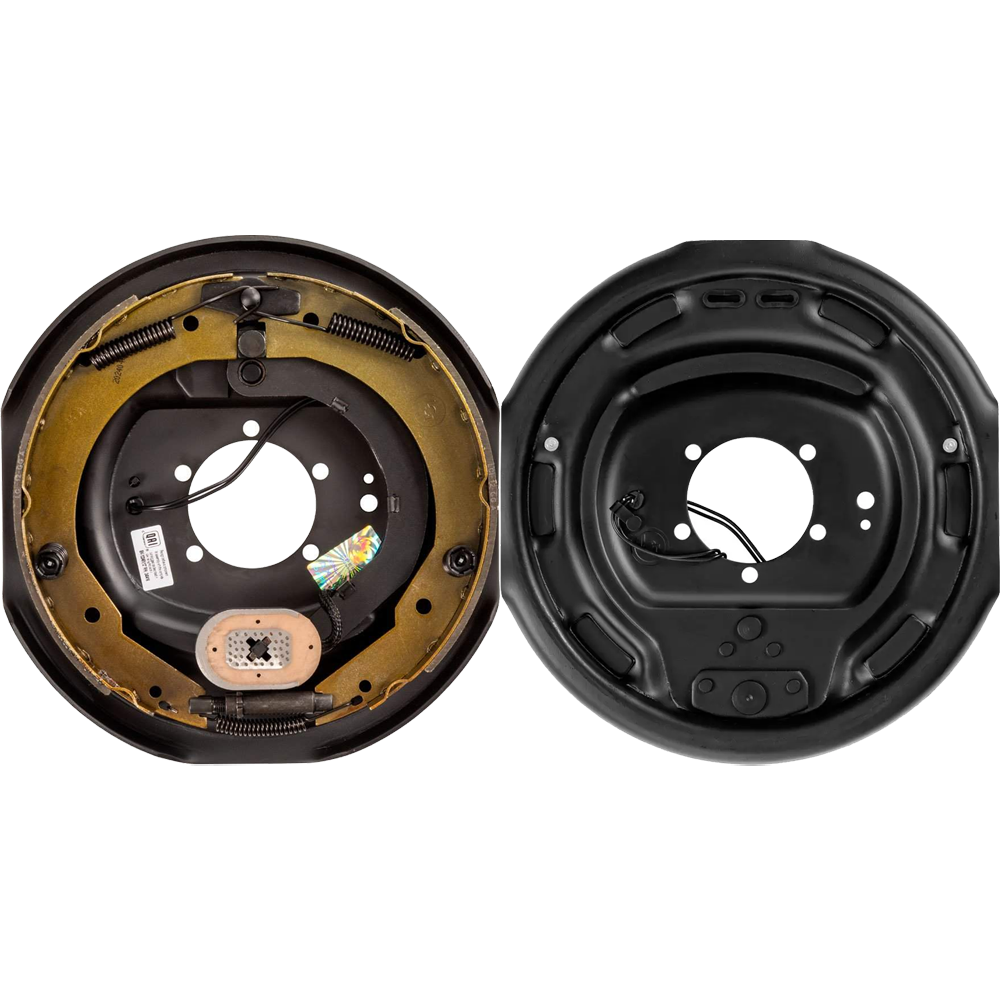

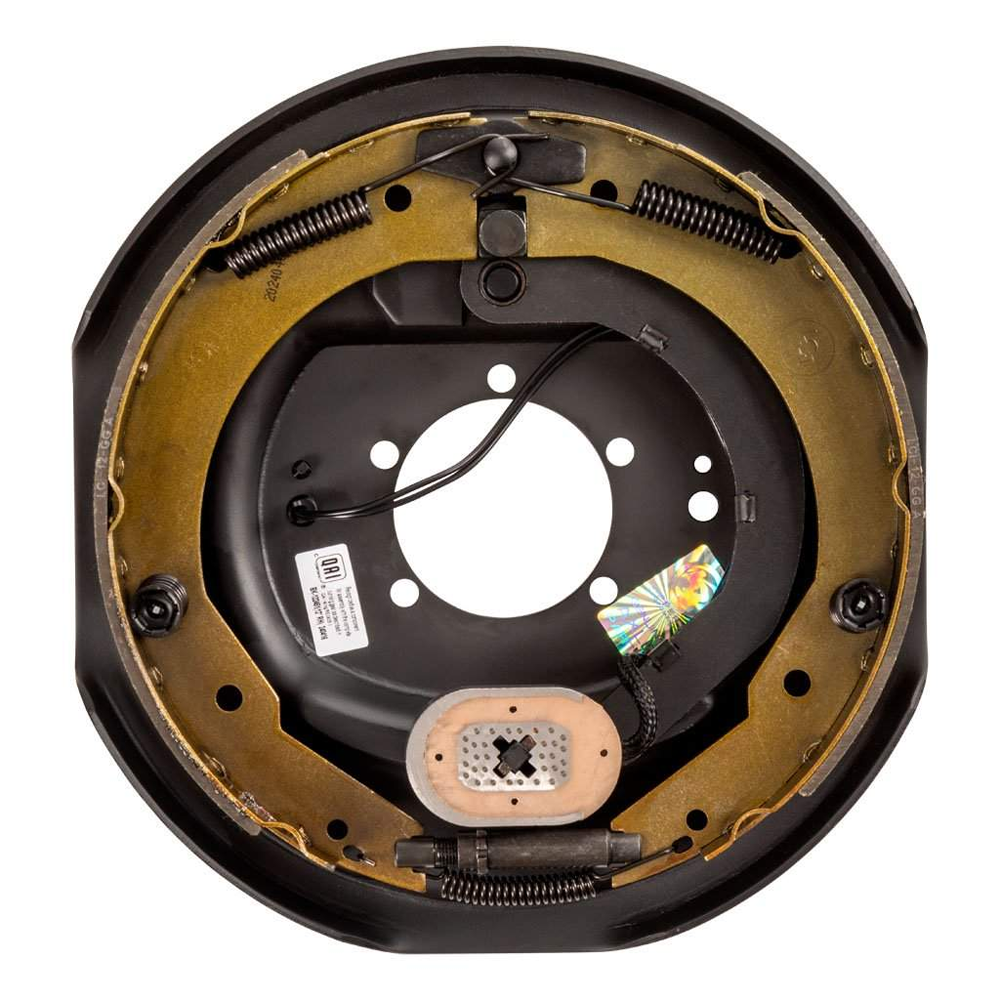

QTY (1): Lippert Electric Brake Assembly – 12" × 2", 7,000 lbs (Right‑Hand)
- Direct OEM replacement electric brake
- Right‑hand / curb‑side orientation
- Manual adjuster for precise shoe clearance
- 4‑bolt mounting flange
- Pre‑wired magnet leads for quick DIY install
- Dexter compatible part numbers: K23‑181‑00 | 023‑181‑00
- 12‑month limited warranty
-

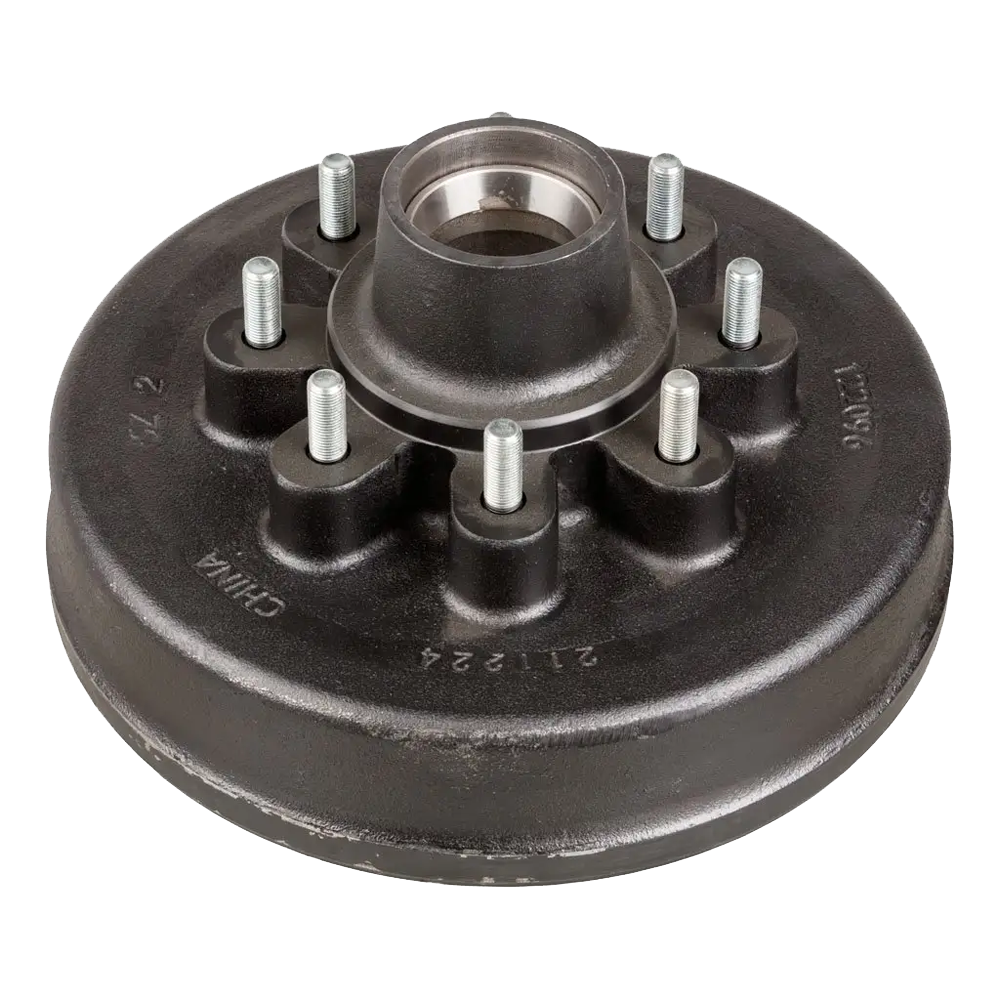

QTY (1): Lippert 12" Hub‑Only Brake Drum – 8 on 6.5", 1/2" Stud
- Heavy‑duty cast‑iron drum/hub (hub only – bearings & seals sold separately)
- 8‑lug on 6.5" bolt circle, 1/2" studs
- Engineered for superior heat dissipation
- Rated for 7 000‑lb axles
- Limited 1‑year warranty
Always compare parts to your original equipment and service brakes regularly for safe, dependable towing.
| Specifications: | |
|---|---|
| Kit Type | Manual Electric Brake & Hub‑Only Drum Kit |
| Axle Rating | 7 000 lbs (bundle max capacity) |
| Brake Drum Dimensions | 12" × 2" |
| Brake Mounting Pattern | 4‑bolt brake flange |
| Hub Bolt Pattern | 8 on 6‑1/2" |
| Hub Type | Hub Only (bearings & seals not included) |
| Stud Size | 1/2" |
| Type of Adjustment | Manual |
| Brake Location | Right Hand (curb side) |
| Wheel Size Compatibility | 16", 16.5", 17", 17.5" |
Order today or call us at 877‑869‑6690 for expert advice and personalized service.
