Lippert 7 K‑Rated Left‑Hand 12" × 2" Electric Brake & 12" Threaded Hybrid Hub‑Drum – Fits 8 K Hybrid Axles

Refresh the stopping power on your heavy‑duty trailer with this genuine Lippert replacement bundle. It pairs a 7,000‑lb‑rated forward self‑adjusting electric brake (left/road side) with a robust threaded hybrid 12" hub‑drum that mounts on 8 K hybrid spindles. That means you keep the convenience of smaller 12" brakes while bolting to hubs, bearings, and spindles normally found on 8 K axles—ideal for Dexter, Al‑Ko, Rockwell and other quality brands.

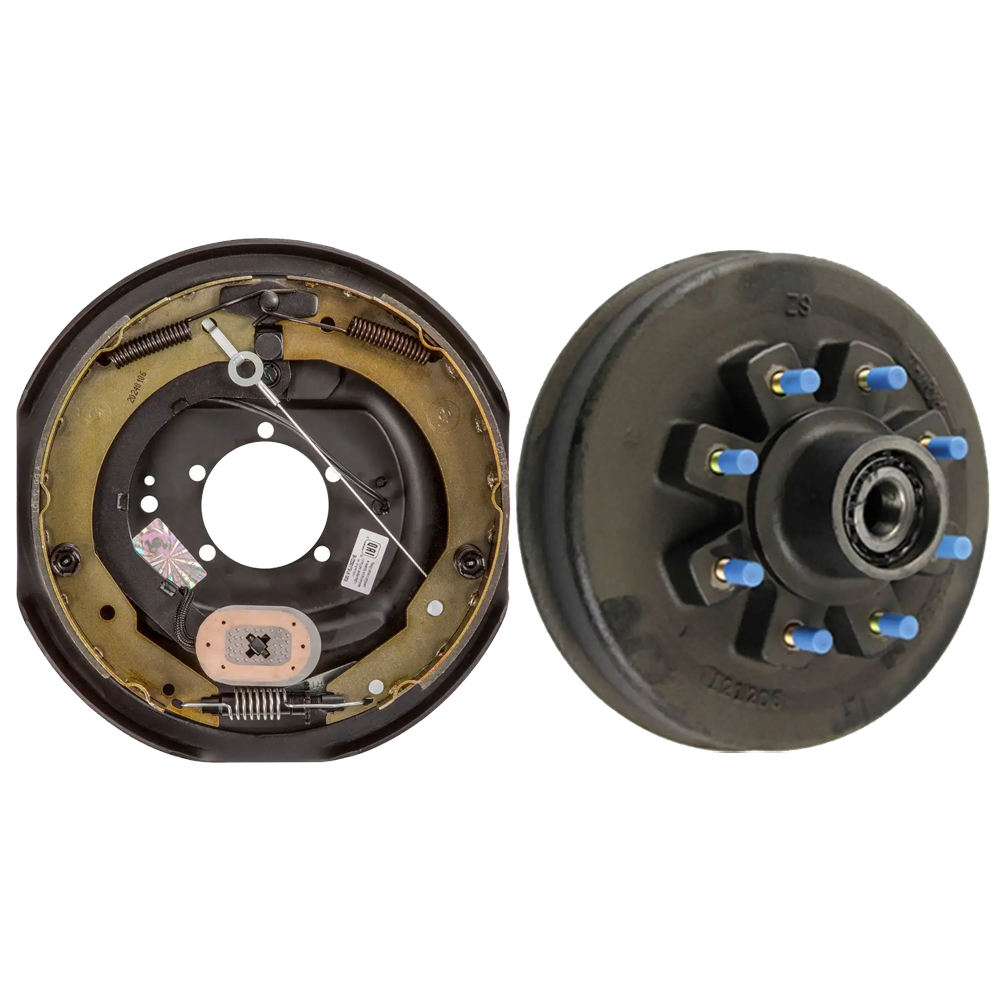

Bundle Contents:

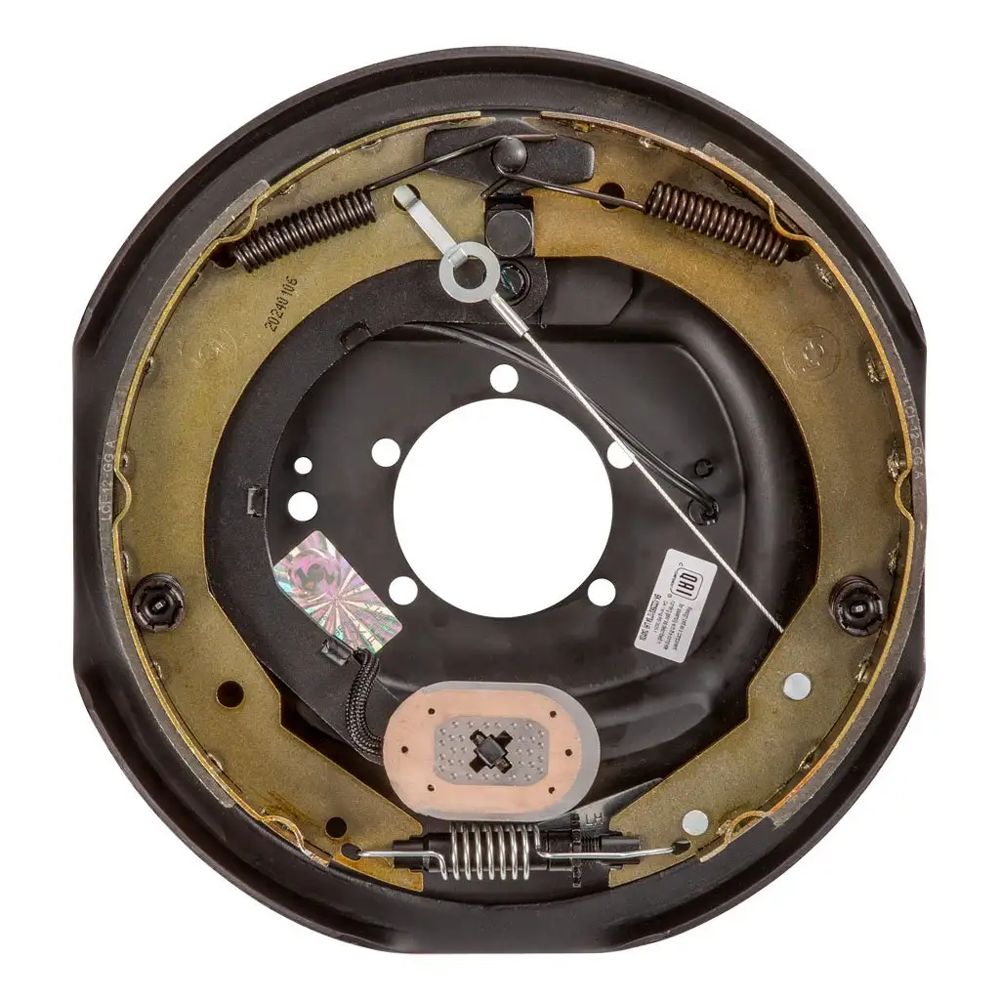

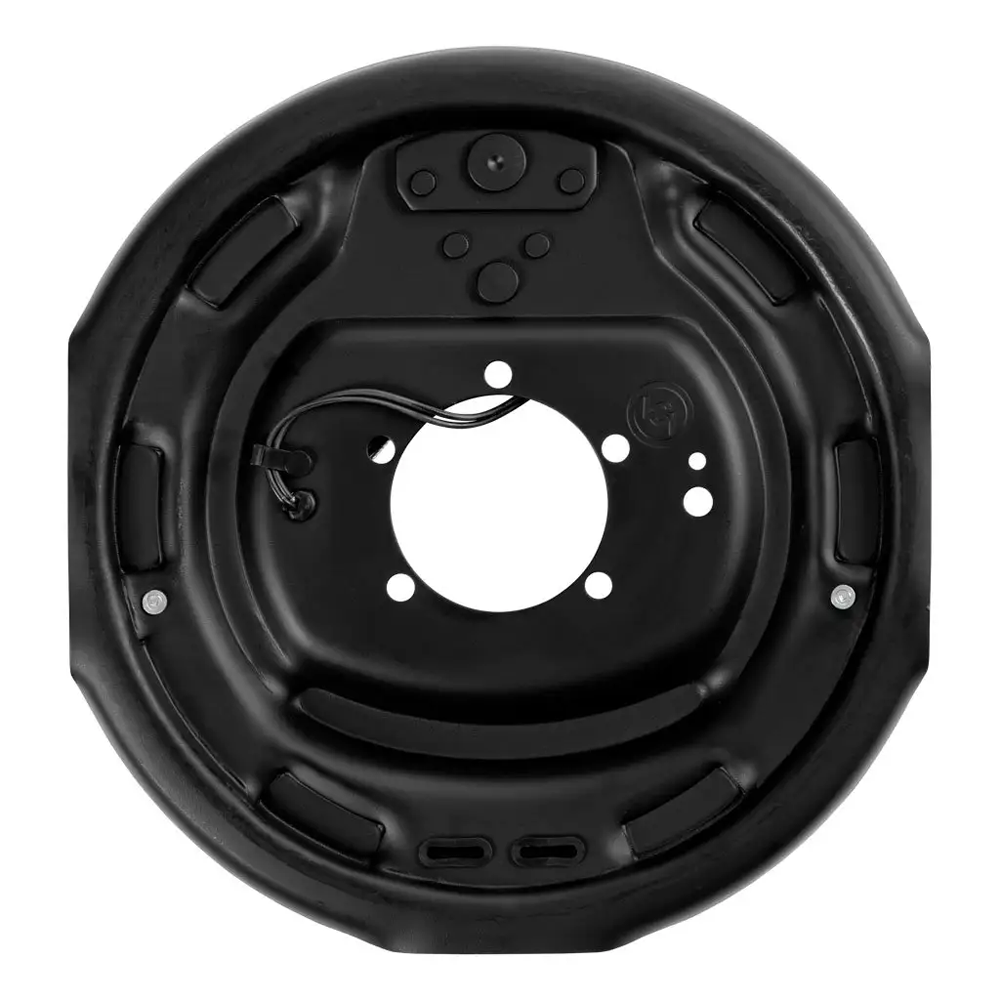

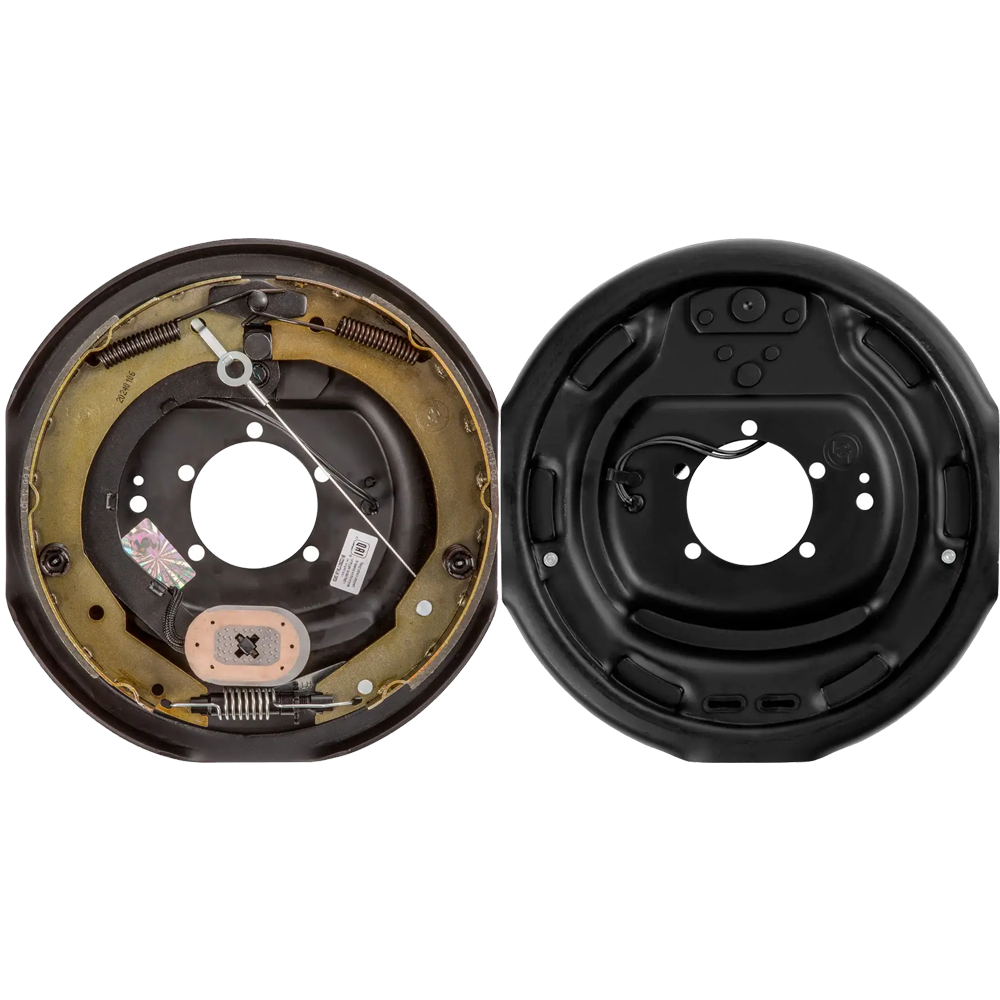

• QTY (1): Lippert Forward Self‑Adjusting Brake Assembly – 12" × 2", 7 K (Left)
  • Brake rating: 7,000 lb per axle
  • Left‑hand / road‑side configuration
  • Fits 15" – 17.5" wheels
  • Self‑adjusting shoe design
  • 5‑bolt brake flange; easy DIY swap
  • Dexter compatible part # K23‑464‑00 | 023‑464‑00
  • 1‑year limited warranty

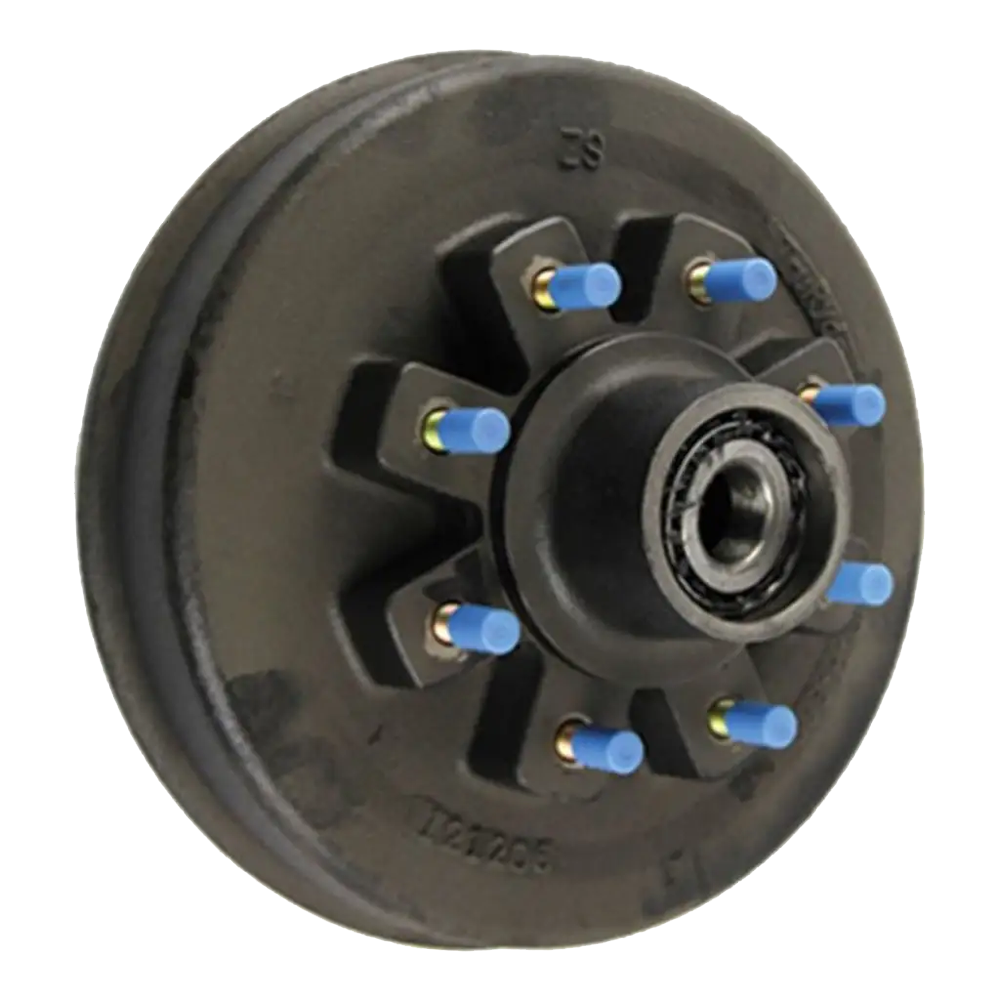

• QTY (1): 12" Threaded Hybrid Trailer Brake Hub‑Drum – 8 K, 8‑on‑6.5", 5/8" Studs
  • Hub rating: 8,000 lb (bundle limited to 7 K by brake)
  • 12" drum with threaded hub design
  • 8‑on‑6.5" bolt circle, 5/8" heat‑treated studs
  • Races and wheel studs come pre‑installed
  • Accepts Valcrum threaded dust caps
  • Compatible with electric or hydraulic drum brakes
  • Cast‑iron construction; 1‑year warranty

Important: While the hub is engineered for 8 K hybrid axles, braking force is limited to 7 K because it uses the standard 12" × 2" brake assembly. For full 8 K braking performance, upgrade to 12‑¼" brakes. Always match bolt pattern, stud size and flange style, and follow the axle maker’s service schedule.
