Lippert 7K?Self?Adjusting?12??Electric Brake Assemblies?&?12??Brake Drum Hubs (Pair) � 8?on?6.5?Bolt Pattern,?1/2??Studs � Dexter?/?AL?KO?Compatible

Lippert 7K Self‑Adjusting 12″ Brake & Hub Pair Bundle

Upgrade or service your 7,000‑lb trailer axle in one package. This bundle pairs left‑ and right‑hand Lippert forward self‑adjusting 12″ electric brake assemblies with two matching 12″ cast‑iron brake drum hubs (8‑on‑6.5″, 1/2″ studs). Enjoy dependable stopping power, automatic adjustment, and a fast DIY install.

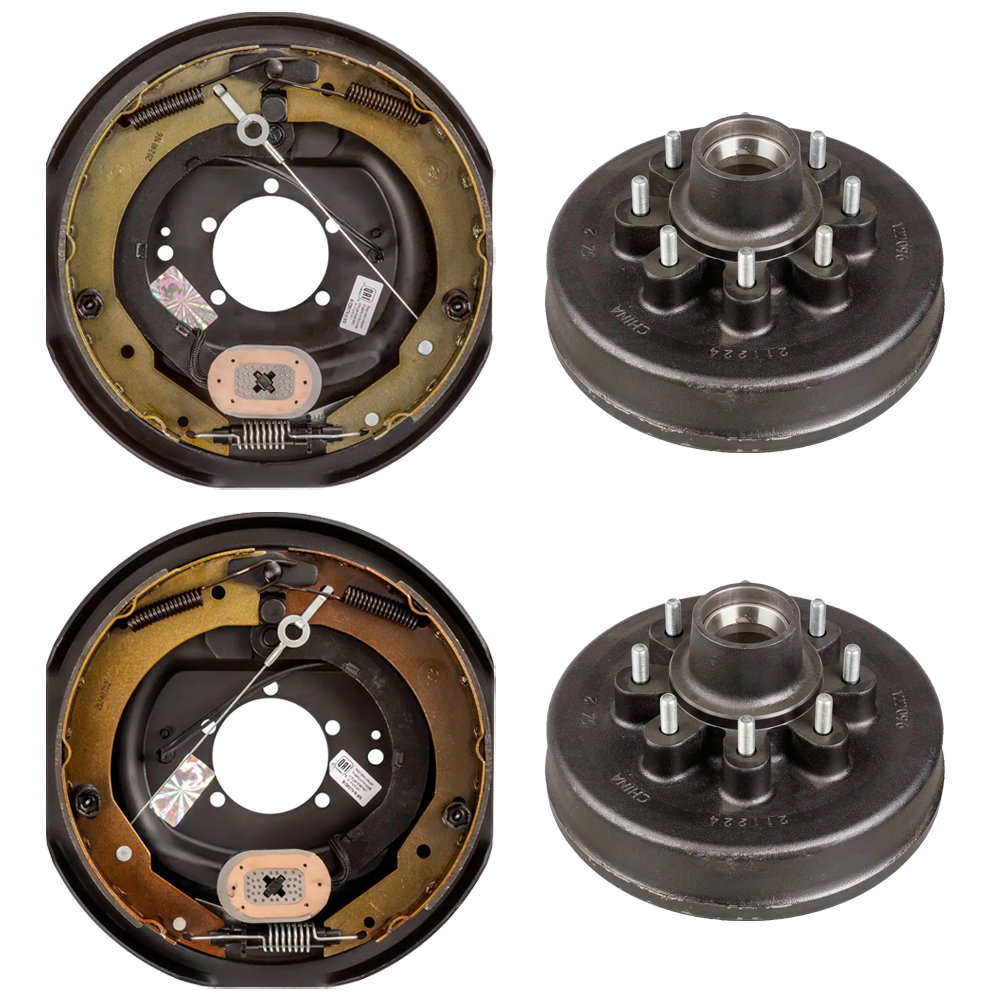

Bundle Contents:

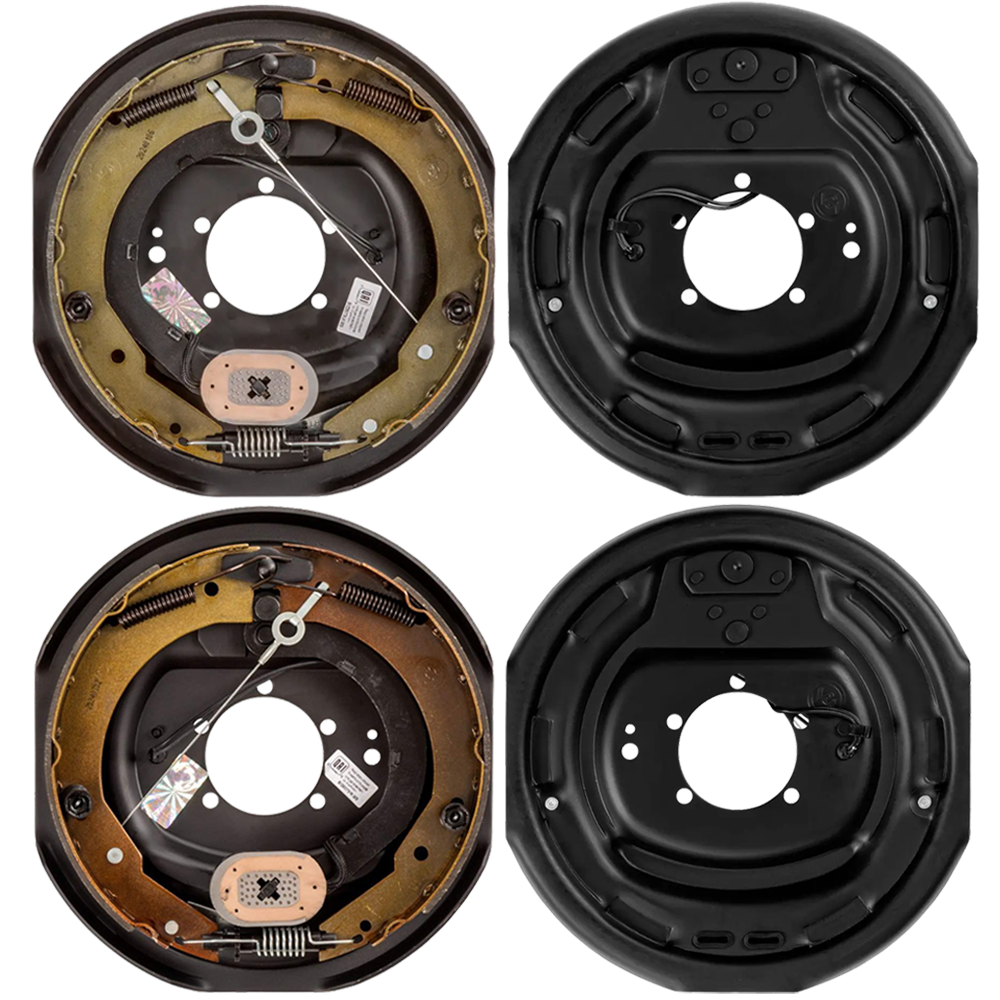

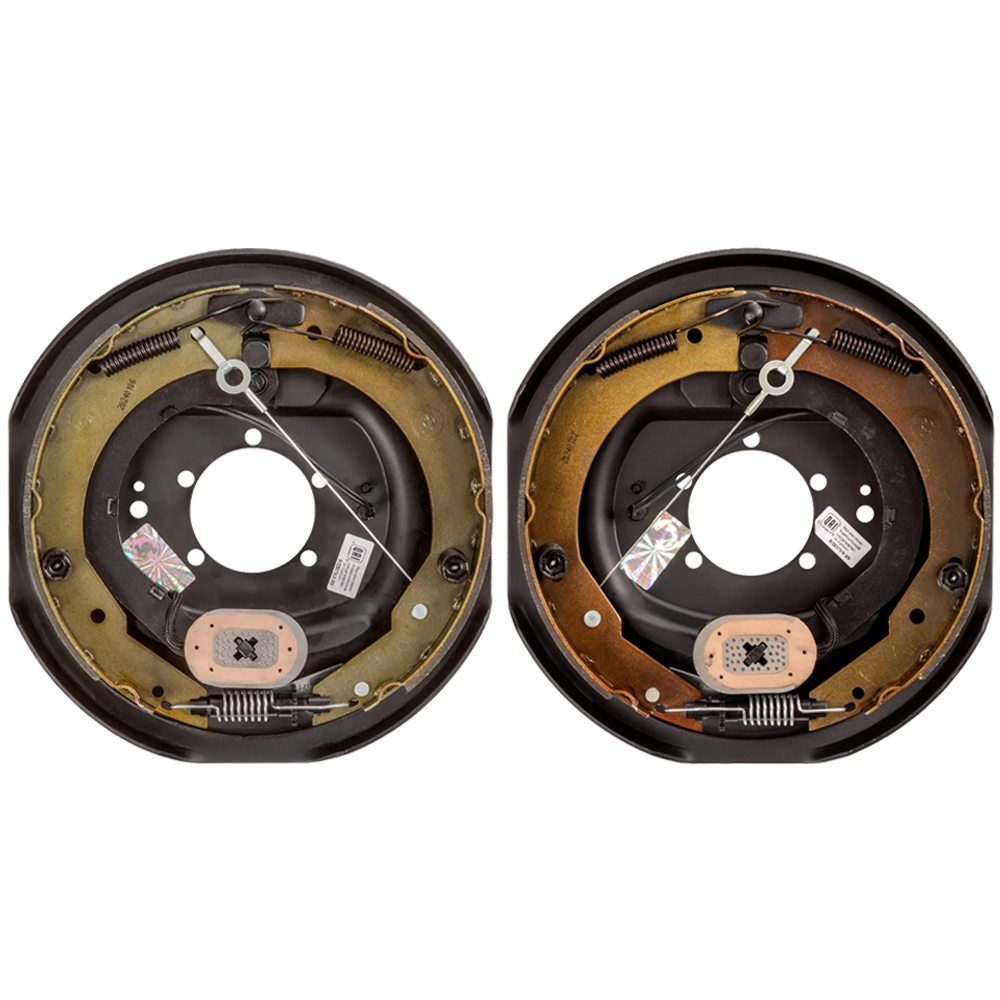

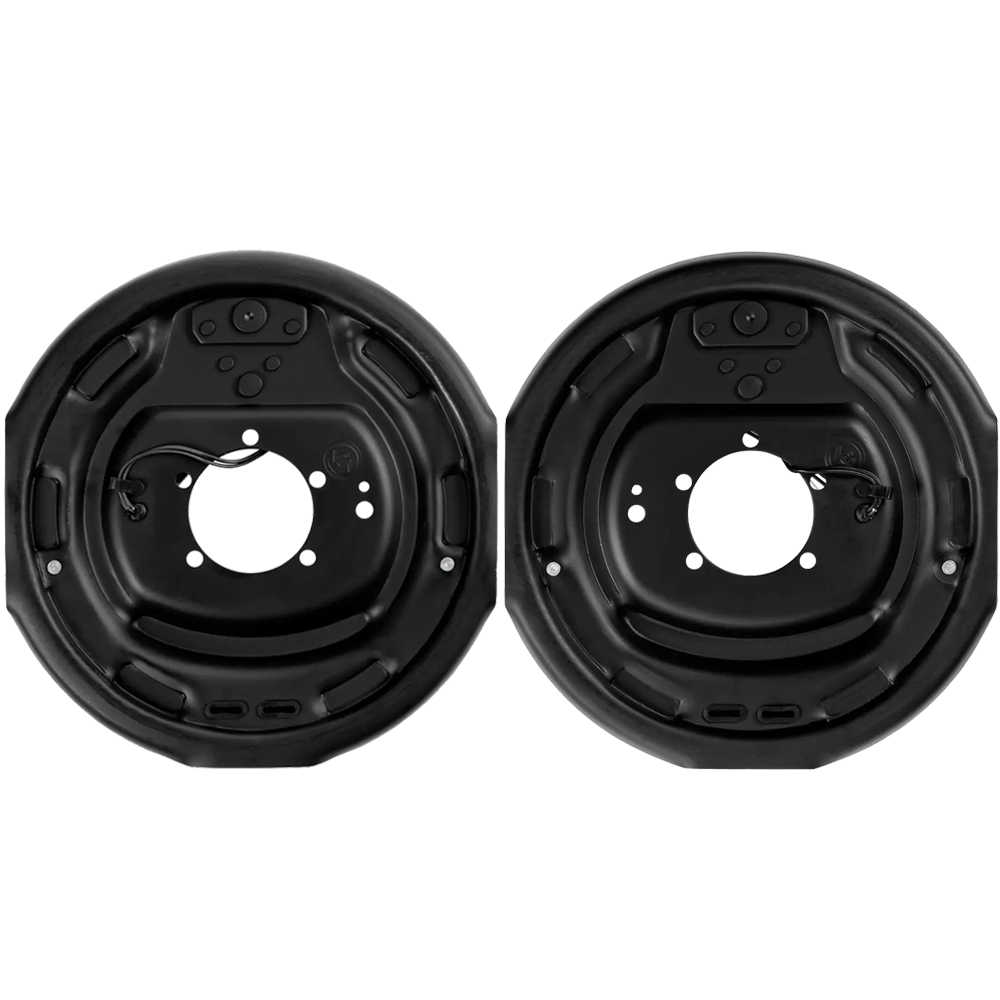

• QTY (1): Lippert Forward Self‑Adjusting Brake Assembly – 12″ × 2″, 5‑Bolt, Left (Road‑Side)
  • 12″ × 2″ electric drum brake for 4K‑7K axles
  • Self‑adjusting mechanism—no manual star‑wheel tweaks
  • Dexter Compatible PN: K23‑464‑00 | 023‑464‑00
  • Road‑side (left‑hand) unit with 5‑bolt mounting flange
  • Improves stopping distance by up to 50 %
  • DIY friendly; 1‑year limited warranty
• QTY (1): Lippert Forward Self‑Adjusting Brake Assembly – 12″ × 2″, 5‑Bolt, Right (Curb‑Side)
  • Mirror‑image curb‑side (right‑hand) assembly
  • Dexter Compatible PN: K23‑465‑00 | 023‑465‑00
  • Automatic forward‑self‑adjust design for even wear
  • Fits 4K‑7K axles with standard 5‑bolt brake flange
  • Reduces premature shoe & magnet wear
  • 1‑year limited warranty

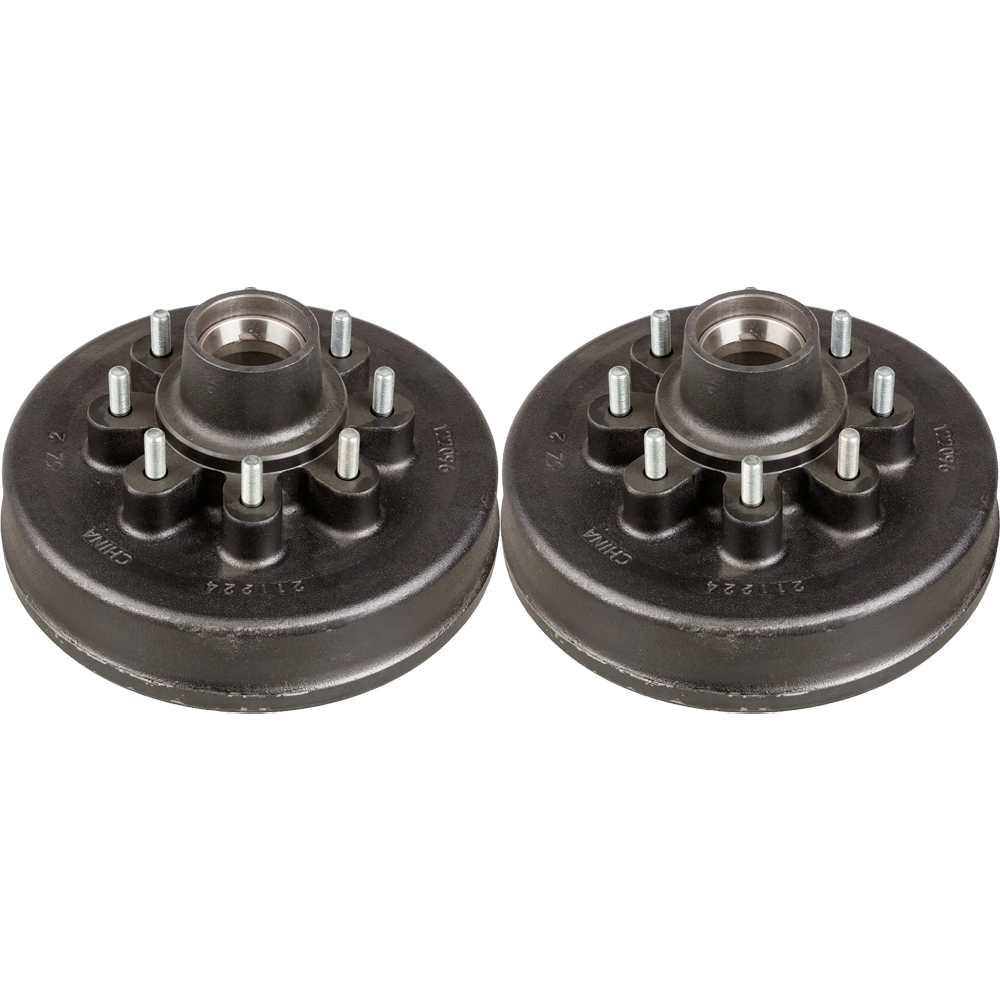

• QTY (2): Lippert 12″ Brake Drum Hub Assembly – 8‑on‑6.5″, 1/2″ Studs, 7K Axle
  • Cast‑iron hub with integrated 12″ drum (hub only—bearings & seals not included)
  • 8‑on‑6.5″ bolt circle; 1/2″ wheel studs pre‑pressed
  • Rated for 7,000‑lb trailer axles
  • Accepts 16″ – 17.5″ wheels
  • 1‑year limited warranty

Always verify axle capacity, bolt pattern, and brake‑flange configuration before installation, and inspect brake components at regular service intervals for optimal safety and performance.
