Lippert 7K Self?Adjusting Brake Assemblies?&?12" Drum Hubs Bundle � Dexter?/?AL?KO?/?Rockwell Compatible, 8?on?6.5, 9/16" Studs

Lippert 7K Trailer Self‑Adjusting Electric Brake Assemblies & 12" Bare Drum Hubs Bundle

Refresh your 7,000‑lb trailer axle with this all‑in‑one Lippert kit. Two forward self‑adjusting electric brakes and two bare 12" hub‑and‑drums deliver quicker stops, less maintenance, and a perfect fit on axles using the popular 8‑on‑6.5" bolt pattern with 9/16" studs. Compatible with Dexter, AL‑KO, and Rockwell axles.

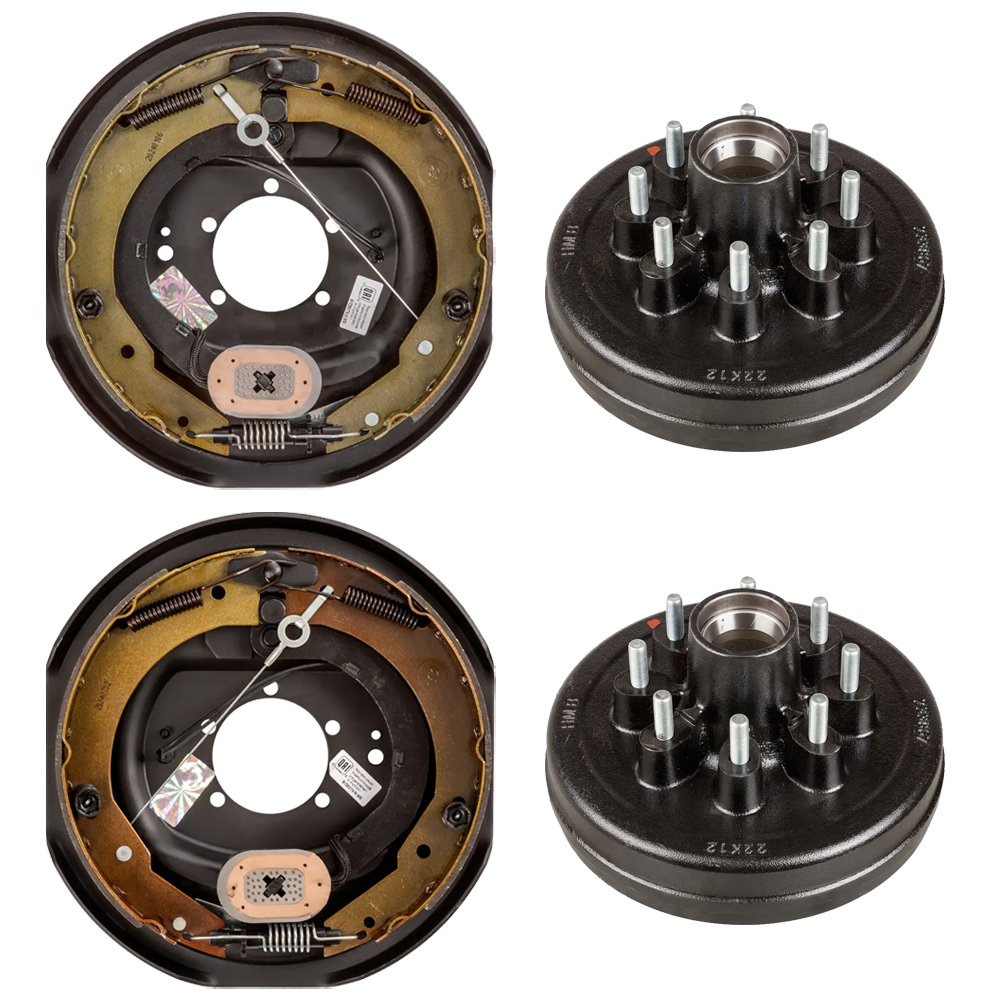

Bundle Contents:

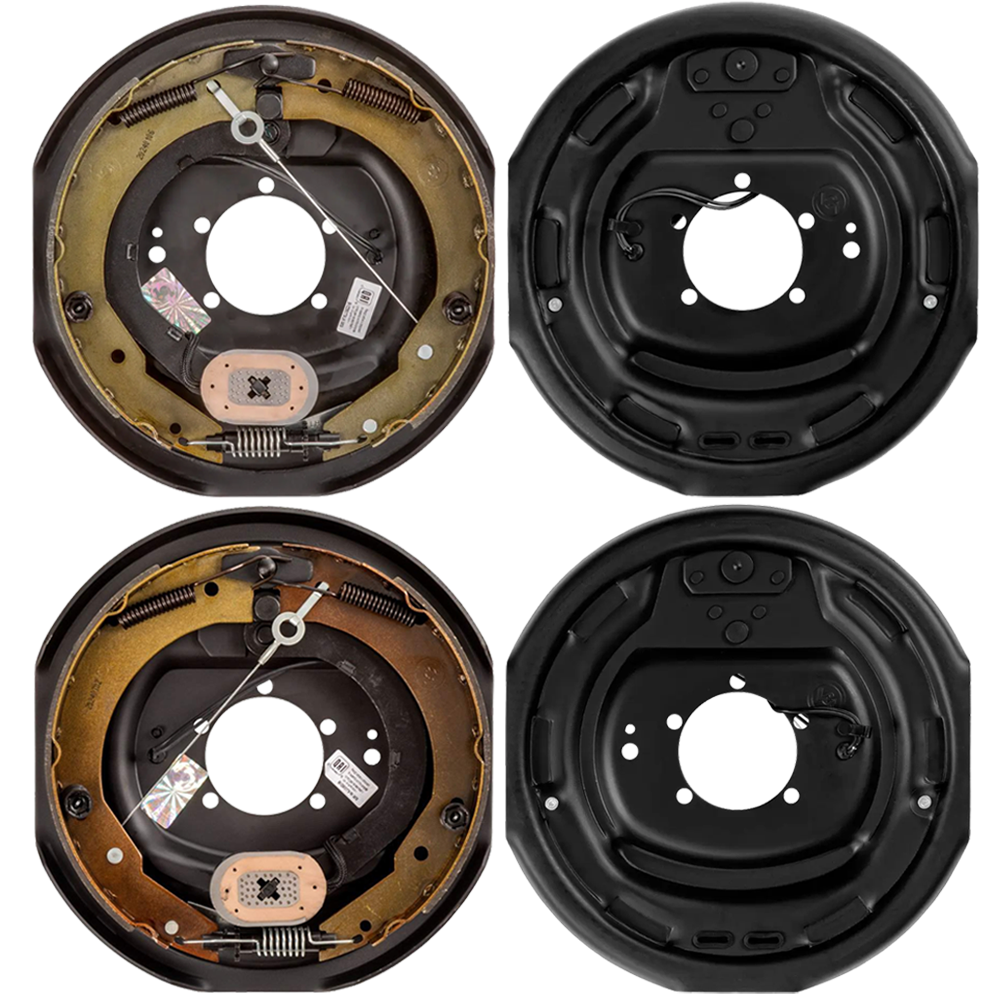

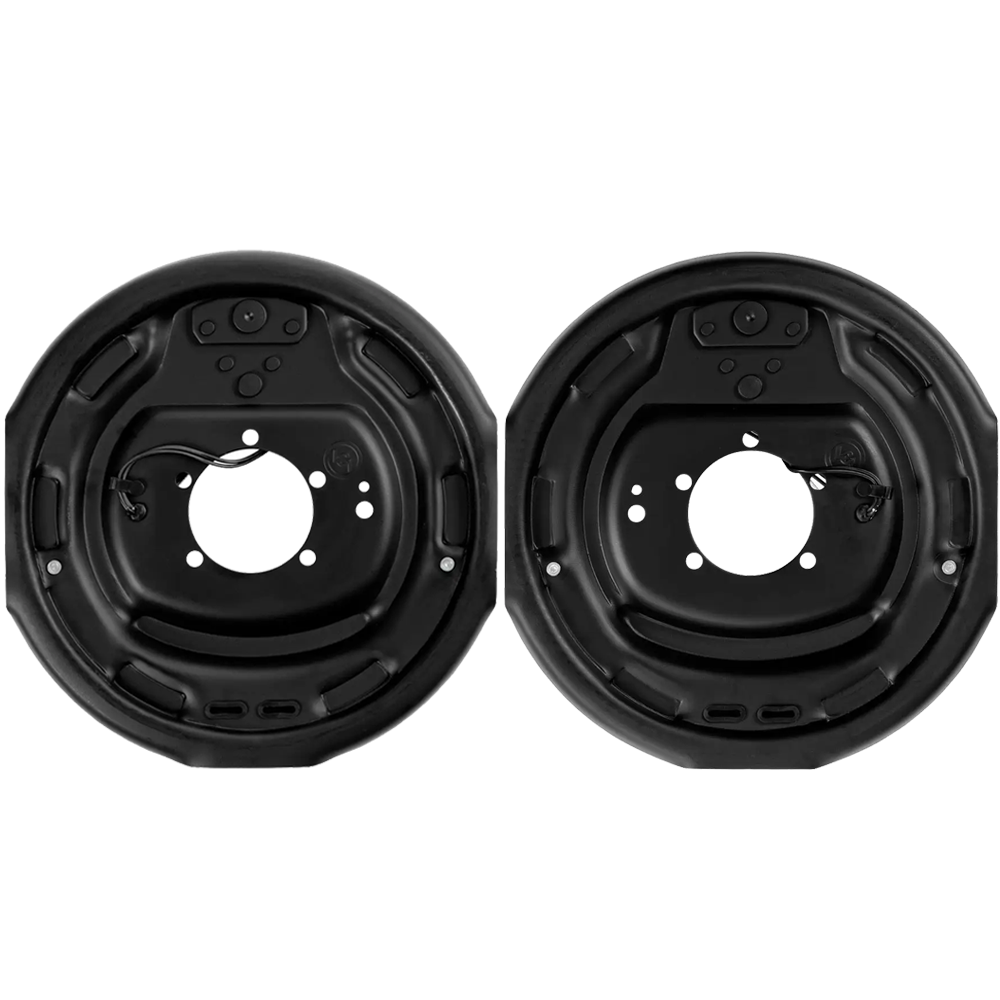

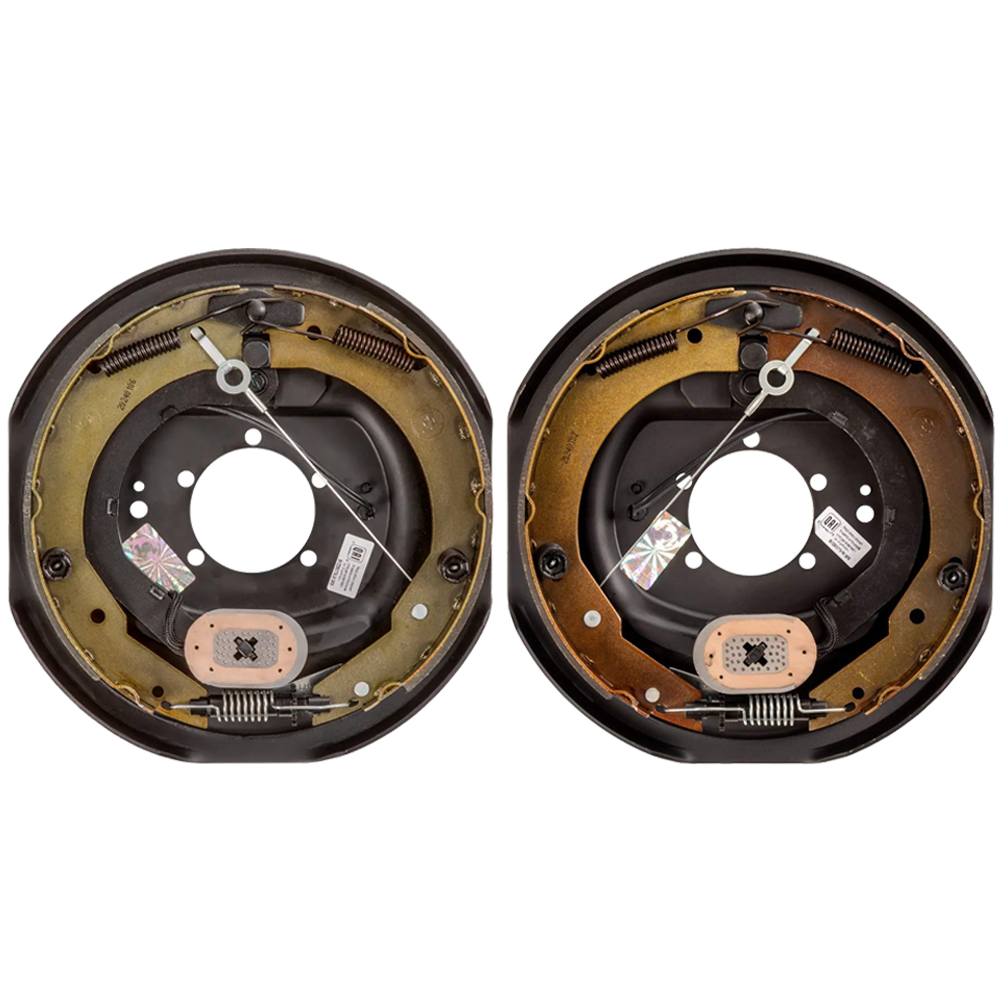

• QTY (1): Lippert Forward Self‑Adjusting Brake Assembly – Left (Road Side), 12" × 2", 5‑Bolt, 4‑7K
  • Self‑adjusts automatically at every forward stop
  • Fits 4,000‑7,000 lb axles, 12" drums
  • Five‑bolt mounting flange for quick DIY install
  • OE‑grade magnets & linings, 1‑year warranty
  • Dexter Compatible Part Number: K23‑464‑00 | 023‑464‑00
• QTY (1): Lippert Forward Self‑Adjusting Brake Assembly – Right (Curb Side), 12" × 2", 5‑Bolt, 4‑7K
  • Mirror‑image curb‑side unit completes the axle
  • Improves braking distance by up to 50 %
  • Fast, no‑bleed electric installation
  • Backed by Lippert 1‑year warranty
  • Dexter Compatible Part Number: K23‑465‑00 | 023‑465‑00

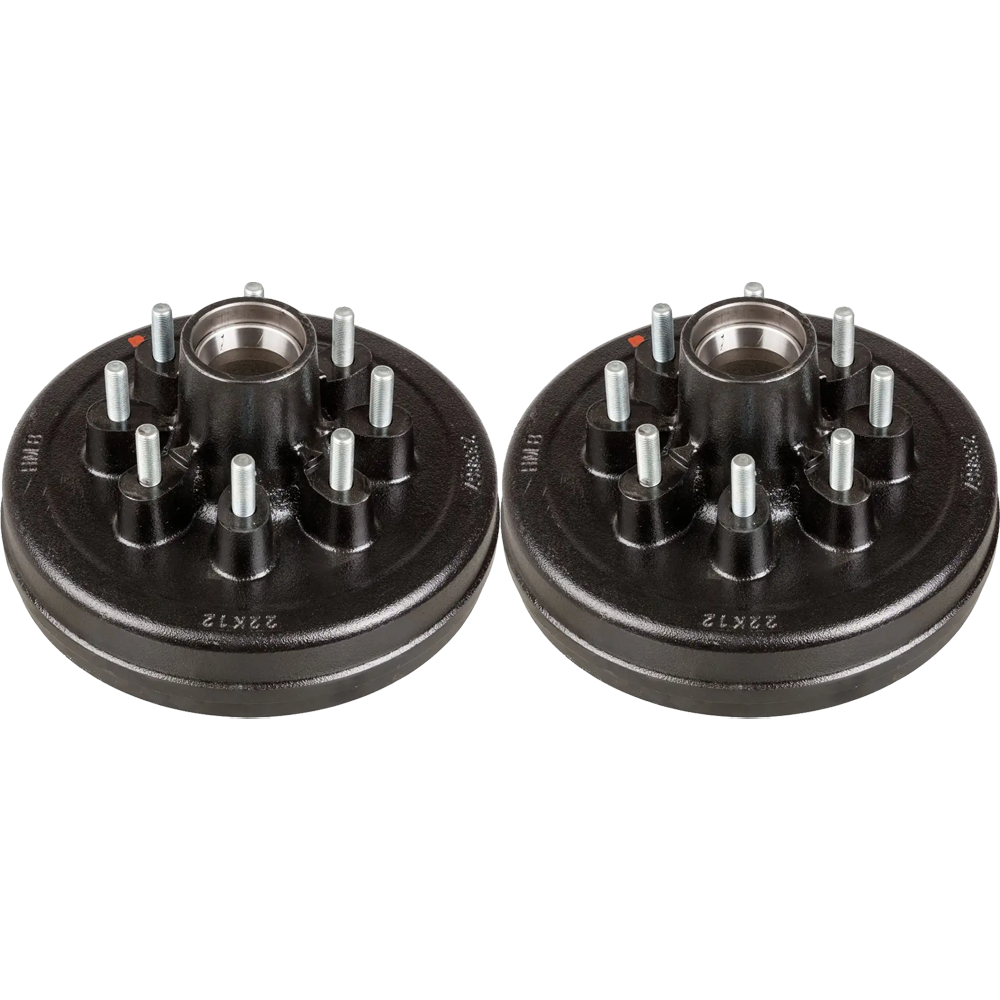

• QTY (2): 12" Bare Brake Drum Hub – 7K, 8‑on‑6.5" Pattern, 9/16" Studs
  • Hub only – bearings, grease seal & hardware sold separately
  • Integrated 12" drum, rated 7,000 lbs
  • 8‑lug on 6.5" bolt circle with heavy‑duty 9/16" studs
  • Matches 16" – 17.5" wheels
  • Lippert tested for universal compatibility

Verify your existing axle’s label, mounting pattern, and wheel size before ordering. Inspect brake linings, bearings, and seals regularly for safe, reliable towing.
