Lippert 7K Standard / 8K Hybrid Quad‑Axle 12" Brake & Threaded Hybrid Hub‑Drum Kit – 8‑on‑6.5, 9/16" Studs

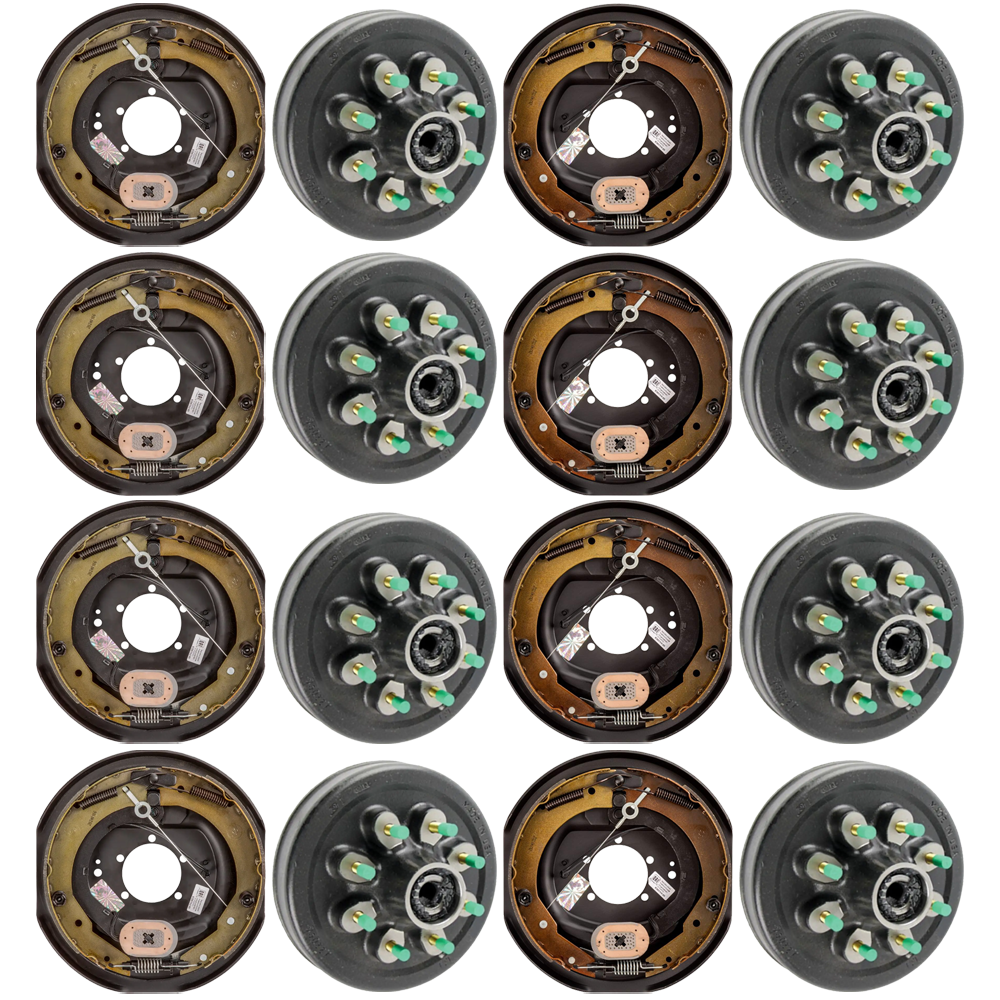

This all‑inclusive Lippert bundle equips four heavy‑duty axles with forward self‑adjusting 12‑inch electric brakes and eight grease‑packed threaded hybrid hub‑drums. The brake assemblies are rated for up to 7,000 lbs on conventional axles and approved for 8,000‑lb hybrid axles when paired with the included hubs—delivering true 8K performance on hybrid applications while remaining a reliable 7K solution on standard axles.
Bundle Contents:
-

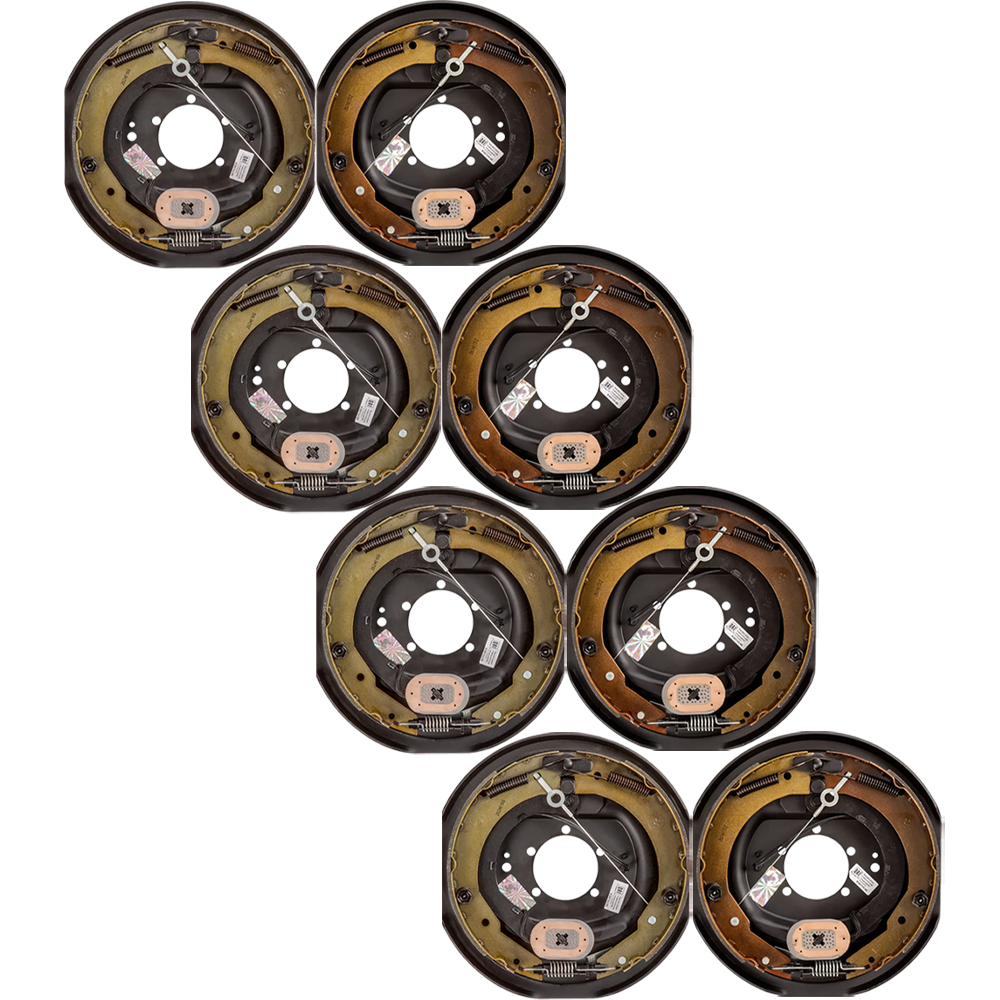

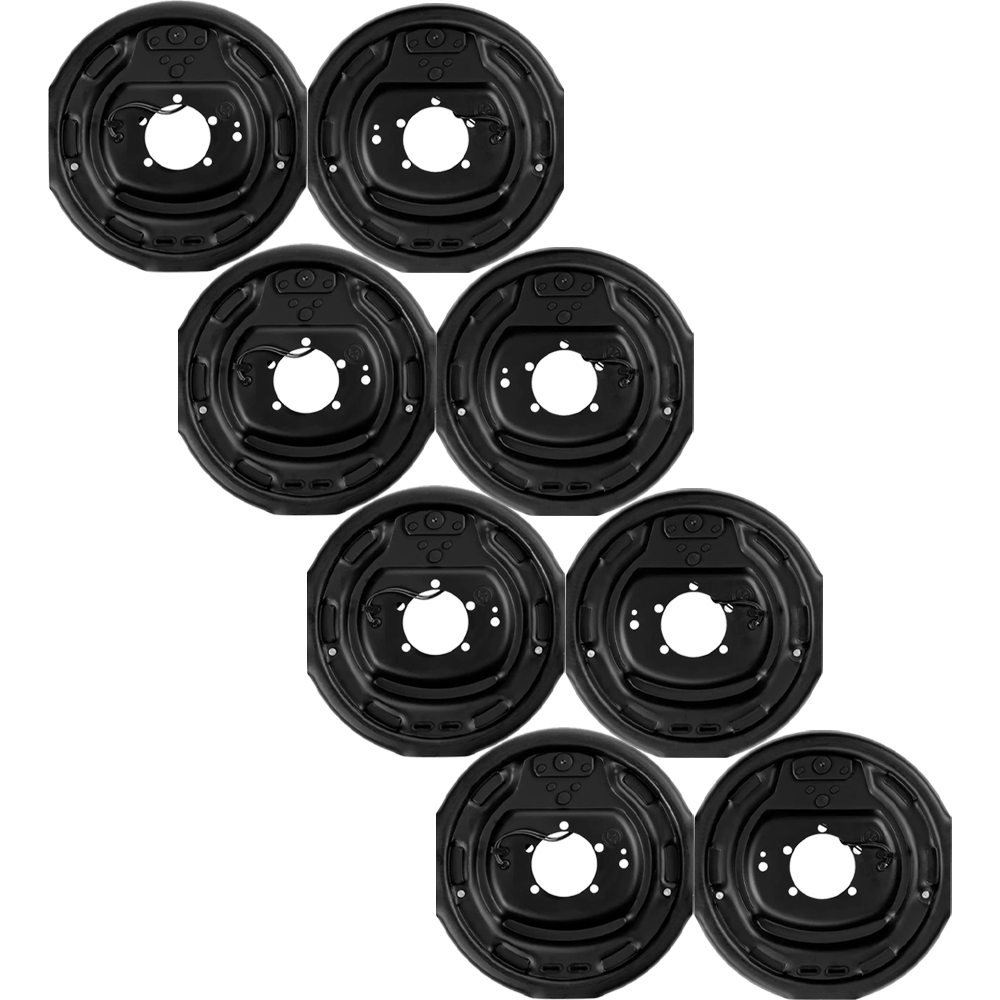

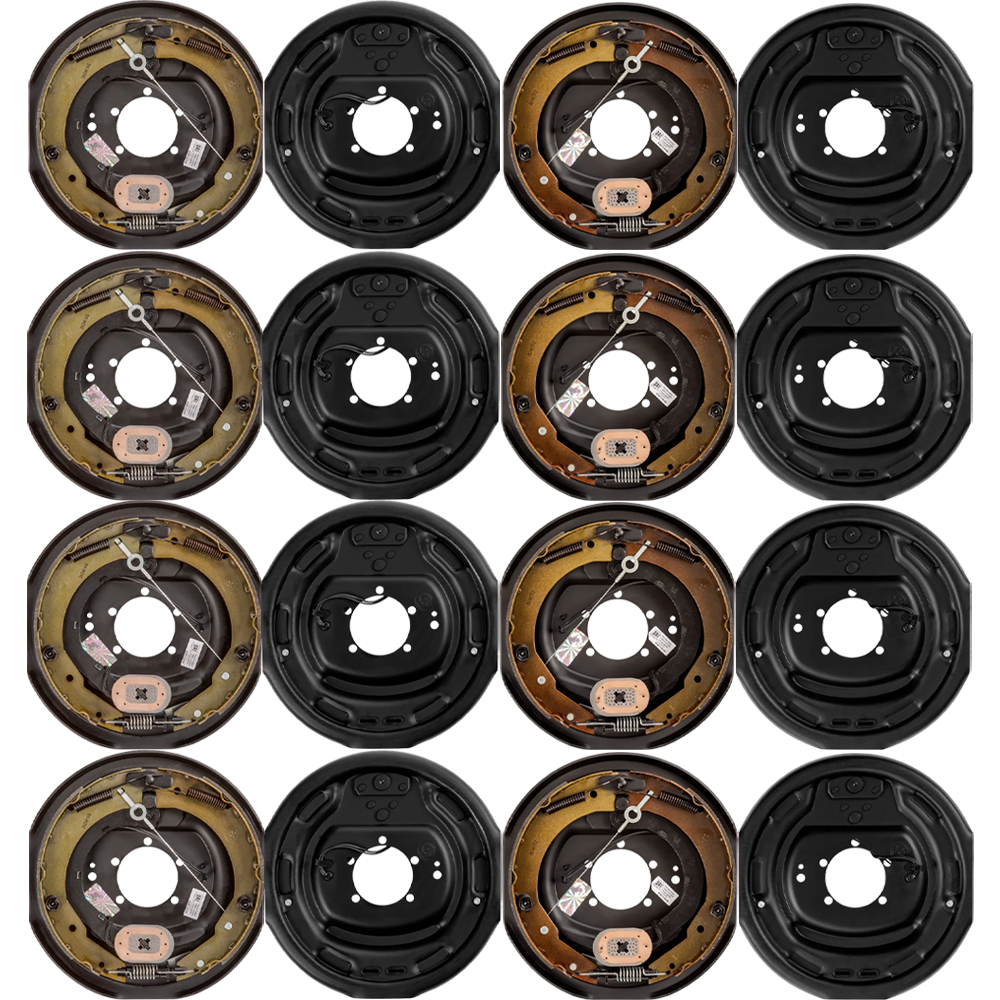

QTY (4): Lippert Forward Self‑Adjusting Brake Assembly – 12" × 2", 7,000 lbs (Left)
- Replacement electric brake – road side
- Fits 15"–17.5" wheels
- Brake size: 12" × 2"
- For 5,200–7,000‑lb & 8,000‑lb hybrid axles
- Five‑bolt mounting pattern
- Forward self‑adjusting design
- Easy DIY installation • 1‑year Lippert warranty
- Dexter compatible PN: K23‑464‑00 | 023‑464‑00
-
QTY (4): Lippert Forward Self‑Adjusting Brake Assembly – 12" × 2", 7,000 lbs (Right)
- Replacement electric brake – curb side
- Fits 15"–17.5" wheels
- Brake size: 12" × 2"
- For 5,200–7,000‑lb & 8,000‑lb hybrid axles
- Five‑bolt mounting pattern
- Forward self‑adjusting design
- DIY‑friendly installation • 1‑year Lippert warranty
- Dexter compatible PN: K23‑465‑00 | 023‑465‑00
-

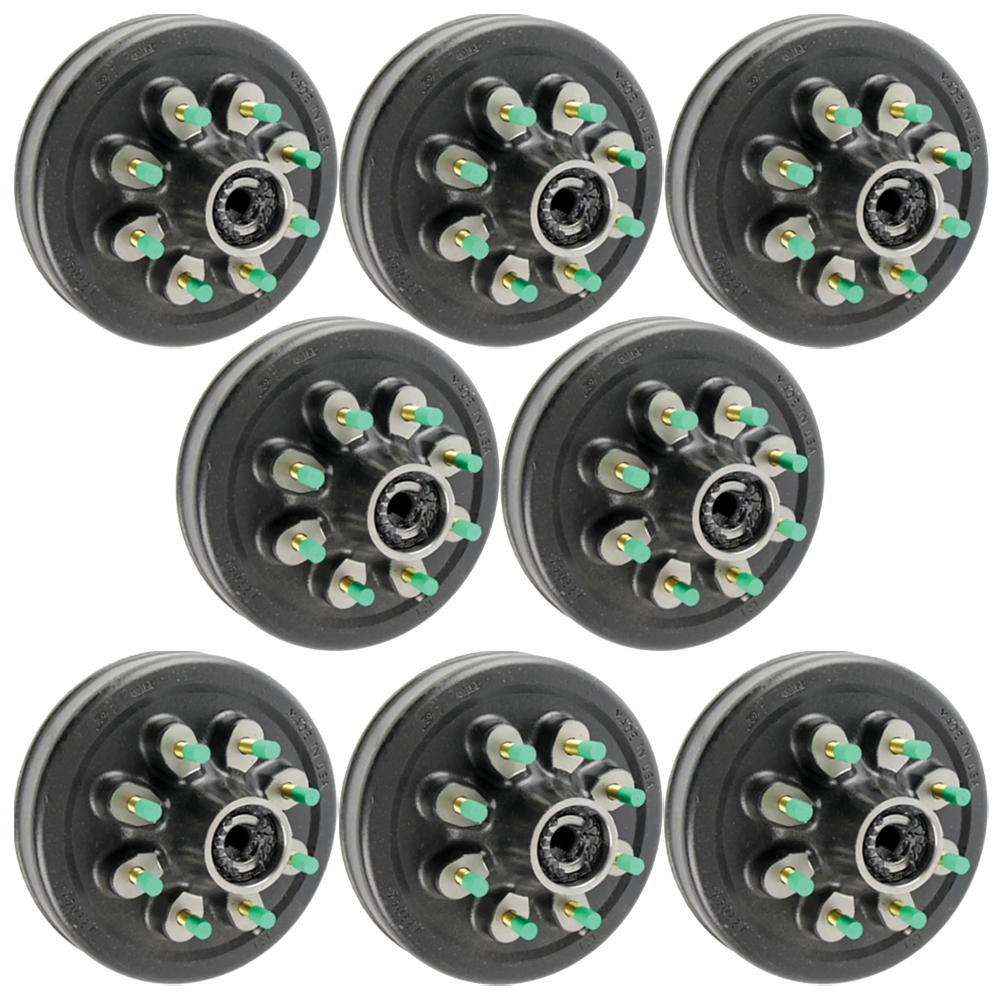

QTY (8): Threaded Hybrid Trailer Brake Hub‑Drum – 8,000 lbs, 8‑on‑6.5", 9/16" Studs
- Grease‑packed & ready to install
- Races & wheel studs come pre‑installed
- Accepts electric or hydraulic drum brakes
- Valcrum threaded dust‑cap compatible
- Durable cast‑iron construction • 1‑year warranty
- Wheel size range: 16"–17.5"
- Genuine Lippert replacement part
Always verify axle rating, bolt pattern, and stud size before purchase, and perform routine brake & bearing maintenance for the safest towing experience.
| Specifications: | |
|---|---|
| Kit Type | Complete Threaded Hybrid Brake & Hub‑Drum Kit |
| Axle Rating | 7,000 lbs (standard) • 8,000 lbs (hybrid axles) |
| Brake Drum Dimensions | 12" × 2" |
| Brake Mounting Pattern | Five‑bolt (brake assemblies) |
| Hub Bolt Pattern | 8‑on‑6‑1/2" |
| Hub Type | Grease‑Packed Threaded Hybrid Hub with Integrated Drum |
| Stud Size | 9/16" |
| Type of Adjustment | Forward Self‑Adjusting |
| Brake Location | Left (road) & Right (curb) assemblies |
| Wheel Size Compatibility | Brakes: 15"–17.5" • Hubs: 16"–17.5" |
