Lippert 7K (Standard) / 8K Hybrid Tandem-Axle 12? Self-Adjusting Brake & Grease-Packed Threaded Hybrid Hub-Drum Kit � 8-on-6.5? Pattern, 5/8? Studs (4-Wheel Set) � Dexter / Alko / Rockwell Compatible

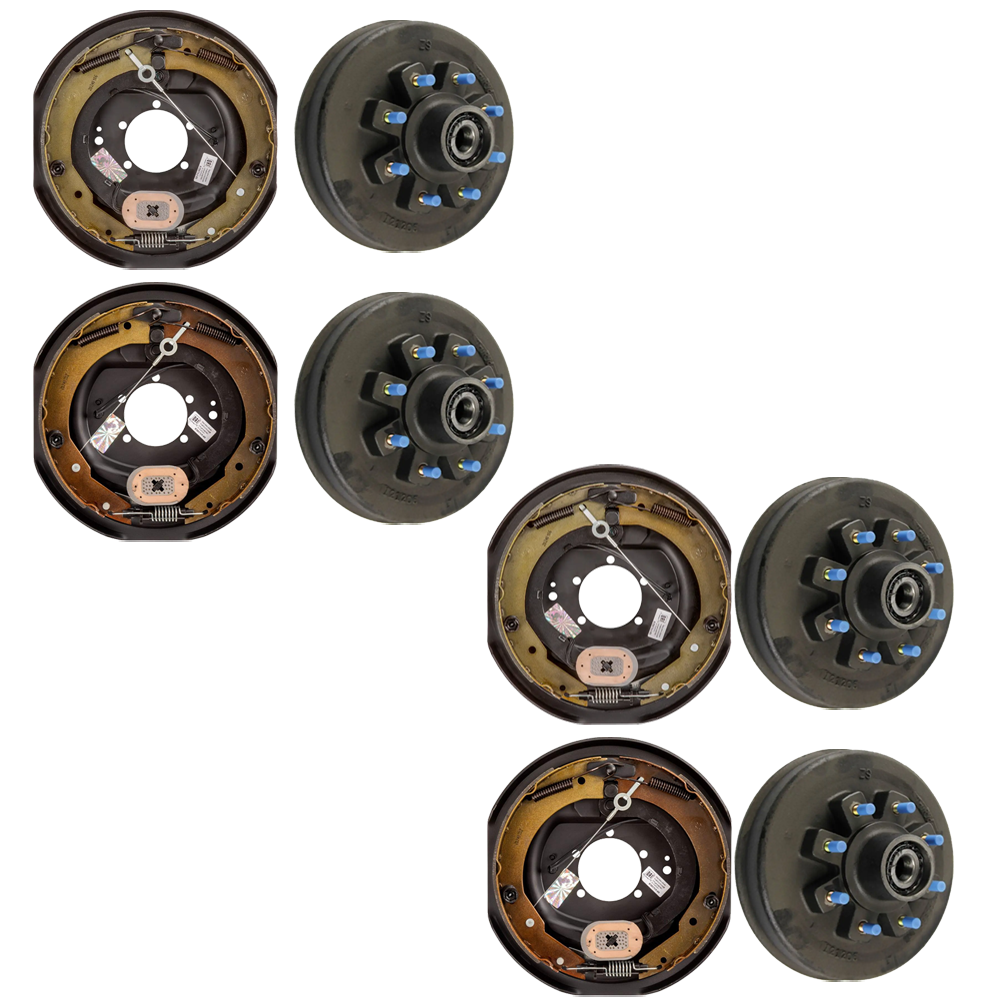

Lippert 7K / 8K Hybrid Tandem-Axle 12″ Brake & Threaded Hybrid Hub-Drum Bundle

Service or upgrade both axles on your heavy-duty trailer with this complete Lippert bundle. The kit mates forward self-adjusting 12″ electric brakes to grease-packed threaded hybrid hub-drums, giving you proven stopping power and simplified maintenance. It supports 7,000-lb standard axles and is also engineered for 8,000-lb “hybrid” axles that use 12″ × 2″ brakes—so you can tackle everything from equipment haulers to large RVs with confidence.

Bundle Contents:

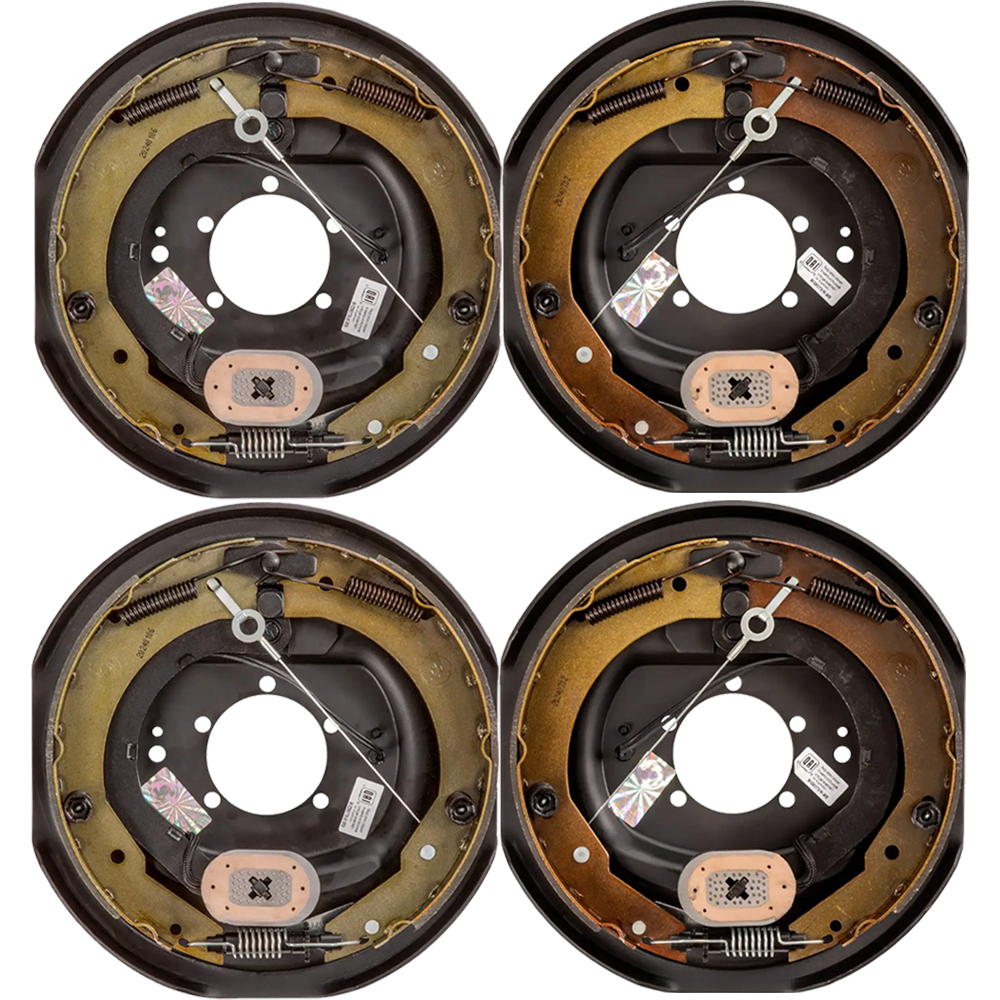

• QTY (2): Lippert Forward Self-Adjusting Brake Assembly – 12″ × 2″, 7,000 lbs (Left)
  • Road-side electric brake assembly
  • Self-adjusting for even wear & consistent braking
  • Fits 15″–17.5″ wheels, 12″ drums
  • Rated for 5,200–7,000-lb & 8K hybrid axles
  • Five-bolt mounting; 1-year warranty
  • Dexter Compatible PN: K23-464-00 / 023-464-00
• QTY (2): Lippert Forward Self-Adjusting Brake Assembly – 12″ × 2″, 7,000 lbs (Right)
  • Curb-side electric brake assembly
  • Self-adjusting for reliable performance
  • Fits 15″–17.5″ wheels, 12″ drums
  • Rated for 5,200–7,000-lb & 8K hybrid axles
  • Five-bolt mounting; 1-year warranty
  • Dexter Compatible PN: K23-465-00 / 023-465-00

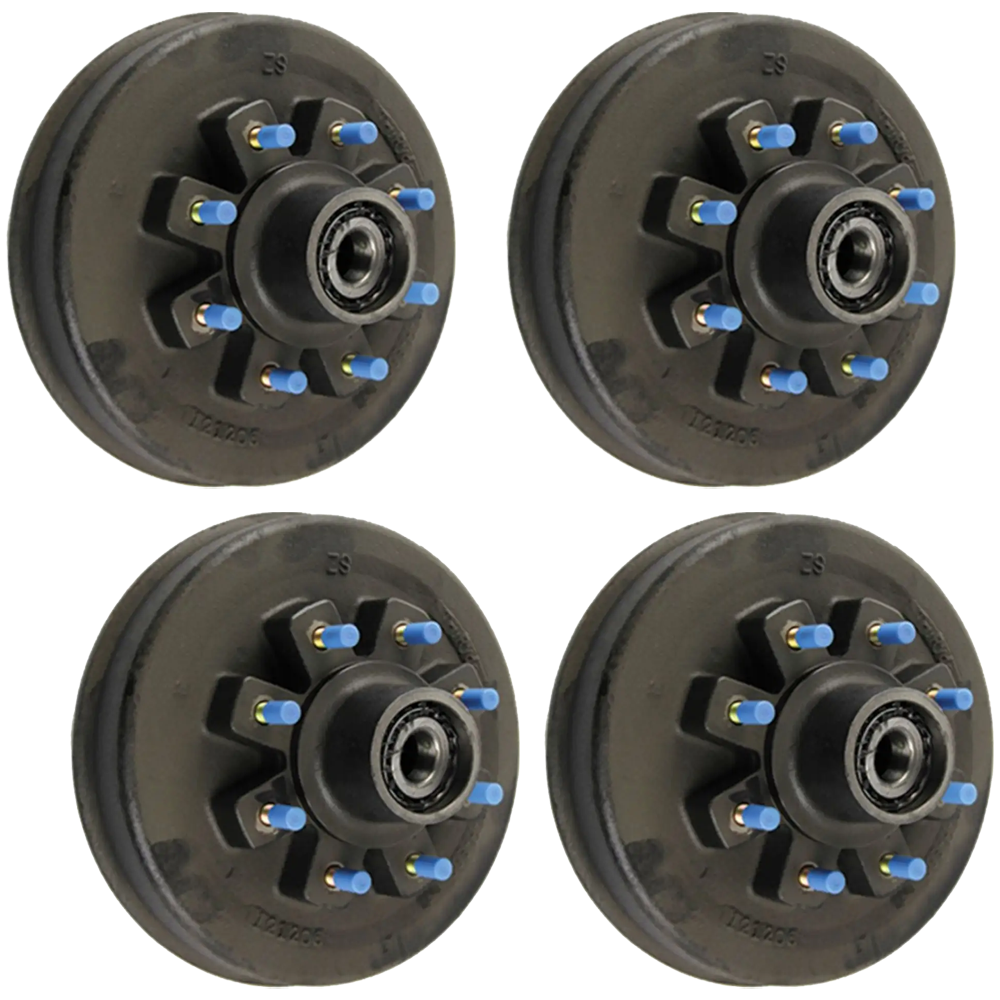

• QTY (4): Threaded Hybrid Trailer Brake Hub-Drum – 8,000 lbs, 8-on-6.5″, 5/8″ Studs
  • Grease-packed & ready to install
  • Races and wheel studs come pre-installed
  • Accepts electric or hydraulic drum brakes
  • Durable cast-iron construction; Valcrum dust-cap ready
  • Fits 17.5″ wheels; 1-year warranty

Always confirm bolt pattern, stud size, and brake flange before installation. Re-torque lug nuts after the first 50 miles and service bearings per manufacturer guidelines for optimal safety.
